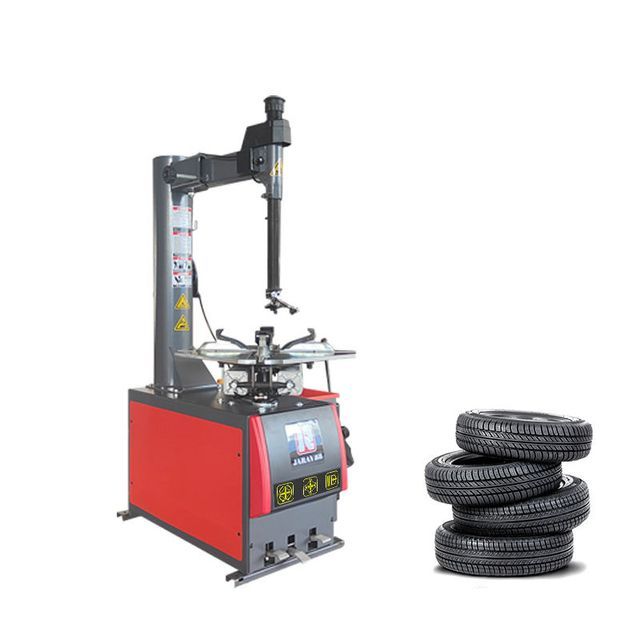

High quality fully automatic tire changer combined with automobile tire changer
- $434.96 / 1 - 9 sets
$409.37 / 10 - 99 sets
$298.50 / >=100 sets - 1 set
- Yingkou JARAY Machinery Co.,Ltd
- Liaoning, China
- Ms qian wei
PRODUCT DETAIL
Warranty: | 18 months | Motor Power: | 0.75/1.1KW |
color: | red gray | Internal clamping: | 12 inches-24 inches |
power supply: | 110/220/380/415 | Certification: | CE |
payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Place of origin: | Liaoning, China |
model: | F-586Pro | Package Size: | 1080mm*900mm*960mm |
Package preview: | External clamping: | 10 inches-22 inches | |
brand: | Jia Lei | product name: | tire changer |
Operating pressure: | 8-10 |
product name | tire changer | Product number | F-586Pro |
external clip | 10-20 days | inner clip | 12-24th |
Maximum wheel width | 450mm | Maximum wheel diameter | 1040mm |
Motor voltage | 220V/380V | Motor Power | 1.1kW/0.75kW |
work noise | <70dB | working pressure | 8-10 bar |
net weight | 210kg | gross weight | 240kg |

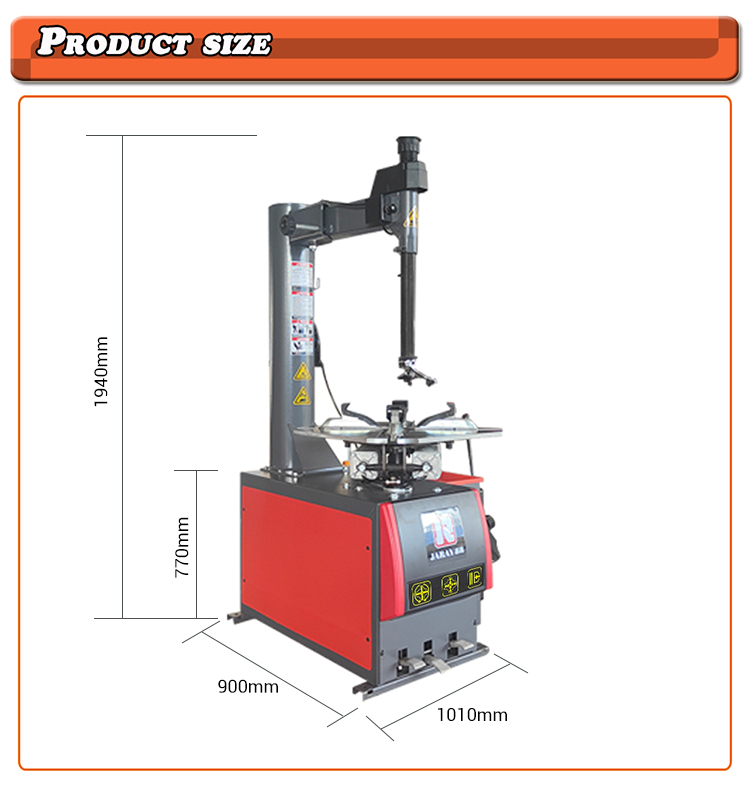

Equipment size | 1010mm×900mm×1940mm | Package Size | 1110mm×990mm×920mm |

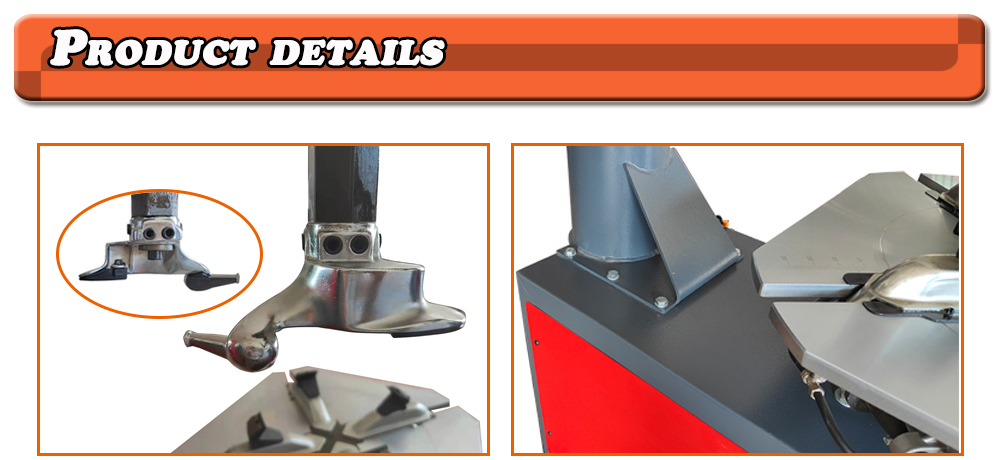

Professional tire changer disassembly and assembly head, made of carbon steel and special craftsmanship. Ensure the strength of the disassembly and assembly head.
The uprights of the box are positioned and connected to the box 6, and the upright support plate adopts a circular opening to better fit the circular upright and enhance the force contact area.
The rear end of the shovel bracket is lengthened to give the shovel a better force-bearing angle, and the storage box is extra large.

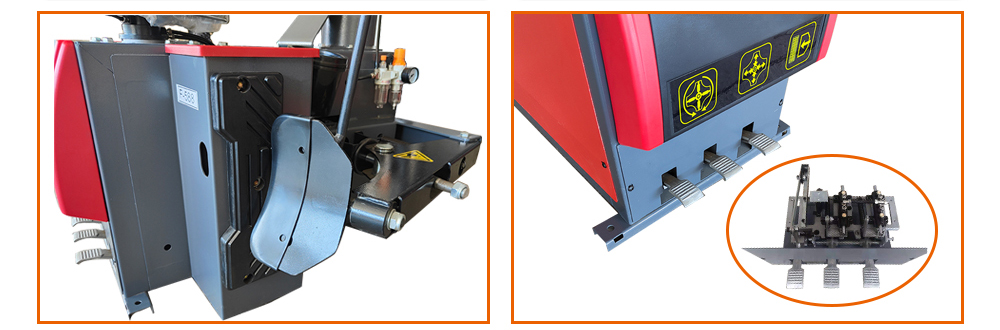

The all-aluminum foot pedal is rust-proof and durable, and the five-way valve is horizontally stressed to increase the service life of the valve body. All-metal joints ensure air tightness.
The finely processed work plate and anti-scratch blade design ensure smooth claw operation.
Carbon structural steel claws, wear-resistant and rust-proof. The angle is reasonable and suitable for the bending degree of the wheel hub. Whether it is inner support or outer clamp, the wheel hub will be firmly fixed.
The cylinder adopts a special cylinder to ensure the roundness of the cylinder. Thicken the phosphating cylinder tie rod to increase the pulling force.

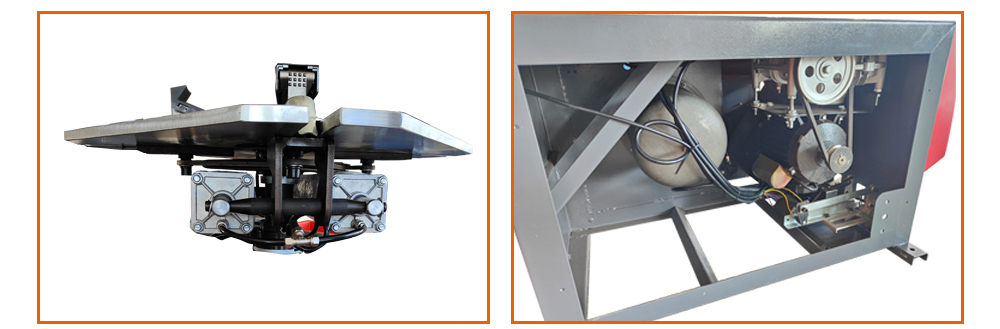

Reinforced triangular iron is used instead of the bottom plate, which has stronger support and stable structure. The metal joints of the whole machine ensure air tightness.
Random Accessories

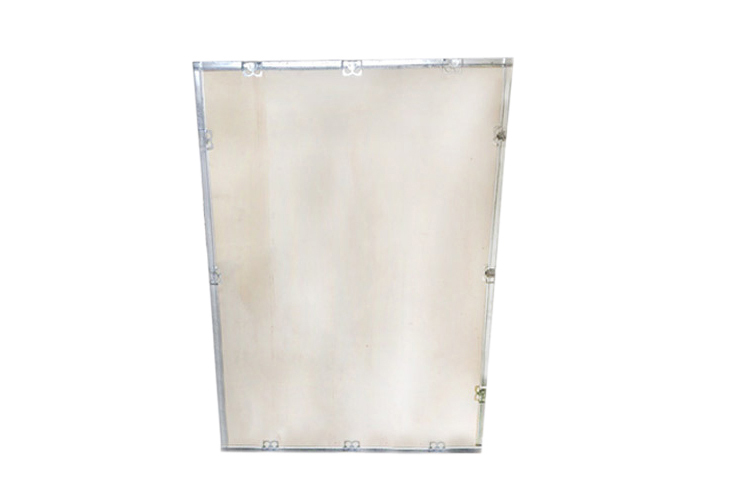

Packaging box style
