High quality heating element Thick layer heating element stainless steel tube Water heating element
- $8.38 / 5000 - 9999 pieces
$7.96 / >=10000 pieces - 5000 pieces
- Shenzhen Guangmai Technology Co., Ltd.
- Guangdong, China
- Mr Rock yu
| model: | H-R2 | Substrate: | Stainless steel SUS443 |
| Warranty: | 1 year | Voltage: | 220V/120V/24V/12V |
| brand: | HYXR | Energy source: | electrical |
| Packaging Details: | Carton | place of origin; place of origin: | Guangdong, China |
| Ground resistance: | Greater than 50MΩ | port: | Shenzhen Guangzhou Shanghai Xiamen |
| Service life: | Over 6,000 hours | Substrate thickness: | 2.0mm |
| payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram | application: | Auto, Commercial, Garage, Hotel, Home, Outdoor, RV |
| type: | Electric heater accessories | After-sales service provided: | Free spare parts |
| Power Density: | Greater than 60W/cm² | Dielectric strength: | Greater than 1500V/3s Less than 5mA |
| Leakage current: | less than 0.5mA | Thermal efficiency: | More than 97% (or supporting software) |
| Acceleration rate: | 150℃-300℃/s | Supply capacity: | 5000000 pieces/month |

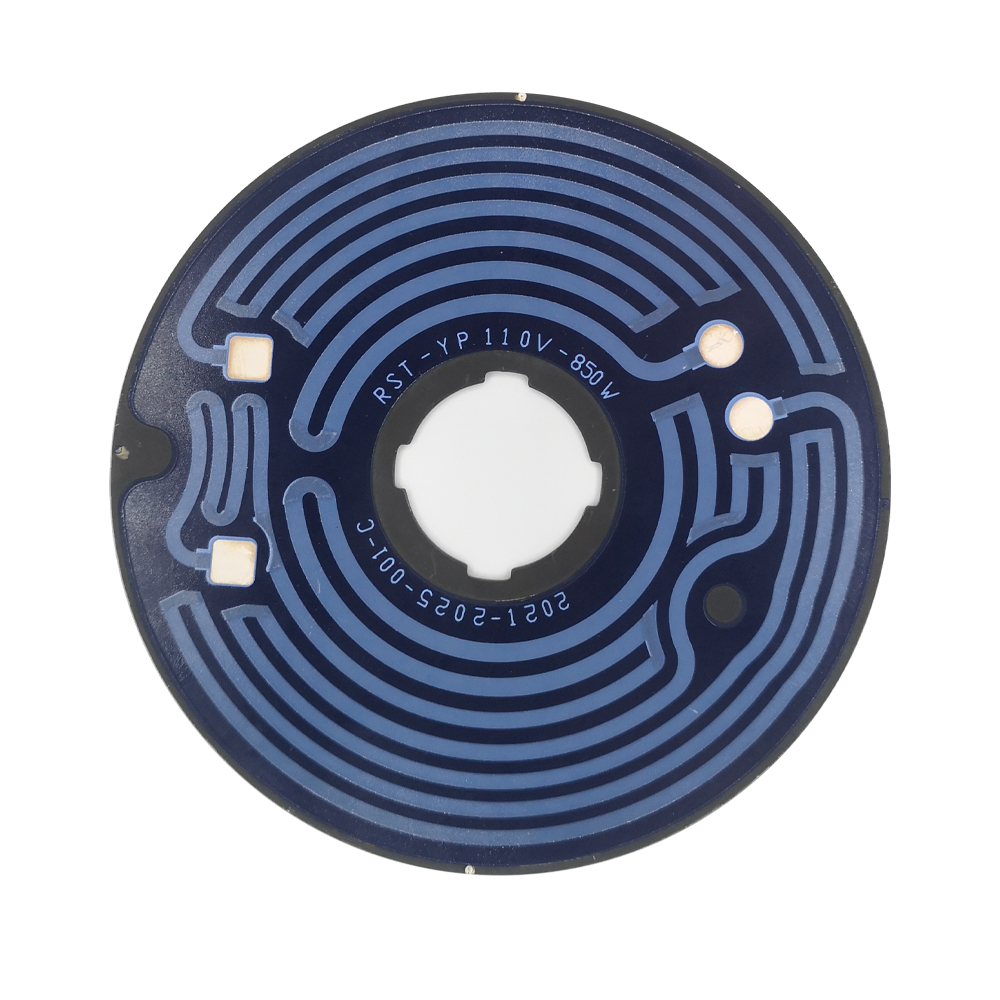

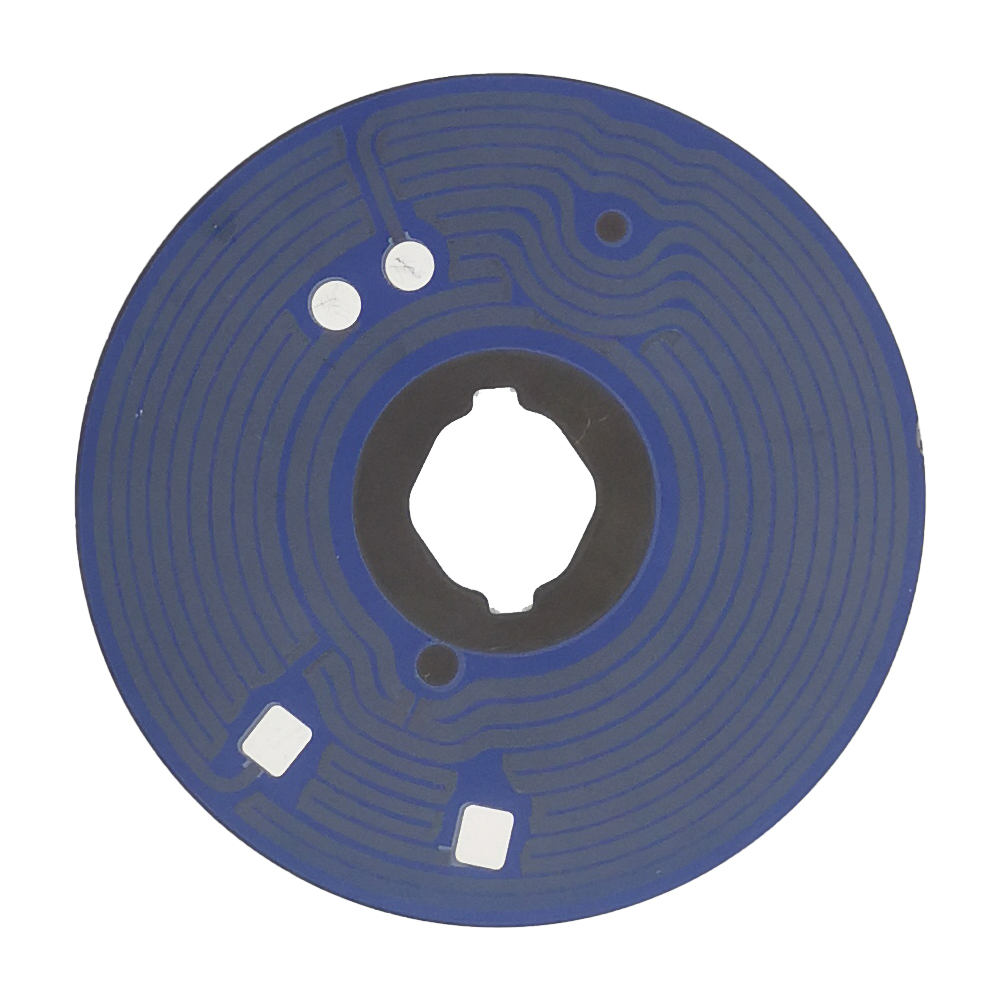

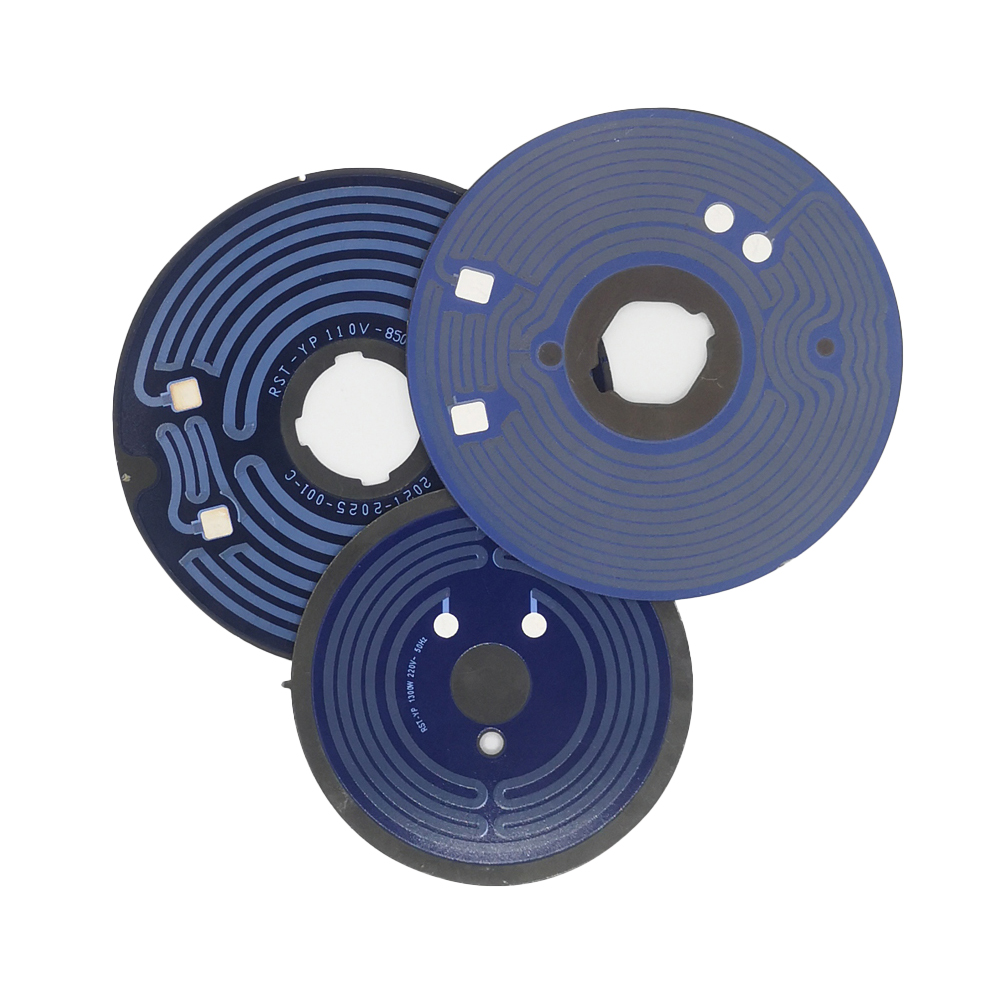

High Quality Heating Element Stainless Steel Tube Thick Film Water Heating Element
Product details
| Voltage | 220V/120V/24V/12V |
| substrate | Stainless steel SUS443 |
| Substrate thickness | 2.0mm |
| acceleration rate | 150℃-300℃/s |
| power density | Greater than 60W/cm² |
| Dielectric strength | Greater than 1500V/3s Less than 5mA |
| leakage current | less than 0.5mA |
| ground resistance | Greater than 50MΩ |
| Thermal efficiency | More than 97% (or supporting software) |
| service life | Over 6,000 hours |
| Product Keywords | Thick Film Water Heating Element Tube |
When you have any order, please provide at least the following information:
1. Use voltage (V) and frequency (Hz)
2. Demand requires power. (watt)
3. Heating tube material (copper or stainless steel or iron)
4. It will be better if you have the size chart or product pictures or samples in your hand, which helps to calculate the price accurately.

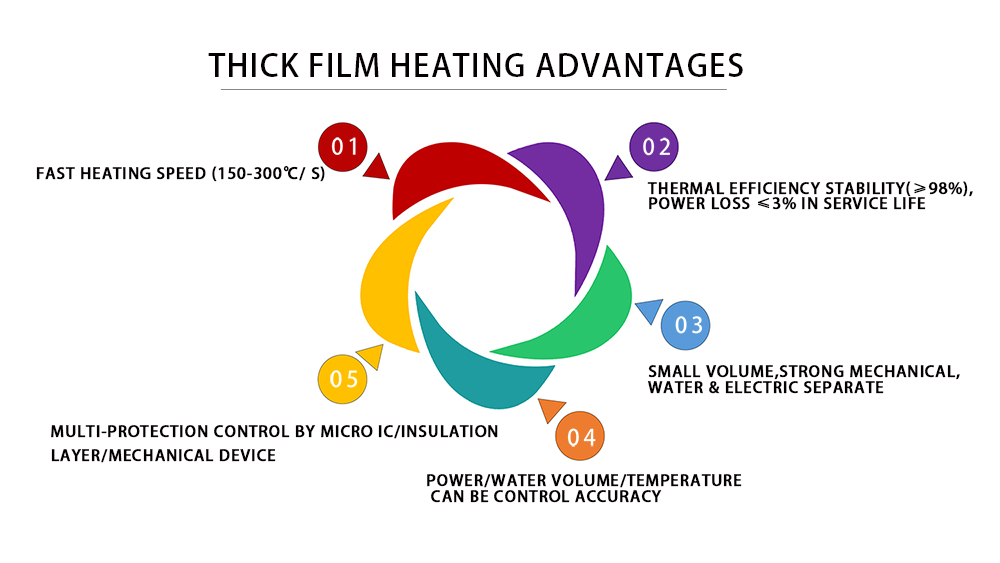

feature:
1. The temperature rises quickly and the temperature fluctuation is small.
2. The technology is mature. The yield rate reaches 97%.
3. New non-metallic materials suitable for bonding stainless steel plates are used, which are reliable, stable, lead-free and non-toxic.
4. Using special electroplating material, strong corrosion resistance, easy to clean. It is polished for an elegant look.
5. Using spraying technology, the paste integrates a hard and dense circuit layer. After three-layer sintering (850 ℃), it is not easy to scratch and fall off, and has a long service life.
6. It is directly welded on the stainless steel plate, which is easy to install and the connection device is safe and stable.
7. Adopt double-sheet metal patent technology for stable control, with a service life of more than 100,000 times.
Heating technology comparison table
| thermal technology | traditional heat pipe heating | PTC element heating | Ceramic substrate heater | Thick film heating |
| Material | alloy | extrinsic semiconductor | Thick Film Resistors | Thick Film Circuits |
| Production Process | Calendar stretch | Hybrid sintering | Printing and Sintering | Printing and Sintering |
| service life | 1500H | 2000H | 3000H | 10000H |
| Thermal efficiency | 57% | 70% | 75% | 97% |
| leakage current | simple | simple | simple | Hydropower separation |
| Warm start speed | slow down | Fast | Fast | quickly |
| power stability | bad | lost heavily | no loss | no loss |
| Low voltage start | Unable to start | bad | better one | better one |
| shockproof | not good | not good | not good | OK |
| power density | 15W/cm² | 15W/cm² | 20W/cm² | 60W/cm² |
Contact information:
WeChat: 86-13316850545
Skype: Erictaohb
WeChat: 86-13926508401
Mobile: 86-13316850545/13926508401
application:
1. Catering service equipment
2. Semiconductor heater
3. Laboratory and medical equipment
4. Industrial hot plate
Purchase process:
Sample specification confirmation → quotation → order confirmation → payment arrangement → sample production → sample testing and confirmation → formal order confirmation → production → delivery
