High-quality high-speed warping machine/slit warping machine/slit warping machinery
- $1.00 /set
- 1 set
- Qingdao Hongyuxing Machinery Co., Ltd.
- Shandong, China
- Mr Daniel Xing
| port: | Qingdao | Certification: | International Organization for Standardization |
| Model: | HYXZ-230 | Material Capability: | yarn |
| place of origin; place of origin: | Shandong China | brand: | Hong Yuxing |
| Name: | warping machine | Type of machine: | warping machine |
| payment terms: | wire transfer | Packaging Details: | Standard export packaging |
| model: | HYXZ-230 | Supply capacity: | 300 sets per month |
| application: | Preparation of the loom | product: | warping machine |
| Health status: | new | After-sales service provided: | Engineers can repair machinery overseas |
Specification

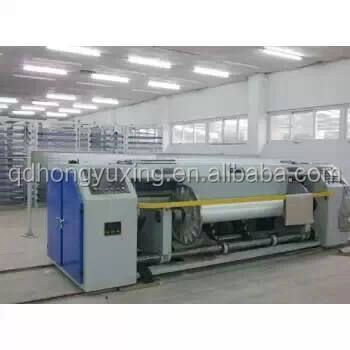

This slitting warping machine is a preparatory machine for weaving lines and can be used with various looms.
The main technical parameters
(1) Working width 1500-3600mm (according to your requirements)
(2) Beam diameter φ800-1000mm
(3) Warping speed 0~1000m/min
(4) winding density deviation ≤ 0.002 g/cm3
(5) winding density resolution 0.001 g/cm3
(6) Deviation of warped count ≤0.05%
(7) Reed traverse speed 0~2.5mm/r (beam)
(8) Reed stroke range 0~20mm
(9) Number of creel spindles 8 layers 800 spindles (according to your request)
(10) Spacing 300×300mm (according to your requirements)
main electrical equipment
Display 10.4-inch color touch screen (Delta)
Inverter Delta VFD-B 15Kw
Pneumatic loading and unloading beam
Safety protection: After loading the beam, the cylinder-driven clamping device locks the beam
Photoelectric protection infrared photoelectric device
Counting devices, rotary encoders and PLCs
Braking distance≤3m (when the speed is 500m/min)
Stop Motion Infrared Stop Motion Animation
Creel type pitch and spindle may be required.
1. High quality heavy duty machine with low vibration and low noise.
2. Super high efficiency and stability of the machine.
3. Excellent fabric weaving quality,Especially suitable for high-density, high-weight, ultra-fine fabrics
