High quality mineral fiber rock wool fiber for break mats and liners

PRODUCT DETAIL
Mineral fiber pellet content:<2%work:rock wool
Mineral Fiber Bulk Density:0.30 m²/gbrand:hataita
Mineral Fiber LOI:<3%payment terms:letter of credit, wire transfer
car brand:all typesMineral Fiber Color:celadon, growth, green
port:Shanghai/Ningbo/Qingdaoaspect:10
Mineral Fiber Material:Basaltmodel:REK-7SE
Supply capacity:1000 tons/monthapplication:refractory
Product Category:trippedMineral Fiber Diameter:7.5 microns
type:brake padsPackaging Details:A) PP Woven Plastic Bag: Net Weight: 25.00kg, Gross Weight: 25.20kg B) Big Bag: Net Weight: 1000.00kg, Gross Weight: 1001.50kg
place of origin; place of origin:GuangdongPackaging Preview:

Premium Mineral Fibers for Breaking Pads and Liners

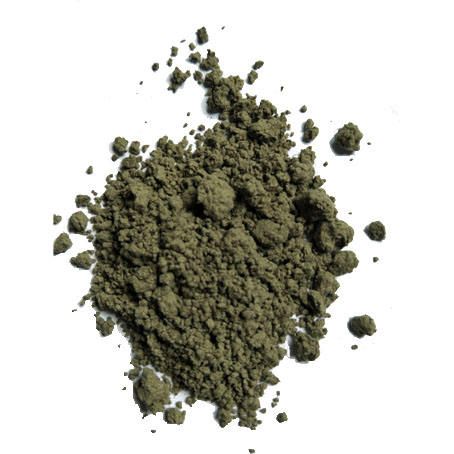

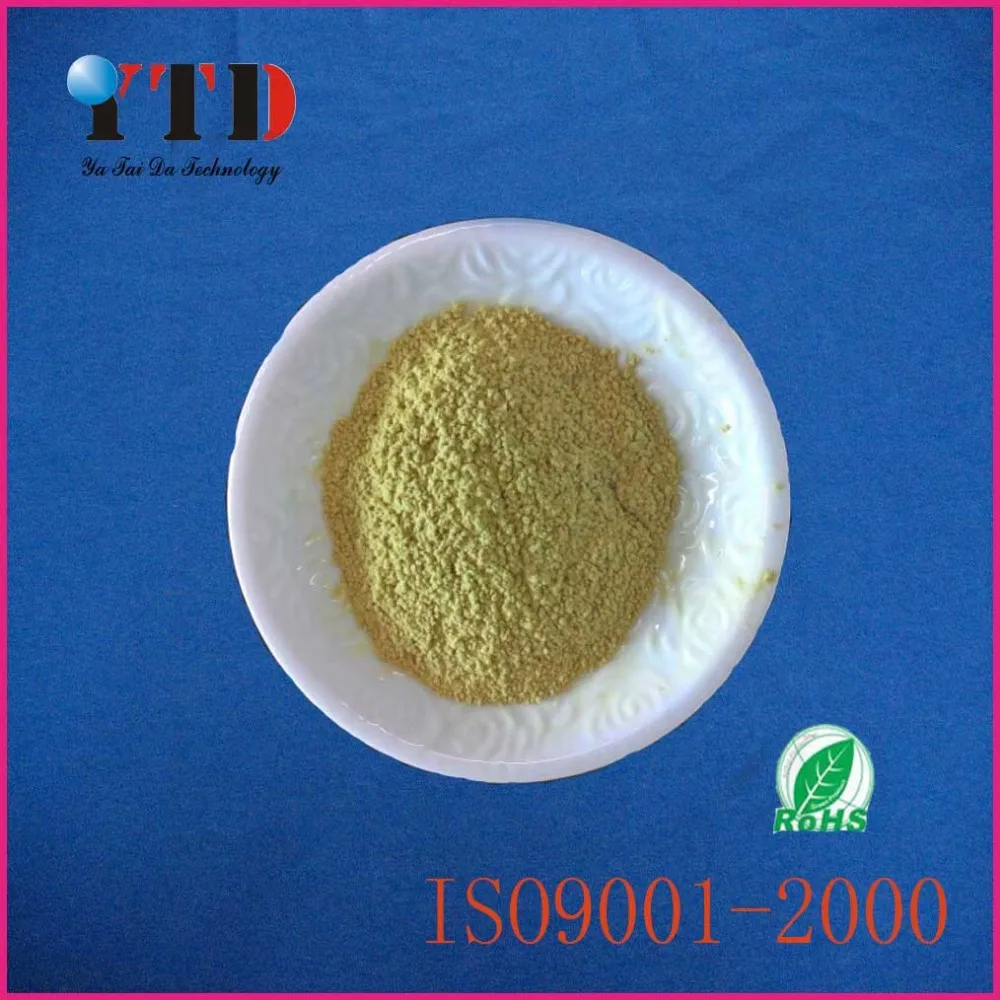

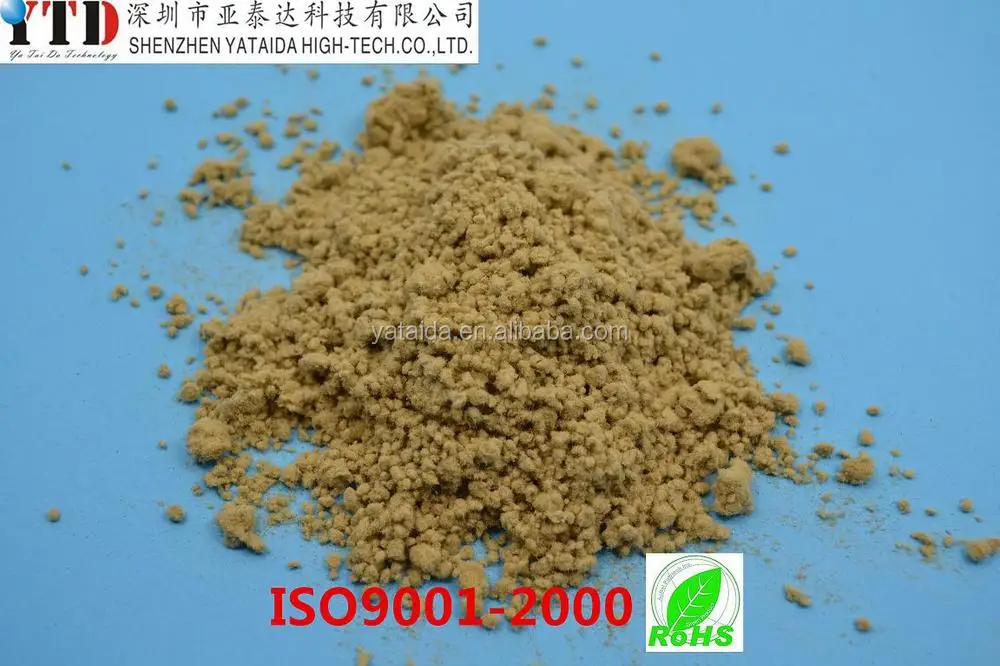

Mineral fibers are short fibers made from basalt and minerals through processes such as melting, spinning, resin coating, and breaking. Suitable for asbestos-free friction materials, especially for disc pads.







mineral fiberProduct advantages include:

1) The cost is low, which helps to greatly reduce the cost of non-asbestos friction materials.
2) Compared with glass fiber and wollastonite, it reduces the noise and vibration of friction materials and improves wear resistance

3) The lower melting point makes the resin-coated rock wool softer at high temperatures, reducing rotor wear and facilitating adhesion at high temperatures. Therefore, the wear resistance of the friction material at high temperature is improved.



4) It is an important substitute for asbestos in friction materials.



 mineral fiberREK-5SE/7SE Data Sheet



data

average/torrance

REK-7SE

REK-5SE



Shooting content

> 125 microns

av.2%wt

Maximum 4%wt

> 125 microns

Average 3%wt

Max.5%wt

Fiber diameter (mass wt. av.)

7.5 microns

7.5 microns

Fiber diameter (average)

3.5 microns

3.5 microns

Fiber length

230 ± 50 microns

230 ± 50 microns

Bulk density

0.30 m²/g

0.30 m²/g

Letter of Intent

maximum. 3% weight

maximum. 6.5% weight

moisture

maximum. 0.6% weight

maximum. 0.6% weight

color

Celadon

Celadon

hardness

6 Mohs

6 Mohs

Vickers hardness

645 N/mm²

645 N/mm²

melting point

> 1000℃

> 1000℃

density

2.55 ± 0.20 g/cm³

2.55 ± 0.20 g/cm³

silica

40%-45%

40%-45%

Alumina

14%-25%

14%-25%

calcium oxide + magnesium oxide

21%-25%

21%-25%

Iron oxide

4%-6%

4%-6%

K2O+Na2O

4%-5%

4%-5%

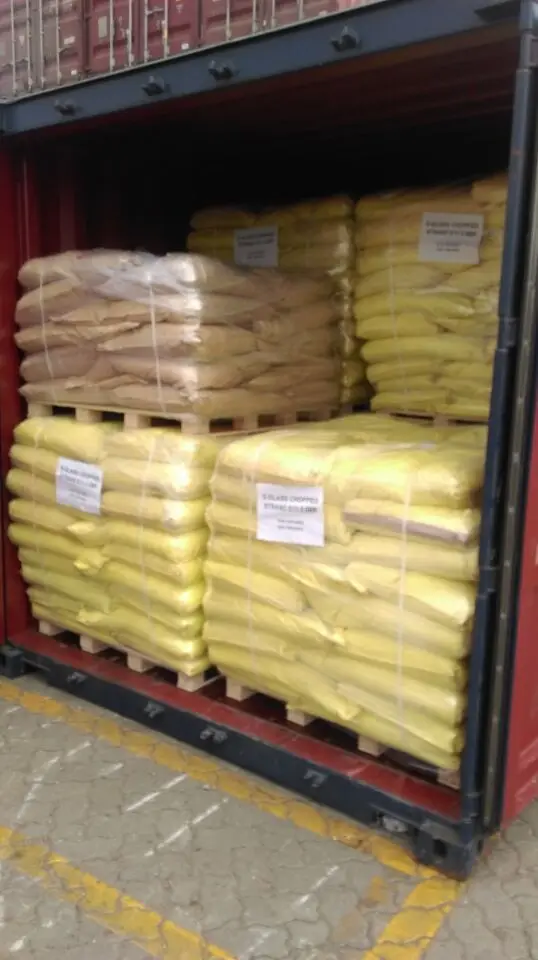

Mineral fiber packing:

1) The net weight of each paper plastic bag is 25KG,

2) Octabin per net weight 700-900kg, big bag per net weight 500-900kg. Package

3) Can be customized according to special requirements.

Why you should choose us:

  • We can guarantee you a very short delivery time (10-15 days)
  • We are manufacturer and can offer you direct price
  • We have over 10 years experience on this subject
  • We have good after-sales service
  • We have well-trained and experienced staff to answer all your enquiries
  • We have won a high reputation among our customers
  • Your business relationship with us will be kept confidential from any third parties.

About us and our projects

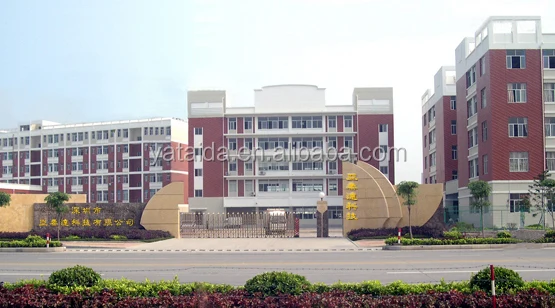

Shenzhen Yataida Hi-Tech Co., Ltd. is mainly engaged in alkali-free glass chopped strands and micropowder, pan fiber,

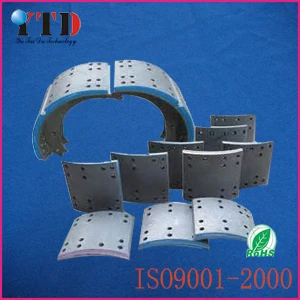

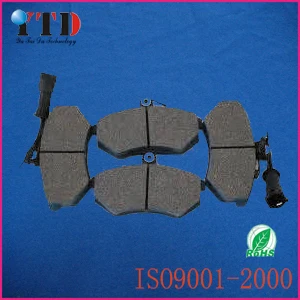

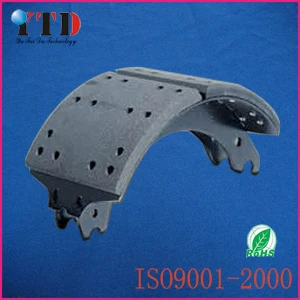

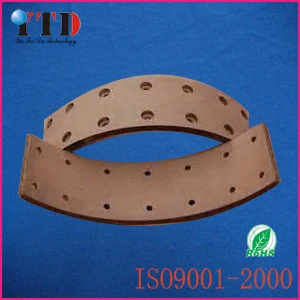

Ceramic fiber and rock wool for the past 8 years. These materials are used in car, truck and train brakes
Pad/liner and clutch face.



We have always been a well-known and popular company with an excellent track record of serving the best customers
satisfy. We believe in satisfying our customers and providing them with quality products and services
at very competitive prices. Our customers are the most important part of our business and we work tirelessly
To ensure your complete satisfaction now and as long as you are a customer. "



We have exported various types of these materials to southern United States, Germany, Argentina, Australia,
Turkey and other countries.



Please feel free to keep in touch with us regarding any of your business related requirements/enquiries.


Please note that we also specialize in providing services for promotions targeting current market trends.



We look forward to building great relationships and looking forward to success for all involved.







For more information about our company, please visit: www.ytdfiberglass.com
