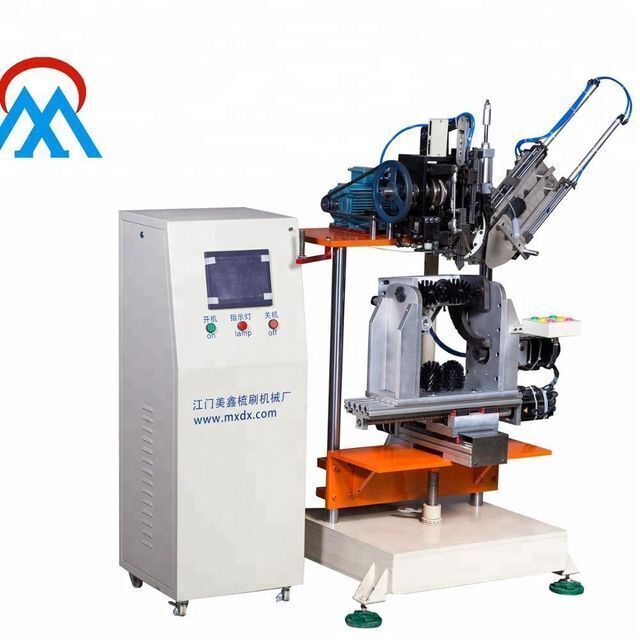

High speed CNC automatic high speed 4 axis long broom brush making machine

PRODUCT DETAIL
Port:Jiangmen;Certification:Patent Certificate,CE,Patent Certification;
Weight:about 800kg;Controller System:PLC(ADTECH CNC Control System);
Voltage:380VAC/220VAC,380VAC/220VAC;After-sales Service Provided:Engineers available to service machinery overseas;
Supply Ability:200 Sets per Month;Brand Name:Meixin;
Automatic Grade:Automatic;driving Motor:servo motor(Panasonic);
Stepless speed:Frequency converter using Delta inverter;Brake motor:Italy brake motor;
Power:3000W;Warranty:one year;
Payment Terms:L/C,D/A,T/T,Western Union,EXW;Packaging Detail:packing way:the first layer packed with thin film,the second covered with wooden box;
Application:for making long broom brush;Lubrication:TBI straight line guide rail;
Condition:New;Power(W):3KW;
driving screw:TBI ball screw;Production Capacity:6-7 pc/sed,about 1800pcs/10h;
Place of Origin:Guangdong, China;Dimension(L*W*H):1500*1200*1600mm(L*W*H);



Company Information



         Our factory is specialized in producing 2 to 5 axis single(double) colour brush machine,CNC tufting machine,CNC tufting and drilling machine,CNC drilling and tufting combination machine,filament trimming machine,filament cutting machine.Our products mainly are widely used in all kinds of brushes,for example:broom(plastic and wood)cleaning brush,electric toothbrush,travel toothbrush,cosmetic brush,nail polish brsh,industry roller brush,strip brush,round disc brush,dish washing brush,comb,massage brush,wooden brush,barbecue brush and so on.

Product Description



Machine paremeter
ItemModelMXtt01

1

axis4 axis
2Journey of Y axis300mm
Journey of  X axis 300mm
The swing angle of Z axis120°
The height of A axis300mm
3

Hole diameter

3.5-5mm
4fiber boxdouble or three colour
5Applicationto trim toilet brush
6The length of filament30-120mm
7Maximum Tufting Speed6-7 pc/ sed
8head motorItaly brake motor
9OrbitTBI original linear guide
10main power input380VAC/220VAC
11MAIN SPEED CONTROLFrequency control
12drive motorsevo motor
13wireflat wire
14net weightabout 1000kg



  • Machine spare parts:

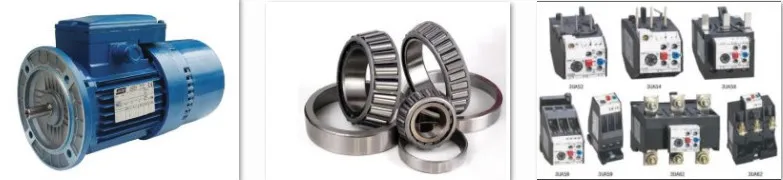

  • Italy brake motor
  • driving Motor: servo motor(Panasonic)

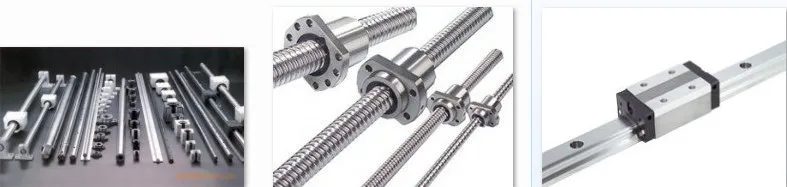

  • driving screw:TBI ball screw
  • Lubrication:TBI straight line guide rail
  • Japan bearing( IKO,BB15 and BB20)
  • Schneider low voltage electrical appliances
  • Stepless speed:Frequency converter using Delta inverter
  • PLC(ADTECH CNC Control System) Fiber box container:two or three colours




 Technical characteristics:
1.installed with one tufting motor head,high speeding processing,high volume,cost effective.
2.this machine can produce many different kinds of brushes or brooms which have different filling angles,by changing specifice platform
3.hole diameter:3mm to 8mm
4.filling by:round nails or flat nails
5.types of platform can be chosen,vertical angle of brushes
6.PLC and touch Panel Control System of Man-Machine,Chinese and  english display,simple to understand
7.allow to save as 2000 procedure and easy for the creation of new models
8.Wearing parts and spare parts are standardized designs to reduce hair mechanic technology dependence.

9. our machine can produce either one colour or two colours or three colours brush,and also drill or tuft separately





Wearing parts and spare parts are standardized designs









Installing and testing:



Our brush making machines:





We can make Many kinds of brushes series making machine :







Packaging & Shipping















Certificate Patent and CE

office:



Our Services

             In the warranty period(one year),we will send you one set of wear parts(for example:matching  tufting needles,hair mouth,hair pulling blade,cutting wire knife)

            If machine is broken,engineers is available to service overseas(but buyer has to our engineer round trip ticket fee,living and eating fee and pay our engineer daily salary)

            After warranty year,if the wear parts are broken,we can send new for you,but you paid the wear parts fee and shipping fee.







Looking forward to our coopertation in the early time!
