Highly Integrated Radar Camera Surveillance System for Perimeter Security of Prison, Jail

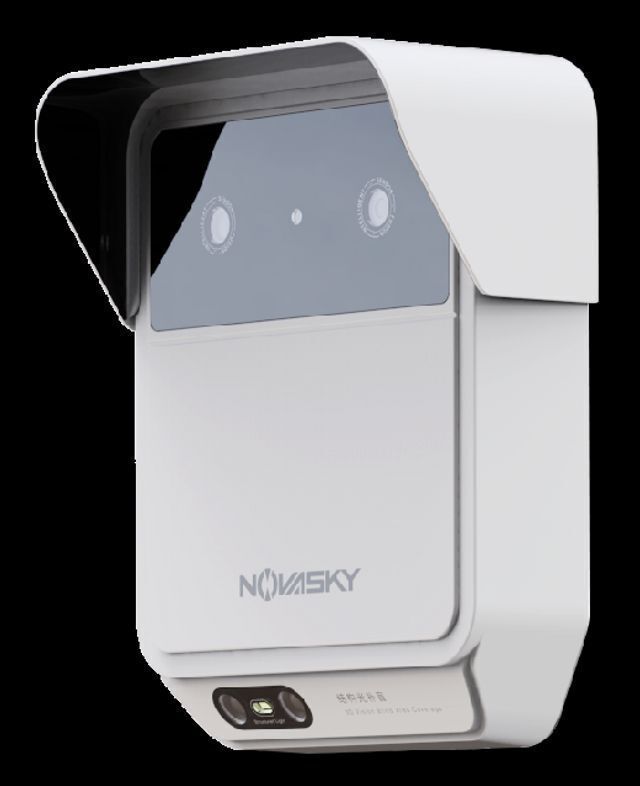

Intelligent multi sensor fusion perimeter security system NSR150VF, mainly consists of intelligent MMW detecting radar, long range IR camera and 3D vision blind area coverage module in an integrated structure.
This system is working based on the MMW detecting radar’s continuously scanning of the protection area,  integrating with edge AI deep learning algorithm, realized real time alarm and video tracking of the moving intrusion target in the protection area. It is able to intelligently recognize difffferent intrusion target like human and vehicle, fifiltering out false alarm like animal, trees, rain etc, and supporting unattended operation of perimeter control. It is widely used in high-end perimeter security area such as military, prison, power grid, railway, airport and so on.







Advantages of radar detection





Performance

Interference Factor

Vibration

sensor

Infrared

Correlation

sensor

Electronic

fence

Fiber

Optic Fence

CCTV

MMW

Security

Radar

Environment

Adaptability

Heavy Rain

×



×

×

Unintentional touch

×



×



Foreign body hanging on

×



×



Bird

×

×



×



Temperature



×



×



Air motion



×



×



Light



×





×

Snow



×







Thunder and lightning



×





Acid rain corrosion



×





Sun exposed aging



×





Other factors

Intruder cross in air

×



×

×



Insulation equipment



×

×



Detection Function

Real-time active detection and alarm



×

×

Fast target finding with accurate

position info

×



×

×

×

User-defined fitering zone

×

×

×

×

×



System features

Active 3D Protection

Radar video integration, active and three dimensionald security system without blind zone

Edge AI

Integrated with Edge AI deep learning algorithm, realized front end information processing

Multi-target Intelligent Recognition

Multi-target intelligent identifification, fifiltering out false alarm like animal, trees, rain etc

Multi Zone Alarms

According to the real scenario, defense zone is adjustable in the detection range

Easy Deployment

Multiple unit deployed in series connection, realized seamless protection in perimeter security

Strong Environment Adaptability

All-weather, 24/7, adapt to difffferent environment

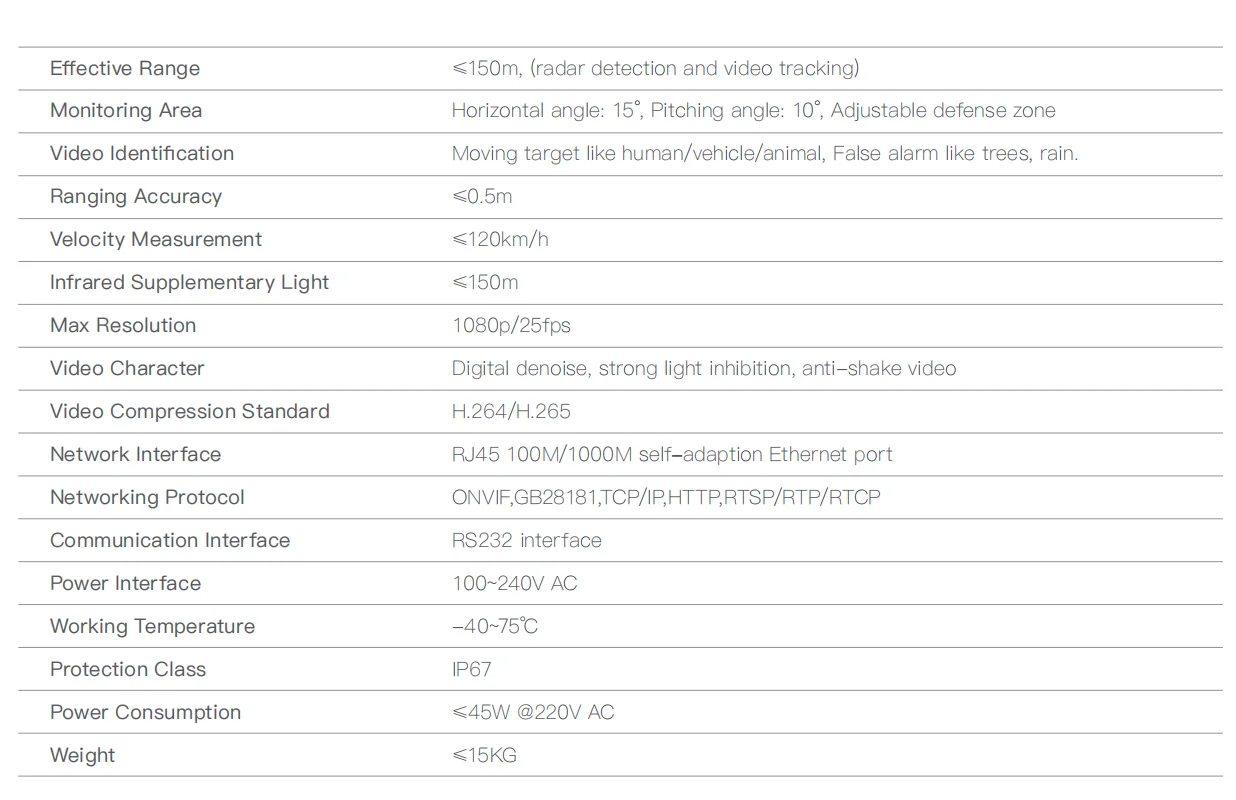

System Parameters

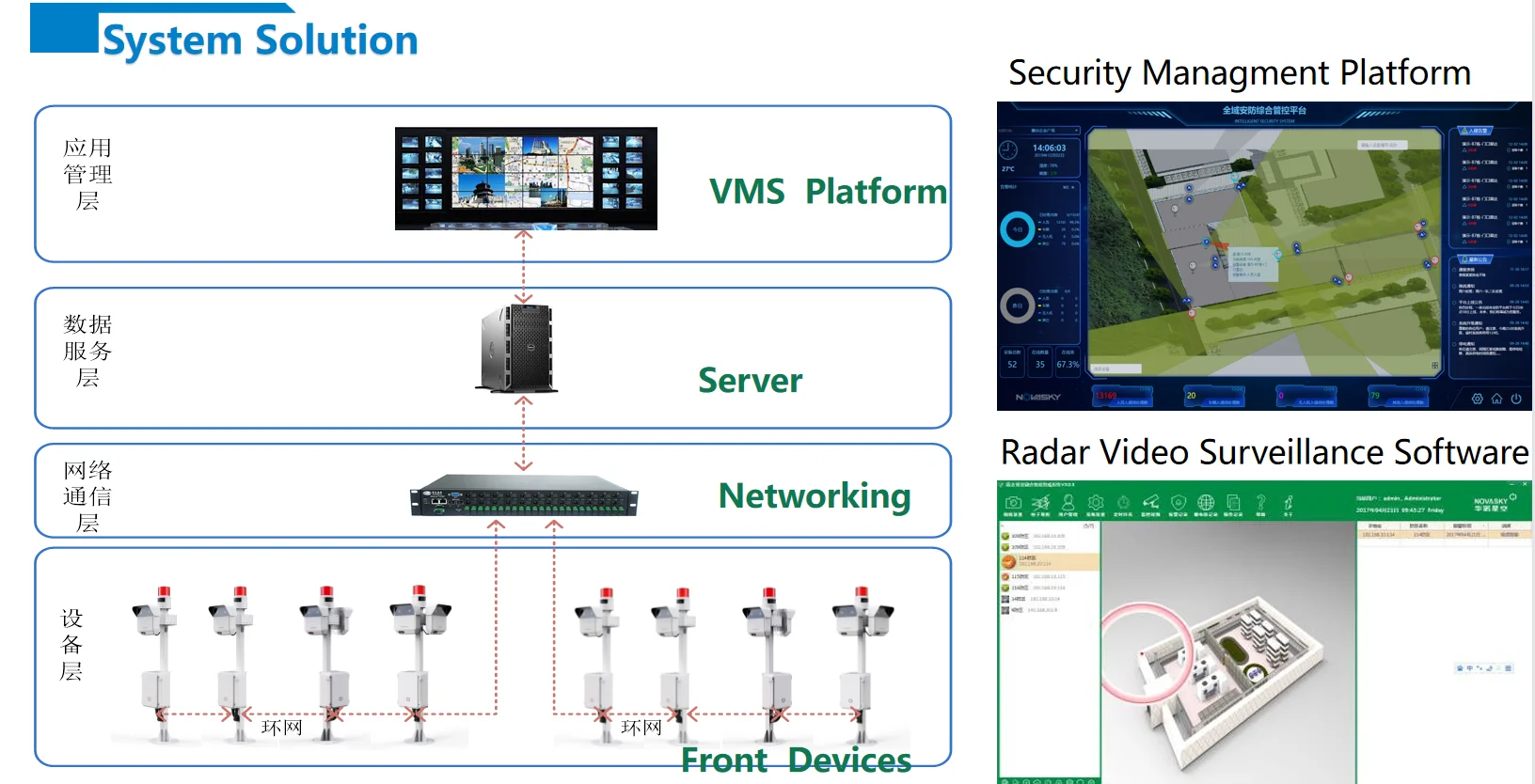

System Solution







Application

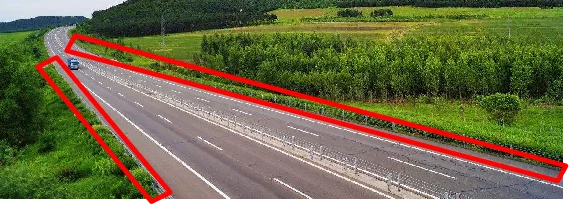

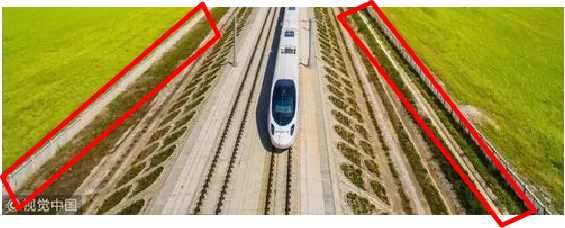

Perimeter radar application: for fense protection, livestock protection, residential perimeter, critical facility perimeter protection etc.





Shipping list:

The total package of NSR150VF includes as below:

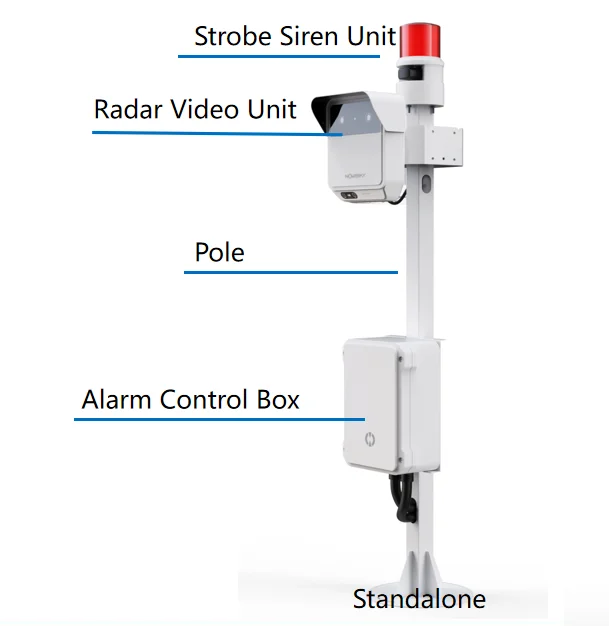

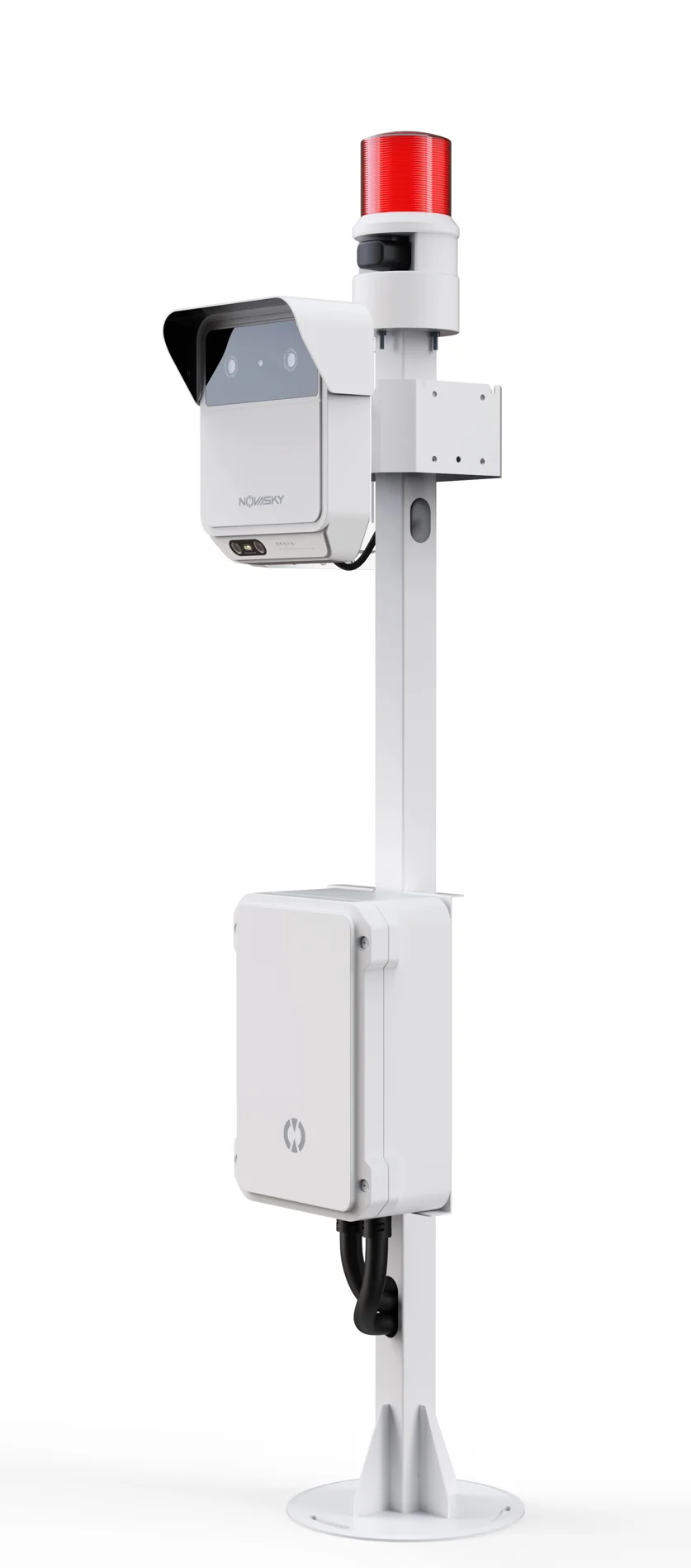

1. 1* radar camera module
2. 1* alarm unit
3. 1*Alarm control box
4. 1*radar bracket
