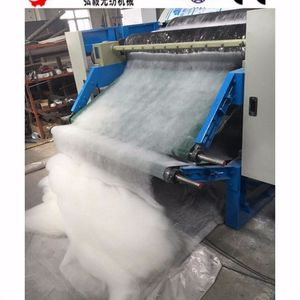

Hongyi-ISO9001 Changshu factory new wool carding machine
- $50000.00 /set
- 1 set
- Changshu Hongyi Nonwoven Machinery Co., Ltd.
- Jiangsu, China
- Mr zhengli Xue
| Raw materials: | 3-15D*38~90mm | Local service location: | not any |
| Packaging Details: | wooden box or nude | payment terms: | letter of credit, wire transfer |
| Certification: | CE/ISO9001 | Core components: | Bearings, motors |
| weight: | 800kg | Marketing Type: | normal product |
| capacity: | 80-300kg/hour | port: | Shanghai |
| Applicable industries: | manufacturing plant | brand: | Hongyi |
| Voltage: | 220V/380V | Dimensions (L*W*H): | custom made |
| After-sales service provided: | Engineers can repair machinery overseas | Mechanical test report: | Not available |
| Showroom location: | not any | Core Components Warranty: | 1 year |
| strength: | 20KW | width: | 1.85-2.5m |
| application: | Carded fiber or cotton | Video external inspection: | if |
| Warranty: | 1 year | place of origin; place of origin: | Jiangsu, China |
| Supply capacity: | 1 set per week | Health status: | new |
| After Warranty Service: | Video technical support, online support | Main selling point: | automatic |
| Auto grade: | automatic | Name: | wool carding machine |
Hongyi-ISO9001 Changshu factory new wool carding machine
Applications
Uses: This machine is used to open and comb various grades of cotton, cotton fibers and medium-length chemical fibers below 76mm to form a uniform fiber web
Principle: The fibers are fed into the feeding conveyor from the front feeding equipment (such as a pneumatic tuft feeder) to form a thicker fiber web, and then the fluff is fed into the chest tube by the feeding roller and yarn splicer, and then by the transfer roller. sent to the master cylinder. 8 pairs of carding units (working rollers and stripping rollers) are installed on the breast drum and the main drum for opening and carding the fibers. The fibers on the main drum are stripped to the top and bottom by the peeling roller after passing through the doffer roller and the concentrating roller. On the web conveyor, a uniform web is formed and fed to the next machine
.
payment terms | 30% as advance payment for TT 70% as balance paid before delivery by T/T or L/C |
delivery time | 90 working days after 30% advance payment. |
Shipping method | FOB Shanghai, CFR |
HS code | 84490090 |
Warranty | 12 months. |
Install | Installation and start-up will be under the supervision of Seller's technicians if requested by Buyer. Buyer is responsible for providing the necessary number of skilled tradesmen, helpers and electricians to assist in the entire installation and start-up. Buyer is responsible for providing technicians with round-trip airfare, appropriate local lodging, meals and local transportation. Buyer must assign qualified translators throughout installation, start-up and training. The service fee for installation, start-up and training is $150/engineer/day. 2-3 engineers and about 30-40 days for assembly and testing. |
