Hot Selling 10KW Wind Turbine Price/Household Wind Turbine Price/10000W Farm Wind Turbine

PRODUCT DETAIL
Tower height:6M to 25MCertification:CE TUV CE TUV
Number of blades:threeWarranty:25 years
brand:Aurunrated power:10 kW
Wind turbine type:horizontalport:China
payment terms:L/C, Western Union, T/TRotor diameter:6.0M
Package preview:Start wind speed:2.0m/s
Origin:Shandong Province, Chinamodel:AR10KW
product name:10000W wind turbineController:MPPT or pwm
grid:On-grid and off-gridcustom made:Yes
The output voltage:96V 110V 220V 380VSupply capacity:10,000 10,000W wind turbines per month
Blade material:reinforced glass fibertower:tie down or free standing
Generator style:permanent magnet synchronous generatorPackaging Details:POLYWOOD enclosure for 10,000W wind turbine





Hot sale 10kw wind turbine price/residential wind power price/10000w wind turbine Famat wind turbine from Qingdao Aorun New Energy Co., Ltd.







Product Description







Augmented Reality8.0-10KW

The main technical parameters are as follows:

1. Model: horizontal axis wind turbine

2. Blade form: propeller

3. Number of blades: 3 pieces

4. Bald head material: FRP

5. Generator type: permanent magnet three-phase AC

6. Tower type: cable-stayed or self-supporting

7. Power: 10KW

8. Blade diameter (m): 8.0

9. Rated speed (r/min): 200

10. Rated speed (m/s): 10

11. Rated power: 10KW

12. Maximum power: 20KW

13. Output voltage (V): 380

14. Starting wind speed (m/s): 3

15. Working speed (m/s): 3-30

16. Safe wind speed (m/s): 50

17. Tower height (m): 12

18. Top quality except tower: 600kg

19.towerSteel pipe model (mm): φ273

20. Recommended battery capacity and quantity: 28 pieces of 12V200AH

21. Speed ​​regulation: inclined tail + electric brake

22. Power supply: small village, air conditioner, refrigerator, water pump, cooking utensils, color TV, washing machine, lighting, electric fan, charging





The characteristics of our company's wind turbines are as follows:

1. Low speed permanent magnet generator

2. Low starting torque and high power generation efficiency

3. Glass fiber high-efficiency blades

4. High-performance neodymium magnets and bearings

5. Yaw motor system

6. Designed for minimal maintenance and easy installation

7. Pneumatic brake & manual brake

Microcomputer intelligent controller

1. If there is a problem with the system and the fan is running, it can prevent the fan from idling.

2. With battery automatic protection function: battery reverse connection protection, battery anti-disconnection protection, battery damage protection.

3. When the charging current is high in strong wind, the controller will automatically charge the fan. And charge the battery with a small current.

4. When the voltage of the battery pack reaches 125% of the rated voltage, the fan will automatically brake; and stop charging the battery.

5. When the voltage of the battery pack reaches 108% of the rated voltage, the fan recharges the battery

6. The controller is equipped with a manual emergency brake switch, which can be used by the user according to the situation. Using this switch, the wind turbine will be braked.

Pure Sine Wave Inverter

1. Pure sine wave output, can drive any household appliances.

2. Using integrated circuits, less wiring.

3. Adopt microprocessor technology to improve system integration.

4. Excellent protection functions, including overvoltage shutdown, undervoltage shutdown, overload protection, short circuit protection, overheat protection, etc.

5. Ability to work in wind power or wind-solar hybrid systems

6. Adopt high-efficiency transformer instead of high-frequency electronic circuit design

7. Automatic voltage adjustment,

8. LCD display running status,

9. High operational stability and reliability

10. True sine wave power output

11. Efficient transformer isolation

12. Buzzer alarm for overload/voltage and high temperature

reference picture

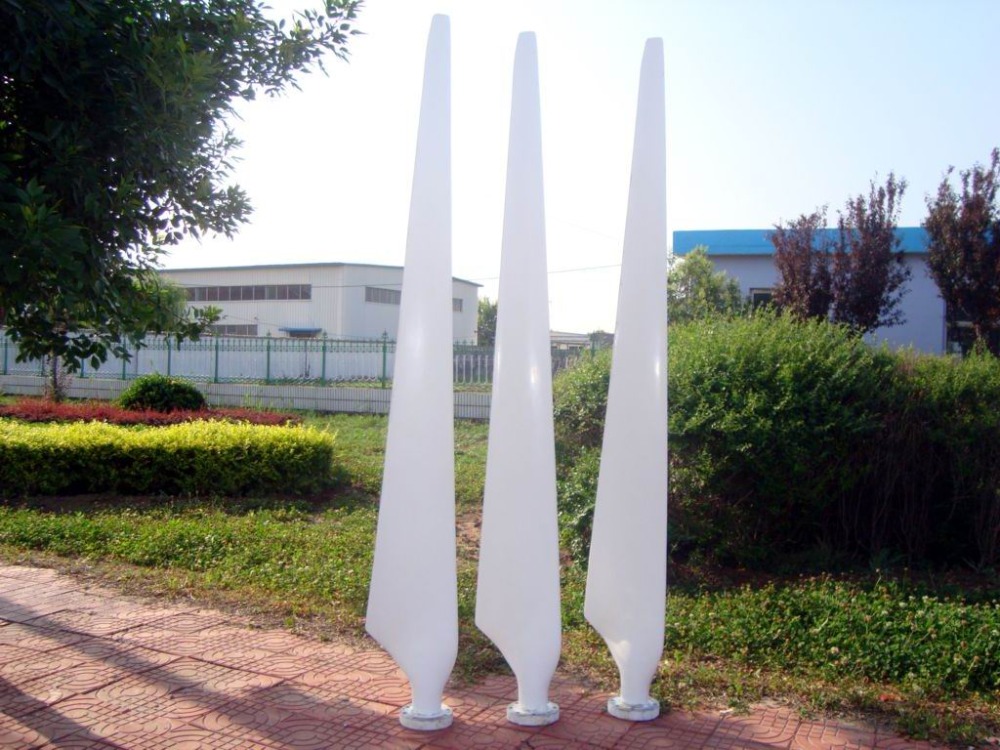

1. Blade

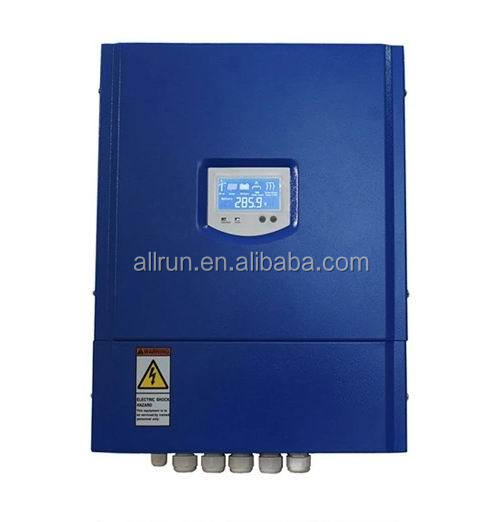

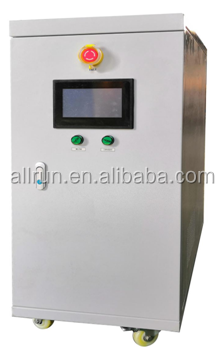

2. Controller and inverter

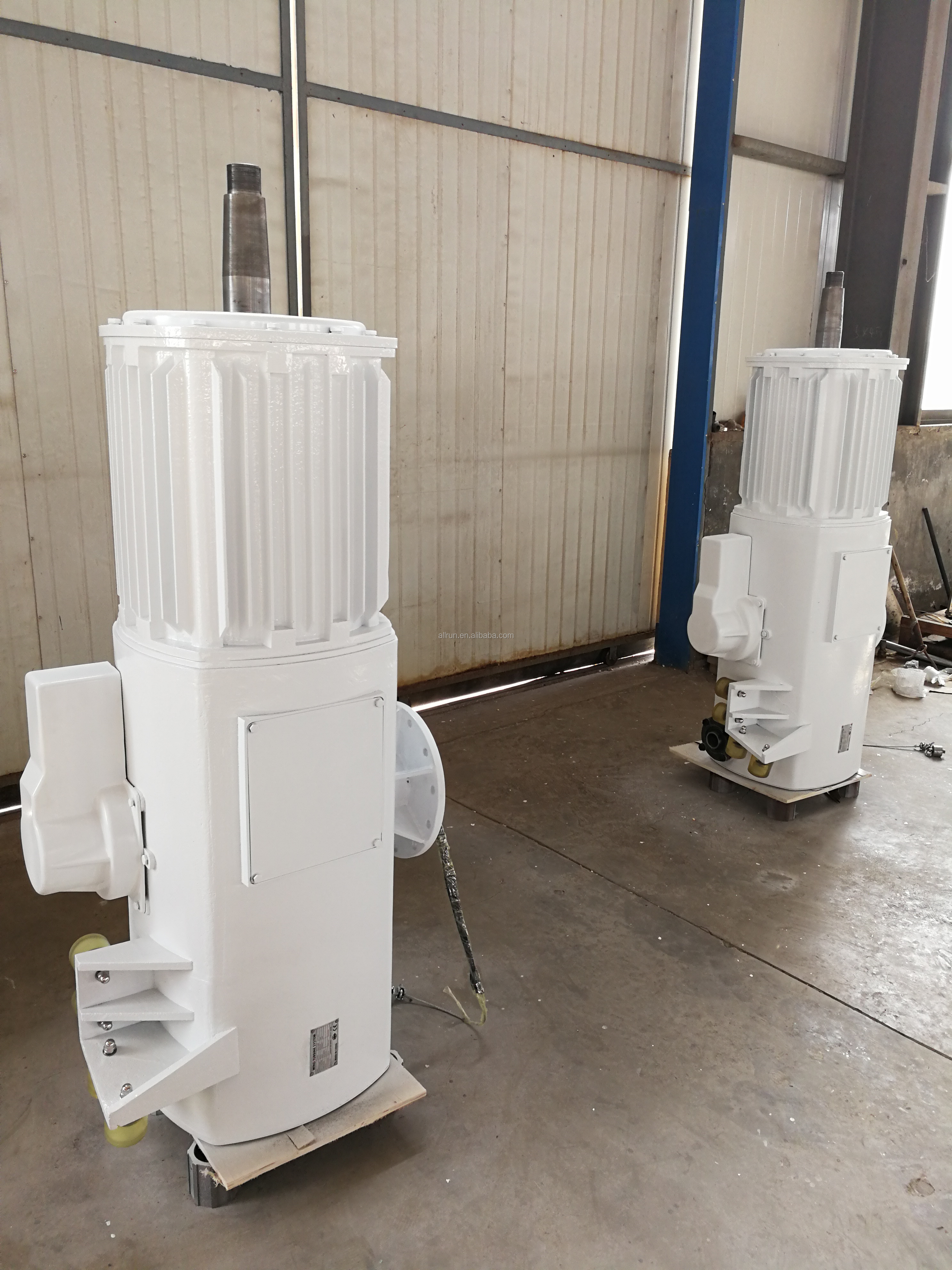

3. Generator

5. TOWER (bundled or standalone)

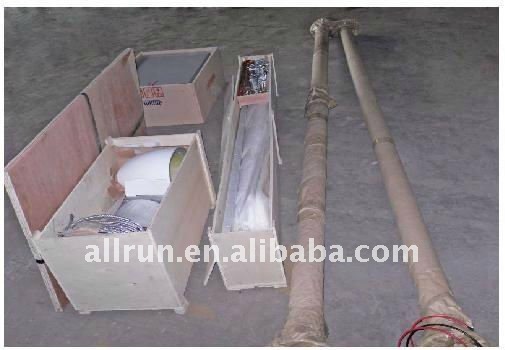

.system package


company information



Qingdao Aorun New Energy Co., Ltd. Qingdao Wind Energy Wind Power Co., Ltd. is located in the beautiful ancient city of Qingdao. Since its establishment in 1999, it covers an area of ​​55,000 square meters. It is a high-tech and professional manufacturer engaged in the research of small and medium-sized wind turbine systems and solar energy products. . Over the years, the company has continuously introduced professional talents, advanced manufacturing and testing equipment, and formed a service system integrating design, manufacturing, marketing, installation, commissioning and after-sales. The company also has self-developed wind energy products with multiple power levels of 150W-100KW, which have been widely used in independent off-grid wind power systems, grid-connected wind power systems, wind-solar hybrid street lamp systems, wind-solar hybrid street lamp systems, wind-solar hybrid street lamp systems, and wind-solar hybrid street lamps system etc. -Solar hybrid home power supply system, wind and diesel hybrid system, etc.



We adhere to the principle of customer first, quality first and service first, and sincerely provide customers with the best products and services. We firmly believe that energy is no longer consumed but created.
