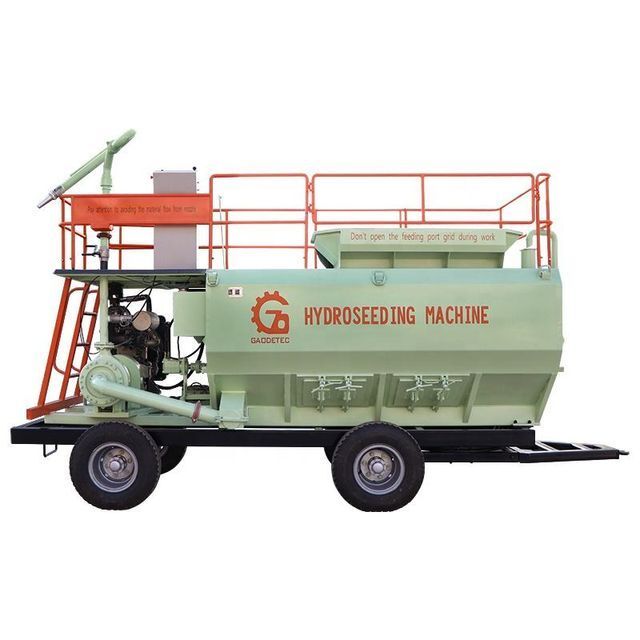

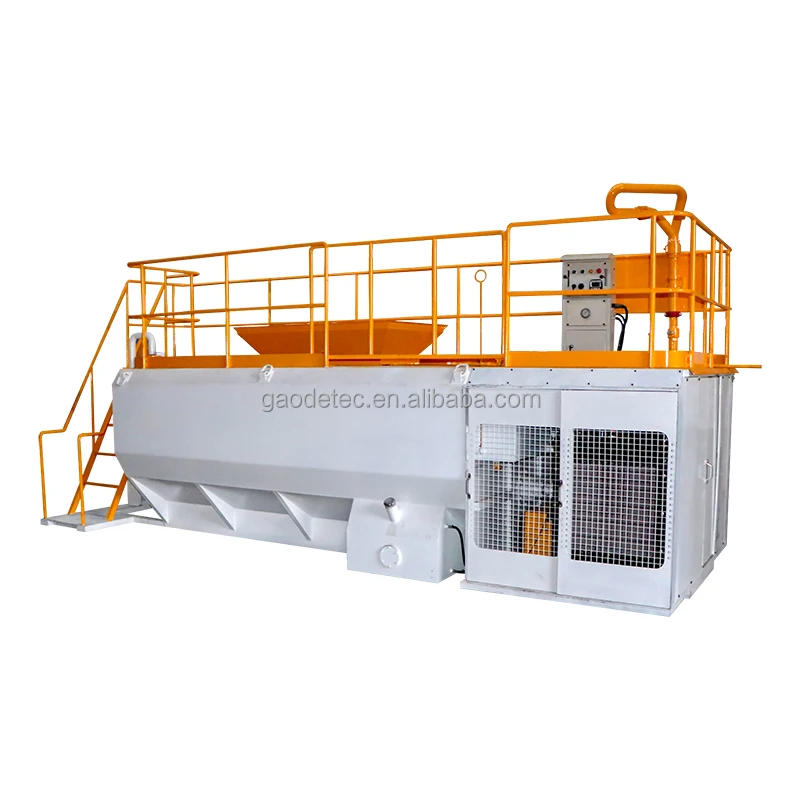

Hot Selling High Efficiency Diesel Engine Sprayer Hydroseeder Machine For Highway Green
- $17800.00 /set
- 1 set
- Zhengzhou Gaode Equipment Co., Ltd.
- Henan, China
- Ms Jessica Liu
PRODUCT DETAIL
| Applicable Industries: | Construction works ; | Warranty: | 1 Year; |
| Condition: | New; | Type: | grass seed spraying machine hydroseeding; |
| Voltage: | Diesel Engine; | Video outgoing-inspection: | Provided; |
| After Warranty Service: | Video technical support; | Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram; |
| Application: | slope greening; | Port: | Shanghai or other; |
| Dimension(L*W*H): | customized; | Product Keywords: | hydro spray grass seed,hydroseed mulch,highway green hydroseeder; |
| Brand Name: | GAODETEC; | Supply Ability: | 1200 Sets per Year; |
| output: | 70-120m3/h; | Warranty of core components: | 1 Year; |
| Machinery Test Report: | Provided; | Height of fence: | 1100mm; |
| Engine type: | Diesel engine; | Core Components: | Engine; |
| Power: | customized; | Packaging Detail: | shipped by a 20' container.; |
| Showroom Location: | None; | Marketing Type: | New Product 2020; |
| Place of Origin: | Henan, China; | Production Capacity: | customized; |
| Max.horizontal conveying distance: | 85m; | Rotating speed: | 0-110rpm; |
| Weight: | 5000 kg; |
Application
Hydroseeding machine application
GHS Series hydroseeding machine and hydroseeder technology is more and more applied in road greening, expressway slope greening, erosion control, landfill cover, mine reclamation, dust control, landscaping, etc. projects and also involves in planting permanent vegetation, spraying slurry, slope protection, grassing and erosion prevention.
Product Description
Hydroseeder machine for sale
Our hydroseeder machine is driven by a diesel engine, electronic control, and easy operation. And it is especially suitable for outdoor conditions, applicable to all kinds of rock slope, hard soil, poor soil, acidic soil, arid zones, clay soil and coastal dam etc.
15000L 190KW Hydroseeder Machine
8000L 83KW Hydroseeder Machine
8000L 100KW Hydroseeder Machine
3000L 53KW Hydroseeder Machine
Specification
Model | GHS15190 | GHS08100 | GHS0883 | GHS0353 | |||
Power | 190KW, Cummins engine, water-cooled | 100KW, Cummins engine, water-cooled | 83KW, China Huafeng diesel engine, water-cooled | 53KW, China Yuchai diesel engine, water-cooled | |||
Tank Size | Liquid capacity: 15000L | Liquid capacity: 8000L | Liquid capacity: 8000L | Liquid capacity: 3000L | |||
Working capacity: 13500L | Working capacity: 7300L | Working capacity: 7300L | Working capacity: 2550L | ||||
Pump | Centrifugal pump:6’’x3’’ (15.2X7.6cm), 120m³/h@14bar, 32mm solid clearance | Centrifugal pump:5’’x2.5’’ (12.6X7.6cm), 100m³/h@11bar, 20mm solid clearance | Centrifugal pump:5’’x2.5’’ (12.6X6.3cm), 90m³/h@10bar, 20mm solid clearance | Centrifugal pump:4’’x2’’ (10X5cm), 70m³/h@7bar, 10mm solid clearance | |||
Agitation | Twin mechanical agitators with helical paddle orientation and liquid recirculation | mechanical agitator with helical paddle orientation and liquid recirculation | |||||
Rotating speed of mixer shaft | 0-130rpm | 0-110rpm | |||||
Maximum horizontal conveying distance | 85m | 70m | 65m | 60m | |||
Spraying guns type | fixed standing gun and pipe gun | ||||||
Height of fence | 1100mm | ||||||
Options | Stainless steel material for whole unit, Hose Reel with hose, Remote control unit, Trailer | ||||||

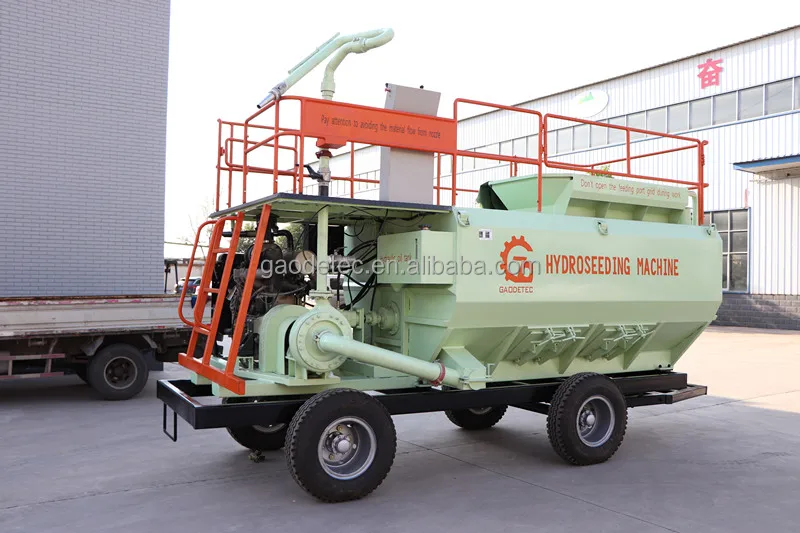

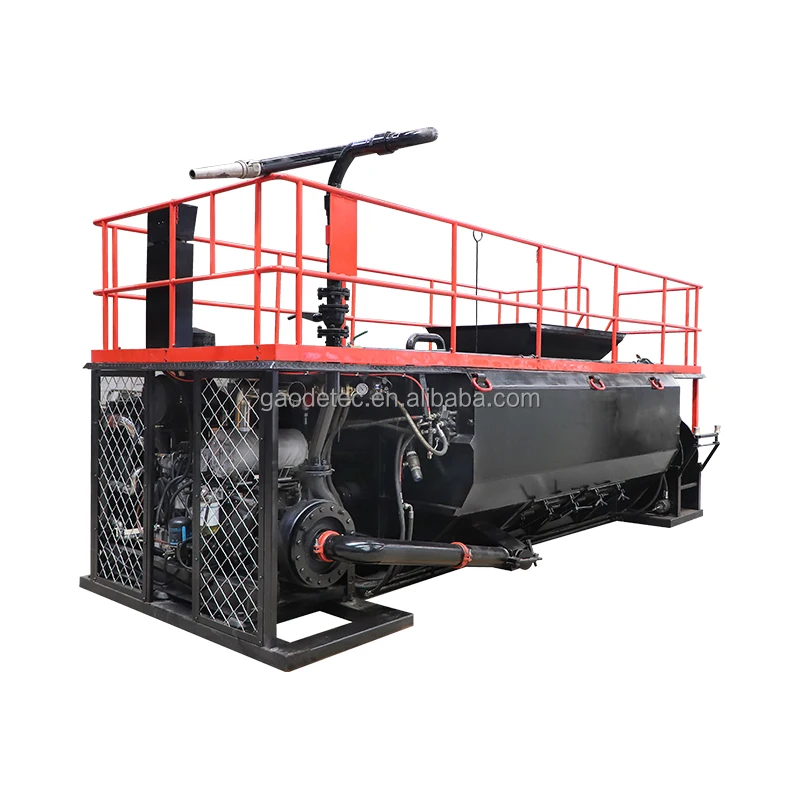

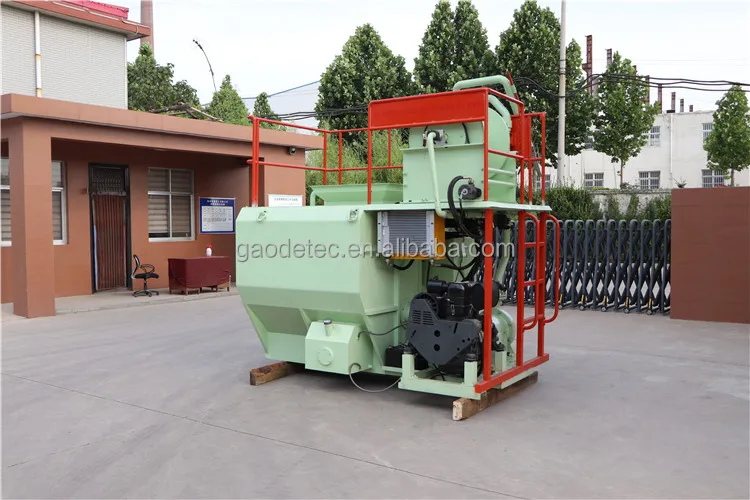

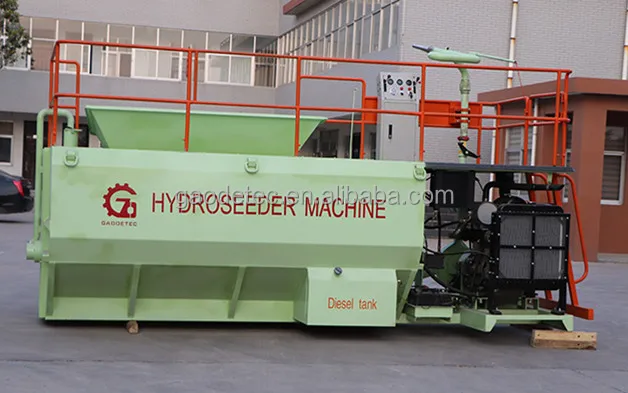

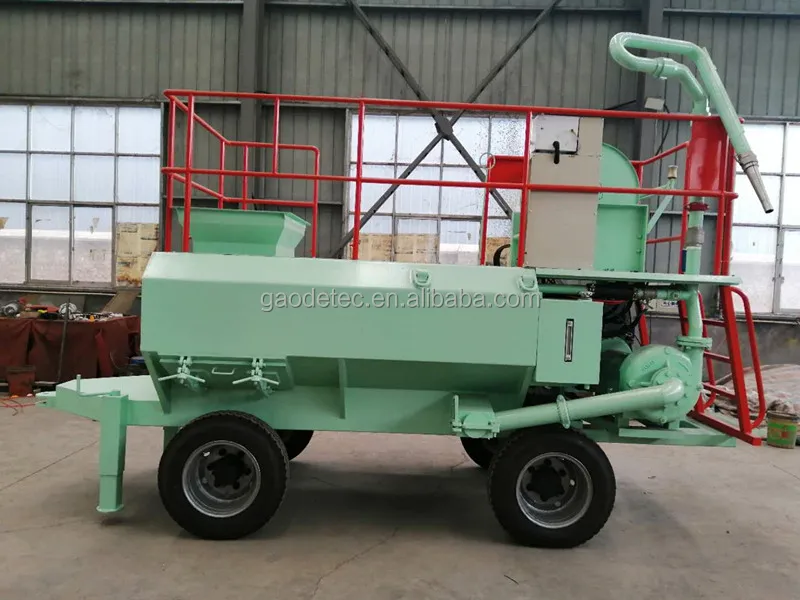

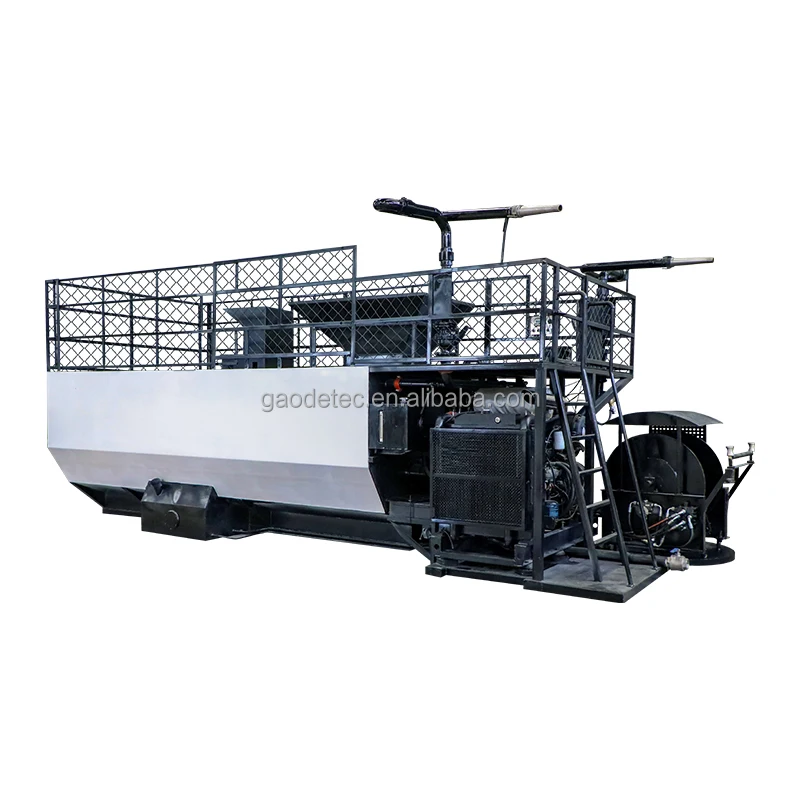

Details Images
Advantages
Compared with other hydroseeders, the GHS hydroseeding machine with following outstanding features:
1. Powerful diesel engine: Cummins or Yuchai etc. famous brand diesel engine. Powerful, low fuel consumption, low maintenance cost. A powerful engine ensures an evenly mixing and also improves the spraying efficiency.
2. Powerful mixing shaft: Strong mixer shaft, also suitable for thick material.
3. High configurations: 13000L or bigger hydroseeders with twin agitators, twin cannons, etc.
4. High production: Wear-resisting centrifugal pump, most efficient during working.
5. High-density material: Soil substrate, green grass seed, water retention agent, binder, fertilizer, and water. The solids could be up to 60%.
6. Long-distance spraying: suitable for long and high spraying distance. Solids up to 60%, the level distance could up to 100m by hose.
7. Hydraulic hose reel: customize according to demands.
8. Extreme Efficiency: Simple control panel, easy operation.
9. High-quality structural steel: More durable, a longer working life. Also, have stainless steel tank and pipeline for option.
Packing & Delivery
Company Profile
Contact Us
In order to confirm which type hydroseeder machine suitable for your job, could you please help us to confirm the following information:
1. What's the project you will use the machine do? for slope greening or playground greening or other?
2. What's the mixing tank capacity you need, 3000L, 6000L, 8000L, 13000L, 15000L or bigger or smaller?
3. About the engine, do you need Chinese brand engine or Cummins engine?
4. May I know your Telephone number or other online talking way? So we could talk about the goods more freely!
