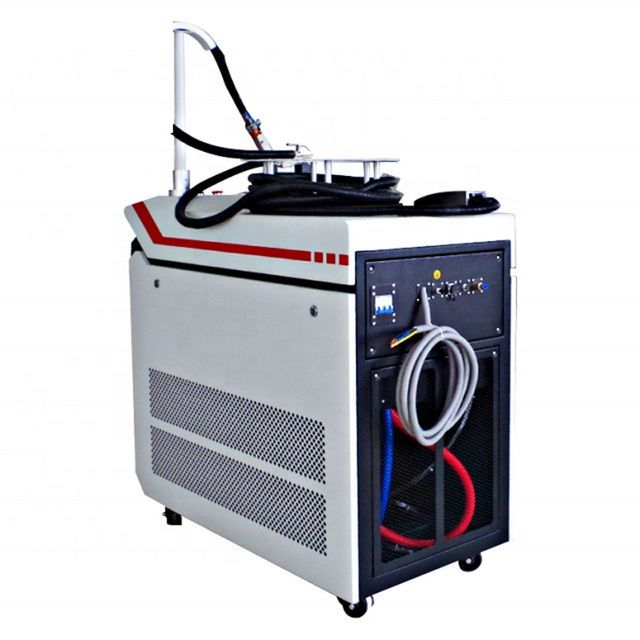

Hot sale 1000W 1500W handheld welding machine, welding stainless steel, steel plate
- $290.00 /piece
- 1 piece
- Wuhan Hongmeng Laser Technology Co., Ltd.
- Hubei, China
- Mr
CNC or not: | No | payment terms: | L/C, D/P, D/P, T/T |
Weight (kg): | 30 kg | Engraving speed: | 0-700 mm/s |
Mechanical test report: | if | Laser type: | South Korea, fiber laser |
Video shipment inspection: | if | Origin: | China |
Engraving area: | 100mm*100mm | application: | laser engraving |
Core components: | Pressure vessels, motors, pumps | Main selling points: | easy to operate |
Health status: | new | Applicable materials: | Acrylic, crystal, glass, leather |
feature: | Traceability | Warranty: | 1 year |
Core component warranty: | 1 year | Operating mode: | Pulse |
Supported graphic formats: | platelets | Configuration: | independent |
Laser source brand: | Ruicheng |
packaging and delivery
Quantity (set) |
1-1 |
>1 |
EST. time (days) |
5 |
to be negotiated |
Laser Welding System Portable Jewelry Laser Welding Machine Price
Product Description |
High-magnification beam expander system to obtain a finer spot and meet the requirements of fine laser spot welding
The 200W spot welding machine is aimed at the welding of thin-walled materials and precision parts, and realizes spot welding, butt welding, lap welding and sealing welding. Mainly used for punching and spot welding of gold and silver jewelry, during spot welding. It belongs to the heat conduction type, that is, the laser radiation heats the surface of the workpiece, and the surface heat diffuses through the interior. By controlling the parameters such as the width, peak energy, power and repetition frequency of the laser pulse, the workpiece is melted to form a specific molten pool.
Adjustable high-brightness LED ring shadowless light, observe the workpiece without shadow, high-definition body type
Parallel light path microscope, laser welding position observation is clearer
Specification:
Model |
BCX-43/XAC-45 |
Output Power |
100W/200W |
Laser wavelength |
1064nm |
Laser welding pool |
0.1 mm |
Laser pulse frequency |
<500 Hz |
Laser pulse width |
<20ms |
focus point |
0.1-3.0mm |
red dot |
0.2-3.0mm |
Maximum power |
4KW/6KW |
power supply |
220V single phase/50Hz/20A |
system output |
920X560X1220mm |
feature:
NO.2 advantage
1 The ergonomic design of the whole machine is more suitable for the jewelry industry, with fine products, beautiful appearance and stable performance, suitable for long-term continuous work;
2 The operating software can choose Chinese or English interface, and select the corresponding laser welding processing parameters for different processing positions. Move the cursor to the corresponding parameter position by selecting the button, and adjust the size of the parameter by adjusting the button;
3 Based on the 10X microscope observation system, it is the first to adopt a high-definition CCD observation system to ensure that the spot welding effect is beautiful;
4 Equipped with a liquid crystal shutter with independent intellectual property rights, the shutter will work with the laser light and turn off the light to realize the flash shielding flash when laser welding jewelry, and the light goes out when the laser is turned off, protecting the eyes and the operator will not feel uncomfortable due to the laser flicker;
5 Argon protection device can be added. This function can effectively protect the welding position from being protected by argon gas during the welding process, keep the metal color all the time, and ensure the welding quality;
6. It has 24-hour continuous working ability, and the whole machine has stable working performance.
application
Jewelry laser spot welding machines are widely used in aviation, aerospace, sporting goods, jewelry, golf clubs, medical equipment, aluminum alloy dentures, instrumentation, electronics, machining, automobiles and other industries, especially for gold and silver jewelry Welding of holes, spot welding seams, inserts and claw feet
our company
Please contact our service representative and ask for more details before payment. Thank you so much!
FAQ
Q: Can I have my logo on my products?
A: Yes, we can provide LOGO silk screen printing, grave. LOGO fee can be free when the order quantity reaches the requirement.
Q: What's the bulk order delivery time?
A: The order lead time is 2-10 working days, depending on the products you ordered.
Q: How long is your warranty period?
A: For 12 months.
Q: How can I make payment?
A: Paypal, T/T, Western Union and Escow are the most popular methods.
Q: How about the package?
A: Foam and wooden case to protect the products.
Q: How about the delivery method?
A: Usually we adopt express such as DHL, Fedex, UPS and TNT for sample order. For bulk orders, by air or sea will be adopted.
