Hot sale 100w amorphous silicon thin film cigs outdoor flexible solar panel flexible solar panel
- $3.10 / 1000 - 9999 pieces
$2.90 / 10000 - 199999 pieces
$2.30 / >=200000 pieces - 1000 pieces
- Jiangxi Green System Manufacture and Trade Co., Ltd
- Jiangxi, China
- Ms Jenny Lai
PRODUCT DETAIL
| model: | CIGS-Y1 | Wind load: | 2400Pa |
| Certificate: | TUV ISO certification | Origin: | Jiangxi, China |
| type: | PERC | Solar panel connector: | MC4 (waterproof) |
| Power Tolerance: | 0-+5W | Material: | Amorphous silicon |
| color: | black | Battery efficiency: | original design manufacturer |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Solar panel system: | Please inquire about plans for you |
| Panel Efficiency: | 16.2% | Warranty: | 10 years |
| Supply capacity: | 100000 watts per day | product name: | CIGS solar panels |
| port: | Shenzhen, Shanghai | Cell type: | Solar battery |
| brand: | green system |
Product Details
model | KXSF N36-75 | Kaixin SF Express N36-80 | custom made | |||
Nominal power (PMPP) | 75W | 80W | custom made | |||
Aperture efficiency (η) | 15.2% | 16.20% | custom made | |||
Maximum supply voltage (VMPP) | 18.3V | 18.8V | custom made | |||
Maximum Power Current (IMPP) | 4.09A | 4.26A | custom made | |||
Open circuit voltage (VOC) | 23.3V | 23.8V | custom made | |||
Short circuit current (ISC) | 4.70A | 4.74 | custom made | |||
Maximum Series Fuse Rating | 10A | custom made | ||||
Standard test conditions: 1000W/m2, 25℃ Cell temperature, AM 1.5 spectrum | ||||||
Physical and Mechanical Specifications | ||||||
length | mm | 1709 | custom made | |||
width | mm | 348 | custom made | |||
Maximum thickness at J-Box* | mm | 20 | custom made | |||
Weight (module without glue) | Kilogram | 1.2 | custom made | |||
Weight (module with glue) | Kilogram | 1.6 | custom made | |||
Weight/area (module without glue) | kg/㎡ | 2.0 | custom made | |||
Weight/area (module with glue) | kg/㎡ | 2.7 | custom made | |||

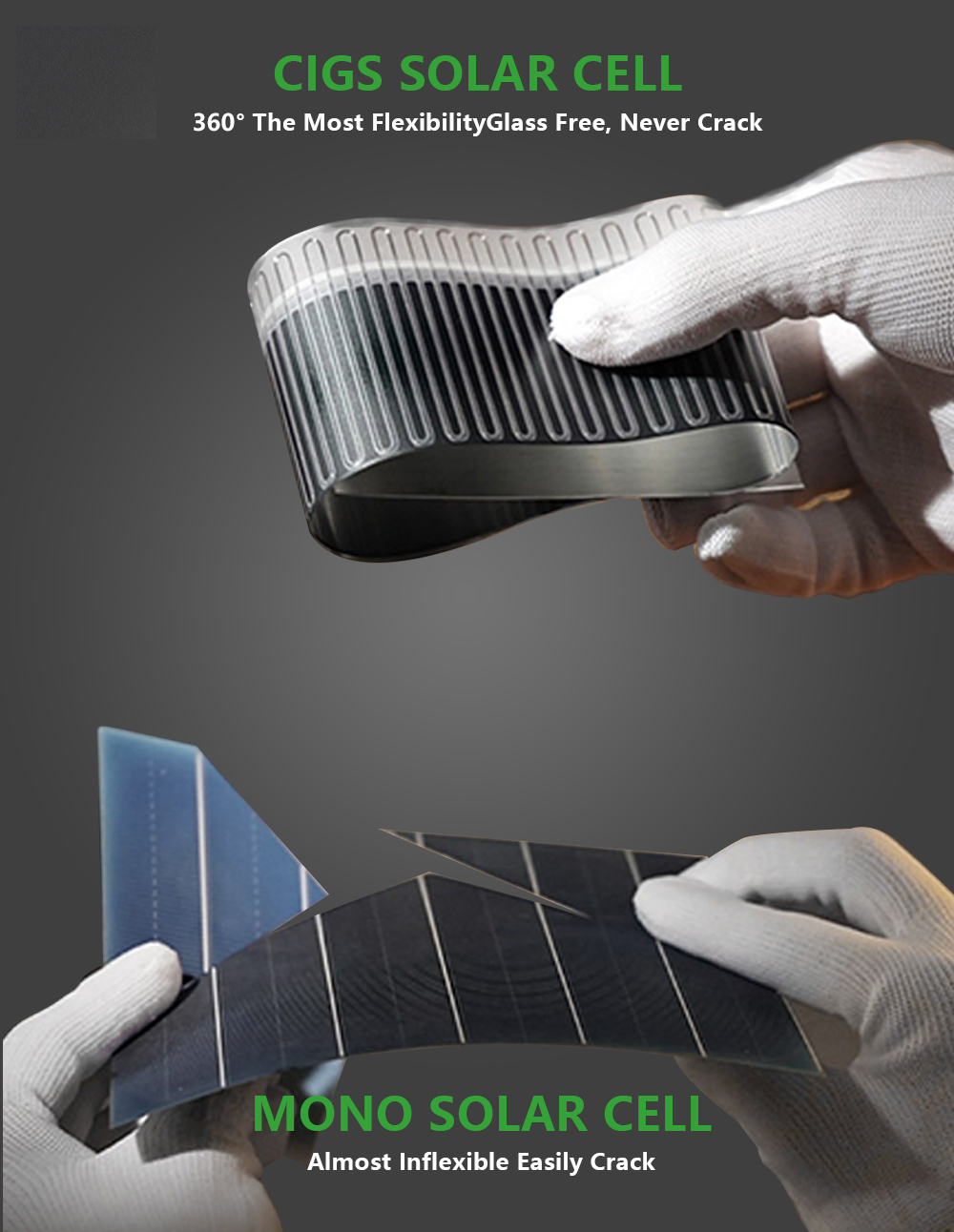

cell type | custom made | |||||

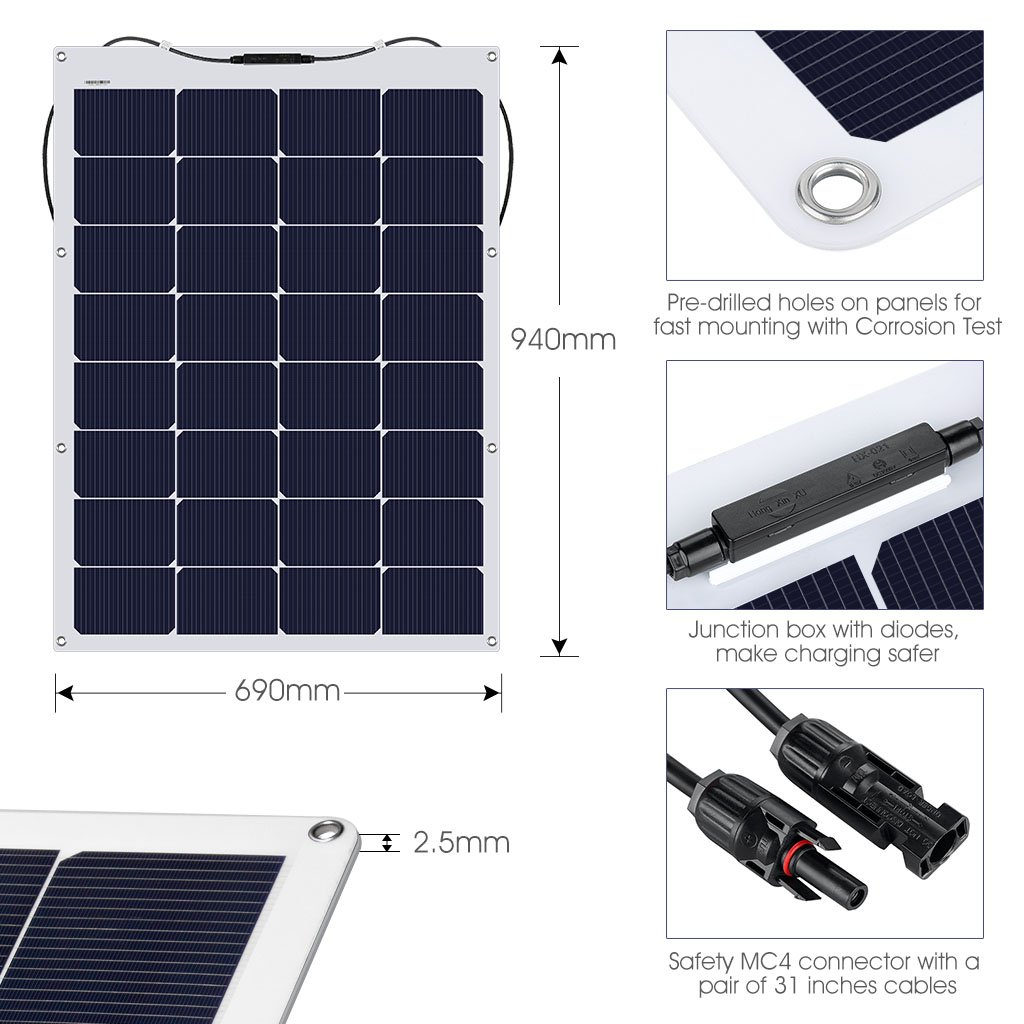

detailed drawing
It can be installed with mounting glue, suitable for long-term installation.
Installation plan two

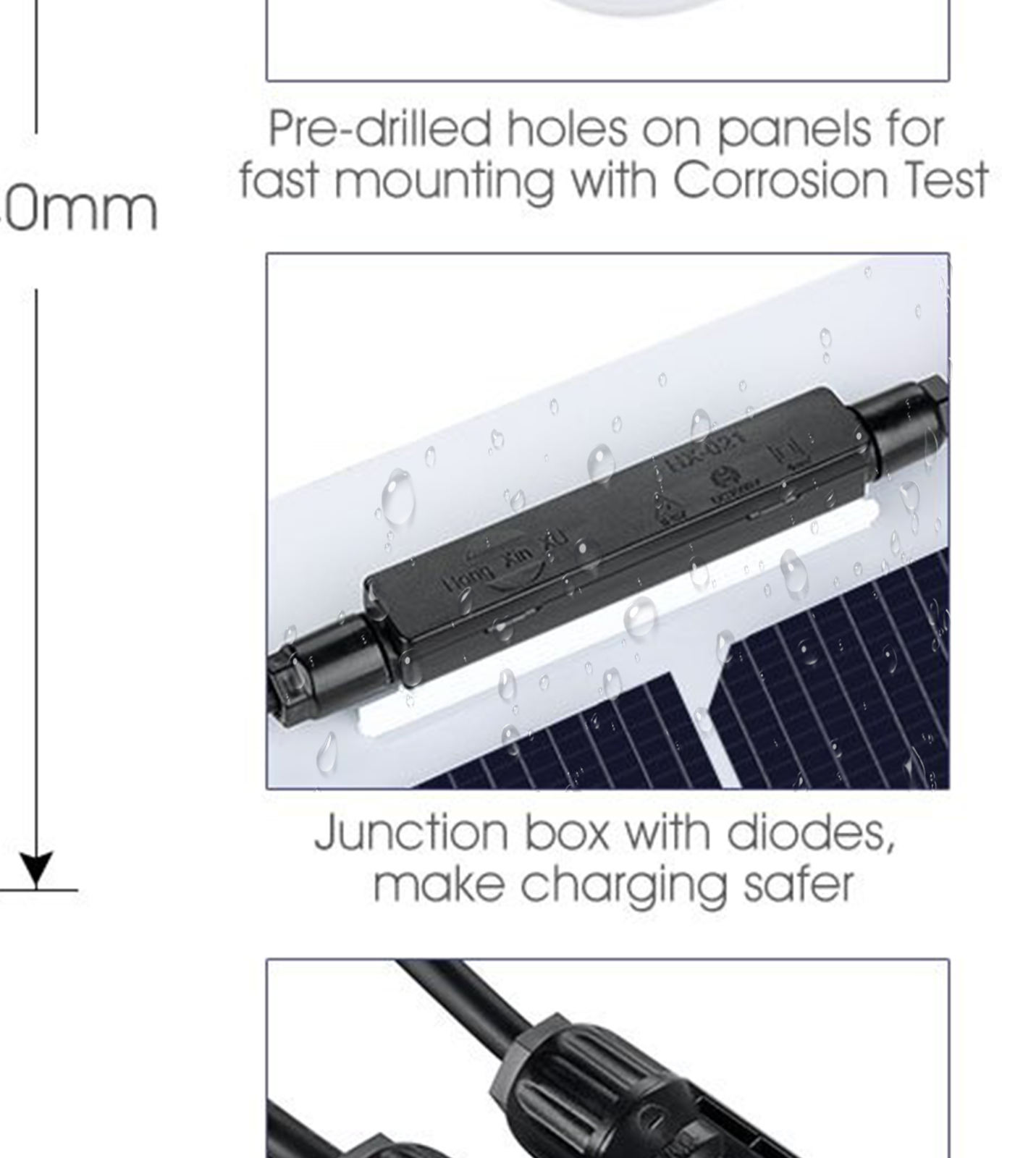

Comes with mounting holes for easy installation anywhere.
It adopts the back-adhesive method, no need to install a bracket, light in weight, and can be affixed anywhere.
*High-quality diodes ensure safe operation of the modules.
* Waterproof grade IP68.
* Heat dissipation, long service life.
* Waterproof grade IP68.
* Heat dissipation, long service life.
It adopts MC4 interface, which is easy to connect and has waterproof function.
application
Marketing activities
about Us

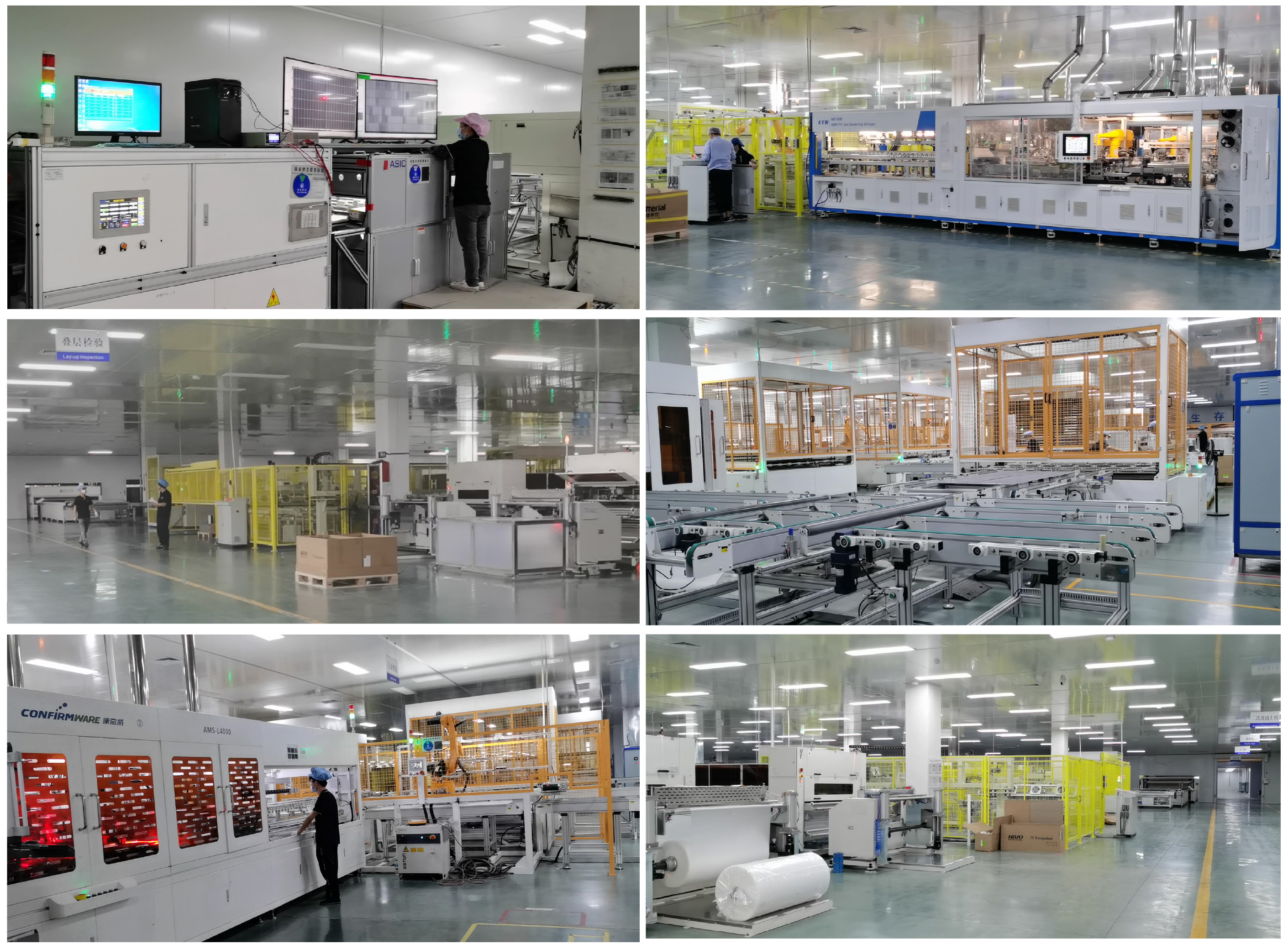

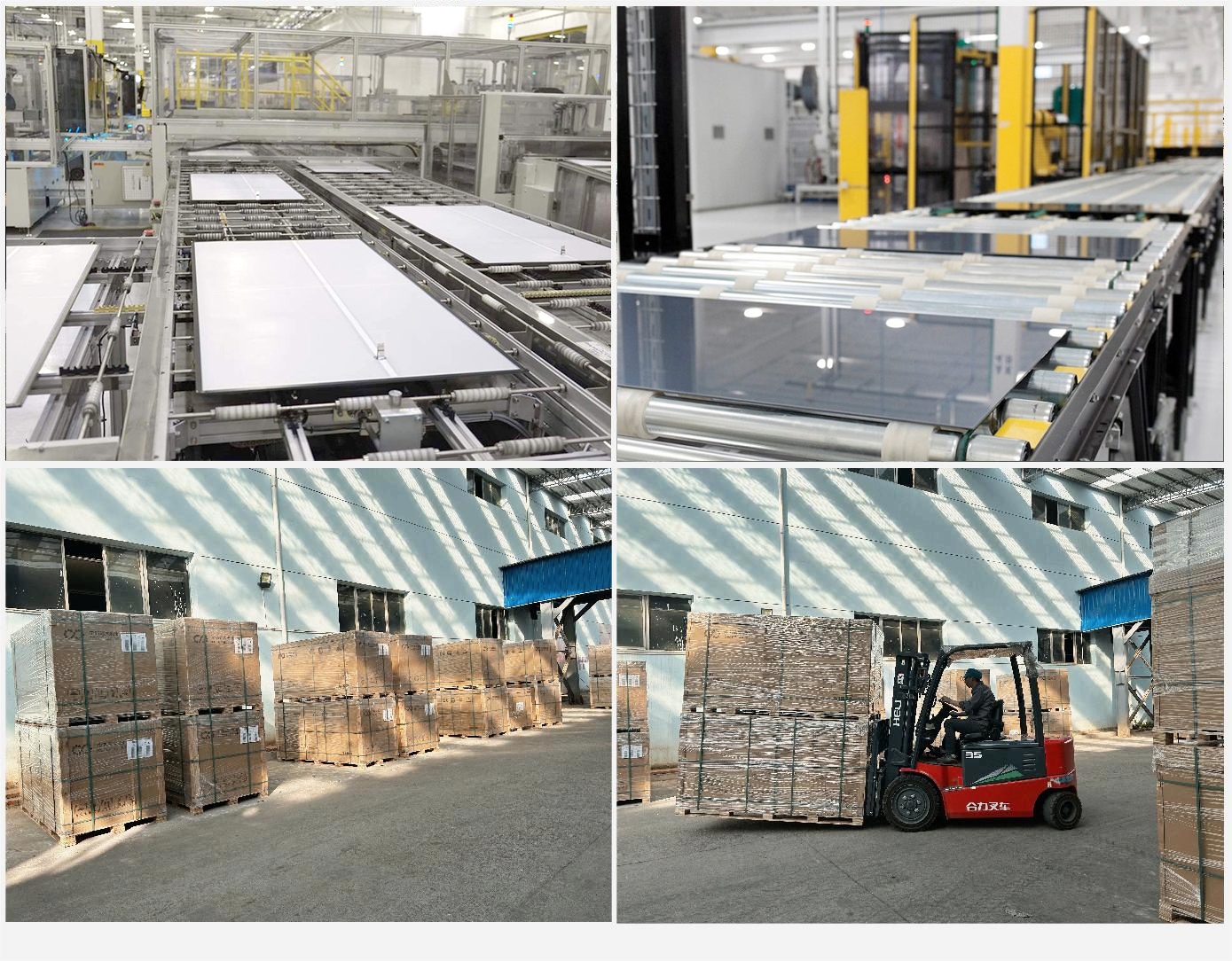

Jiangxi Green System is located in the Asian Lithium Battery Industrial Park - Yichun City, Jiangxi Province. We are committed to providing one-stop photovoltaic solutions for global enterprises, investors, traders, installers and users. Our main product range includes solar panels, inverters, batteries, mounting brackets and charge controllers.
Where there is a green system, there is warmth!

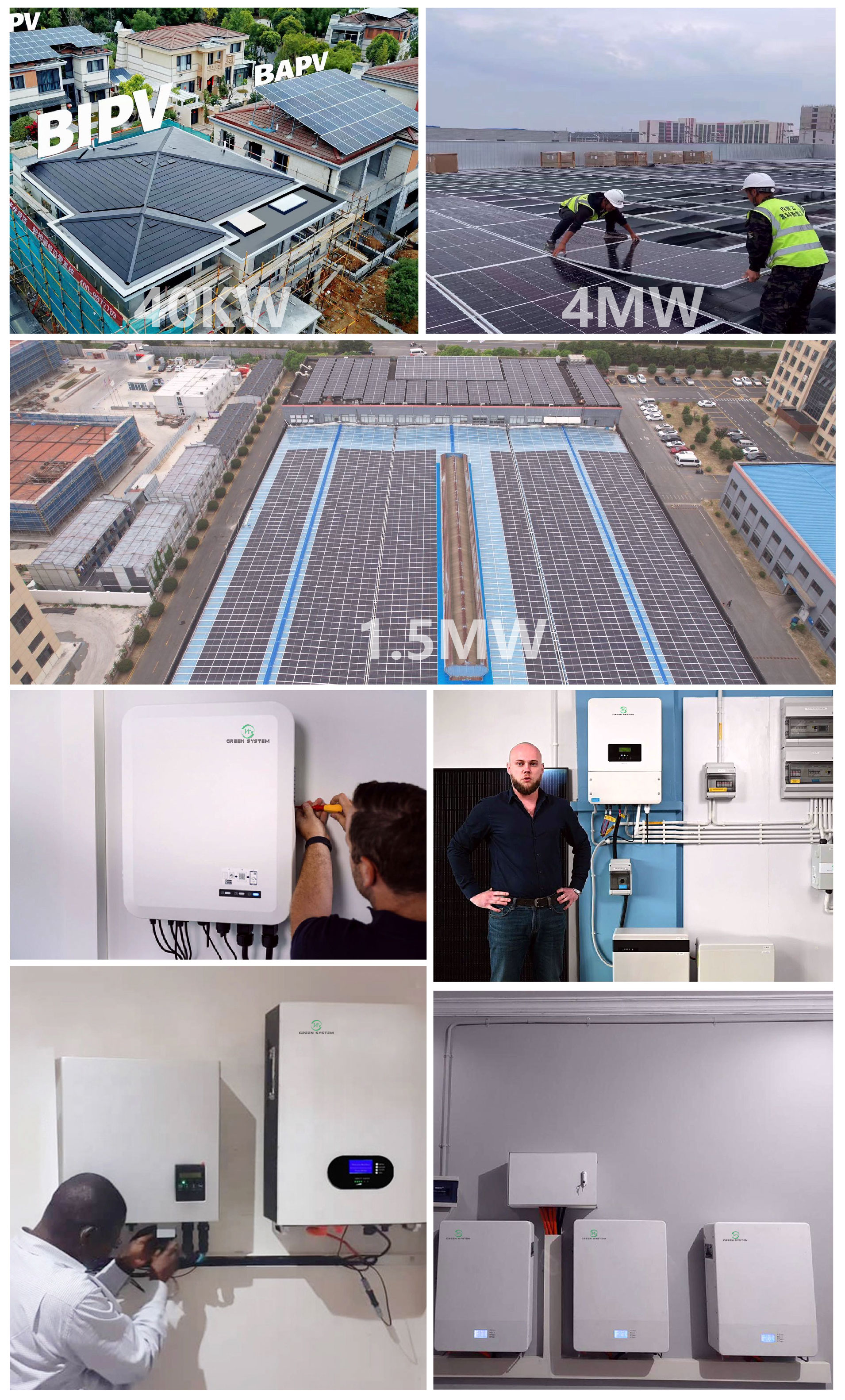

our projects
