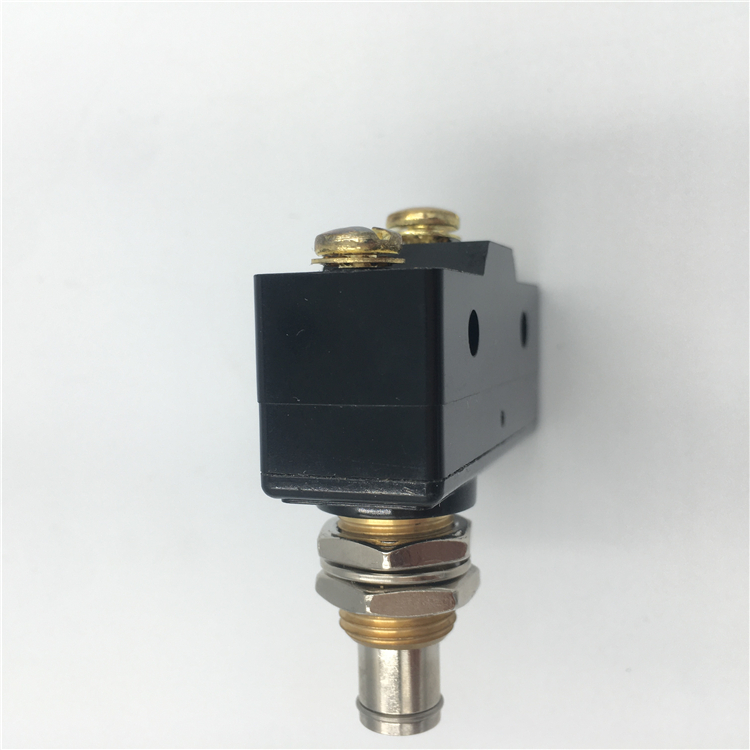

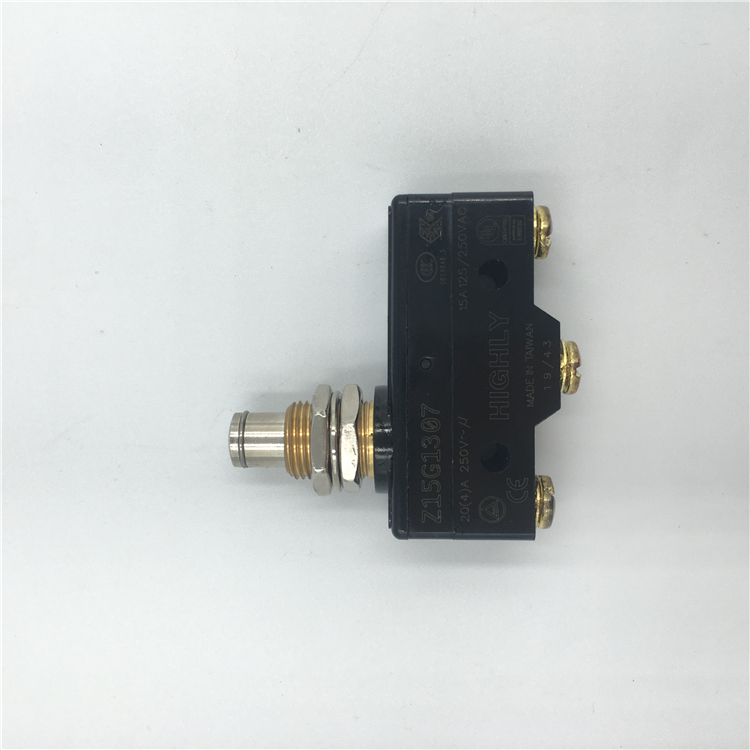

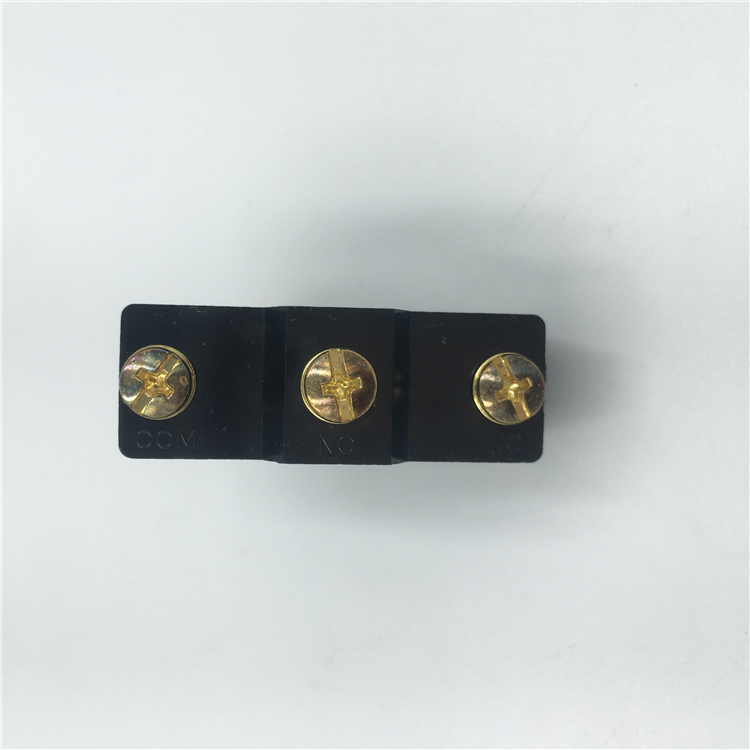

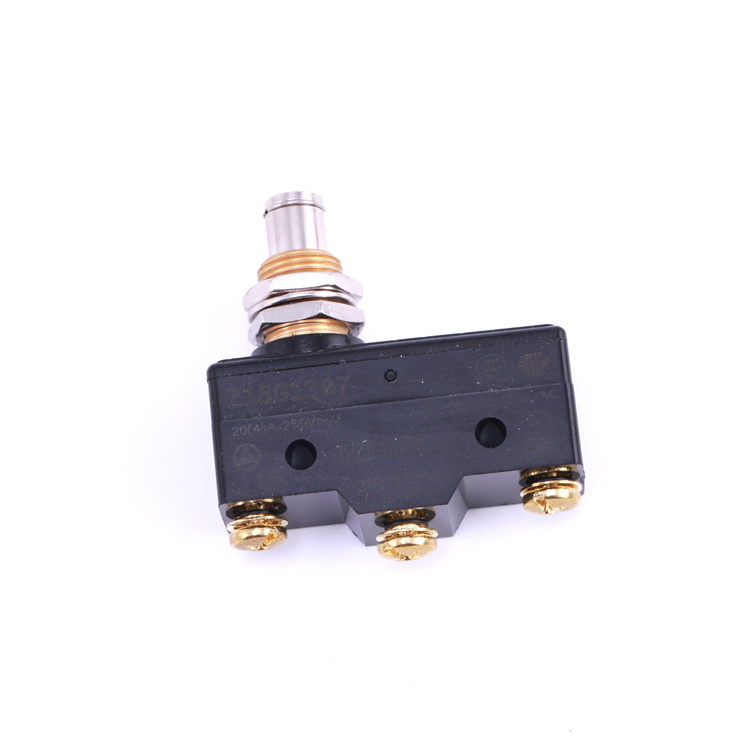

Hot sale 125V 15A quick action roller plunger miniature limit switch Z15G1307

  • $3.50 / 1 - 500 pieces
    $3.20 / 501 - 999 pieces
    $2.60 / >=1000 pieces
  • 1 piece
  • YOLEN Trading CO., LTD.
  • Taiwan, China
  • Ms Judy LEE
PRODUCT DETAIL
Dielectric strength:AC 1000V between terminals of the same polarity (50/60Hz for 1 minute)Certification:CCC, CE, ROHS, TUV, ENEC
Packaging Details:cartonProtection class:IP65

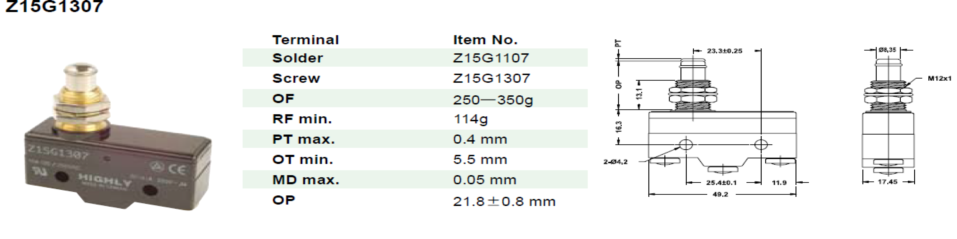

model:Z15G1307Packaging Preview:
Electrical life:Minimum 100,000 operationsContact resistance:Maximum 15m (initial)
payment terms:L/C,Western Union,T/TMechanical life:1,000,000 operations minimum
Operating temperature:-25℃-+80℃port:Keelung/Taichung
brand:highproject:standard
maximum. current:15Aplace of origin; place of origin:Taiwan, China
maximum. Voltage:250VACIs it smart:Do not
Insulation resistance:100M min. (at 500V DC)
Product Description



thing
standard

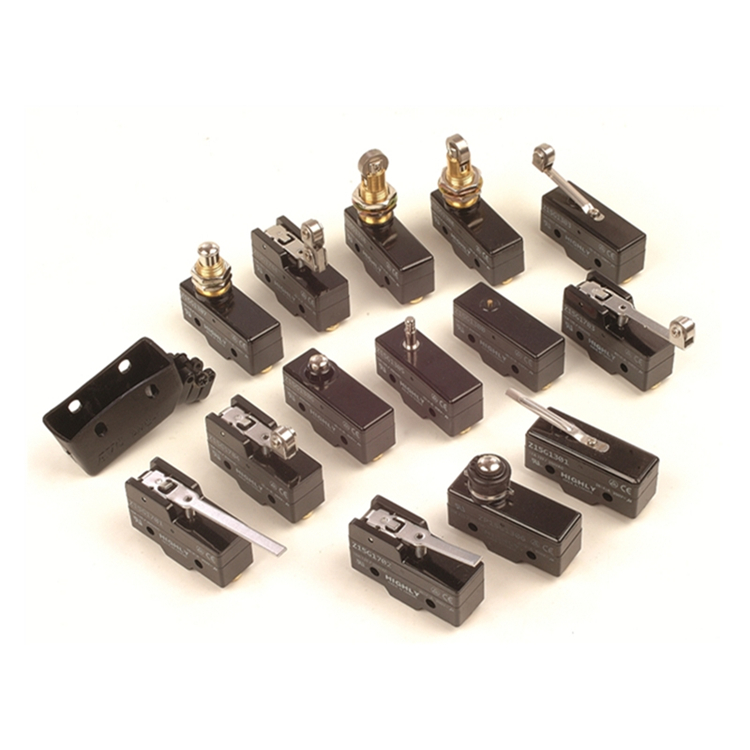

H series
score
20(4)A 250VAC EN 61058-1 15A 125VAC or 250VAC UL 1054 1/2A 125VDC 1/4A 250VDC
20A(12A) 125/250VAC 0.5A 125/250VDC UL 61058-1
Contact resistance
Maximum 15m (initial)
Insulation resistance
100M min. (at 500V DC)
Dielectric strength
AC 1000V between terminals of the same polarity (50/60Hz for 1 minute)
Electrical life
Minimum 100,000 operations
Mechanical life
1,000,000 operations minimum
Electrical service life
Minimum 100,000 operations
