Hot sales single layer aluminum sheet pcb manufacturer pcb for led lamp

PRODUCT DETAIL
minute. Line spacing:0.35mmSpecial technology:BGA can be 2.5mil, aperture (min) 0.075mm, MID
Copper Thickness:18um-35umSolder Mask Color:white/black
Packaging Details:Pallet: 1. Wooden pallet with carton. 2. Plastic pallet with carton. 3. Wooden boxes and wooden pallets. 4. According to customer requirements.Board size:custom made
brand:LongxingSupply capacity:200,000 square meters/month
minute. Line width:0.35mmport:Jiangmen
model:circuit boardModel Type:circuit board
Substrate:aluminum, aluminumBreakdown Voltage:2V-4.5V
Flammable:94v0 standardThermal Conductivity:BGA can be 2.5mil, aperture (min) 0.075mm, MID
Plate thickness:0.8,1,1.2,1.5,1.6 and 2mmSurface treatment:OSP/HASL
Floor:single layerpayment terms:L/C,Western Union,D/A,T/T,PayPal
place of origin; place of origin:Guangdong, Chinatype:Single-sided PCB
minute. Aperture:0.7mm

Product Description

High Quality Pcb Led Pcb Board - We have 10 years experience in manufacturing LED lighting PCB. Advanced engineering production team and high-end manufacturing equipment ensure perfect insulation between each layer and good performance of each conductor in the PCB.

we cancustomizeProducts according to your requirements, such as consumer electronic LED pcb board, pcb printed circuit board and aluminum pcb etc.



layer
single layer
Material
Aluminum base, FR-4, copper foil
production capacity
150000 meters2/moon
plate shape
Rectangles, circles, slots, cuts, complex irregularities
Minimum board size
25mm*25mm
Maximum board size
1200mm*300mm
Minimum tracking/spacing
0.5mm
plate thickness
0.8mm-2.0mm
copper thickness
1/2oz-2oz
minute. punching
0.8mm, laser drilling: 0.1mm
Solder mask color
white, black
breakdown voltage
≥4KV

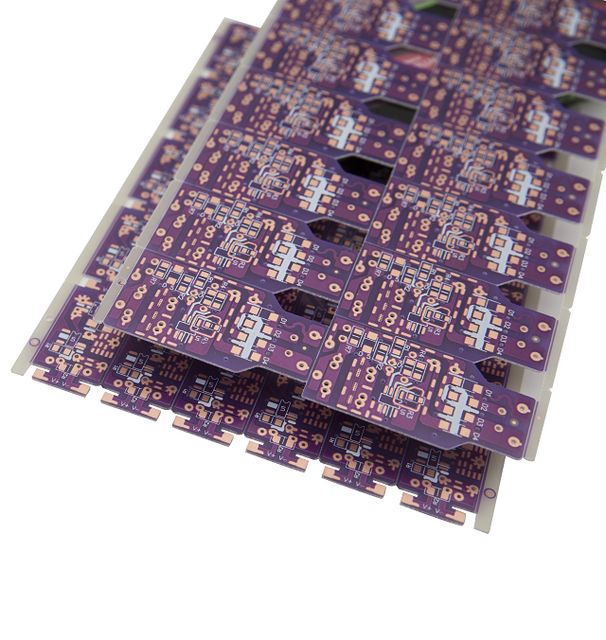

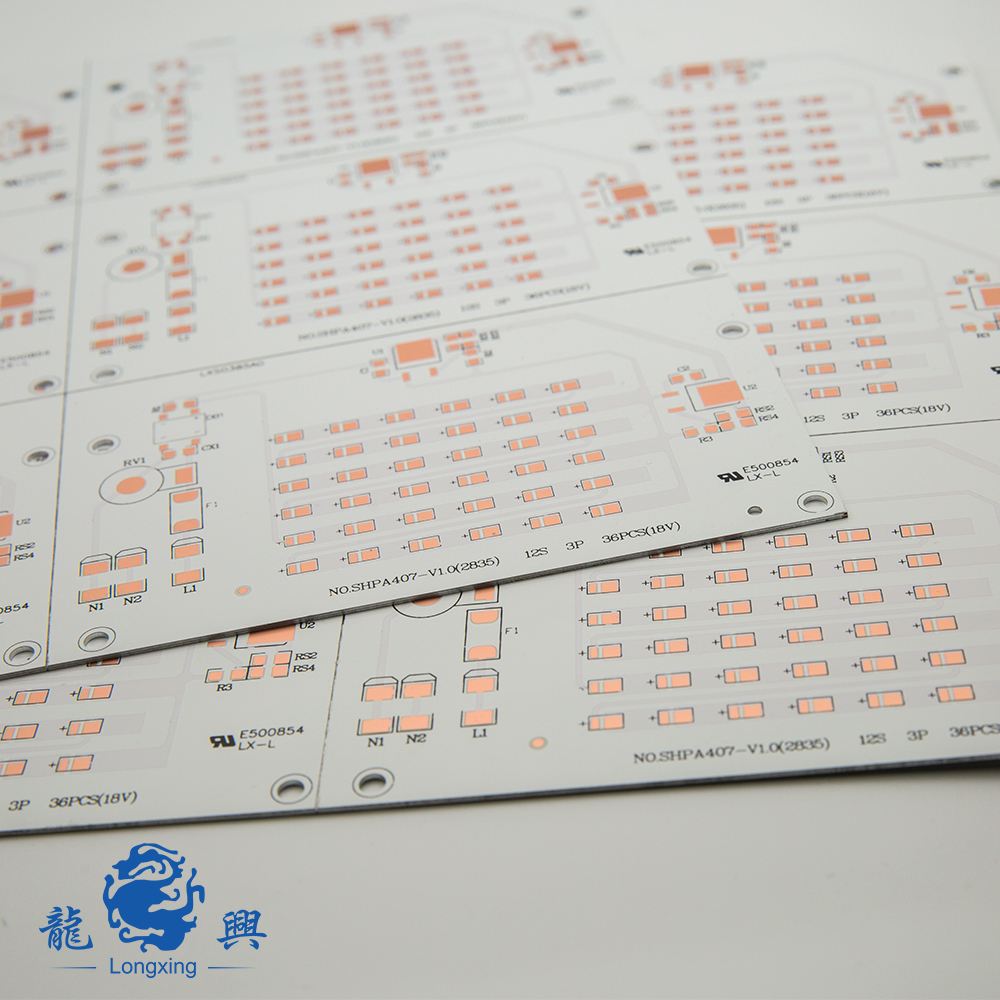

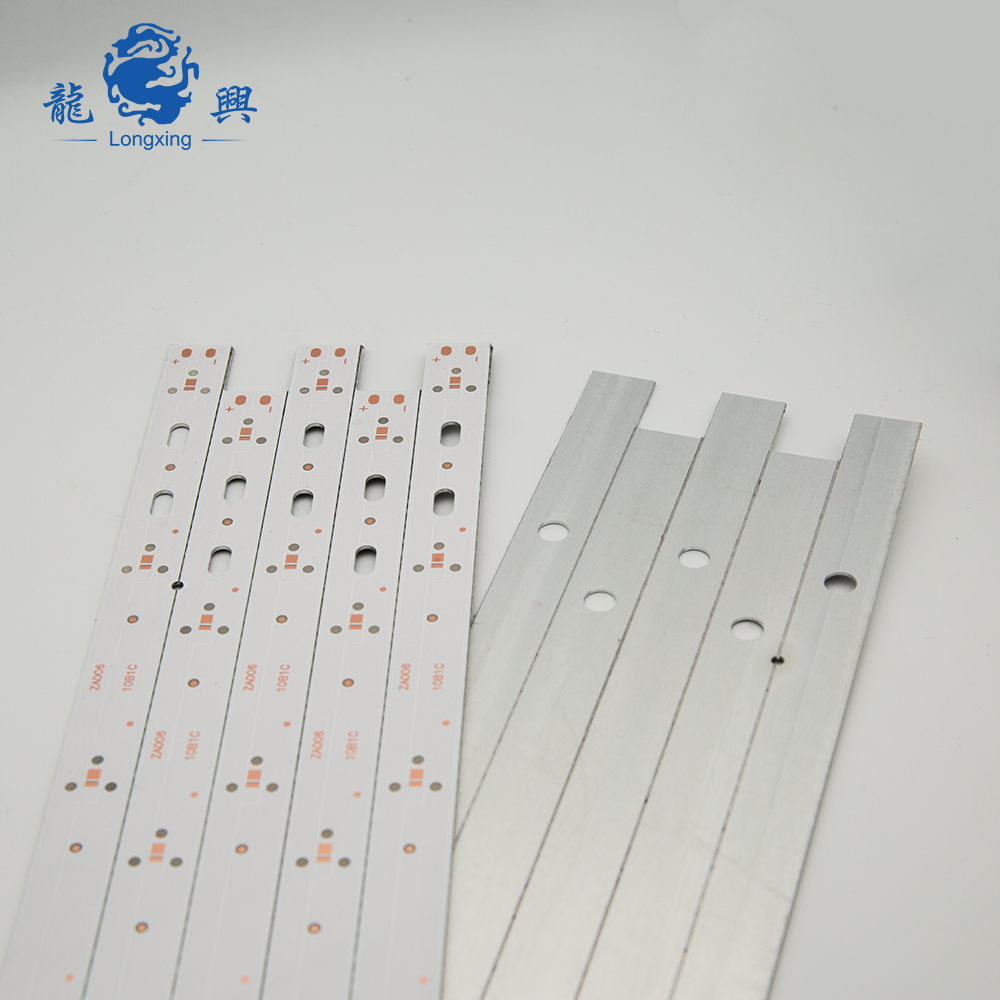

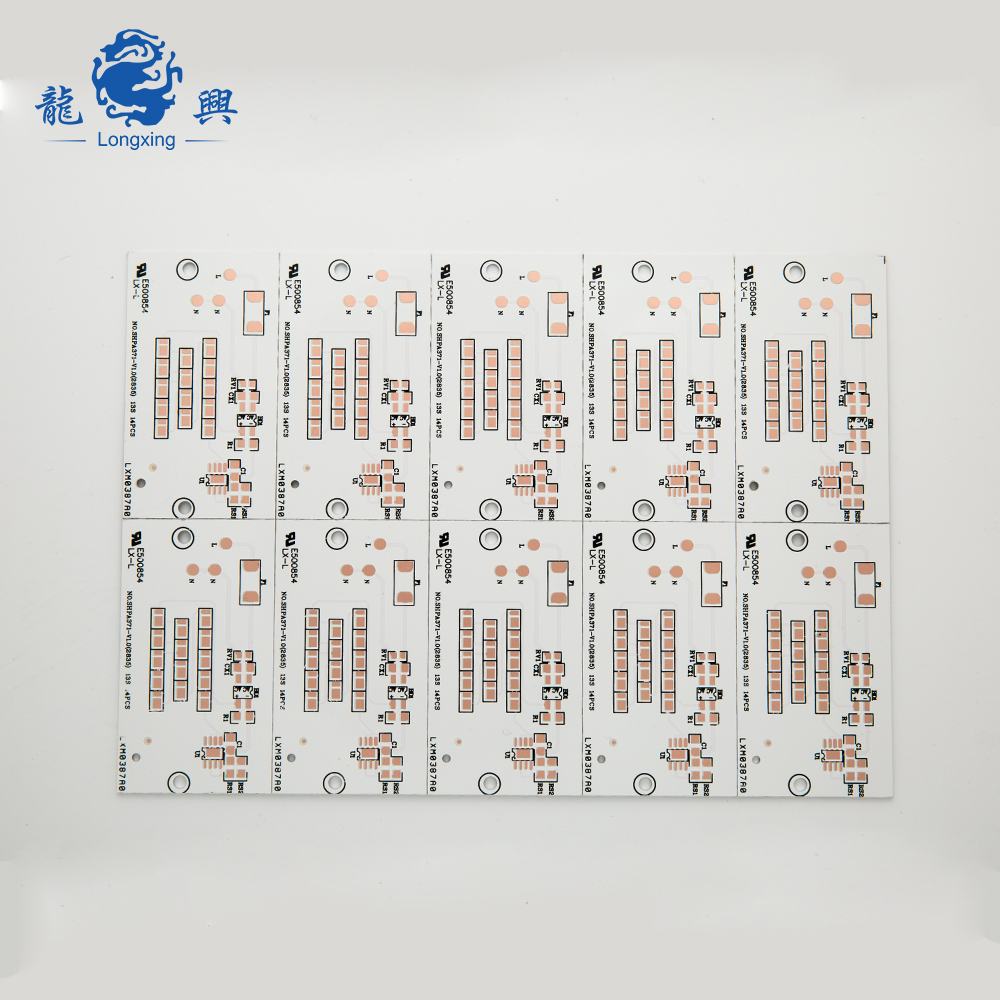

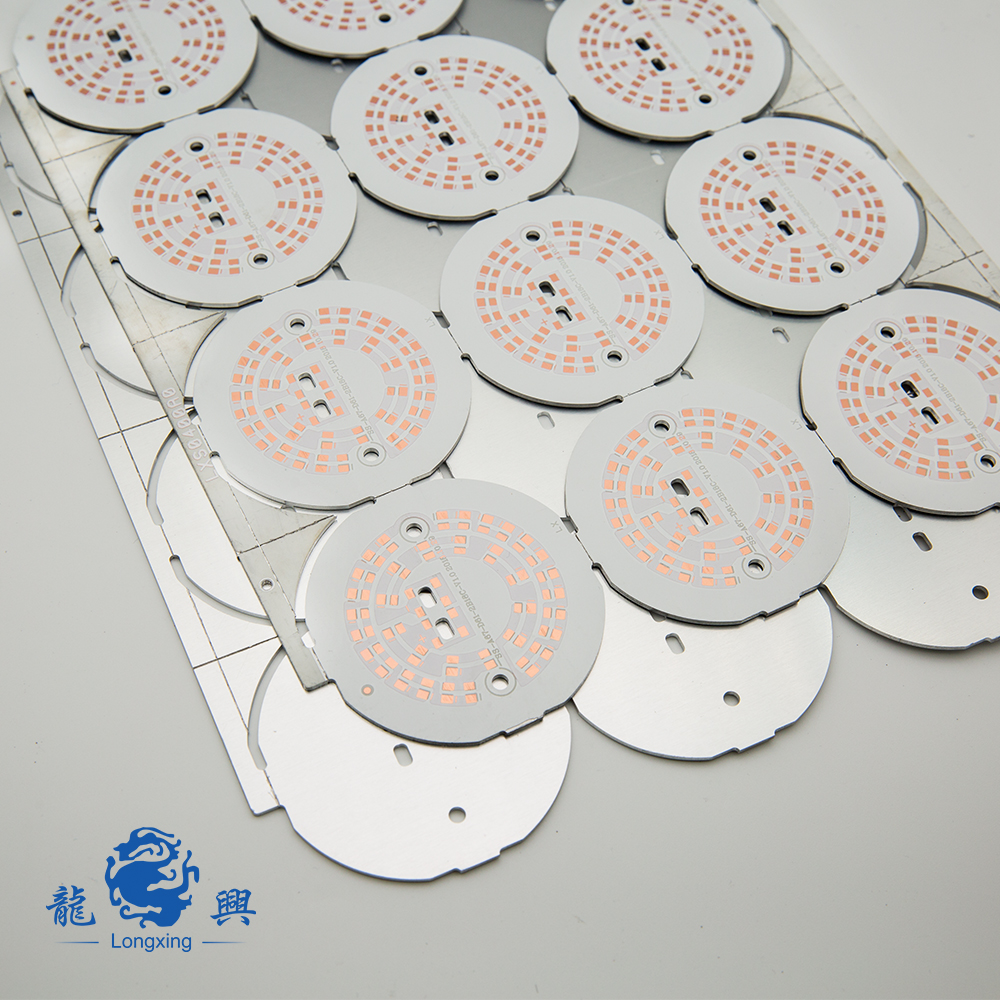

product photo
