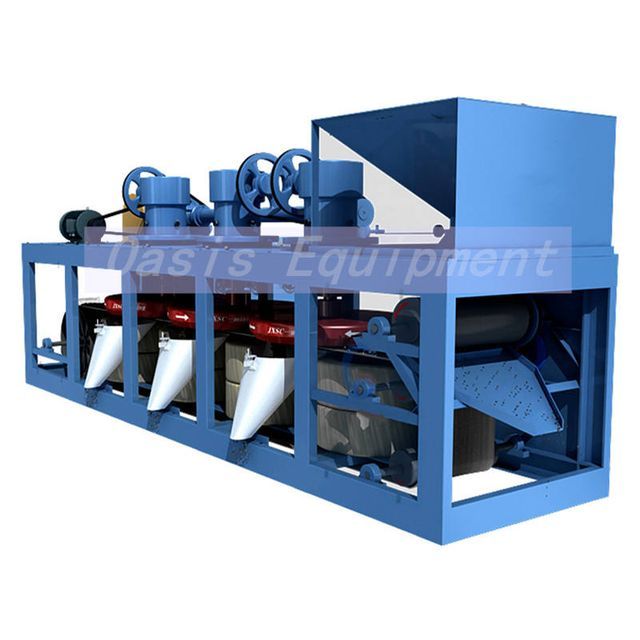

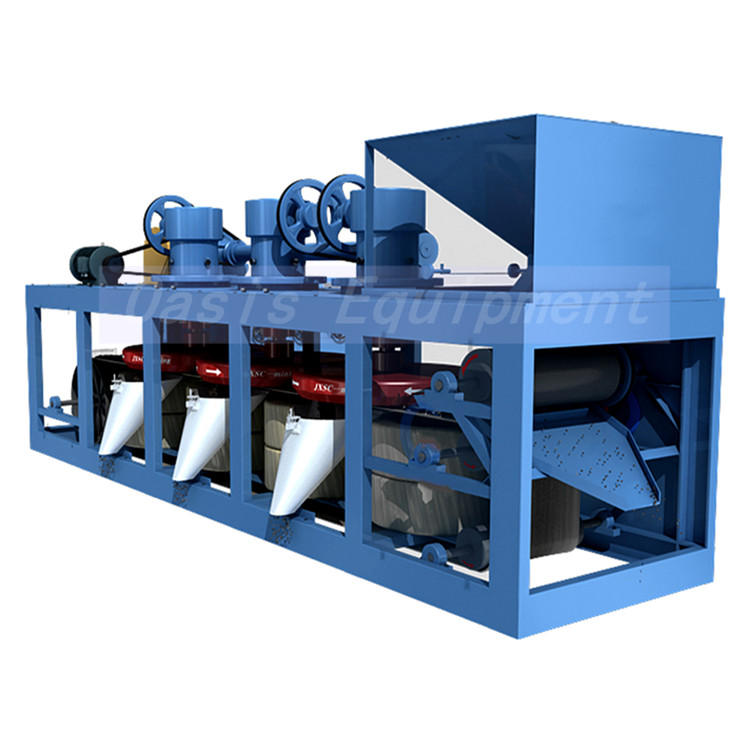

Hot-selling ilmenite mineral processing 3-500 belt type three-disk dripping dry weak magnetic separator
- $16800.00 / 1 - 4 sets
$14800.00 / 5 - 9 sets
$12600.00 / >=10 sets - 1 set
- Shicheng Oasis Mineral Equipment Manufacturing Co., Ltd.
- Jiangxi, China
- Ms Lynn Tang
PRODUCT DETAIL
| Showroom location: | not any | Mechanical test report: | not available |
| Feed width: | 210mm | Core components: | engine |
| magnetic field: | 17000GS | usage: | magnetic separation |
| Video shipment inspection: | not available | Plate number: | 3 |
| Model: | LZCP3-500 | Supply capacity: | 2000 acres per month |
| Marketing Type: | New Products 2020 | brand: | oasis, oasis |
| Health status: | new | Disk diameter: | 500mm |
| port: | Xiamen | brand: | oasis |
| serial number. : | LZCP3-500 | product name: | Three-disc magnetic separator |
| Packaging Details: | Export standard or bare package, spare parts in wooden case or according to customer demand | Material: | belt |
| Warranty: | 1 year | Excitation coil: | 4 sets |
| type: | Magnetic separator | Weight (kg): | 1900 |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Applicable industries: | Manufacturing plants, energy and mining |
| Disk Revolution: | 25-40 rpm |
Product overview
The three-disc magnetic separator is a dry magnetic separator. It is suitable for the separation of weak magnetic minerals such as titanium ore, plastic, black and white tungsten, and tin sand.
product specification
Technical Parameters/Specifications | ||||||
Three-disc belt magnetic separatorThree-disc belt magnetic separator | ||||||
Model Model | LZCP3-500 | LZCP3-600 | LZCP3-600 (rare earth) | |||
Magnetic field strength Magnetic field | 17000GS | 18000GS | 20000GS | |||
Disk number Disk number | 3 | 3 | 3 | |||
Disk straight Disk diameter | 500mm | 600mm | 600mm | |||
Disk Speed Disk Revolution | 25-40 rpm | 22-38 rpm | 22-38 rpm | |||
Excitation Coil Excitation Coil | 4 sets | 4 sets | 4 sets | |||
Excitation power rate Motor power | 1.5KW | 2.2KW | 2.2KW | |||
coil temperature rise coil temperature | 65°C | 80°C | 80°C | |||
Coil Rated Current Coil Rated Current | 1.2-1.9A | 1.2-1.9A | 1.2-1.9A | |||
Feed Width Feed Width | 210mm | 300mm | 300mm | |||
Feed size Feed size | < 2 mm | < 2mm | < 2mm | |||
Dimensions Dimensions (mm) | 2800×800×1220 | 3150×900×1250 | 3150×900×1250 | |||
Capacity Capacity | 100-500kg/hour | 120-800kg/hour | 80-800kg/hour | |||
Machine weight: | 1900 kg | 2200 kg | 2300 kg | |||

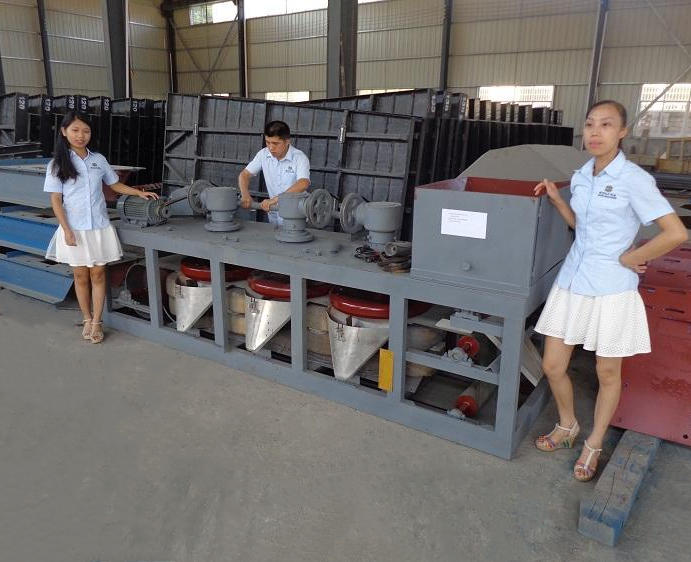

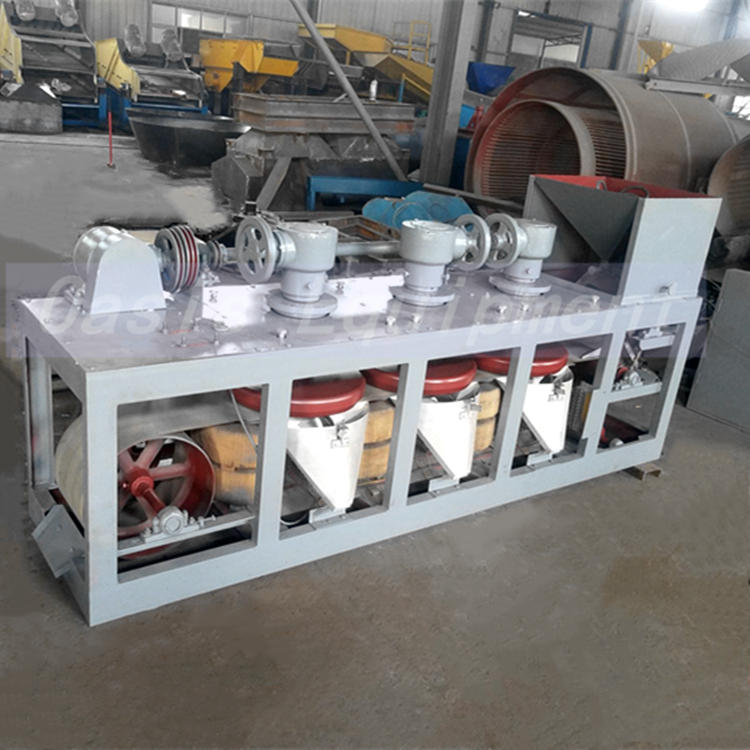

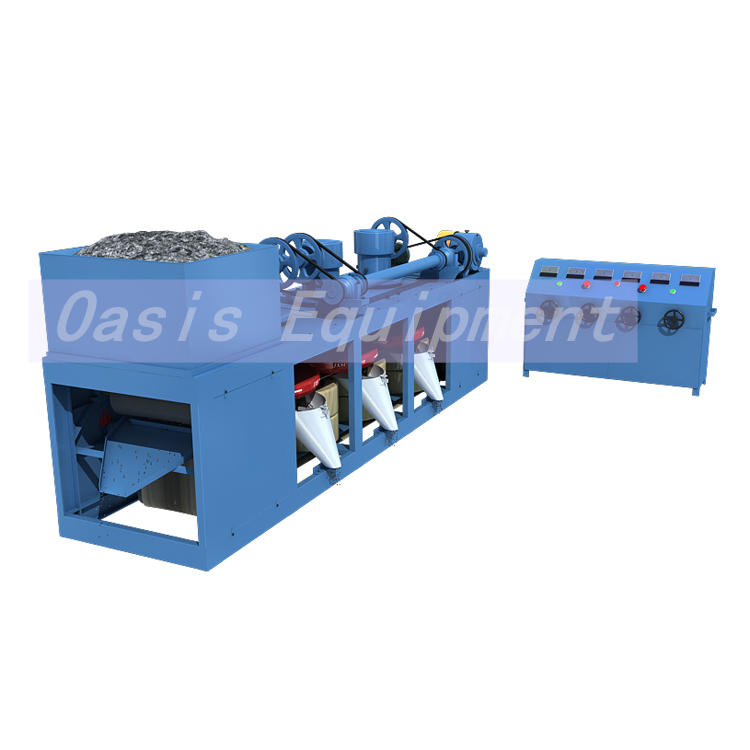

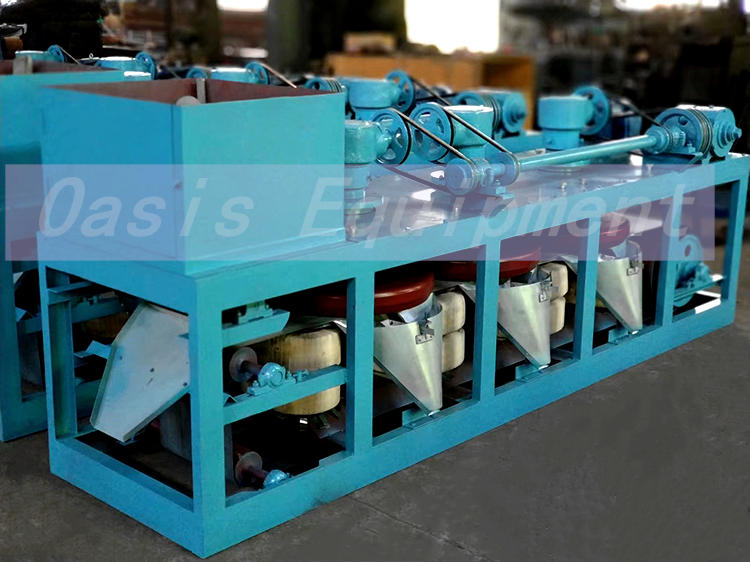

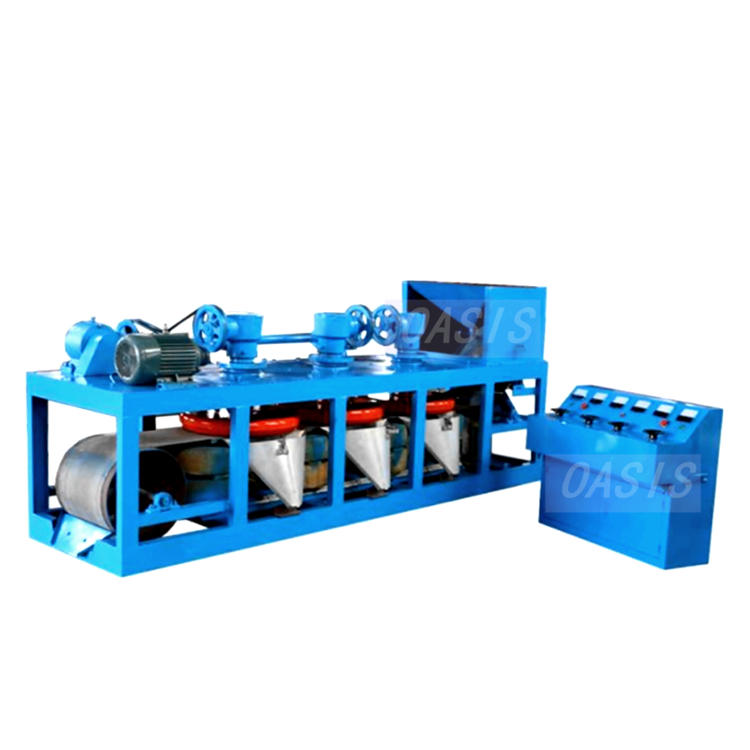

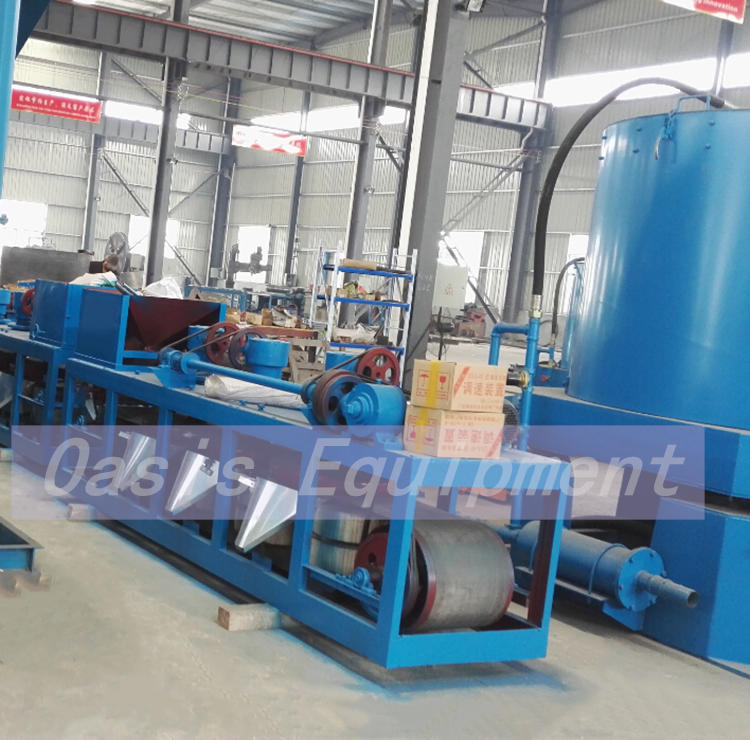

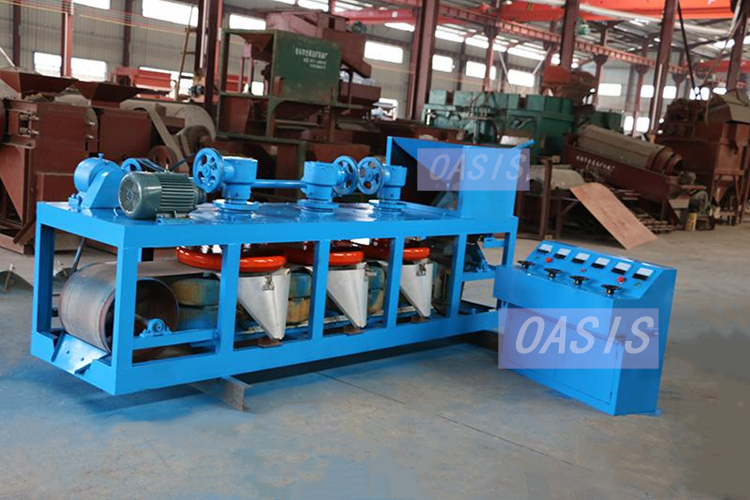

product display
about Us
Oasis Industrial Equipment Technologies, Inc. Co., Ltd. is an import and export trade enterprise engaged in the production, sales and installation of mining equipment, environmental protection equipment and hardware machinery. Craft design and uniform and non-uniform design services. Some of the company's products have obtained invention patents, and the company has obtained CE&ISO9001:2008 international quality management system certification.
Oasis company mainly produces laboratory crushers, conveyors, feeders, vibrating screens, ball mills, washing machines, mixing tanks, magnetic separators, vibrating tables, jig machines, screw machines, and can also customize various types according to customer requirements. Mineral processing machinery and equipment, such as complete processing equipment, suitable for iron, copper, gold, silver, lead, tin,Tantalum, niobium,monazite, rutile, tungsten, zinc, molybdenum,
manganese andOther non-ferrous metals and fluorite, quartzandother non-metallic minerals,
Widely used in metallurgy, mining, chemical industry, building materials,coal, refractories,
schools and other industries.The company's products have been sold to: Australia,Germany,
Canada, Mexico, Fiji, Belgium, Russia, South Africa, Nigeria, Uruguay, Congo (Brazzaville), India, Indonesia,
Malaysia, Philippines, South Korea, Mongolia, Vietnam, Chile, Mali, Finland, Kenya, Laos, Japan, United States,
Tanzania,Ethiopia, Sudan and other countries, our engineers have been to some countries before.
FAQ
Q: Are you a manufacturer or a trading company?
A: We are a professional mining equipment manufacturer with a history of 20 years.
Q: Where is your factory located? How can we visit you?
A: Our factory is located in Shicheng County, Ganzhou City, Jiangxi Province, China. Welcome to our factory!
Q: Why buy from us?
1, High quality and most competitive price.----We are famous for mining equipment.

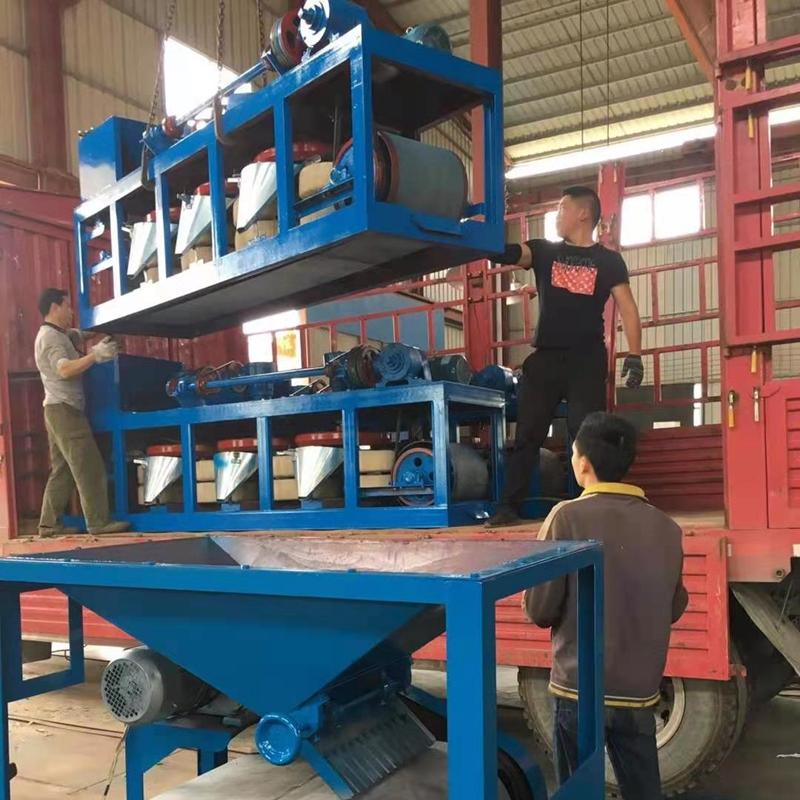

2. Best delivery---- Goods will be shipped within 7-30 days according to the order quantity.
3. The best service---- Respond to emails/messages and resolve issues in a timely manner; deliver and update information in a timely manner. Long-term business cooperation and friendship based on trust, good quality and service, etc.
Q: How is the quality of your products?
A: Oasis products are carefully manufactured according to internal standards, we have patents and passed ISO9001:2008, CE and SGS, our laboratory and large crushers, vibrating screens, ball mills, gold washing machines, vibrating tables, spiral chutes, Flotation machines, magnets and other machines, etc., our machines are shipped to many countries and regions all over the world.
