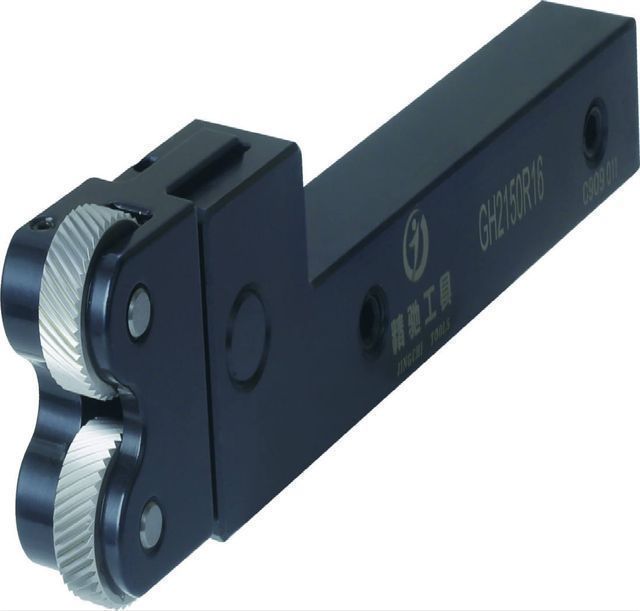

Hot selling mechanical double wheel forming knurling knife holder
- $103.50 / 1 - 9 pieces
$98.00 / >=10 pieces - 1 piece
- Taizhou Ke Chi Machinery Co., Ltd.
- Zhejiang, China
- Mr .
PRODUCT DETAIL
| process: | Straight and Convex Lines | port: | Ningbo or Shanghai |
| brand: | Jingchi | Package: | carton |
| Types of: | Knurling, face milling | Certificate: | ISO9001 |
| Processing range: | 5 - 40 mm | Finish: | Bright (uncoated) |
| product name: | Lathe double wheel knurling tool | Packaging Details: | carton |
| payment terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram | direction: | right+left |
| Model: | GH2150R16 | Supply capacity: | 500 pieces per month |
| Material: | high speed steel | Processing: | accept |
| usage: | Lathe, CNC | place of origin; place of origin: | Zhejiang, China |
Hot selling mechanical double wheel forming knurling knife holder
Product Description
KC-GH knurling tool
Knurling features: non-cutting cold extrusion process.
The surface of the workpiece is deformed by extrusion, which is more suitable for workpieces of easily deformable materials.

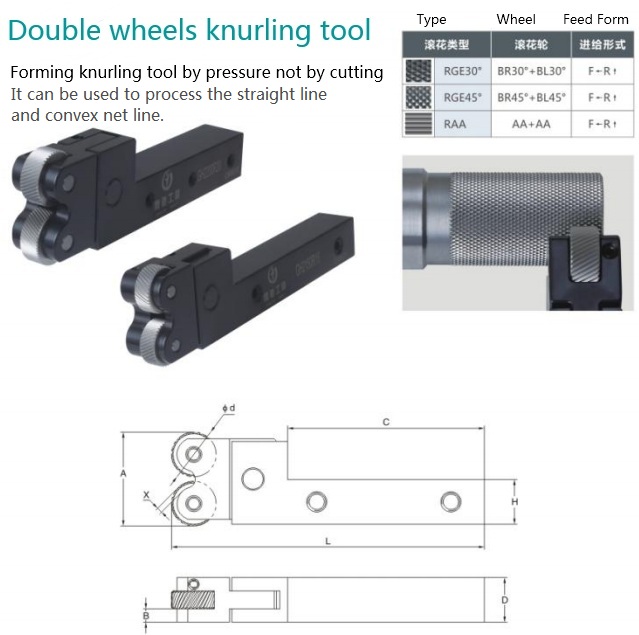

product data
|
Model |
direction
|
Process range |
wheel size |
Shank size |
Parts |
||||||
|
A sort of |
Second |
C |
Ding |
h |
large |
x |
|||||
| GH2150R16 | right+left | Φ5-40 | Φ15×6×4 | 33 | 3 | 80 | 16 | 16 | 120 | 1.5 | ×0416 |
| GH2200R20 | right+left | Φ10-80 | Φ20×8×6 | 42 | 6 | 88 | 20 | 20 | 140 | 2.5 | ×0620 |

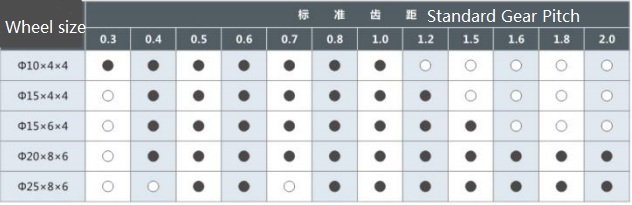

wheel size
Features of knurling tools
1. Suitable for cold working of deformed materials
2. Any position of the workpiece can be knurled
3. Generate a large radial pressure on the machine tool
4. The diameter of the workpiece will increase due to rolling
5. Thin-walled parts are not recommended
