Hydraulic Answering Machine for Rotary Leather Die Cutting Machine

PRODUCT DETAIL
Marketing Type:normal productVoltage:220v/380v
place of origin; place of origin:Guangdong, Chinabrand:atom
aspect:100x100x149cmVideo external inspection:if
weight:880kgDimensions (L*W*H):100X100X145CM
strength:1HPyear:2013
Cutting pressure:20T/25TApplicable industries:shoes, belts, bags
type:Cutting MachineWarranty:1 month
Supply capacity:10 sets per weekGW:950kg
northwest:900kgstrength:1HP
Showroom location:not anyCore components:motor, pump
Core Components Warranty:1 monthHealth status:used
Packaging Details:Tray/Plywood BoxPackaging Preview:
Cutting table:900x430mm, 900X450mmpayment terms:Western Union, T/T, MoneyGram
Auto grade:semi-automaticStoke:90mm
Mechanical test report:ifArm width:37cm/50cm
port:Shenzhen, China

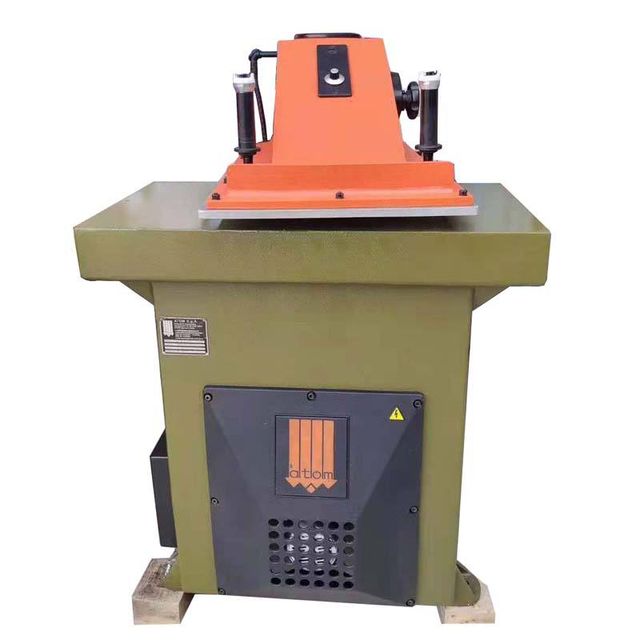

Hydraulic Answering Machine for Rotary Leather Die Cutting Machine

Product Description



Brand: Atom

Model: VS922/VS925/VS925L



Refurbished machine, in good working condition.

The swing beam type cutting machine is extremely simple to use, and the cutting stroke is easily adjusted, and the operator can switch between multiple height cutting dies without any setting or adjustment.

The control buttons are ergonomic and therefore more comfortable for the operator. The buttons are controlled by a two-hand safety relay, which means that the buttons need to be activated at 5/10 sec/sec from each other, also allowing the cut stroke to activate, and need to be continuously activated to maintain the cut stroke.

If desired, cutting power can be easily adjusted by moving a simple potentiometer on the cutting beam.









Specification



Technical data:

Model: VS922 VS925

Cutting table(mm)

900x430mm 900*450mm
Arm width(mm) 37 cm 37 cm
maximum. Cutting power 22T 25T
maximum. stroke 90mm 90mm
Motor Power 1HP 1HP
Voltage 380V/220V, three-phase 380V/220V, three-phase
weight 630kg 880kg
aspect 100x90x149cm 100x100x150cm

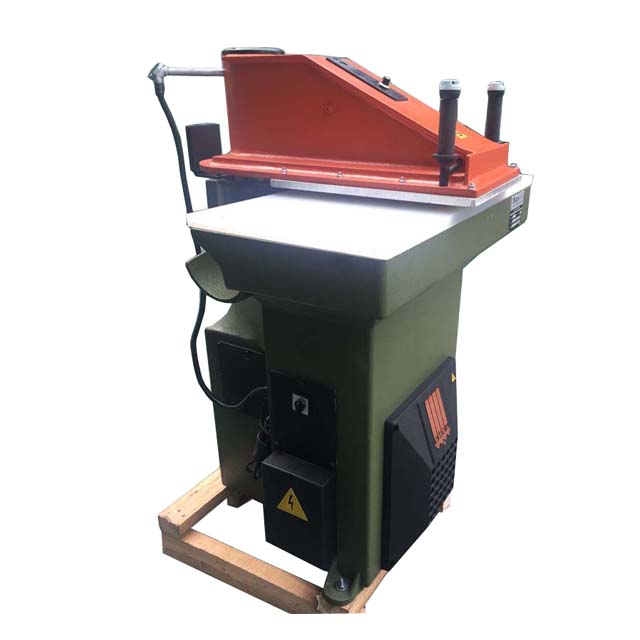

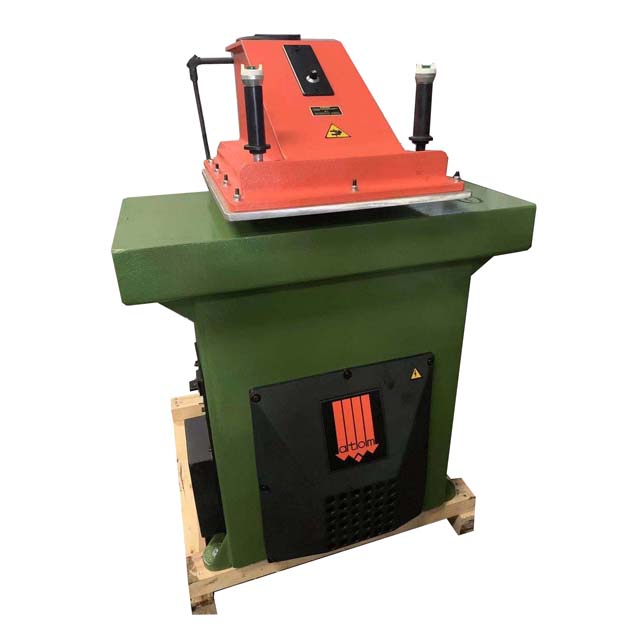

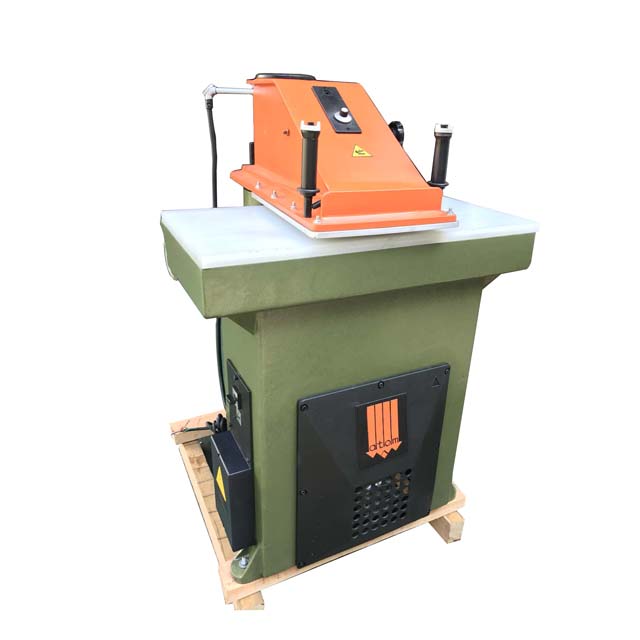

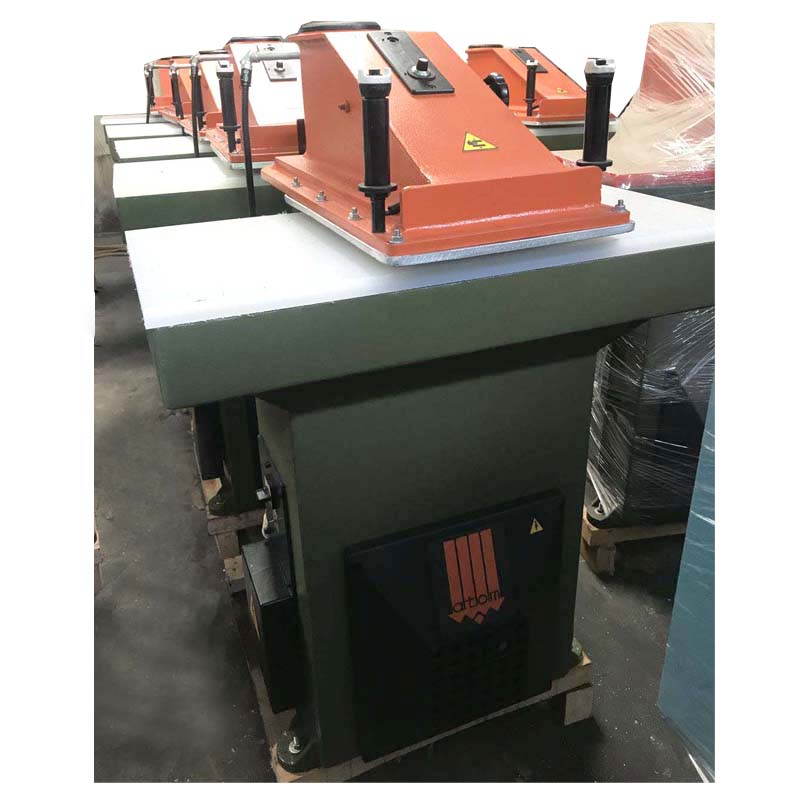

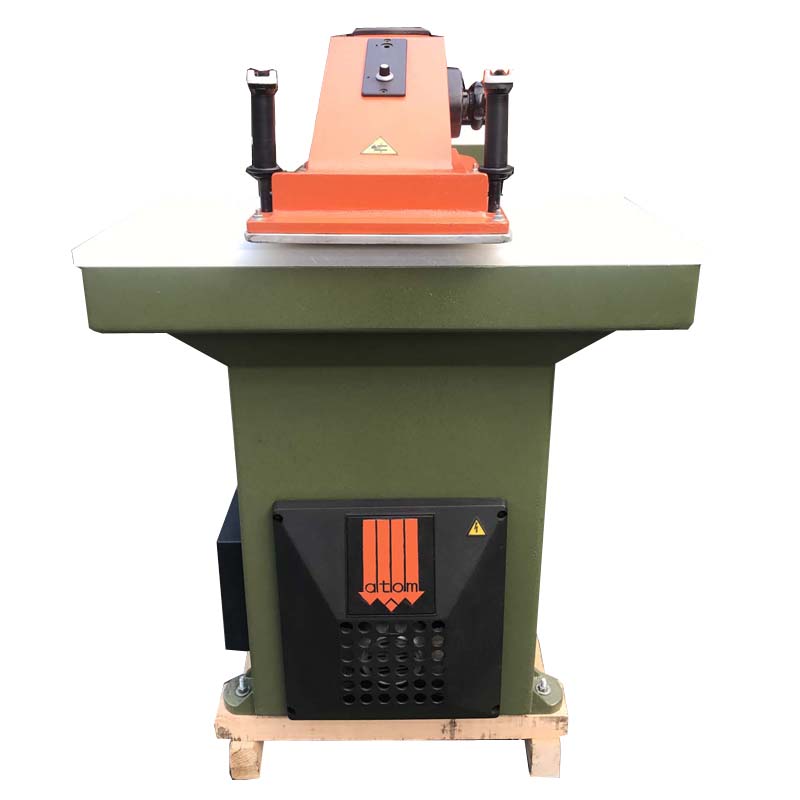

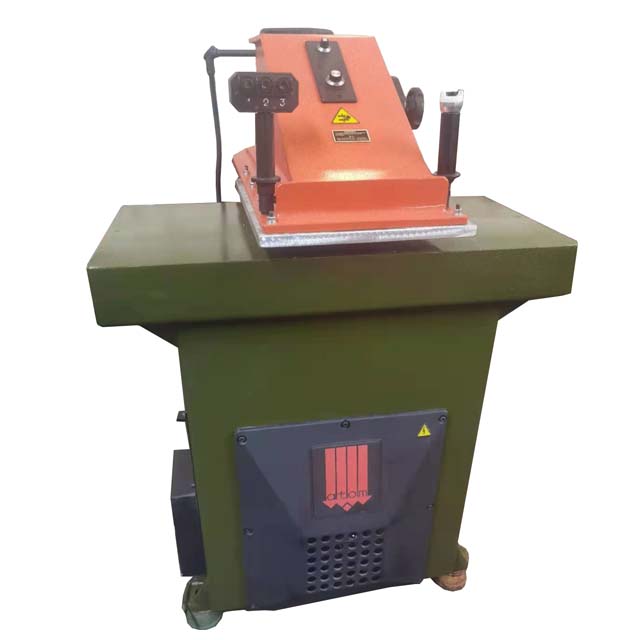

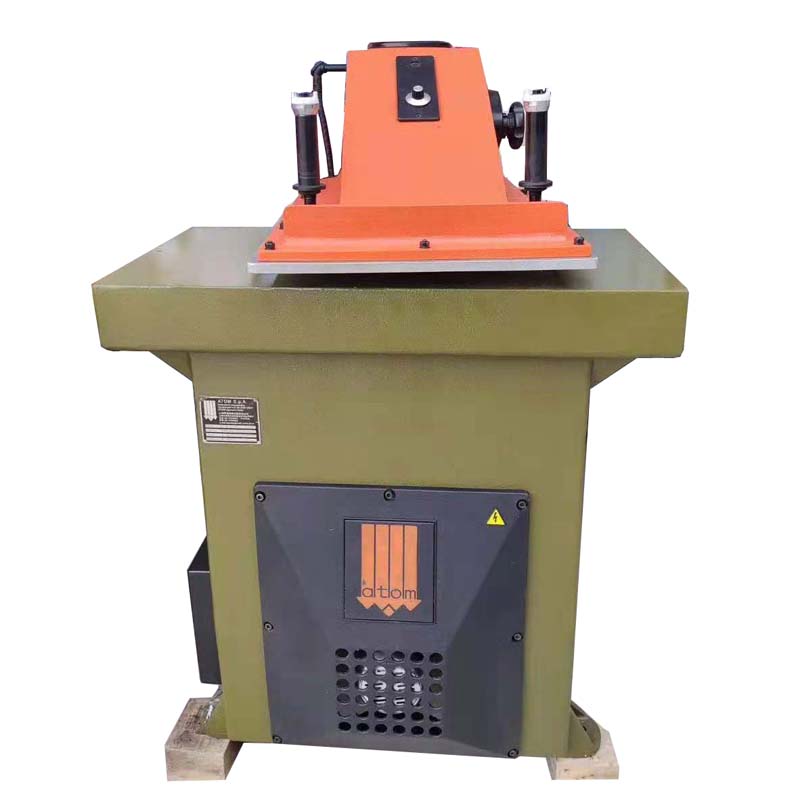

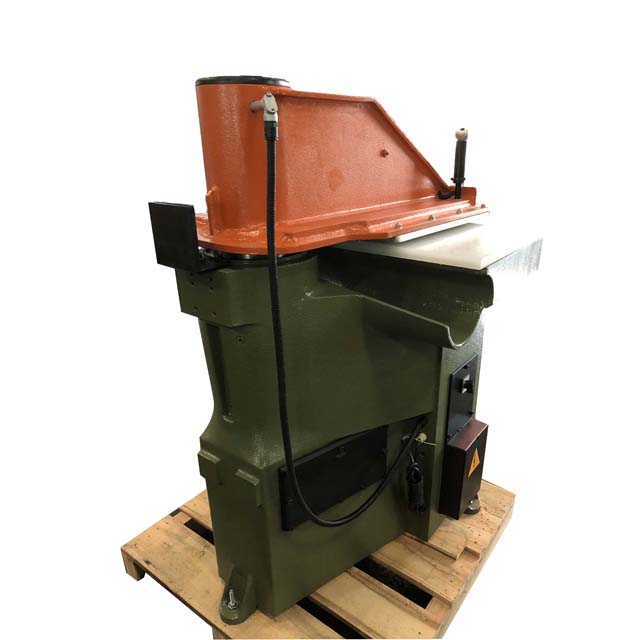

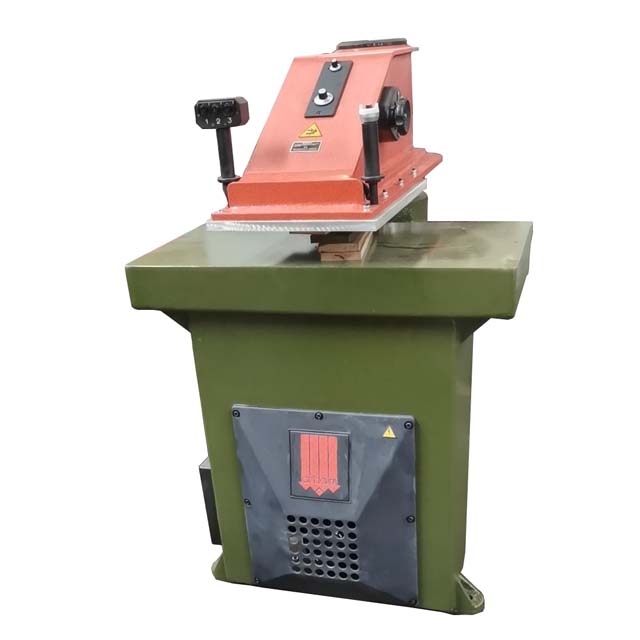

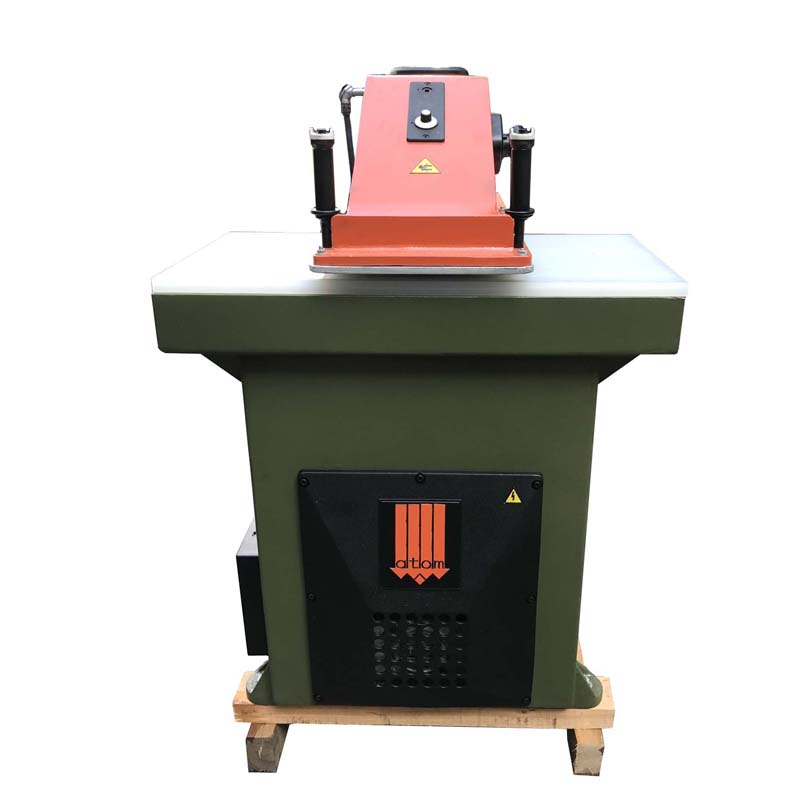

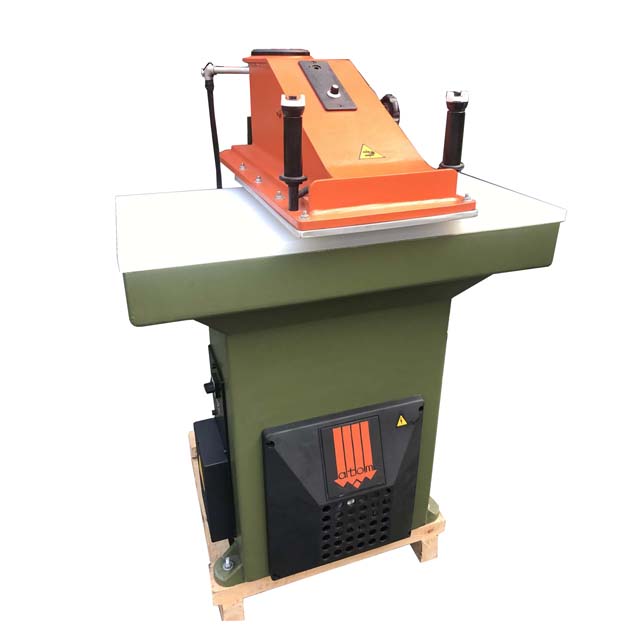

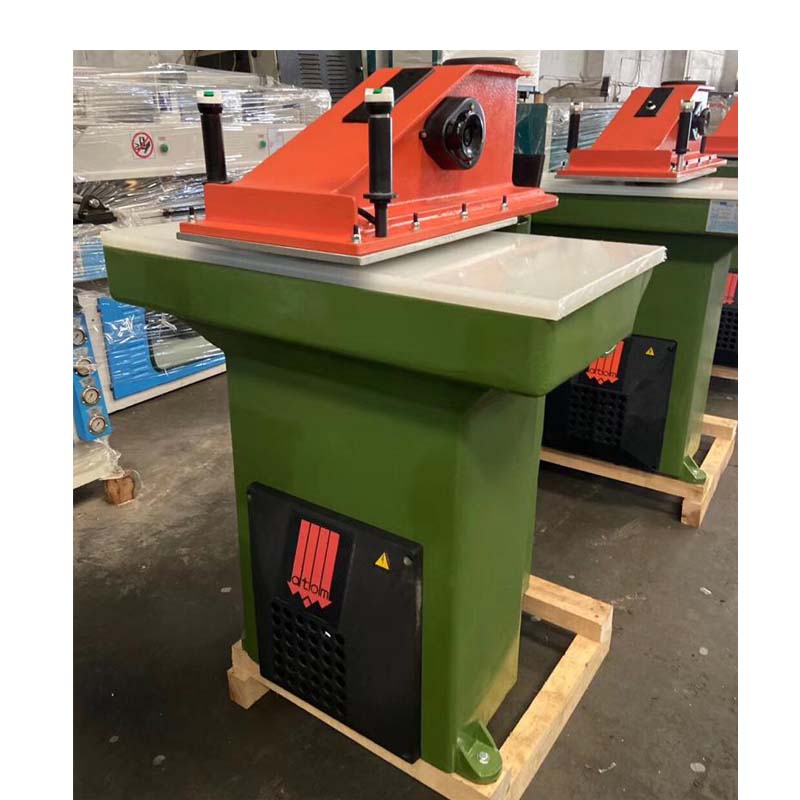

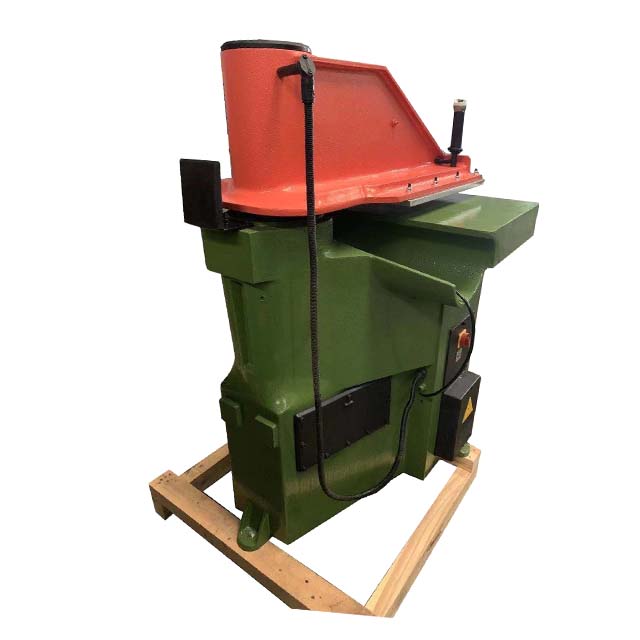

detailed image



25 tons:





20 tons:
