Hydraulic freezer with horizontal contact plates for sale
- $25000.00 /unit
- 1 unit
- Nantong Sinrofreeze Equipment Co., Ltd.
- Jiangsu, China
- Ms Olivia Xu
PRODUCT DETAIL
| payment terms: | L/C, T/T | weight: | 4500KG |
| port: | Shanghai Port | Showroom location: | Canada, UK, Peru, Indonesia, India, Russia, Thailand, Sri Lanka, Malaysia, Australia |
| Supply capacity: | 15 units per month | Dimensions (L*W*H): | 4300mm*1900mm*2950mm |
| Product Category: | Plate freezer | Cooling capacity: | 400-2000kg/batch |
| Applicable industries: | Food and Beverage Factory | Warranty: | 1 year |
| After warranty service: | Video technical support, online support, spare parts, on-site maintenance and repair services | type: | Plate freezer |
| Main selling points: | easy to operate | Certification: | CE certification |
| Local service location: | United States, Thailand, South Korea | Health status: | new |
| After-sales service provided: | Free spare parts, video technical support, on-site installation, commissioning and training, on-site maintenance and repair services, online support | Marketing Type: | New Products 2020 |
| Core component warranty: | 1 year | Video shipment inspection: | if |
| Origin: | Jiangsu, China | brand: | Xingnuo Frozen |
| Voltage: | 380v, 3ph, 50hz | Mechanical test report: | if |

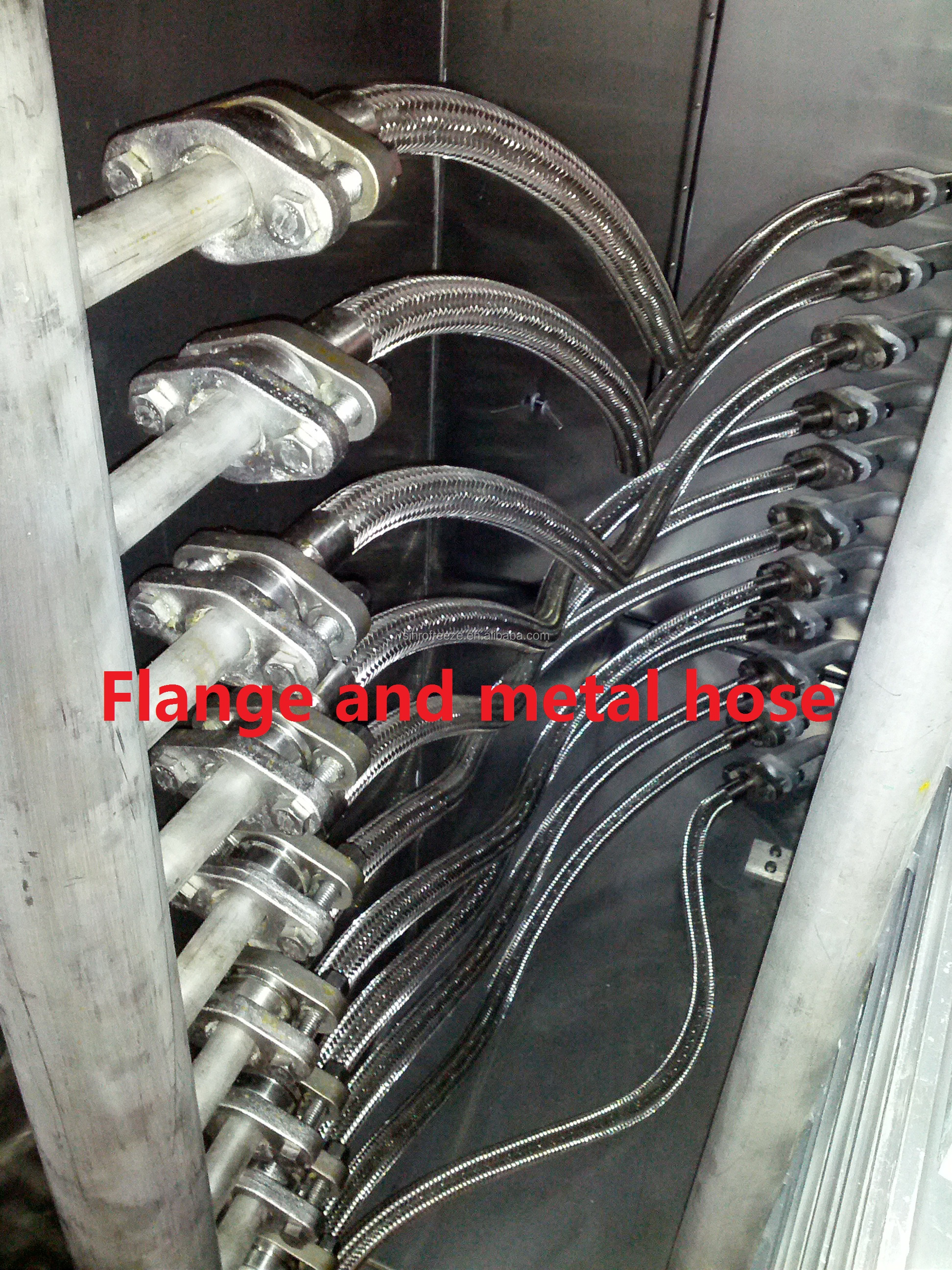

| Core components: | Hydraulic station, metal hose |
Product Description
The hydraulic contact plate freezer quickly freezes product by moving up and down an internal aluminum plate. The product is in contact with two plates to achieve heat exchange in a short time. It is suitable for frozen food in blocks on land or on fishing boats, such as fish fillets, surimi, shrimp, shellfish, etc. It can be equipped with a refrigeration system according to the different requirements of users.

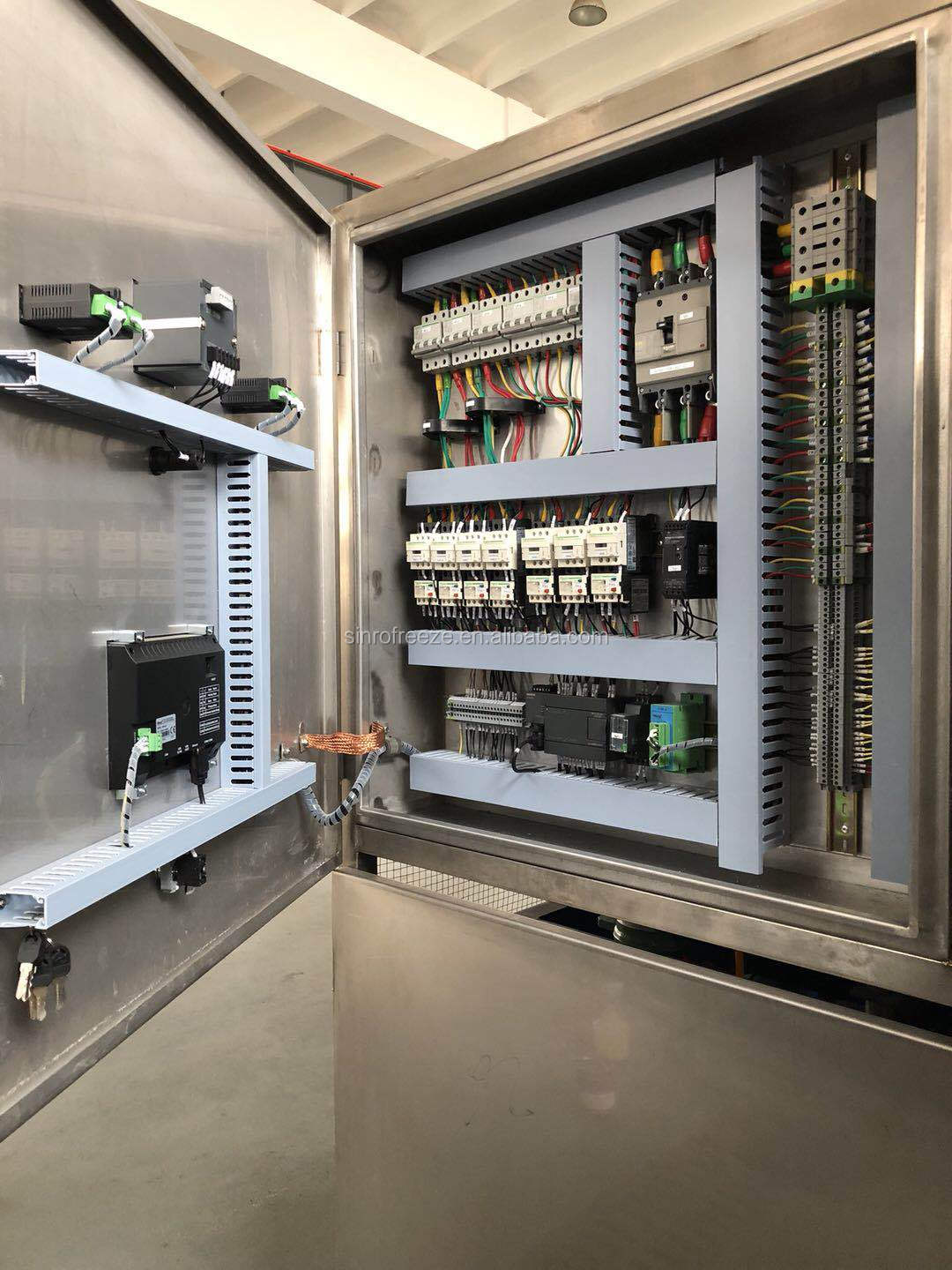

All electrical components are selected from internationally renowned brands such as Siemens and Schneider. Can be controlled by relay, PLC, touch screen.

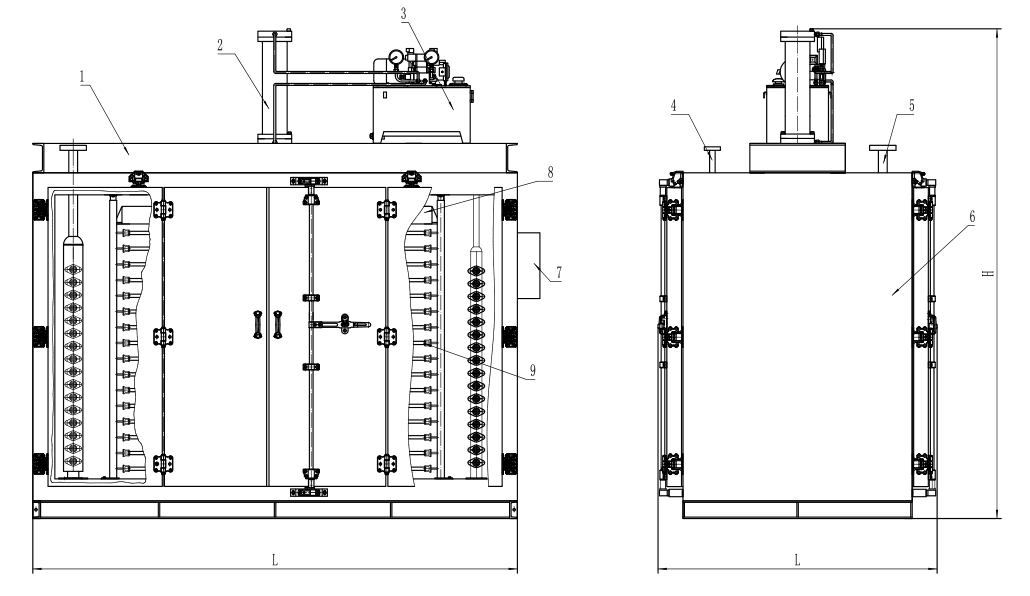

structure diagram
1. Cylinder frame
2. Lift cylinder

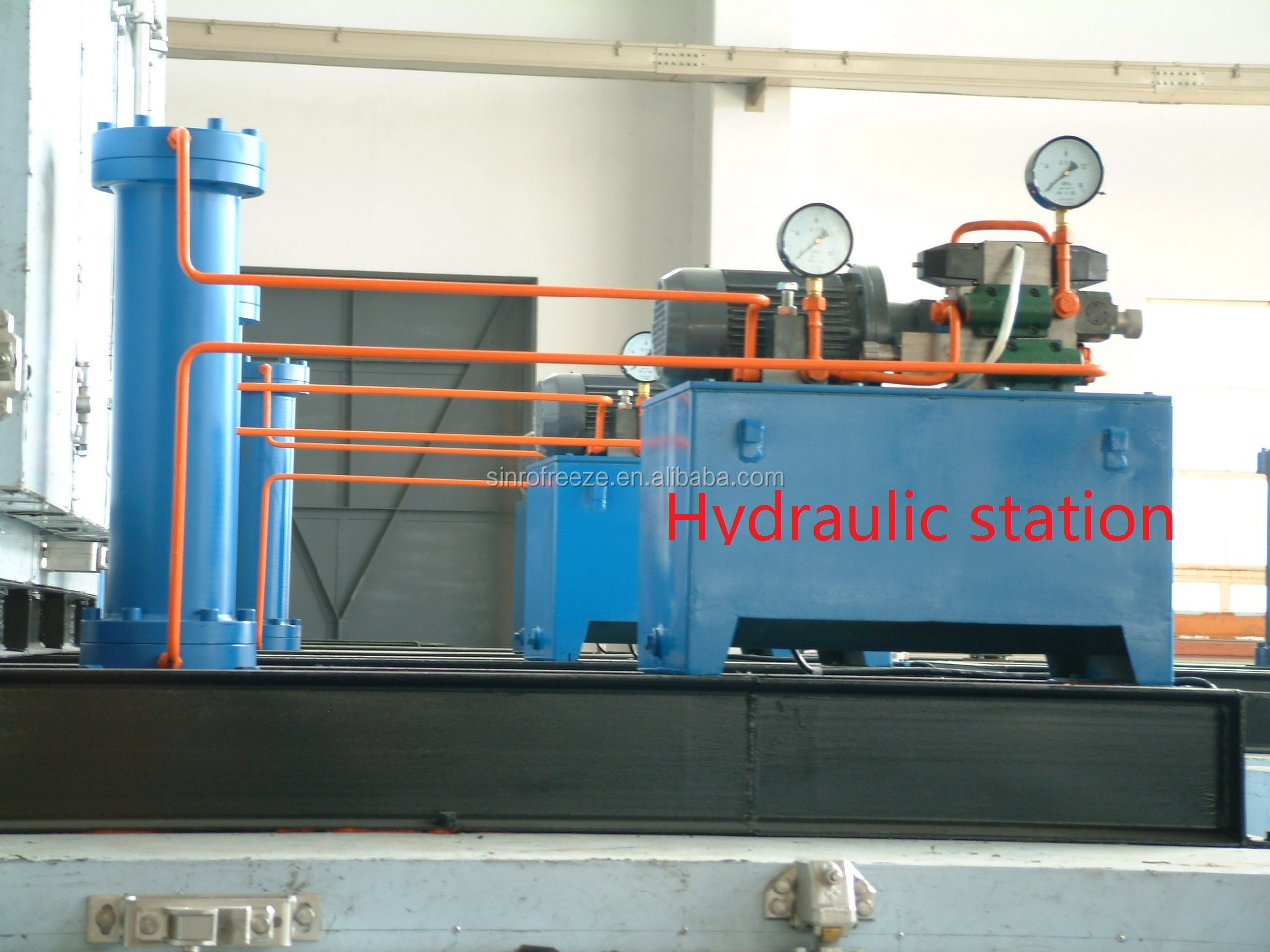

3. Hydraulic pump
4. Liquid supply pipe
5. Suction pipe
6. Warming cabinet
7. Control box
8. Flatbed tractor

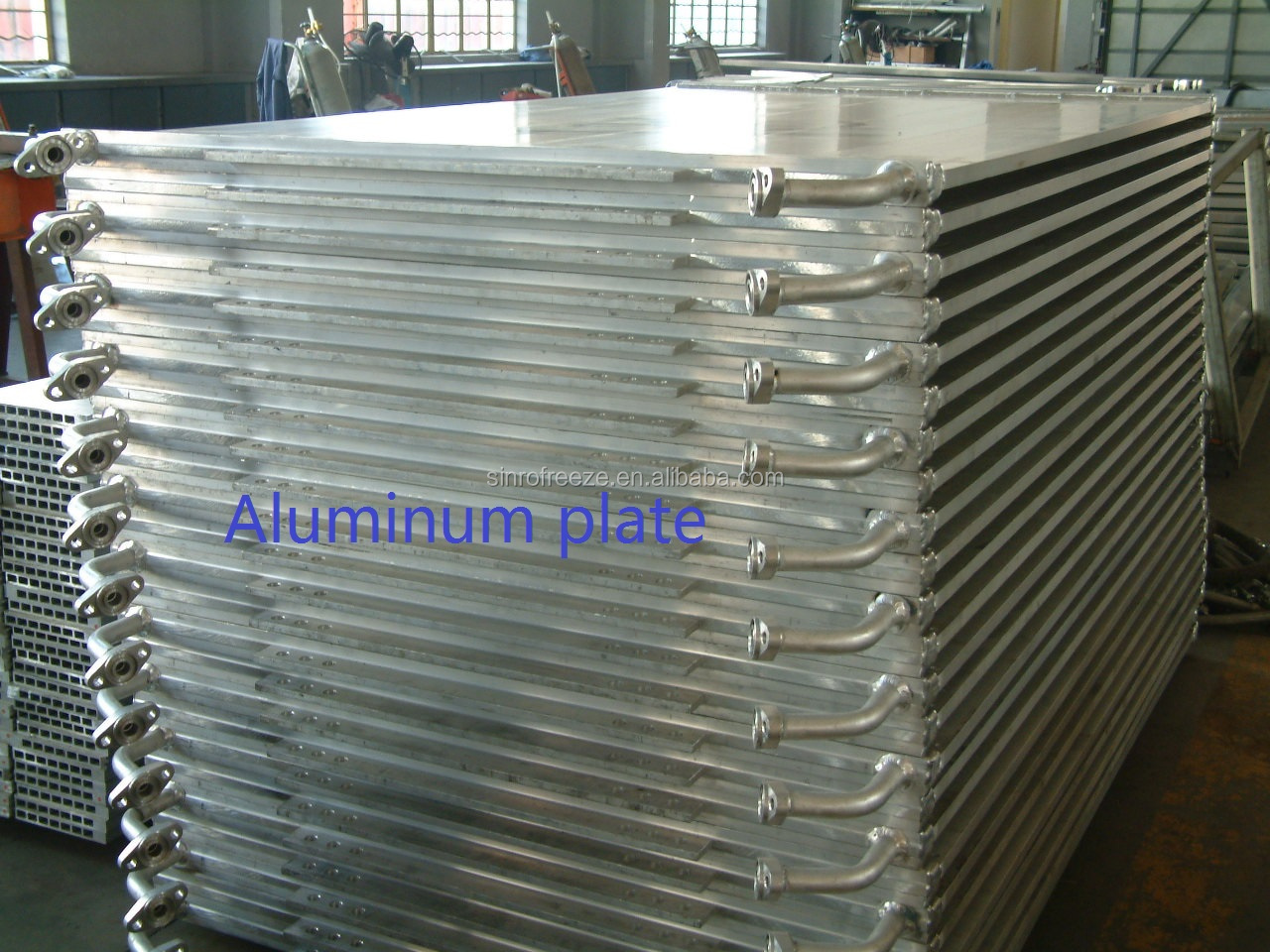

9. Evaporated aluminum plate
3. Hydraulic pump
4. Liquid supply pipe
5. Suction pipe

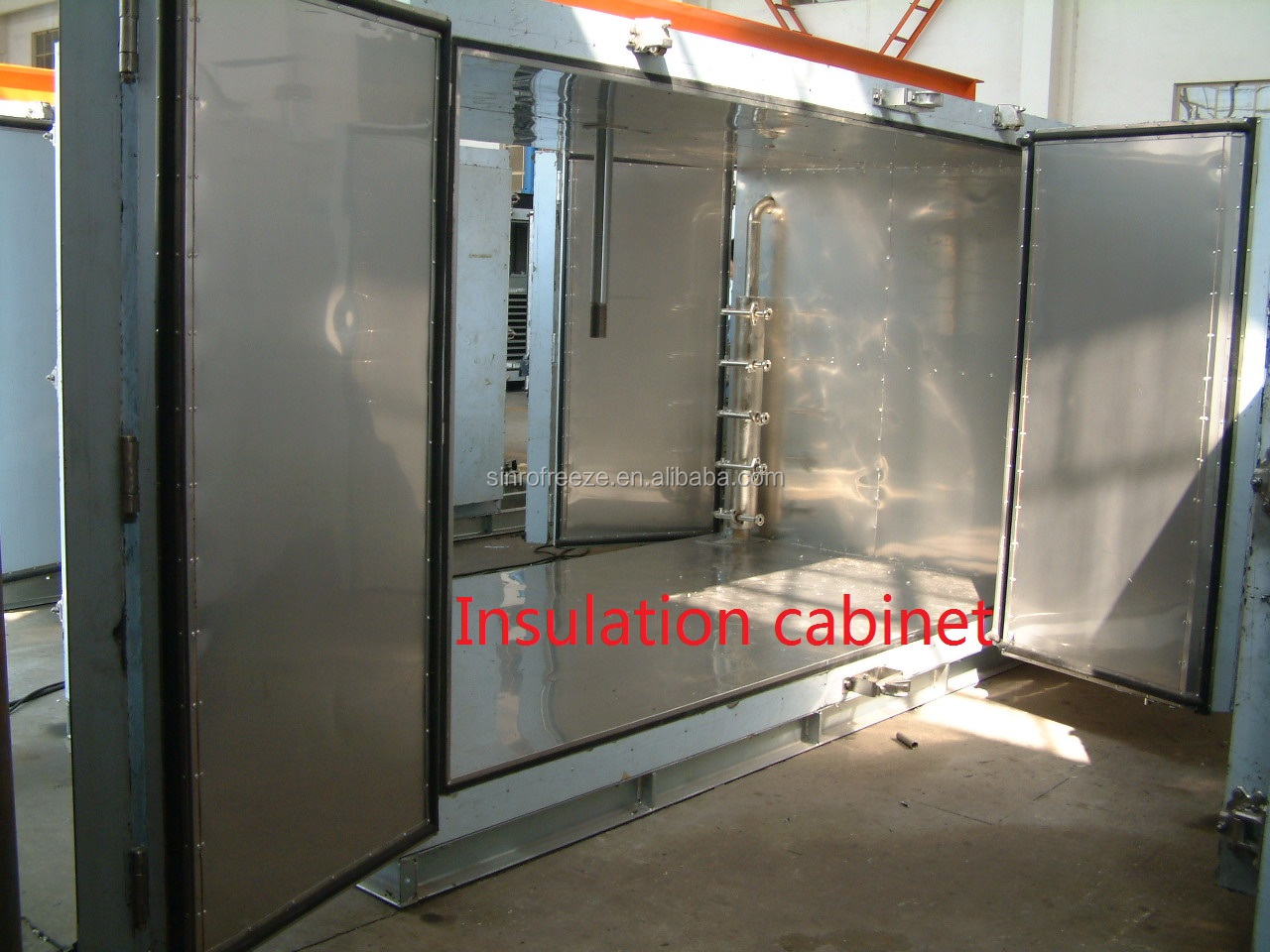

6. Warming cabinet
7. Control box
8. Flatbed tractor
9. Evaporated aluminum plate

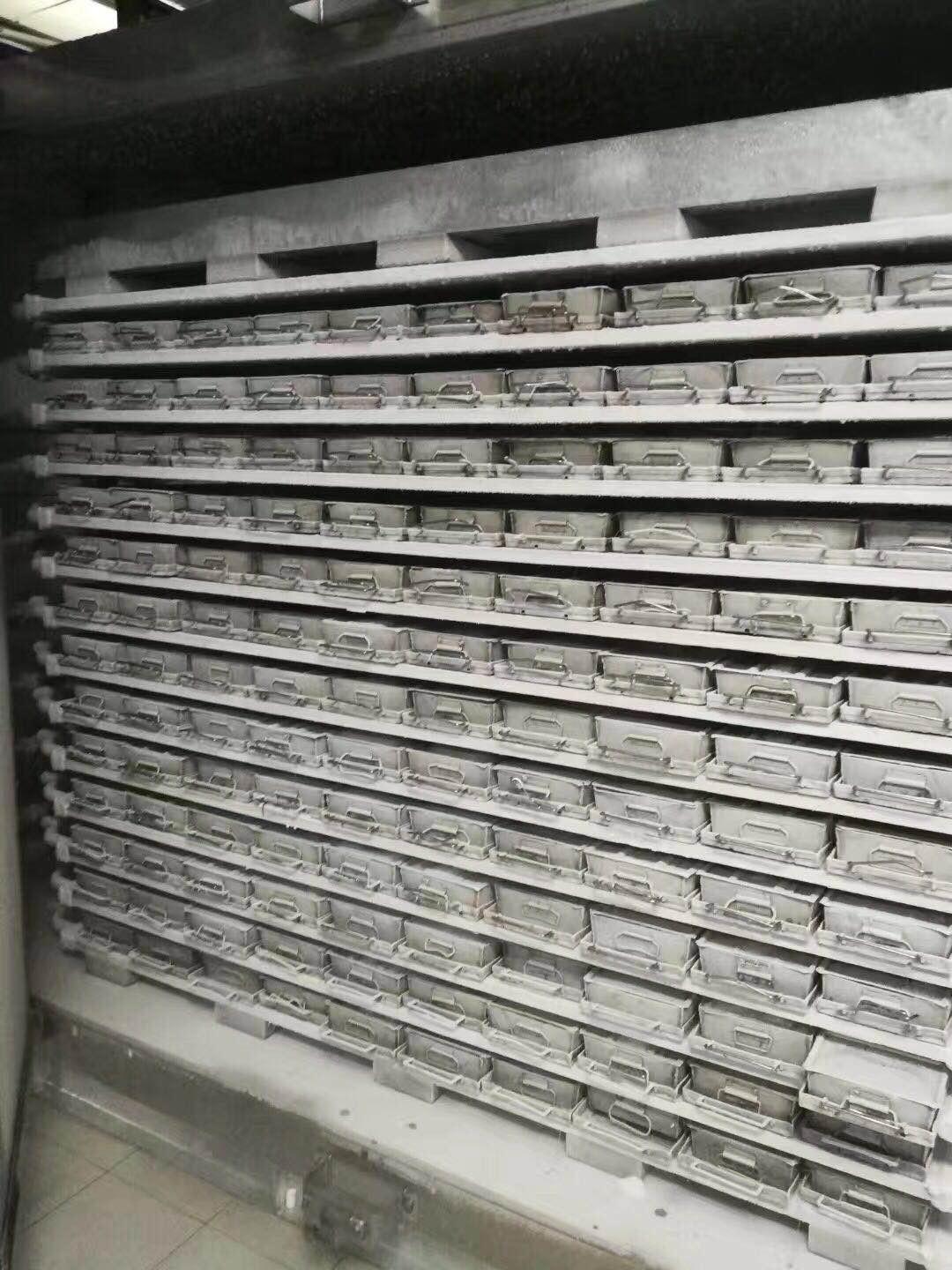

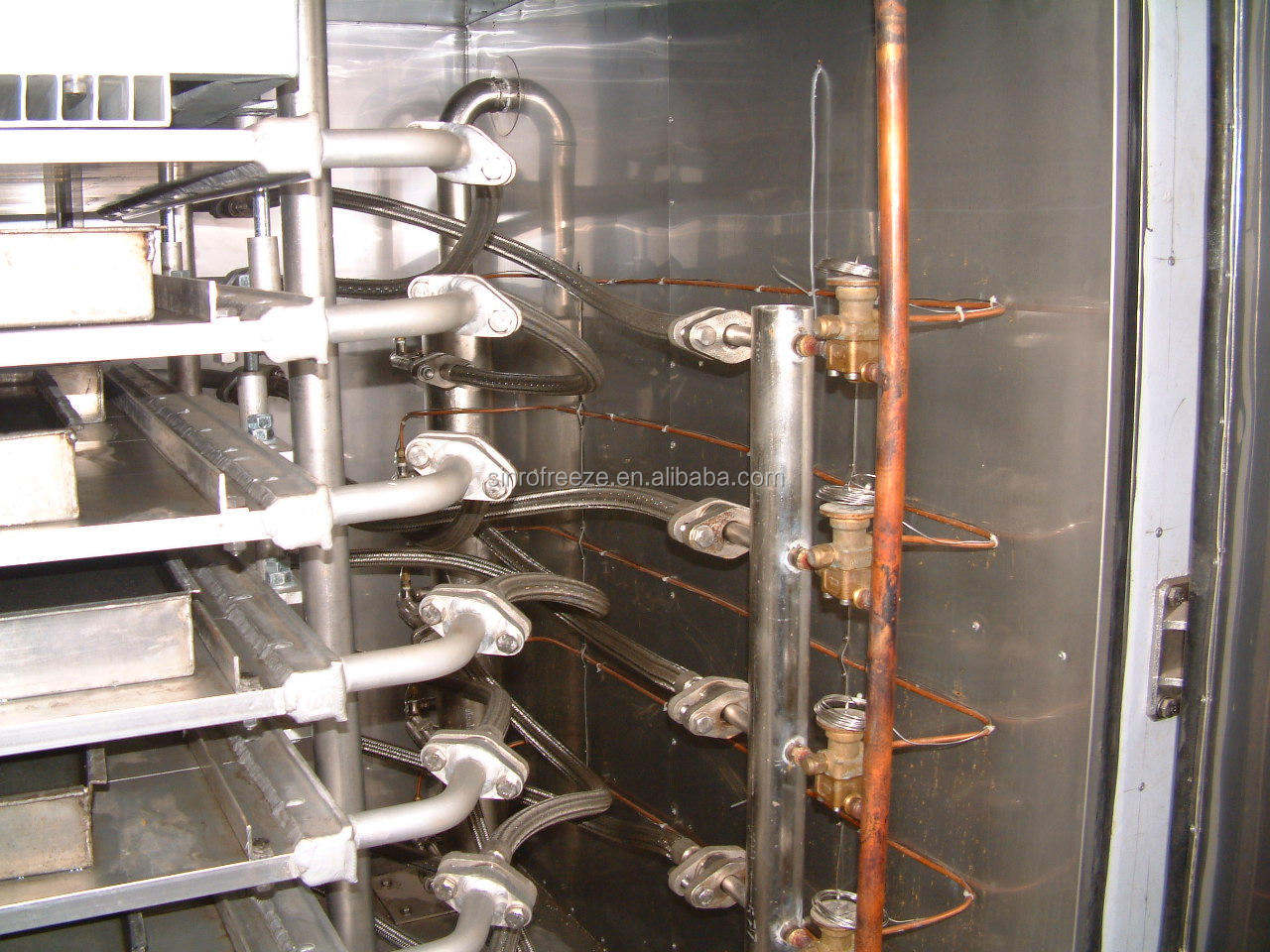

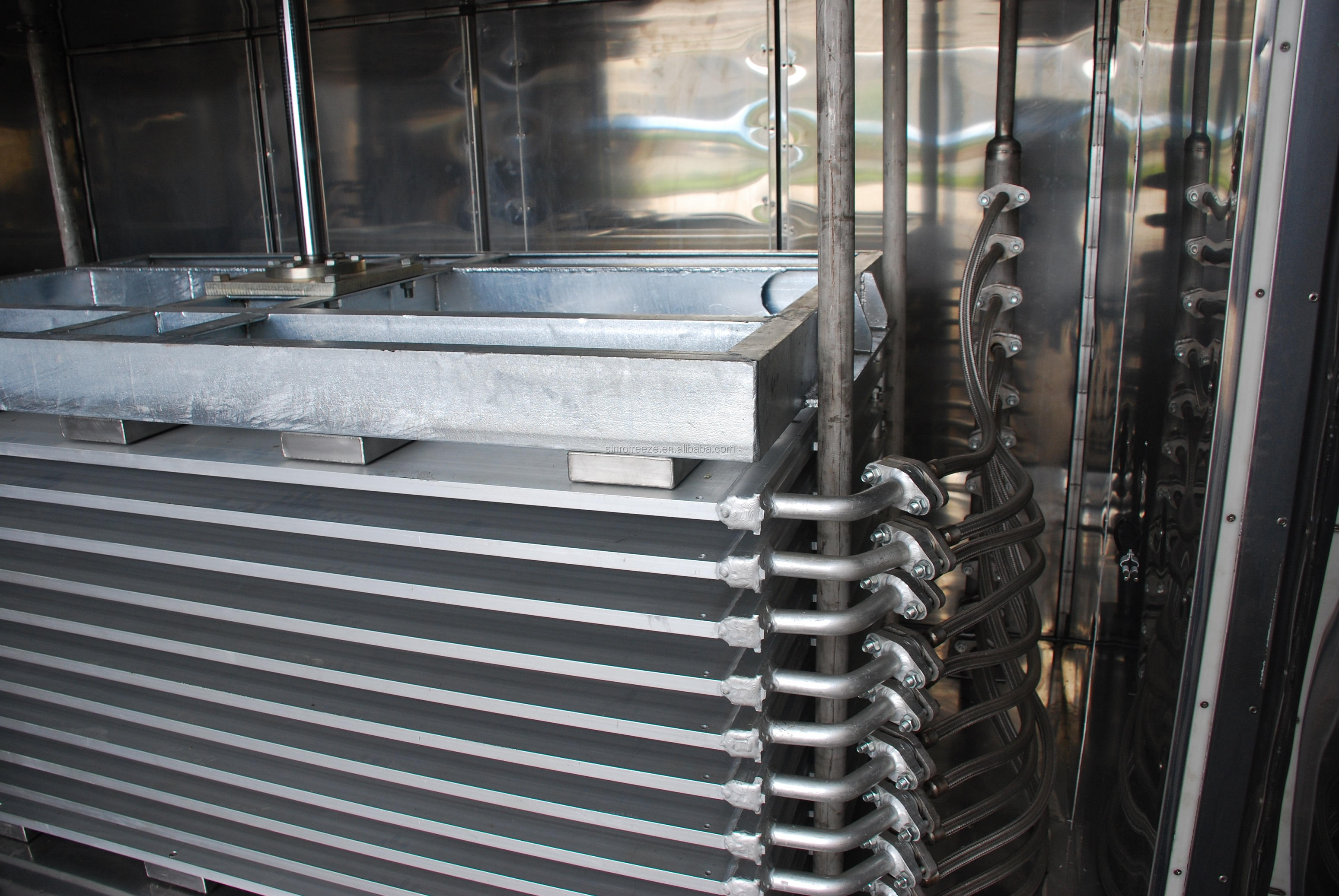

detailed image
Size Information
technical specifications
Model | freezing capacity (kg/hour) | plate No. | plate size (mm) | Layer spacing (mm) | required blood volume (kilowatt) | Motor Power (kilowatt) | Dimensions (mm) |
PFJ-420 | 420 | 8 | 1250×1260 | 55~100 | 30HP | 22.5 | 2300×1560×2260 |
PFJ-900 | 900 | 10 | 2000×1260 | 55~105 | 15HP×3 | 33 | 4300×1900×2900 |
PFJ-1100 | 1100 | 12 | 2000×1260 | 55~100 | 34HP×2 | 43.5 | 4300×1900×2900 |
PFJ-1210 | 1210 | 12 | 1700×1459 | 55~100 | 34HP×2 | 43.5 | 4300×1900×2900 |
PFJ-1300 | 1300 | 14 | 2000×1260 | 55~105 | 44HP×2 | 57.5 | 4300×1900×3250 |
PFJ-1430 | 1430 | 14 | 1700×1459 | 55~105 | 440HP×2 | 57.5 | 4300×1900×3250 |
PFJ-1936 | 1936 | 12 | 2100×1620 | 55~100 | 44HP×2 | 64.5 | 4300×2060×2900 |
PFJ-2288 | 2288 | 14 | 2100×1620 | 55~105 | 44HP×3 | 85.5 | 4300×1900×3250 |
