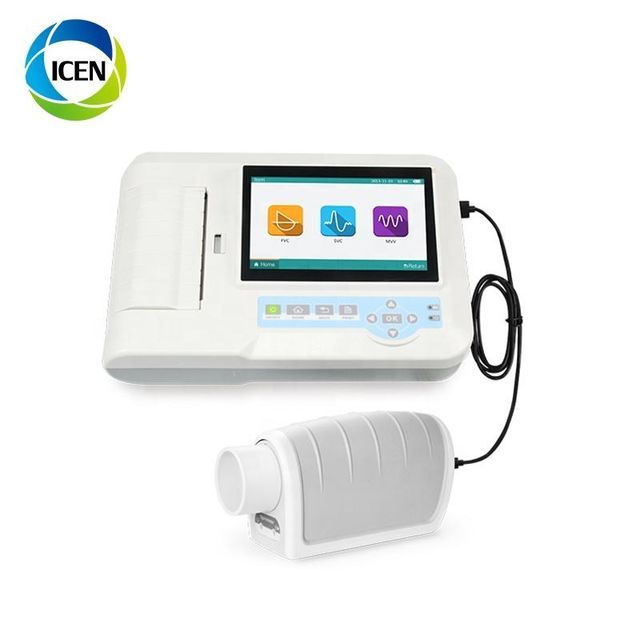

IN-SP-100 Portable Pulmonary Function Tester Lung Analyzer Touch Screen Medical Spirometer

PRODUCT DETAIL
color:Image displayShelf life:1 year
port:Guangzhouweight:1.8 kg
input power:60 VACertificate:International Organization for Standardization
printer paper:112 mm(W)*20 m(L) high speed thermal paperWarranty:1 year, 1 year
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGramVolume range:±10 liters
safety standard:Mooreproduct name:Spirometer
After-sales service:online technical supportInstrument classification:Secondary
brand:ICENFlow range:±16 l/s
Supply capacity:500 sets per monthOrigin:Guangdong, China
Packaging Details:Carton or wooden case for spirometerEnergy source:electricity
Quality Certification:cemodel:IN-SP-100
Material:metal, plasticaspect:15mm(L)*215mm(W)*92mm(H)

IN-SP-100 Portable Pulmonary Function Tester Lung Analyzer Touch Screen Medical Spirometer

Product Description

feature

1) Measurement of forced vital capacity (FVC), vital capacity (VC/SVC), maximum voluntary ventilation (MVV) and other related functions, which can measure and display more than 30 parameters; multiple measurements show the best results; The condition can be expressed by the ratio of the measured value to the predicted value.

2) Measurement parameters:
Forced vital capacity (FVC): FVC, FEV1, PEF, (FEV1/FVC), FEF25, FEF50, FEF75, FEF2575, FEV1/VC, FEV6, FEV1/FEV6, ELA, FET, EVOL, FIVC, FIV1, FIV1/FIVC, PIF, MVV
Vital capacity (VC/SVC): VC, IC, ERV, IRV, EVC, IVC, TV, VE, RR, tI, tE, TV/tI, tI/ttot
Maximum Ventilation Volume (MVV): MVV
3) Real-time display of respiratory waveform: flow-volume loop and volume-time curve;
4) 7" color LCD touch screen, the buttons can be operated together with the touch screen;
5) Inspirational animation operation guide, suitable for all ages;
6) Built-in thermal printer, which can directly print reports;
7) BTPS automatic correction function to compensate for the influence of environmental differences;
8) Display of test time and ambient temperature;
9) Calibration function to ensure measurement accuracy;
10) Multiple predictive values ​​can be selected, suitable for different groups of people;
11) More than 10,000 sets of data storage;
12) Lung age estimation function;
13) Built-in lithium battery, AC and DC.



Performance
1) Volume range: ±10L
2) Volume accuracy: ±3% or ±0.05L (whichever is larger)
3) Flow range: ±16 L/s
4) Flow accuracy: ±5% or ±0.2L/s (whichever is greater)
5) Power supply: 100V-240V~50Hz/60Hz
6) Input power: 60VA
7) Safety type: Class I equipment, Type BF applied part
8) LCD screen: 7" color TFT touch screen
9) Printing paper: 112mm(W)×20m(L) high-speed thermal paper



physical properties
Dimensions: 315mm (L) x 215mm (W) x 92mm (H)
Weight: 1.8 kg



Accessories
Spirometer 1pc
Mouthpiece 4pcs
1 nose clip
1 USB data cable
1 sheet of recording paper
Power cord 1pc
User Manual 1pc
