ISO standard eye bolts, factory eye bolts, swivel eye bolts
- $20.00 / 2 - 49 pieces
$19.00 / 50 - 99 pieces
$18.00 / >=100 pieces - 2 pieces
- Tianjin Yiyun Rigging Co., Ltd.
- Tianjin, China
- Mr Jerry Lei
| Carrying capacity: | 90 lbs, 100 lbs, 44 lbs, 40 lbs | payment terms: | Western Union, wire transfer, MoneyGram |
| standard: | CE | Package preview: | |
| Place of origin: | Tianjing, China | Safety factors: | 4:1 lifting ring |
| Warranty: | 6 months | Surface treatment: | Epoxy resin spray |
| product name: | rotating lifting ring | Customization support: | Processing |
| examine: | 100% flux tested | size: | M8-M100 |
| port: | Tianjin | Certificate: | CE certificate |
| Supply capacity: | 5,000 swivel rings per quarter | manufacturer: | Lifting rings manufacturer |
| model: | swivel eyebolt | grade: | 10.9 grams |
| Packaging details: | Outer packaging: carton; Inner packaging: soft PP bag or bubble bag | Material: | alloy steel |
ISO standard eye bolts, factory eye bolts, swivel eye bolts
G80 Forged Rotating Hoist Ring Long Bolt China Direct Price – China G80 Forged Rotating Hoist Ring Long Bolt China Direct Price Supplier, Factory – Yiyun Rigging
-
Long bolt swivel lifting eye
Swivel end long bolt
/Attachment Rotation/Lifting Point
swivel eyebolt
Look up
key points
Welded to lifting point
Rotary point connecting rod/forged lifting ring
Manufacturer Multidirectional Lifting Rings RUD Bolt Down Rotating Lifting and Lashing Points
describe:
Name
Forged lifting rings/points
WLL
0.3 tons to 60 tons
Material
Forging superalloy steel to quenching and tempering
load test
Individual verification testing at 2.5x workload limit
Fatigue test
2000 cycle fatigue testing at 1.5 times working load limit
Breakage test
Damage testing Magnetic flux crack detection
Function
Features a spring inside for better rotation control
feature
Rating is 100% from any angle
Manufacturer Multi-Directional Eye Bolt Swivel Swivel Lifting and Lashing Points
application:
When it comes to lifting loads with high-quality lifting rings, Yiyun lifting rings are trustworthy and used every day. As China's leading manufacturer of lifting rings and safety lifting equipment, many economic sectors trust and apply our products, such as aerospace, defense, manufacturing, stamping and injection molding, power generation (nuclear, hydro, wind), construction, mining, Concrete and precast. tower...
Welding on metric thread load rings for factory lifting equipment mold bolt lifting points

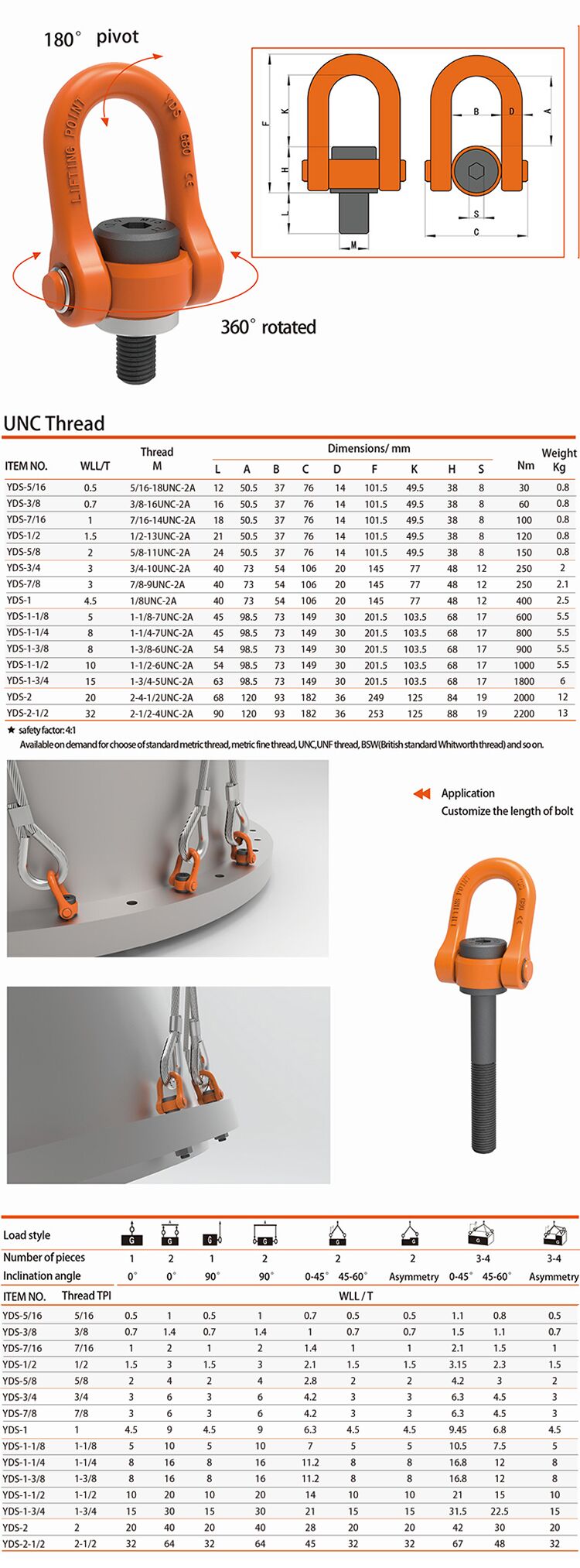

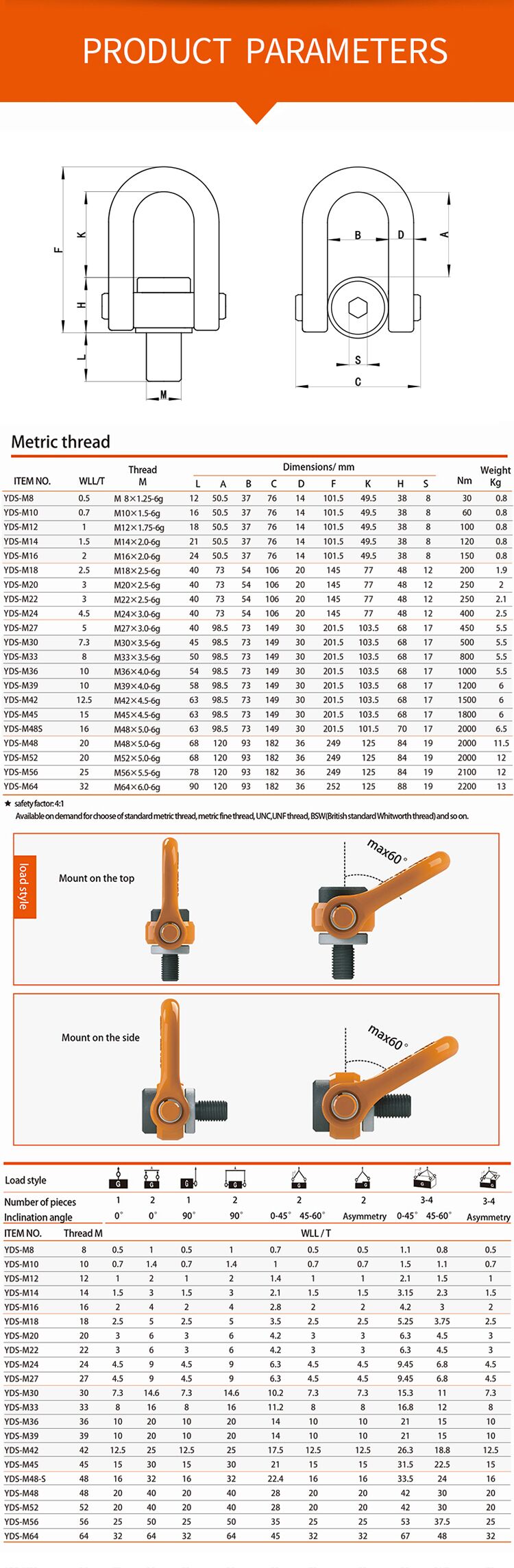

Specification:
Forged rotating lifting rings/points
code
Lifting ring categories
Thread size (mm)
WLL range (tons)
icon
Yuan Desheng
Universal swivel shackle
M8 to M100
0.5 to 32
YD081
Side pull/side load
M8 to M56
0.3 to 22
YD082
Overload side
M56 to M125
22 to 50
YD083
Bolted to accessory swivel
M6 to M100
0.3 to 50
YD084
swivel eyebolt
M8 to M48
0.3 to 12
1.) Bolt lengths available to meet specific application requirements
2.) All dimensions are approximate - variations will not affect usage or design factors.
Manufacturer Multi-Directional Eye Bolt Swivel Swivel Lifting and Lashing Points
Manufacturer Multi-Directional Eye Bolt Swivel Swivel Lifting and Lashing Points
Heavy Duty Lift Ring Dual Swivel Shackle Lifting Points
Forged swivel eye kit 360 degree swivel eye bolt ERLP ultra-thin eye
Competitive Advantage:
The design is compact and lightweight;
The swivel device can be changed in all directions and rotates 360°;
The maximum connecting rod rotation radius is 180°;
Fastened four times in all load directions to prevent breakage;
Able to rotate under load;
Forged swivel eye kit 360 degree swivel eye bolt ERLP ultra-thin eye
High Quality Lifting Rings and Lifting Rings YD083 M8 to M100, WLL 0.4T to 49T - China High Quality Lifting Rings and Lifting Rings YD083 M8 to M100, WLL 0.4T to 49T Supplier, Factory – Yiyun Rigging
-
Eyebolts have been around for over 100 years and have always worked well when used correctly. Correct means the load direction must be zero degrees. If the load changes or the direction of the load on the eyebolt deviates from the zero force line by as much as 10 degrees, the result is a bending break of the eyebolt, and when you bend the eyebolt, that means a break!
Most of the time you can't break. If you use X-rays to examine the bend area, you will see the damage. If the eyebolt is continued to be used, it will cause malfunction.
Swivel lifting rings are designed for lifting at any angle as they can rotate 360° and pivot 180°. Therefore, the load rating remains the same regardless of the force angle.
Q: Can I get lifting eyes with shorter or longer bolt lengths?
Answer: Of course! Most of our lifting eyes are available with shorter or longer bolt lengths. Please contact us for a quote and delivery time.
Q: Can I get rings with other thread types?
Answer: Of course! We stock the finest thread sizes and can also supply other thread types. Contact us for more information.
Q: Do you have corrosion-resistant lifting rings?
A: Yes, we provide stainless steel lifting rings. We also offer alloy lifting rings that can be electroless nickel plated, cadmium plated, zinc plated and epoxy coated.
Q: Do you perform proof testing on lifting rings?
A: Yes, our lifting rings are verified load tested and carry certifications.
Q: Can you custom design lifting rings to fit a specific application?
A: Yes, we can customize or design the hanging rings to meet your specific needs. Please contact us for a quote and delivery time.
-
