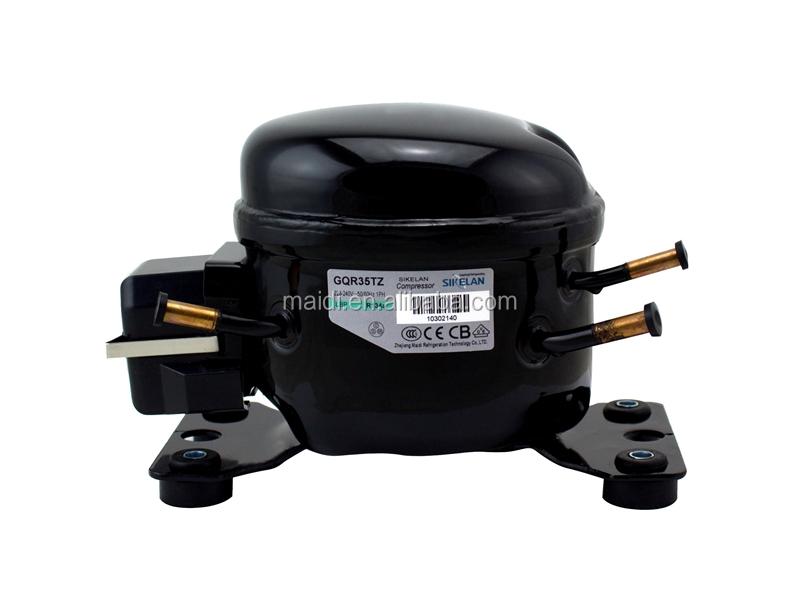

Ice machine accessories compressor L-GQR35TZ R134a compressor MBP 195W

PRODUCT DETAIL
Packaging Details:1PC/CTN, SIZE 26*16*16CM 120PCS/PLT, SIZE 114*87*110CM 24PLTS/20GP, total 2640PCS.Refrigerant:R134a
application:MBPStart the device:PTC/current relay
input power:137Wbrand:Scala
Origin:Zhejiang, ChinaVoltage frequency:220-240V/50-60HZ
Start capacitor:Nomodel:GQR35TZ
type:ice machine partshorsepower:1/9 HP
Shift:3.5 cubic centimetersSupply capacity:7500 pieces per day
Motor type:IRpayment terms:L/C, T/T
port:Ningbo, ShanghaiRunning capacitance:No









1. Product performance
1) GQR35TZ, L series, use R134a refrigerant;
2) Voltage application 220V to 240V;
3) The frequency is 50/60HZ;
4) Motor type: RSIR;
5) Cooling method: FAN;
6) The starting device is PTC/CURRENT Relay;
7) Application: medium back pressure;
8) The nominal power is 1/9HP;
9) The COP is 1.42, and the cooling capacity is 195W.



Based on test conditions (ASHRAE)
Evaporation temperature: -6.7 degrees
Ambient temperature: 35 degrees
Supercooling temperature: 46.1 degrees
Condensation temperature: 54.4 degrees
Suction temperature: 35 degrees

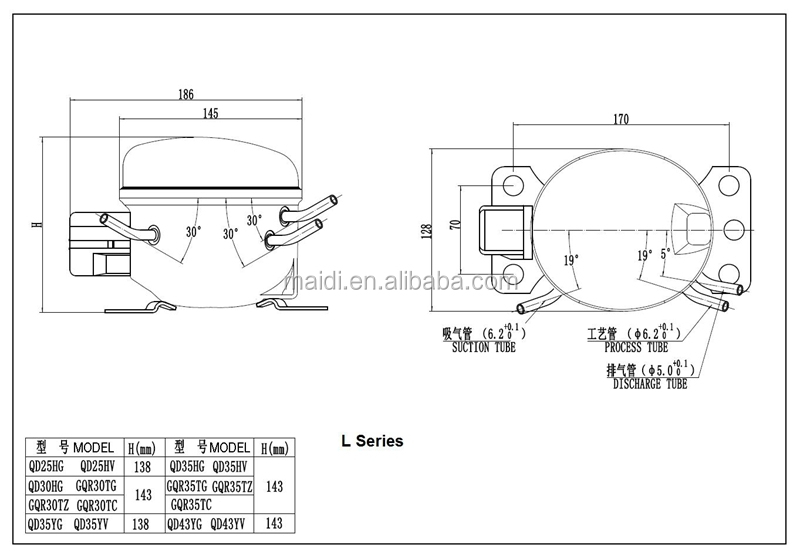

2. Compressor Dimensions







3. Compressor specification





serial dramaModellife valueVoltage/HzDisplacement (cubic centimeters)      motor typeCertificate
Test conditions: -6.7°C (20F)
Capacity (watts)Capacity (Btu/h)Input power (W)Current (A)Conference of the Parties (W/W)Energy Efficiency Ratio (Btu/Wh)
largeGQR30TZ1/10220-240V/50Hz3.01655631160.781.424.85IRCCC certification
GQR35TZ1/93.51956651370.851.424.86IRCCC certification
GQR45TZ1/64.52659041400.971.896.46IRCCC certification
mlGQR55TZ1/6+5.529710131601.051.856.33IRCCC certification
GQR60TZ1/46.541013992071.441.986.76IRCCC certification
GQR70TZ1/47.045515522061.452.27.54IRCCC certification
MXGQR80TZ1/4+8.052017742321.542.27.65IRCCC certification
GQR90TZ1/3-9.159520302671.832.27.60IRCCC certification
Wechat businessGQR80TZ1/4+8.052017742481.952.17.15CSIRCCC certification
GQR90TZ1/3-9.159520302852.232.087.12CSIRCCC certification
GQR11TZ3/811.068023203602.601.896.44CSIRCCC certification
GQR12TZ3/8+12.876526103942.671.946.62CSIRCCC certification
GQR14TZ1/214.284528834352.821.946.63CSIRCCC certification
Medical PhDGQR14TZ1/214.284528834352.821.946.63Corporate Social ResponsibilityCCC certification
GQR16TZ1/2+15.396032764903.241.966.68Corporate Social ResponsibilityCCC certification

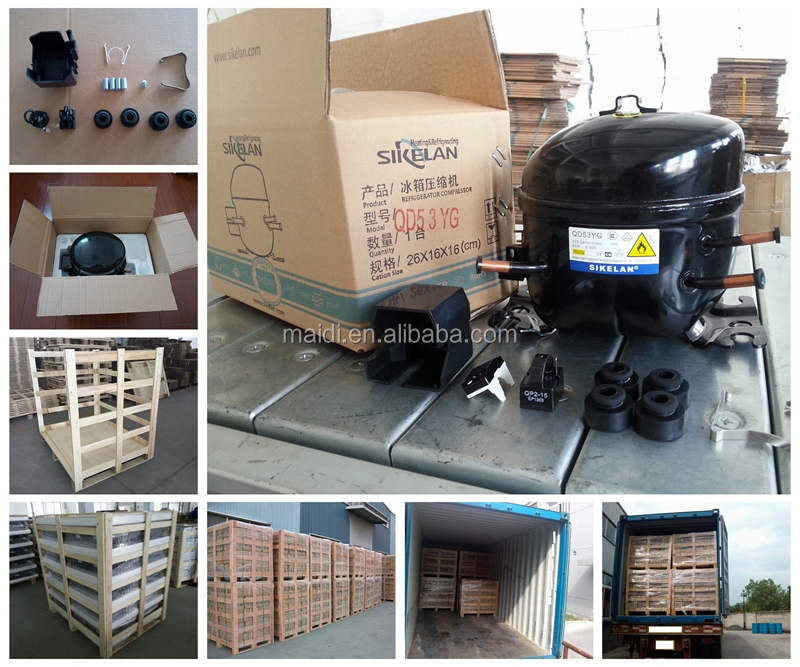

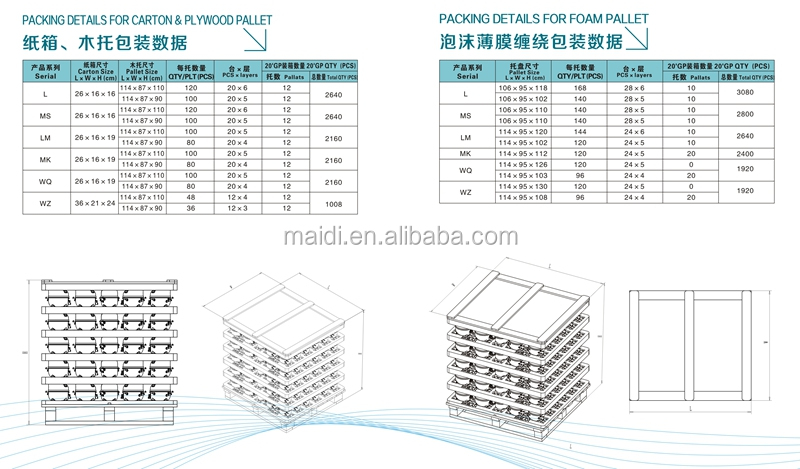

4. Compressor packing and container loading







5. Compressor certificate

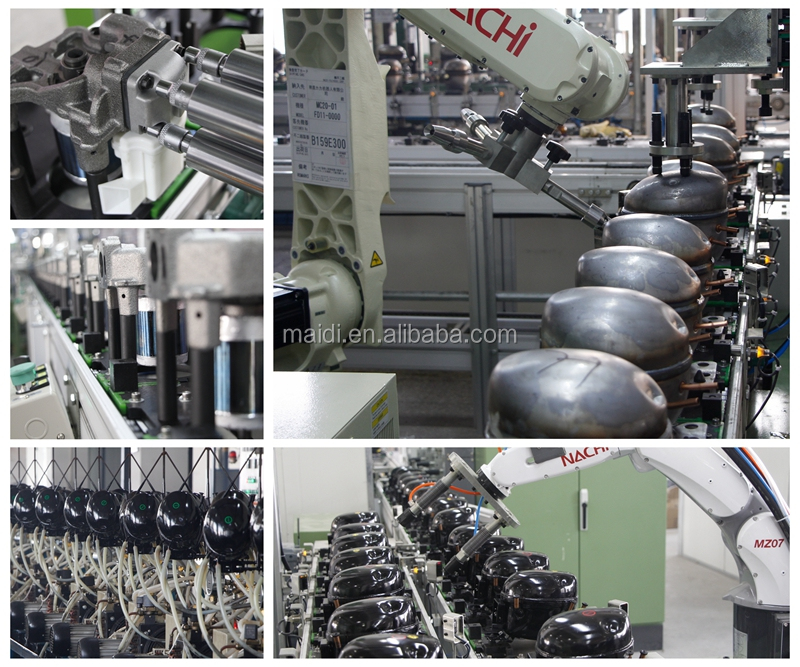

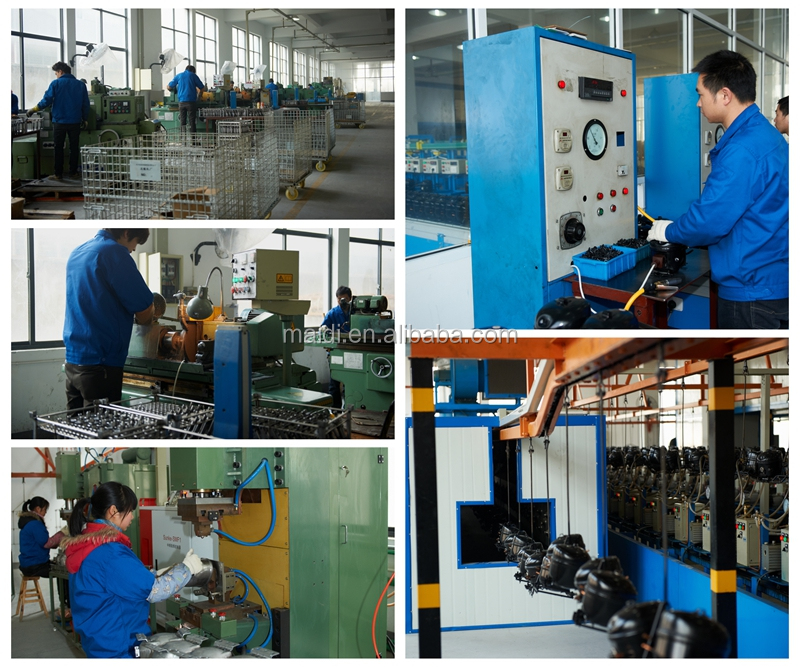

6. Our production concept

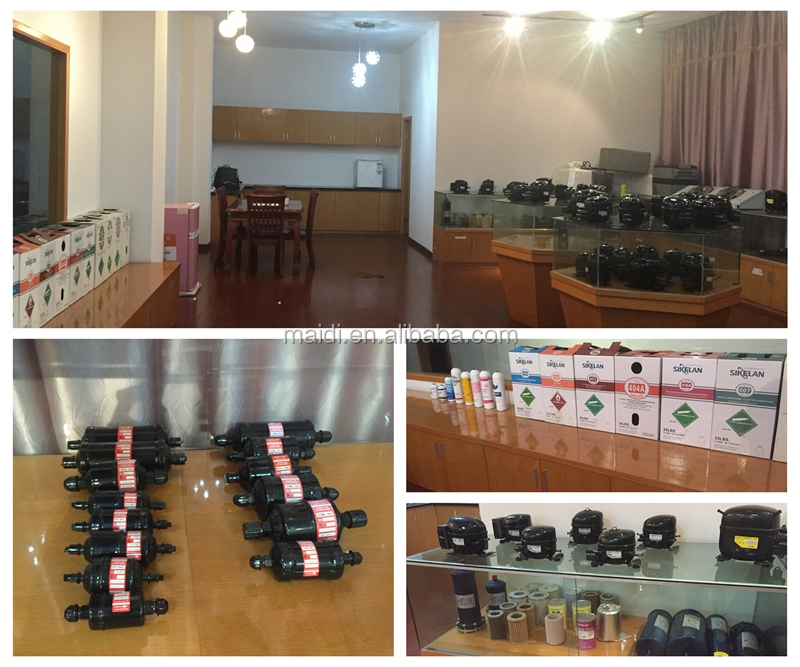

7. Our showroom

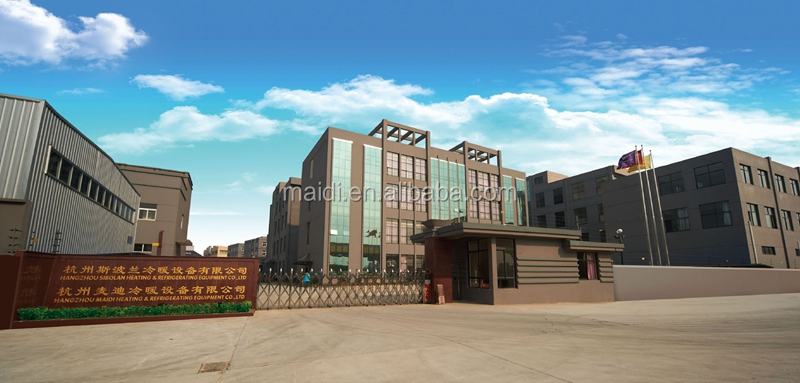

8. Company Introduction
Business Type: Manufacturer, Exporter
Location: Hangzhou, China (near Shanghai and Ningbo)
Established: 2009 (formerly known as: Hangzhou Maidi Heating and Cooling Equipment Co., Ltd.)
Company certificate: ISO9001/ISO14001/OHS18001
Main Products: Refrigerator Compressor; Refrigerant Gas; Liquid Pipe Refrigeration Spare Parts





9. Why choose us
Our advantage:
A. Experienced refrigeration product suppliers;
B. More than 10 years of export history;
C. Alibaba gold supplier, the factory has passed BV/SGS/ISO and other certifications.
Your benefits:
A. Stable quality - from excellent materials and workmanship;
B.Lower Price - not the cheapest, but the lowest of the same quality;
C.Good Service----Satisfactory pre-sales and after-sales service.
