Idler Bearing/Tube End Cap/Bracket/Housing/Housing/Base/Seal TK6306-159
- $2.10 / 1000 - 9999 sets
$1.80 / >=10000 sets - 1000 sets
- TONGLING TRINITY JIANXI PRECISION INDUSTRY CO.,LTD
- Anhui, China
- Ms Trinity China
| brand: | Trinity | ID: | customizable |
| Applicable industries: | Manufacturing, Energy & Mining | thickness: | 4 mm |
| Pipe diameter: | 159 mm | model: | TK6306-159 |
| Outer diameter: | 153 mm | port: | Shanghai Port |
| Aperture: | 45 mm | Material: | SPHC |
| Supply capacity: | 15000 sets per day | place of origin; place of origin: | Anhui, China |
| application: | Conveyor Roller | structure: | Housing + related seals |
| Shaft diameter: | 30 mm | type: | TK/DTII/TKII/TKIII/SOP |
| payment terms: | Western Union, wire transfer | Serve: | OEM customized service |
| Packaging Details: | Wooden box and waterproof paper (or as your request) Size: 1050*1050*1050mm / 1100*1100*1100mm / customized size |
Idler Bearing/Tube End Cap/Bracket/Housing/Housing/Base/SealTK6306-159

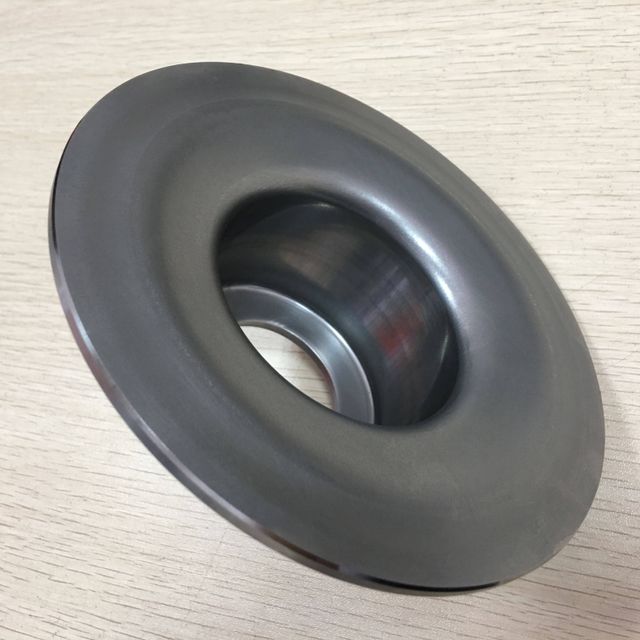

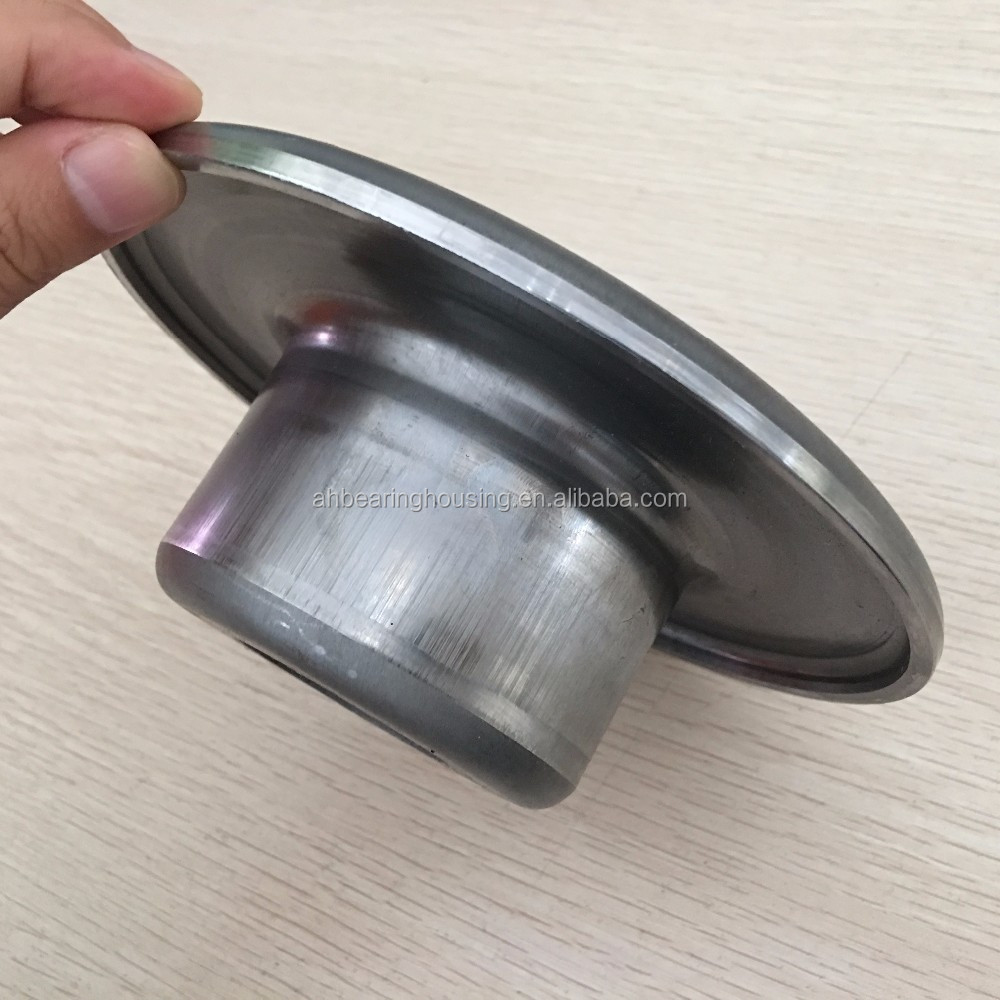

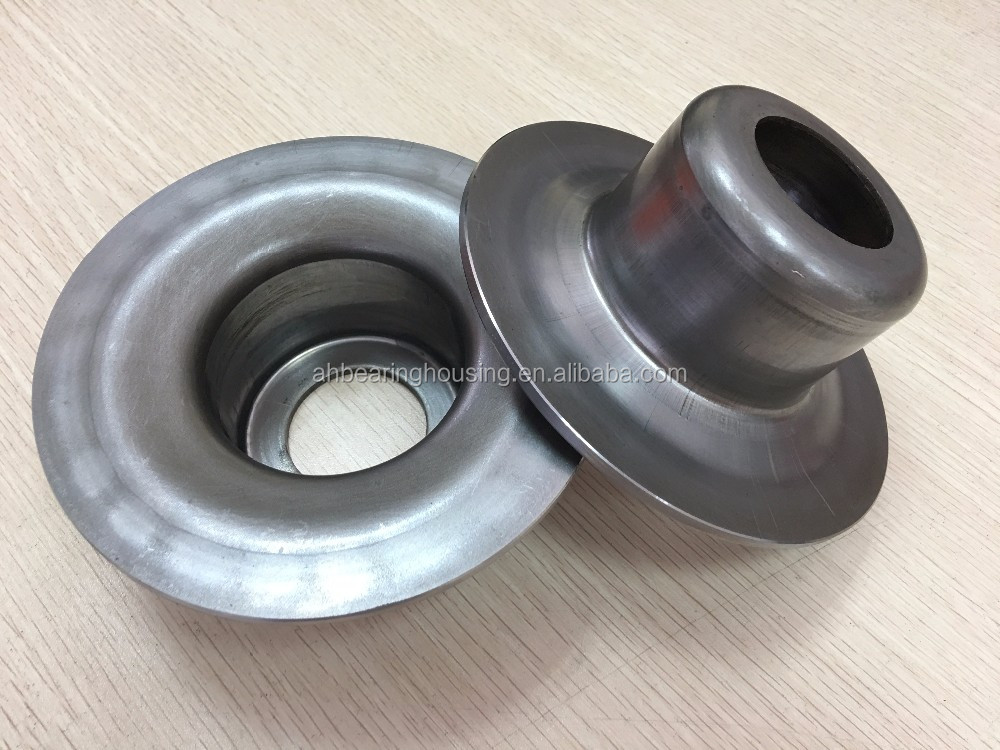

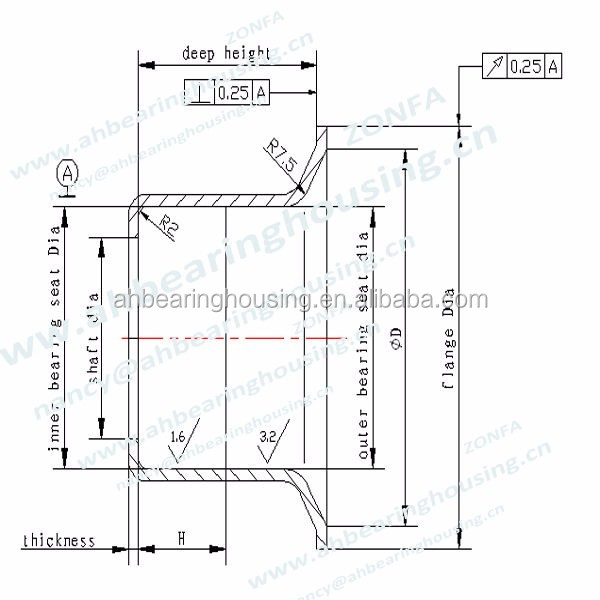

1. Pictures and Drawings
High precision, high gloss, no stretch scars or burrs.
TK6306-159or other models
Pipe diameter:159mm or customized
Outer diameter:153mm or customized
Shaft diameter:30mm or customized
Aperture:45mm or customized
thickness:4mm or customized

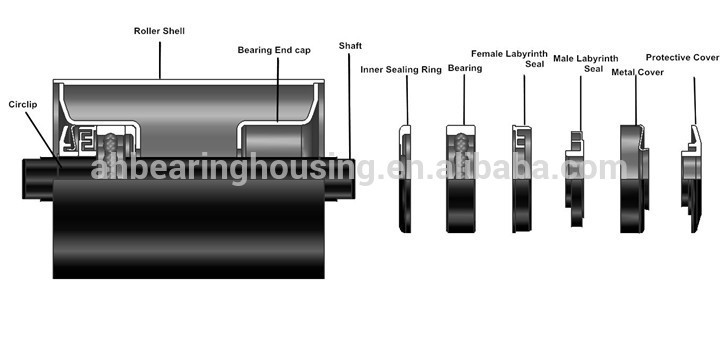

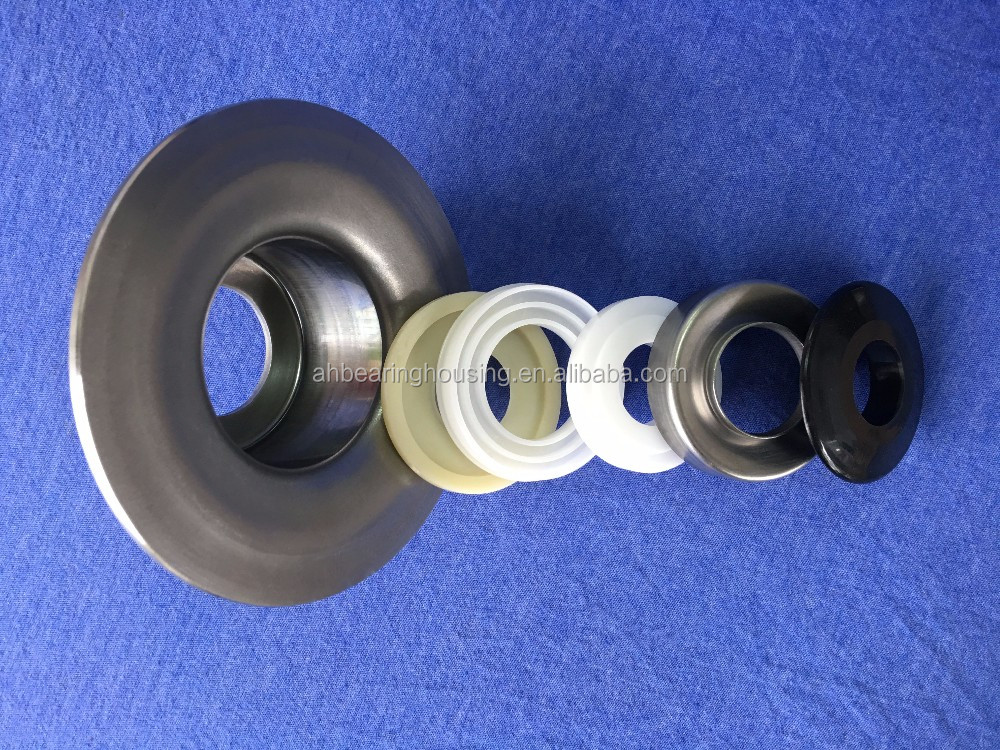

2. The full set of TK series includes:
1* Bearing Housing - SPHC
1* Inner seal - PA6
1* Female Labyrinth Seal - POM
1* Male Labyrinth Seal - POM
1*Metal Cover Seal - SPCC
1* Protective Case - PA6
Order only housing/end cover or seal only!

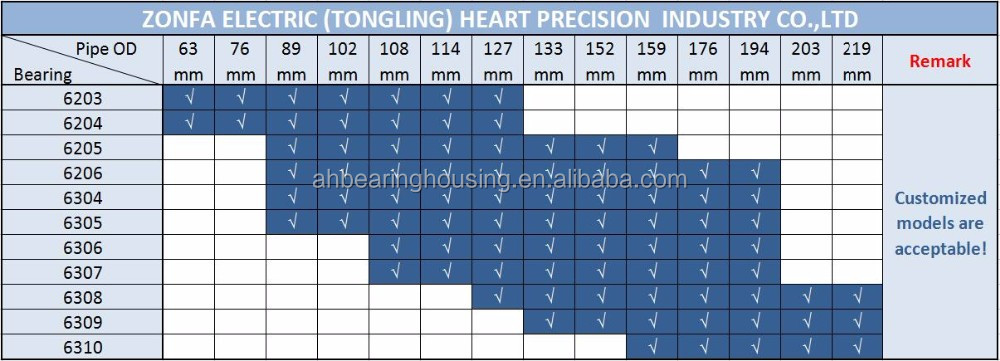

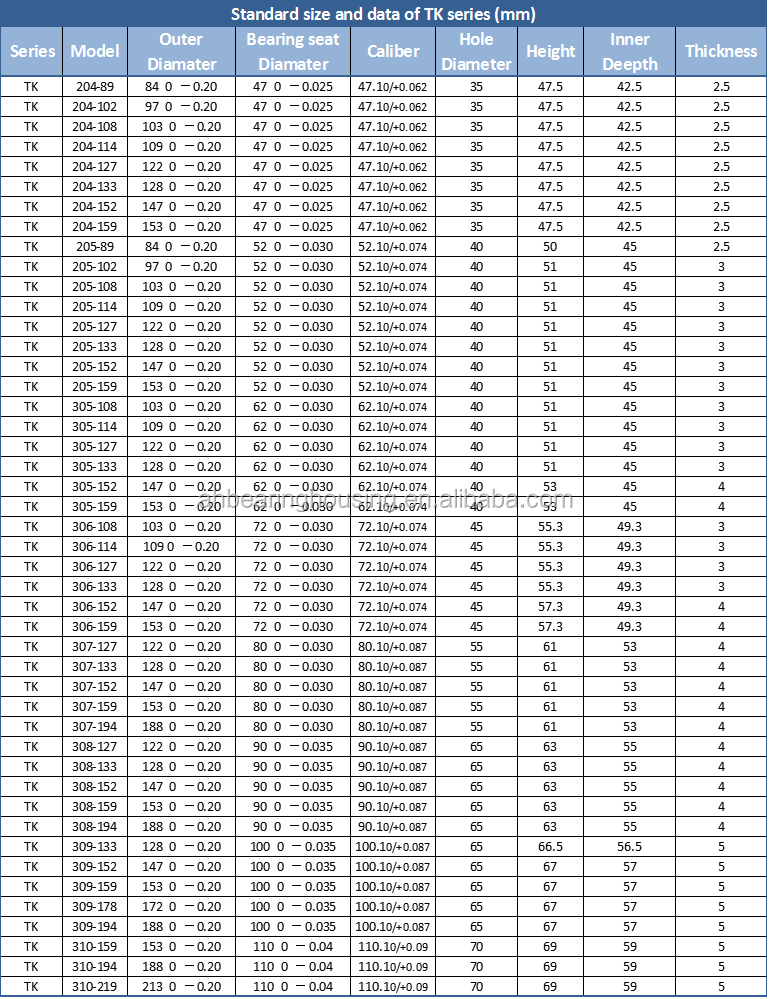

3.TK series standard dimensions and data:
(Custom tolerances accepted!)

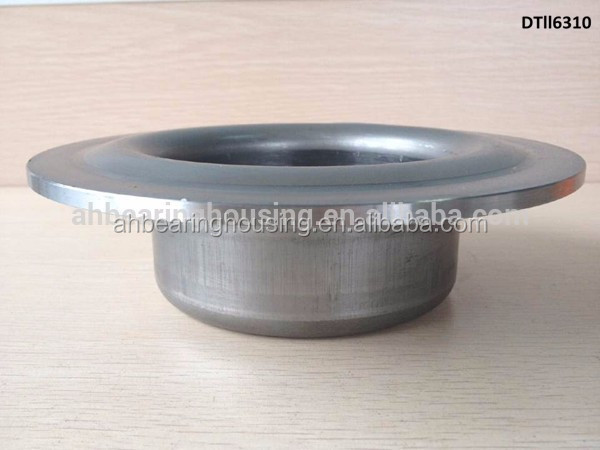

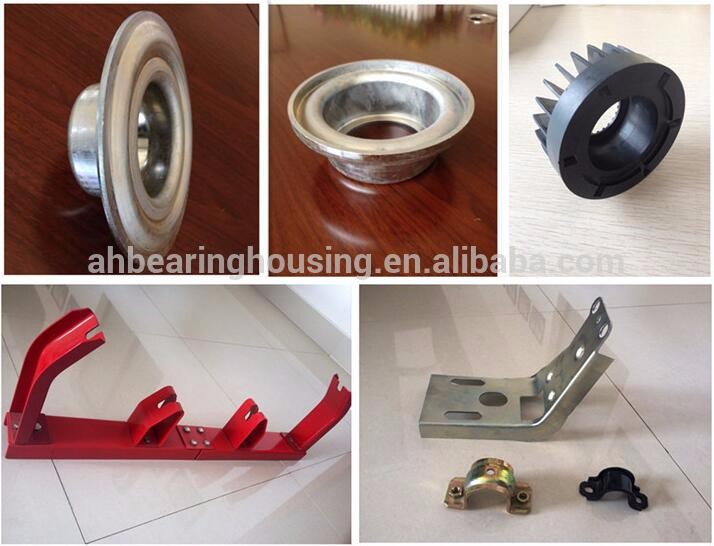

4. Other popular series:
5 main series:traditional knowledge. TKII. TKIII.DTII. Standard operating procedures
For bearings:6203. 6204. 6205. 6206. 6304. 6305. 6306. 6307. 6308. 6309. 6310. 6312
For axis:20mm.25mm.30mm.35mm.40mm.45mm.50mm etc.
For pipes:63mm. 76mm. 102mm. 114mm. 152 mm. 165mm. 176mm. 194 mm. 219mm etc.

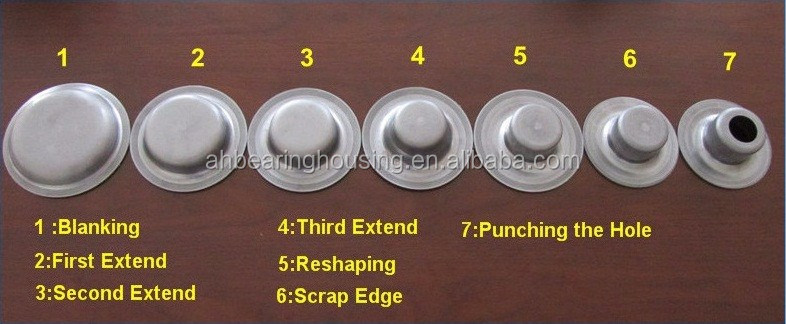

5. An overview of the production process
In order to guarantee the quality, our stamping products will follow the following steps:
Our mission -Create value and serve the world!
sample:Free samples are provided.
custom made:Size and material can be customized according to your drawings.
quality:All manufacturing processes comply with ISO 9001:2008 and QMS.TS-10949.
The chemical composition of the material conforms to GB/T699-19991.
Ensure the quality from raw material to shipment.
professional:Wholly-owned subsidiary of a listed company (A share code: SH600520)
Over 15 years experience in stamping and injection molding of roller spare parts.
Has national new utility patents and a number of national invention patents.
Reliable and famous:We are a supplier to many multinational companies.

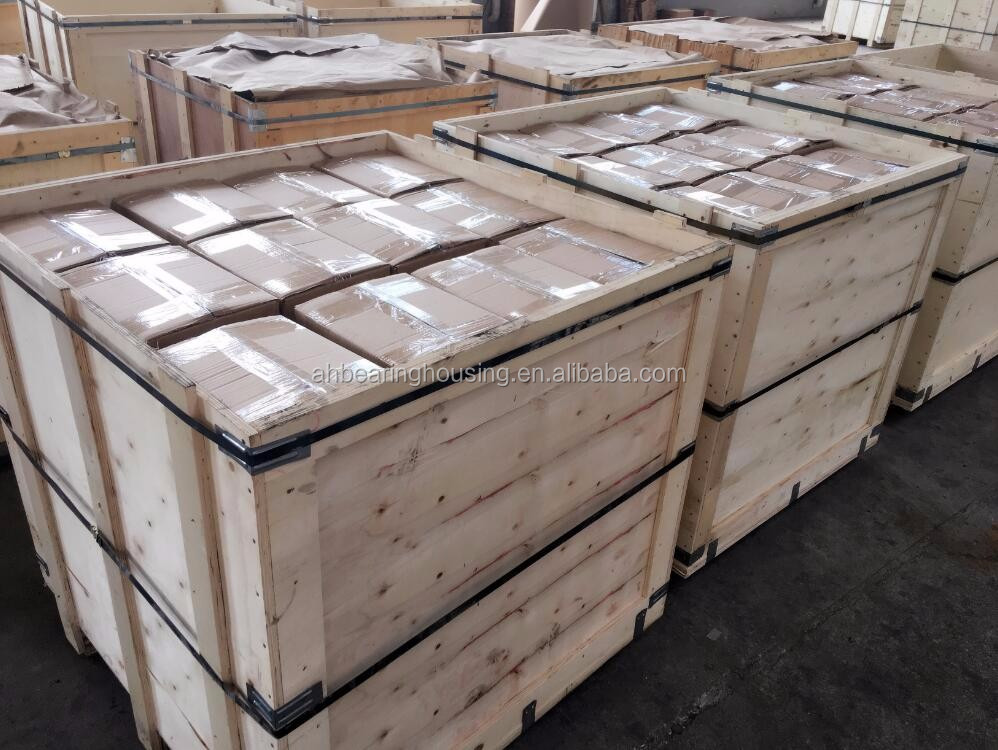

Strict packaging process

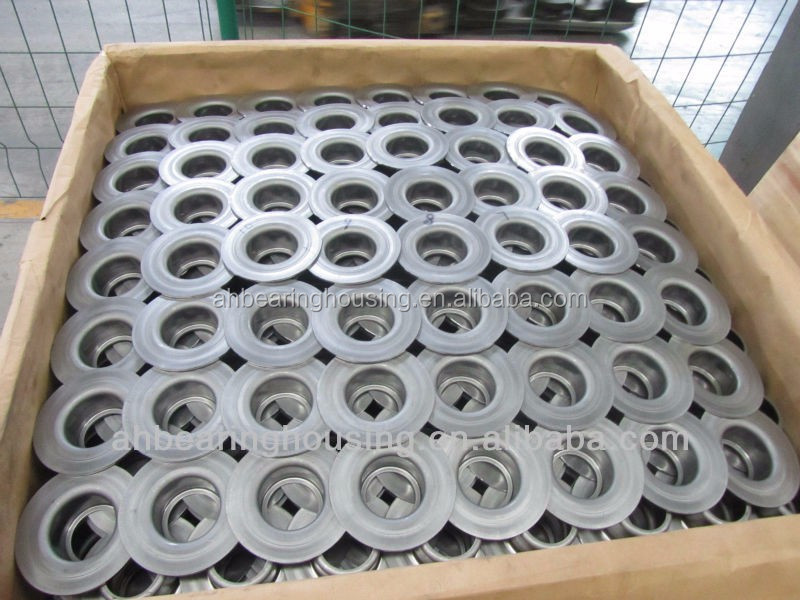

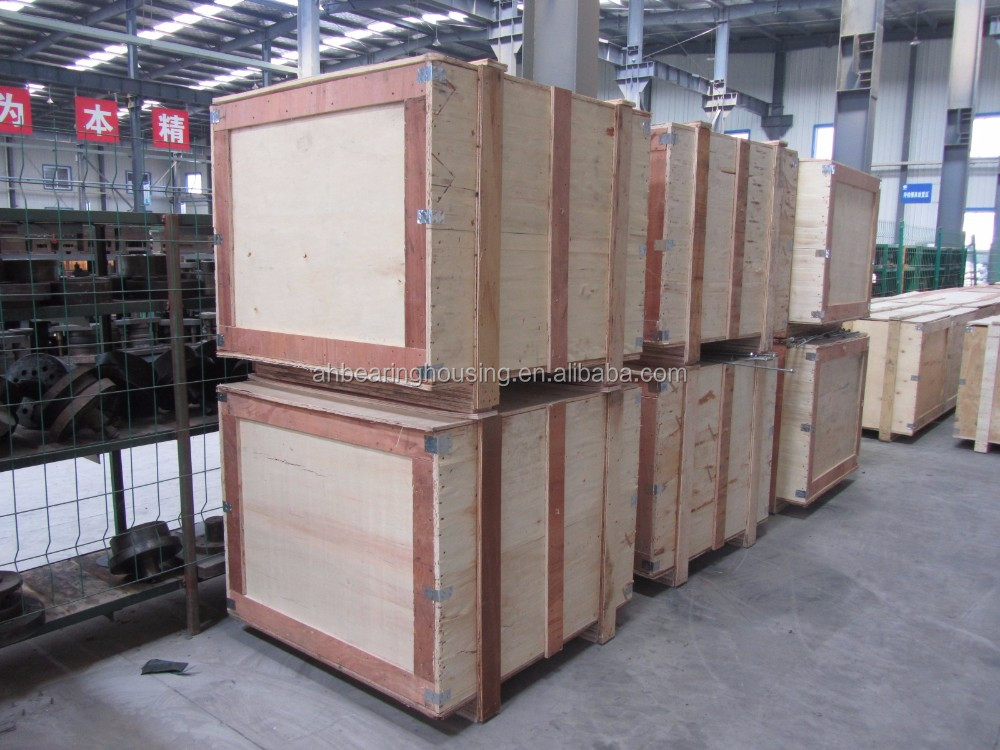

Package A
We use wooden boxes and waterproof paper to protect our products from the risks of long-distance shipping.
A 20-foot container of 20 boxes.
(1050*1050*1050mm/1100*1100*1100mm/customized)
Packaging B
The seals can be packed in the carton first and then in the wooden box.
A 20-foot container of 20 boxes.
(1050*1050*1050mm/1100*1100*1100mm/customized)
ready for shipment
All finished packaged products are ready to ship at the warehouse.

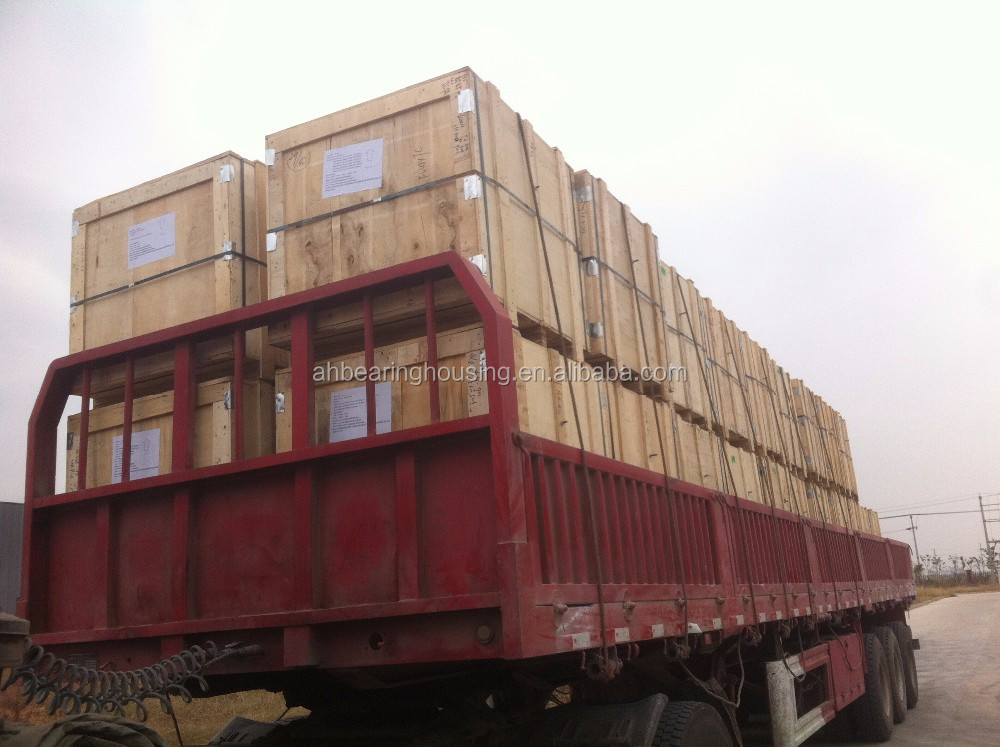

transportation
Professional logistics companies deliver our products to designated locations.

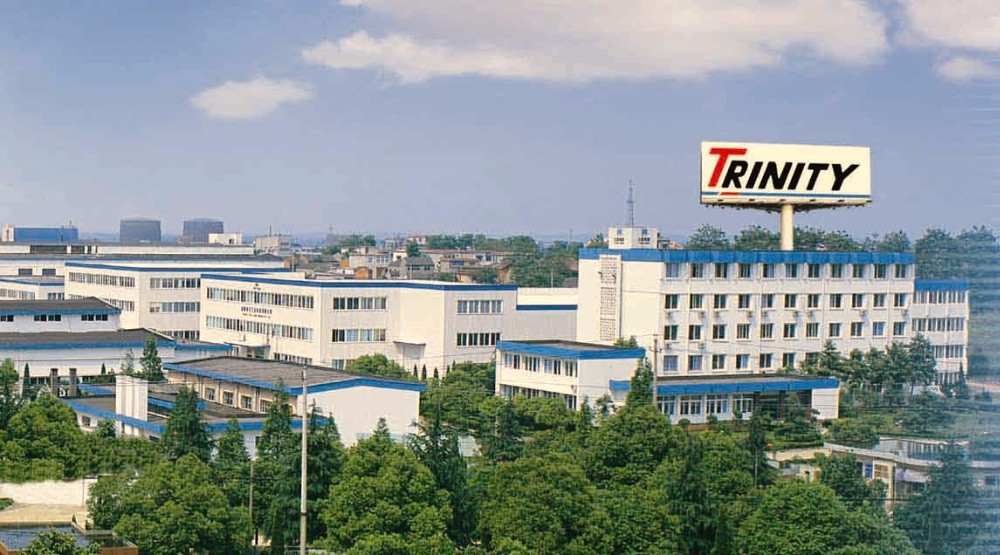

The largest and strongest bearing housing and seal manufacturer in China.
Zhongfa Electric (Tongling) Heart Precision IndustryYes:
- Wholly owned subsidiaryTongling Zhongfa Sany Technology Co., Ltd.(China's first mold listed company)
- Council unitChina Belt Conveyor Association.
- Has national new utility patents and a number of national invention patents for bearing products.

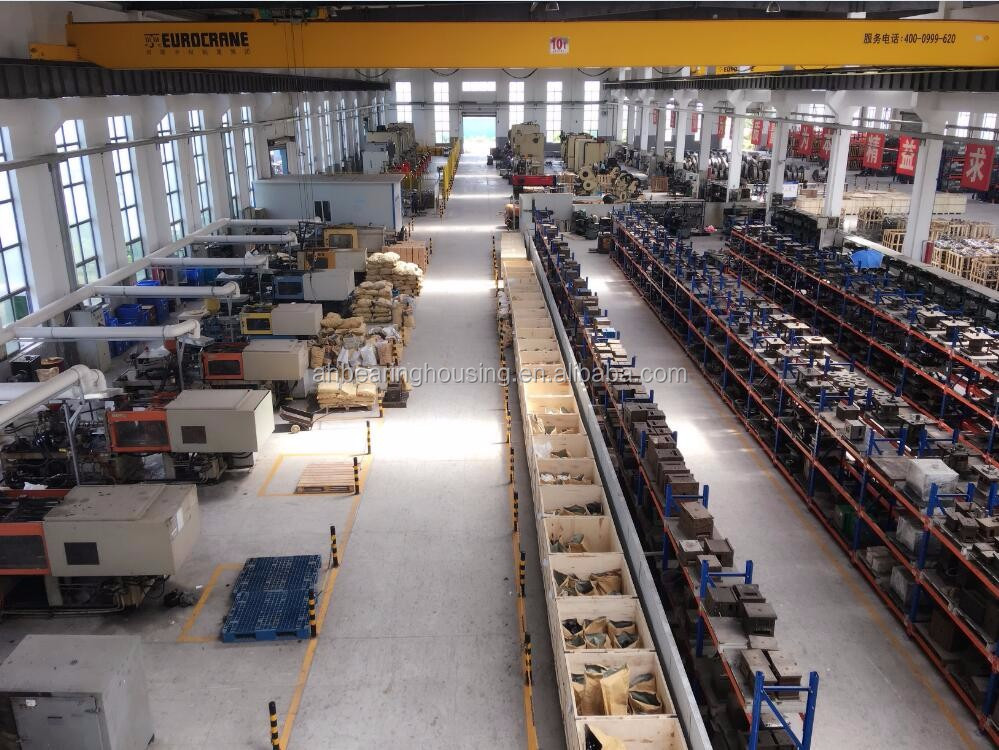

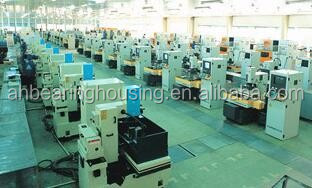

Automatic production line
It has four stamping production lines with advanced technology, including the first production line of mechanical arm bearing seat in China, a high-precision injection molding center, a modern mold processing center, and an electroplating workshop.

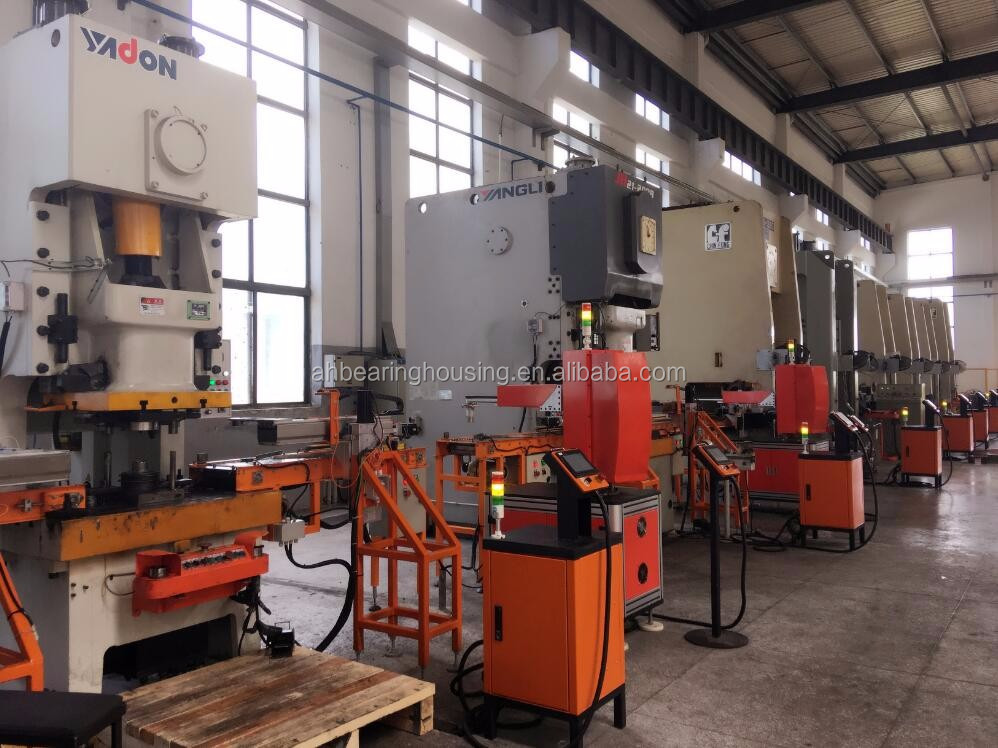

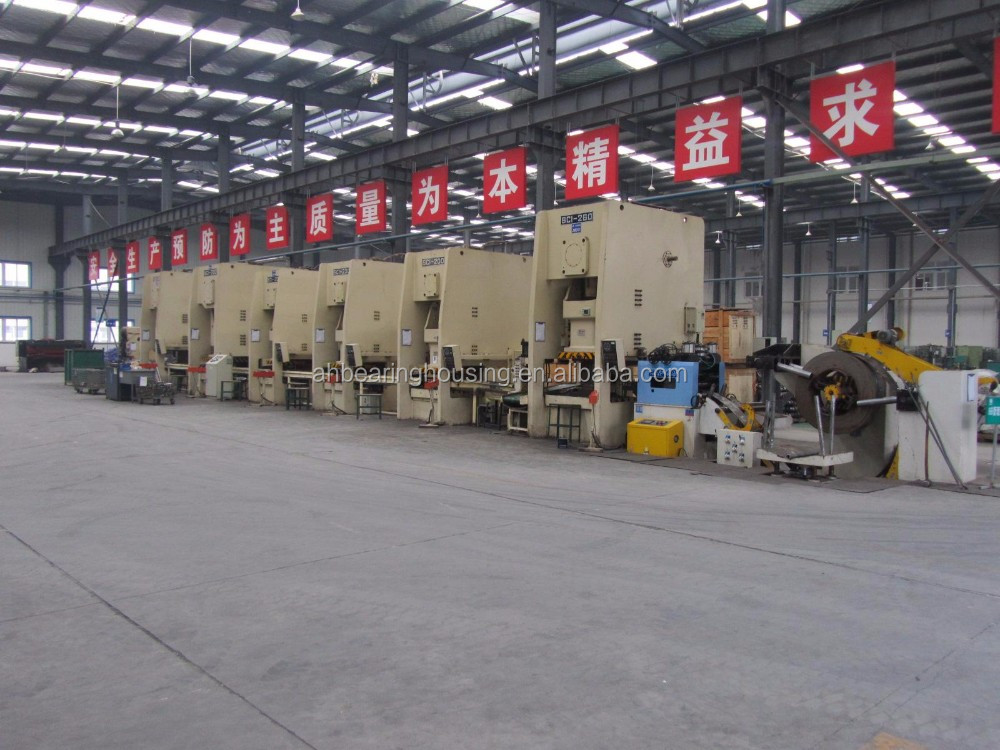

Advanced punching equipment
More than 80 sets of punching equipment with tonnage ranging from 63T to 400T are purchased from Taiwan Jinfeng. The bearing housing tolerance is accurate to 0.01mm.

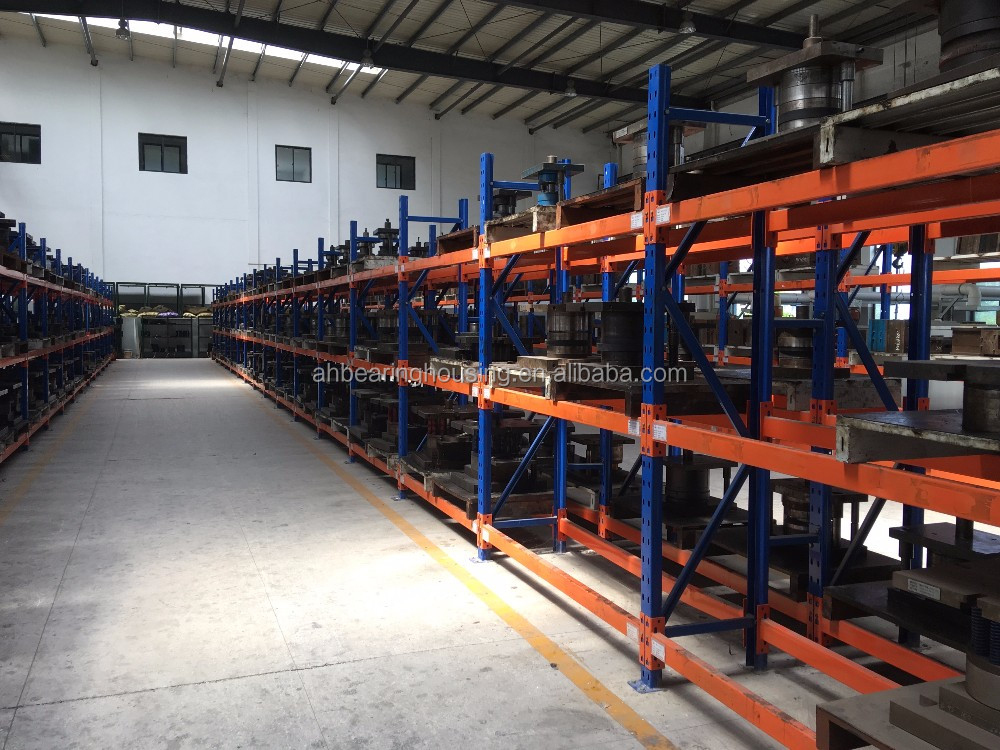

Mold warehouse
Independent mold production technology and modern mold warehouse.
Injection production line
Daily support 4000-6000 sets of injection molding products for global customers.
Obey the military enterprise tradition!
- Sany Group consists of three state-owned military factories (factories 4150, 4524 and 4963).
- Obtained ISO9001 certificate in 1999.
- Strict quality system and in-out inspection.

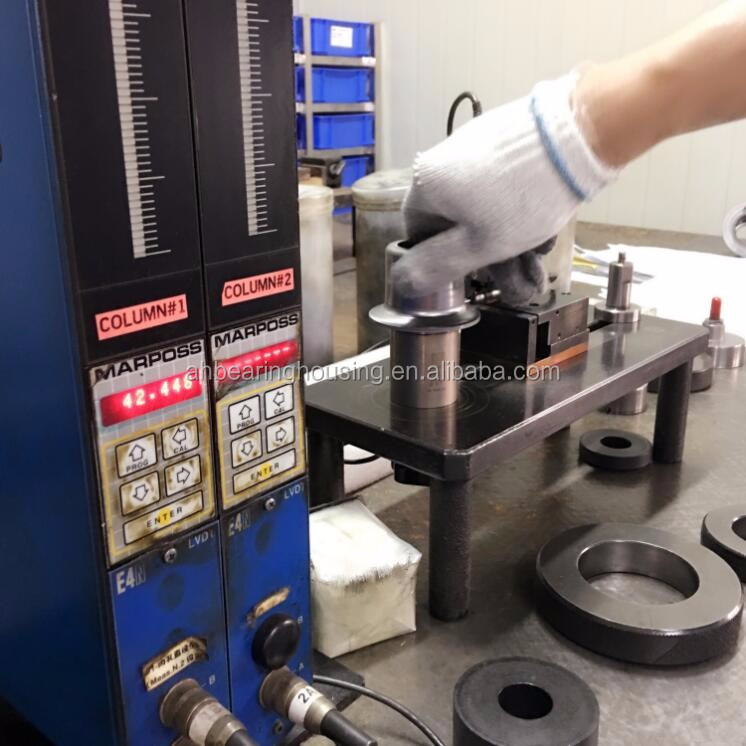

- Professional testing equipment from Italy, the tolerance is accurate to 0.001 mm.

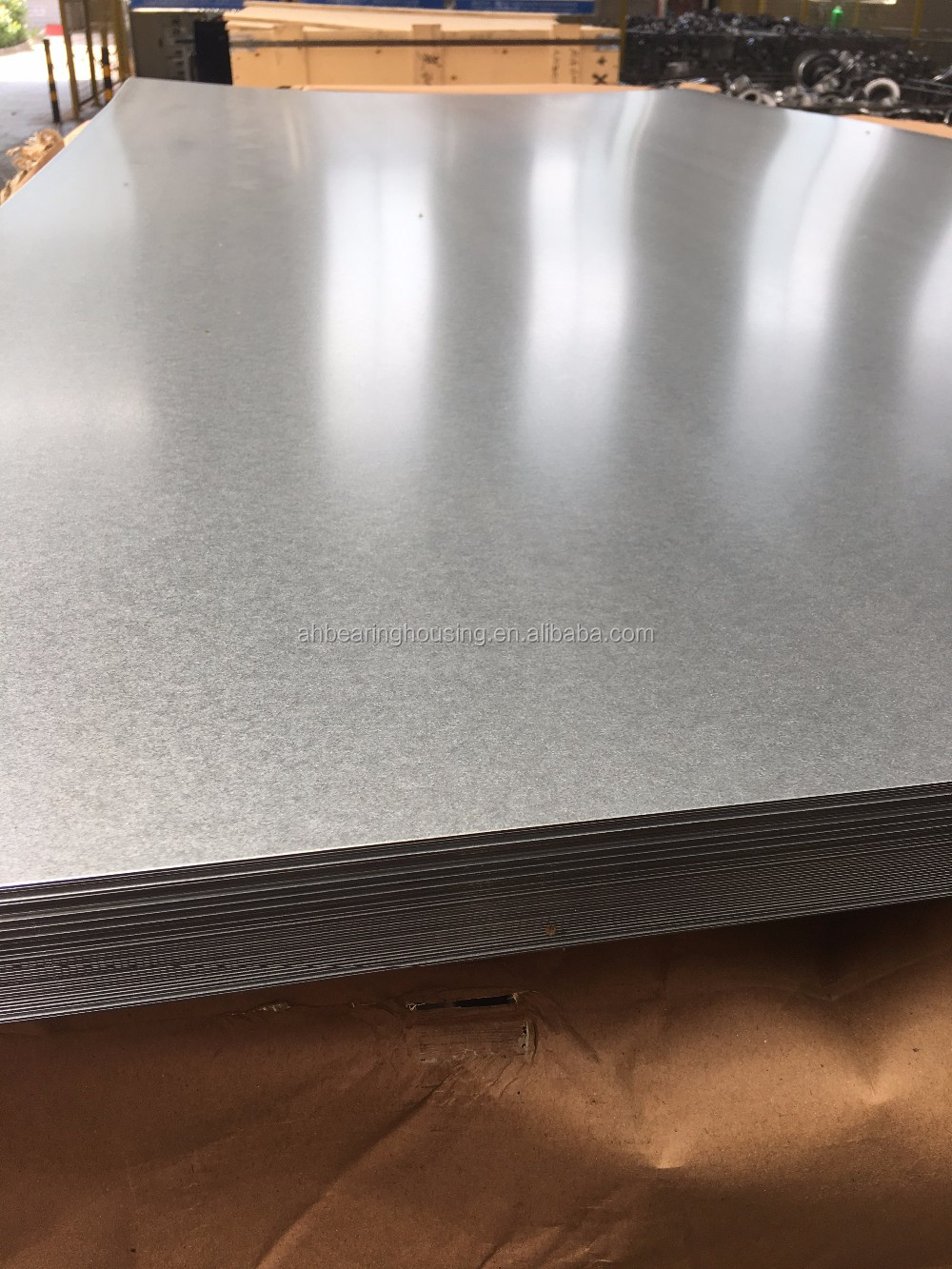

- Only high quality raw materials.

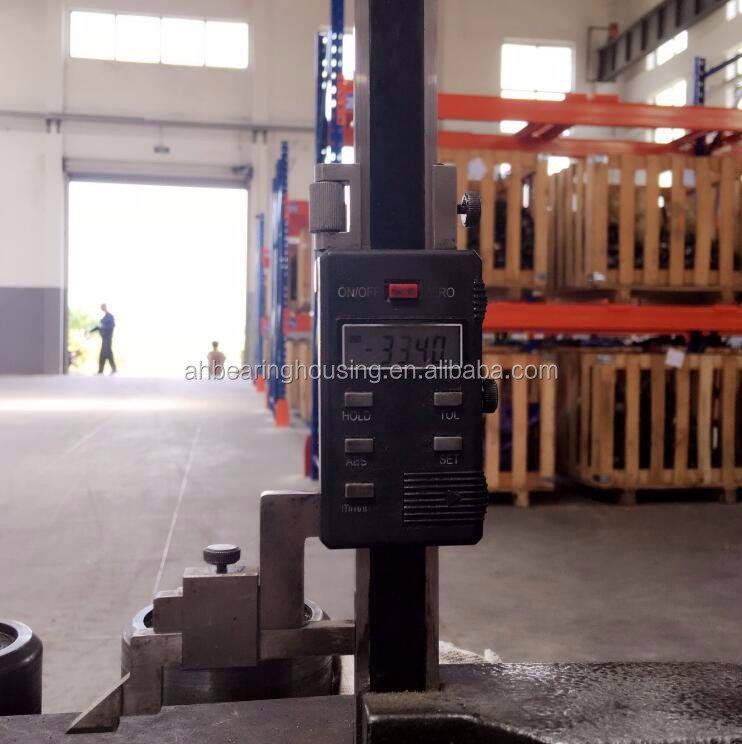

Test A
Test B

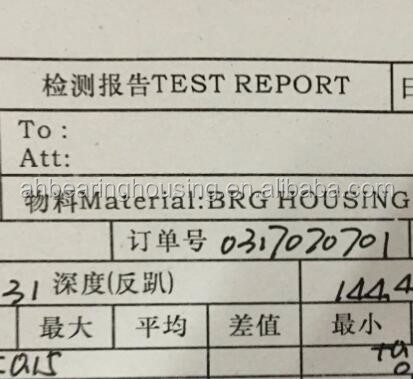

testing report
free sample
Trinity offers free samples for testing and new projects.
customized product
We will design according to your special structure and requirements.
lettering
We can put your company name, brand or logo on the product.

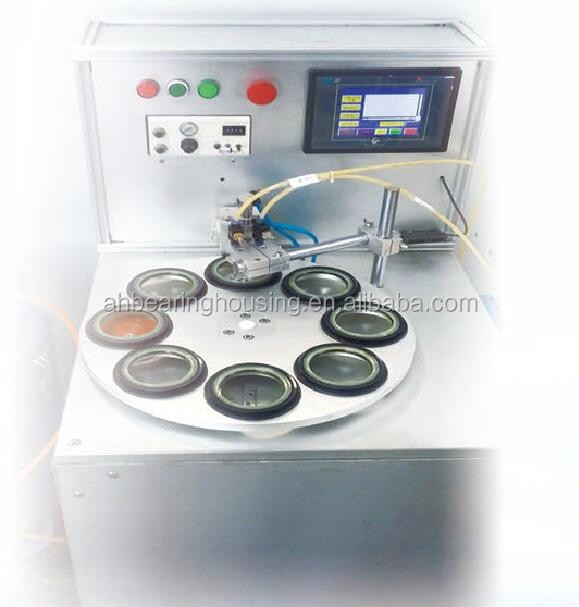

oiler
We have developed automatic roll mills for idler manufacturers.
Each worker can complete 3000 sets of sealing per shift.
mold
We can support relevant quality molds from other subsidiaries of Sany.
Related Products
What products can you offer? Only the bearing housing?
Our main products are standard and custom housings and seals. We can also supply related roller spare parts including bearings, rubber rings, shafts, tubes, circlips, tools and dies, etc.
What is the MOQ for your products?
Standard models have no MOQ.
Do you have warehouses or stocks in other countries?
Not yet.
Can you send me some free samples?
Yes, we can provide some free samples.
