Indian Gold and Silver Sheet Rod Rolling Jewelry Mill Precision Sheet Wire Mill

  • $1435.00 /piece
  • 1 piece
  • MACHINE TOOL TRADERS
  • Maharashtra, India
  • Mr Pankaj Shah
PRODUCT DETAIL
brand:masterport:Mumbai
Warranty:1 yearWeight (kg):325
Core components:Gearbox, Motor, Gear, RollerHealth status:new
Mechanical test report:ifCore Components Warranty:1 year
Main selling point:high accuracyVoltage:220
place of origin; place of origin:Maharashtra, IndiaGold Sheet and Wire Rolling:Jeweler Silver Sheet and Wire Rolling
type:cold rolling millstrength:1 kW
Showroom location:IndiaMarketing Type:normal product
payment terms:wire transferVideo external inspection:if
Applicable industries:factory, otherPackaging Details:All wooden box packaging

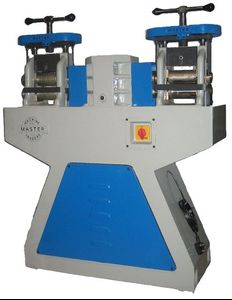

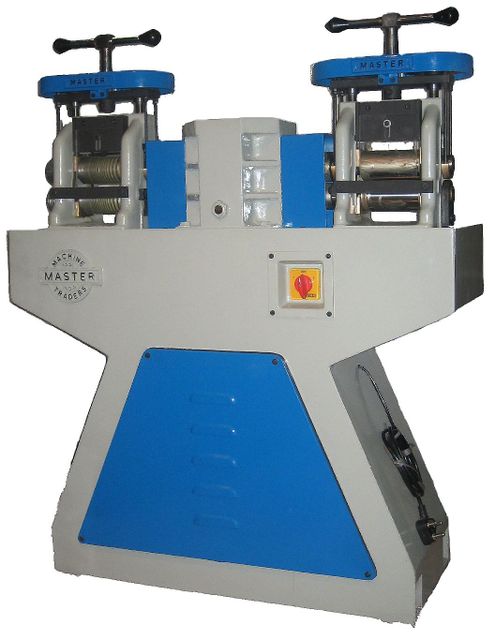

This roller press is the most popular model among goldsmiths and jewelers. It is a combined sheet and wire mill with 5" length rolls that hold extension rolls at the ends of the wire rolls.



The rolls are made of high-carbon and high-chromium special steel, hardened and polished. They are mounted in an extremely strong frame to overcome all vibrations and stresses that arise during work. The rolls run in special anti-friction phosphor bronze alloy bushings. The gears are made of case-hardened steel and immersed in an oil bath for quiet and smooth operation. Various components are standardized and interchangeable. This ensures easy maintenance.



This MASTER Roller is powered by a 1.5 HP strong TEFC type AC motor running on 220 Volt 50 cycle single phase power. It is also equipped with a 2.0 HP 440 Volt three-phase motor for large plants in continuous use.



The machine is equipped with side rollers with standard semi-circular grooves. Other grooves and designs are available to order.



We also offer automatic lubrication and a foot-operated emergency stop system as additional optional features. Export machines of different voltages and frequencies are available to order.



We also have 6" x 3" and 8" x 4" reel sizes of similar design and construction.



Please ask for more details.
