Indoor Lighting Office Lighting Embedded LED Grille Light Surface Mounted Downlight Chandelier Linear Light
- $22.00 / 2 - 49 pieces
$21.00 / 50 - 199 pieces
$19.00 / 200 - 499 pieces
$18.00 / >=500 pieces - 2 pieces
- Shenzhen Zhijiaxin Technology Co., Ltd.
- Guangdong, China
- Ms Jenny zou
Base Type: | other | light source: | to lead |
Color rendering index (Ra>): | 80 | Input voltage (V): | AC200-240 |
brand: | ledresto | usage: | Office lighting, commercial lighting |
Supported dimmers: | No | payment terms: | L/C, Western Union, T/T |
Key words: | LED Grille Light | Supply capacity: | 50000 pieces per month |
application: | Indoor Lighting, Home Office | Light Dimensions: | Length 1200*width 35*height 67mm |
Light body material: | aluminum | strength: | 20/40/60/80W |
product name: | Aluminum shell LED grille light | port: | Shenzhen |
Certification: | CE, RoHS, SAA | Lamp luminous flux (lm): | 2000/4000/6000/8000LM |
design style: | modern | Origin: | Guangdong, China |
Color rendering index (Ra): | 90 | LED chips: | 3030 |
Grid shape: | I | model: | LST-LS3570-REF2 |
Working life (hours): | 30000 | Lifespan (hours): | 30000 |
Lamp Luminous Efficiency (lm/w): | 100 | Packaging Details: | Quantity per export carton: 12 pcs. Carton size length/width/height: 1250*252*176mm. Carton weight: 12Kg. OEM ODM packaging is available. |
LED light source: | COB3030 | Lighting Solutions Services: | Lighting and Circuit Design |
Working temperature(℃): | -20 - 45 | Beam Angle: | 34 degrees |
Warranty period (years): | 3 years | Item Type: | grille lights |
Working hours (hours): | 30000 | Available lengths: | 600mm/1200mm/1800/2400mm |
Color temperature (correlated color temperature): | 3000/4000/6000K, 3500K (warm white) |
Indoor Lighting Office Lighting Embedded LED Grille Light Surface Mounted Downlight Chandelier Linear Light
1. SMD3030 chip magnetic beads are used, which are seamlessly connected in a linear shape.
2. Connected by 4 columns, the guide is stable and seamless.

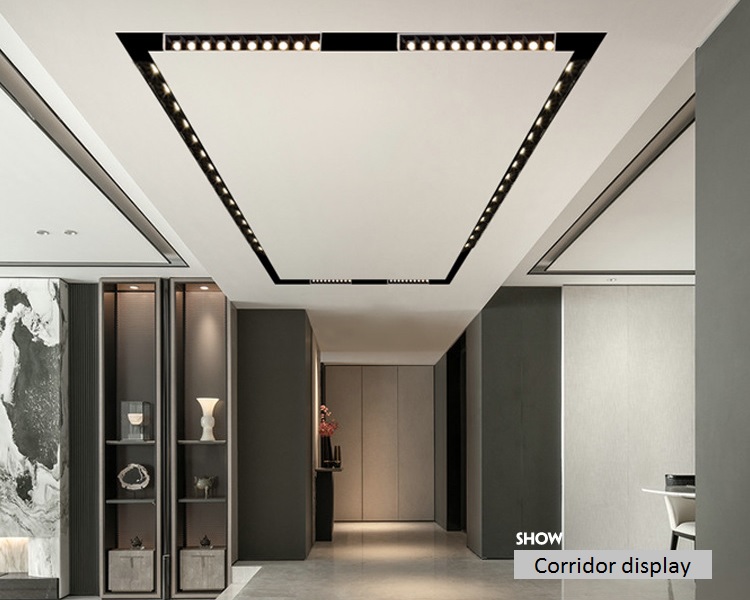

3. The product can be installed in suspension, exposed or embedded.
4. The lamp head is made of PC plastic, which is seamlessly connected with the PC cover, and the light will not be lost.
5. The aluminum substrate has no light spot design, and it is convenient and quick to install and connect by rotating.
6. The light transmittance of the PC cover reaches 90%, and the light emission reaches 110lm/w.
7. Use AGT, LIFUD power supply, IC driver. No flicker, no glare. CIR≥80. PF ≥ 0.9.
8. The product has passed TUV SAA CE FCC ROSH certification.
product name | 40 Watt Seamless Connectable LED Linear Grille Light, Recessed Downlight - 3570 |
Light body material | Aluminum alloy 6063-T5, PC, ABS |
surface treatment | Powder Coated or Brushed Aluminum |

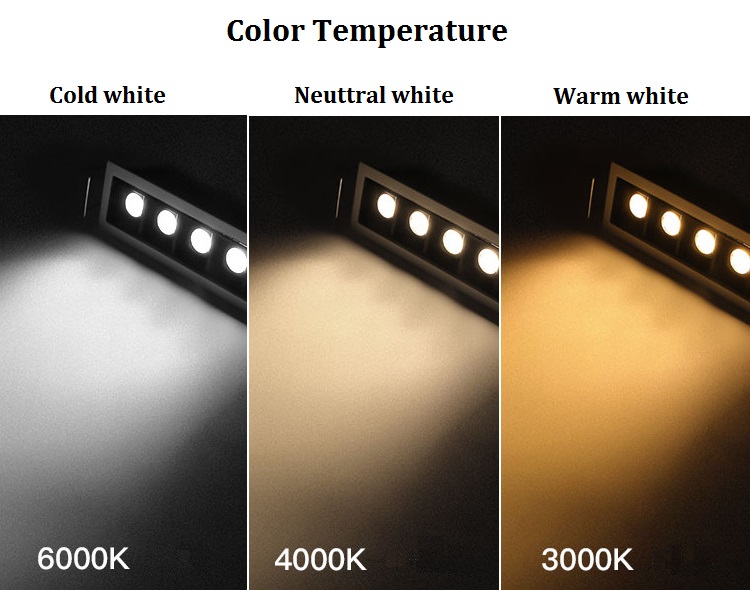

correlated color temperature | 3000K, 4000K, 5000K, 6000K |
Input voltage | 100-277V/200-240V 50/60HZ |
power supply | AGT isolated drive, no flicker, PF>0.9 |
optional features | 0-10V dimming, DALI dimming, CCT dimming, 2.4G dimming |
beam angle | 120° (PC, PS, PMMA) or 34° (with reflective cup) |
Body color | black, white, silver |

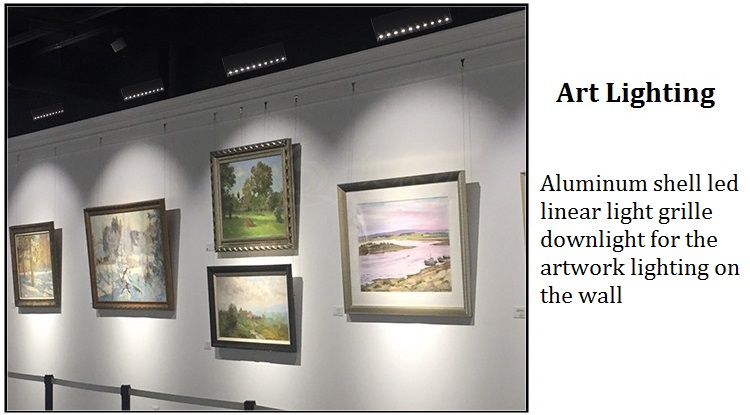

application | Home lighting, office lighting, art lighting, shopping mall lighting, etc. |
Quality is the most important, quality is our obligation. Our QC department will check each process strictly. The picture below is the 8-hour aging test of our products before packaging.
