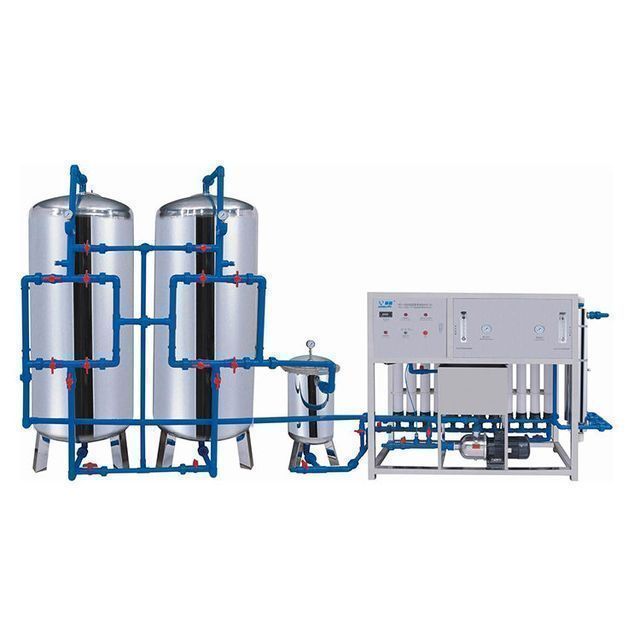

Industrial hollow fiber ultrafiltration filter mineral water treatment system ultrafiltration
- $1600.00 /set
- 1 set
- Jiangmen Living Drinking Water Equipment Co., Ltd.
- Guangdong, China
- Ms Vivian Long
PRODUCT DETAIL
| Package preview: | payment terms: | L/C, Western Union, T/T, MoneyGram | |
| Supply capacity: | 100 sets per month | Mechanical test report: | if |
| Optional: | Ozone, softener | brand: | Domestic water 2o |
| Finished water: | mineral water | membrane: | Dow, Hydranautics, Toray, Vontron UF memberane |
| Core components: | PLC, pressure vessel, water pump | Applicable industries: | Hotels, Clothing Stores, Manufacturing Plants, Machinery Repair Shops, Food and Beverage Plants, Farms, Restaurants, Home Use, Food Stores, Construction Works, Energy and Mining, Food and Beverage Stores |
| Core component warranty: | 1 year | Packaging Details: | wooden box |
| Health status: | new | strength: | 750w |
| Warranty: | 1 year | product name: | Industrial Hollow Fiber Ultrafilter |
| place of origin; place of origin: | Guangdong, China | application: | clean water |
| Other names: | Mineral water treatment system ultrafiltration | Video shipment inspection: | if |
| port: | Jiangmen/Shenzhen/Guangzhou | Marketing Type: | New Products 2022 |
| Dimensions (L*W*H): | 2080*780*1680mm | Showroom location: | Indonesia, Spain, Kenya, Sri Lanka, South Africa, Nigeria |
| capacity: | 1000-100000LPH | Pump: | CNP/Grundfos |
| pipeline: | 304 stainless steel or PVC | Voltage: | 220V/380V/other |
| weight: | 750 kg | advantage: | Over 20 years of experience |
Product Description
Ultrafiltration (UF) is a type of membrane filtration in which hydrostatic pressure forces liquid against a semipermeable membrane
membrane. Suspended solids and high molecular weight solutes are retained, while water and low molecular weight solutes pass through the membrane. A semipermeable membrane is a thin layer of material that is able to separate substances when a driving force is applied across the membrane.
Raw water sources: well water, river water, well water, mountain spring water, lake water, tap water, etc.
Raw water pump/multiple pump: CNP, Grundfos, etc.
Filter media: quartz sand filter, activated carbon filter, softener, security filter (PP filter)
Ultrafiltration membrane: Dow, Toray, Bangmo, etc.

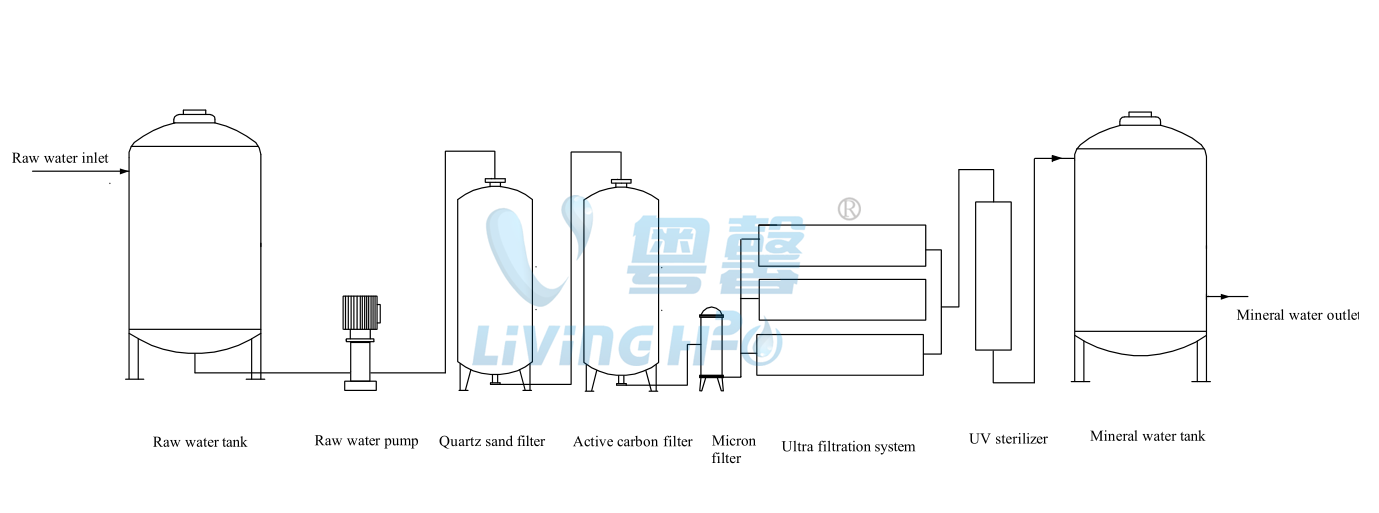

work process:
1.Raw water pump---- Provides pressure for quartz sand filter/activated carbon filter.
2.Quartz sand filter----Remove turbidity, suspended matter, organic matter, colloid, etc.
3.activated carbon filter----Remove color, free chloride, organic matter, harmful substances, etc.
4.softener---- Exchange calcium and magnesium "ions" by the most common and simplest method.
5.micron filter----Prevent large particles, bacteria, and viruses from entering the RO membrane, with an accuracy of 5um,
6.Ultrafiltration Membrane (UF) System----Suspended solids and high molecular weight solutes are retained, while water and low molecular weight solutes pass through the membrane.
7.UV sterilizer.----- In the UV disinfection process, water is purified as it flows through a stainless steel chamber containing special UV generating lamps.
2.Quartz sand filter----Remove turbidity, suspended matter, organic matter, colloid, etc.
3.activated carbon filter----Remove color, free chloride, organic matter, harmful substances, etc.
4.softener---- Exchange calcium and magnesium "ions" by the most common and simplest method.
5.micron filter----Prevent large particles, bacteria, and viruses from entering the RO membrane, with an accuracy of 5um,
6.Ultrafiltration Membrane (UF) System----Suspended solids and high molecular weight solutes are retained, while water and low molecular weight solutes pass through the membrane.
7.UV sterilizer.----- In the UV disinfection process, water is purified as it flows through a stainless steel chamber containing special UV generating lamps.

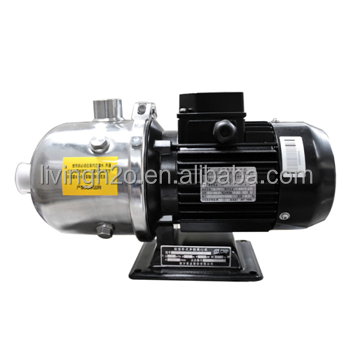

●Boost pump

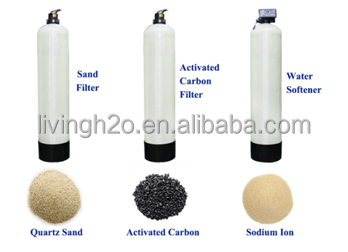

media filter
● sand filter
The device filters impurity substances in raw water and removes ferrous and manganese ions in raw water. Equipped with an automatic control valve, the sediment is discharged through the automatic backwash function.
● Activated carbon filter
This filter removes color and odor from raw water to improve water taste.
●Water softener
The device softens the water by oxidizing the calcium and magnesium ions in the raw water with cations.
The device filters impurity substances in raw water and removes ferrous and manganese ions in raw water. Equipped with an automatic control valve, the sediment is discharged through the automatic backwash function.
● Activated carbon filter
This filter removes color and odor from raw water to improve water taste.
●Water softener
The device softens the water by oxidizing the calcium and magnesium ions in the raw water with cations.

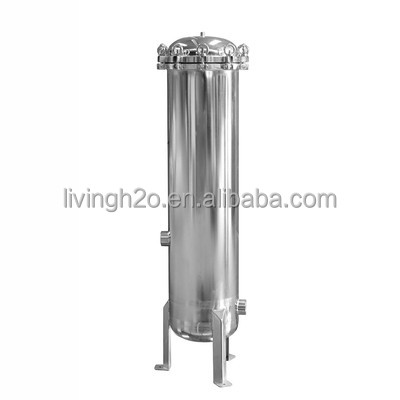

Filtration precision ≤ 5μm, precision filter can filter out particulate impurities in raw water
front filter. It can prevent impurities from flowing into the reverse osmosis membrane and clogging the reverse osmosis membrane
system, thereby reducing power consumption more effectively.
front filter. It can prevent impurities from flowing into the reverse osmosis membrane and clogging the reverse osmosis membrane
system, thereby reducing power consumption more effectively.

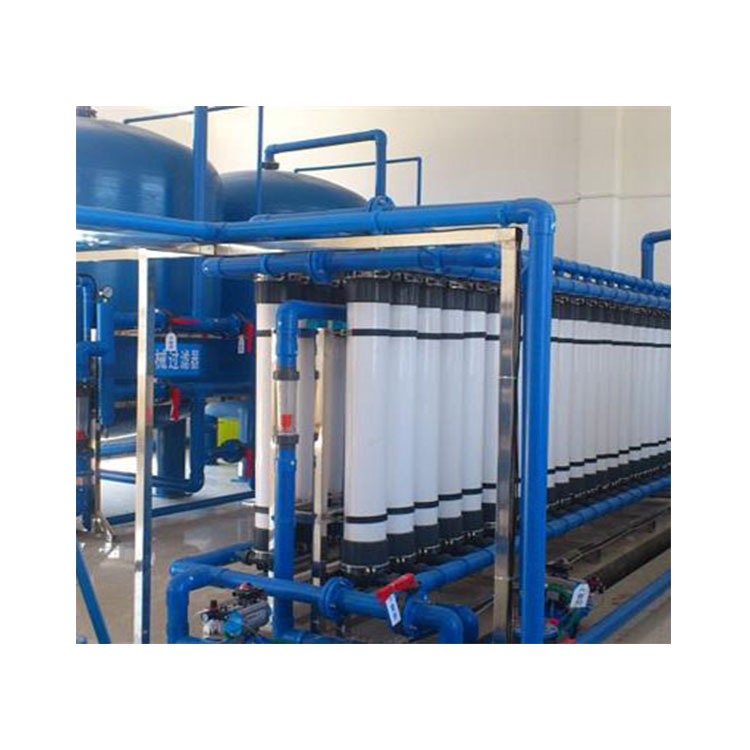

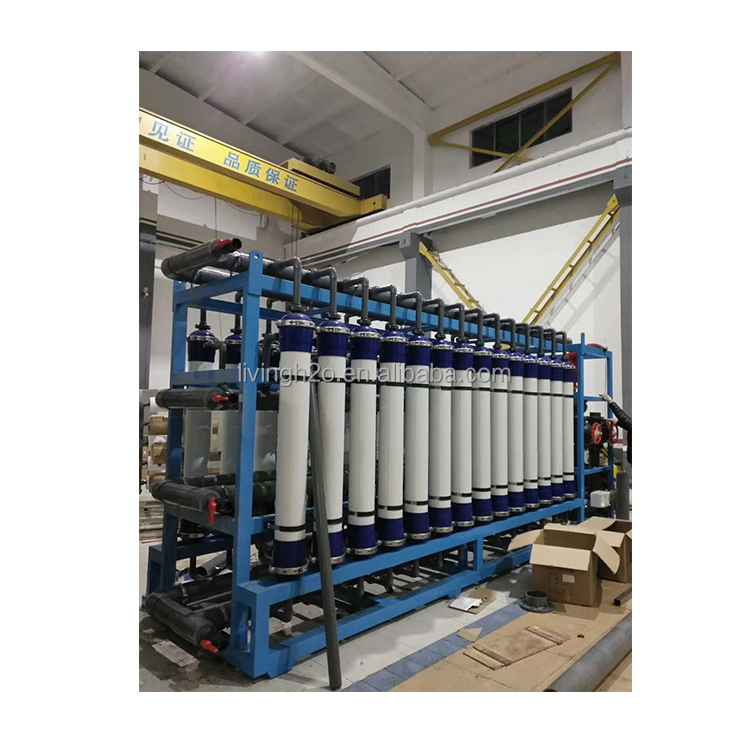

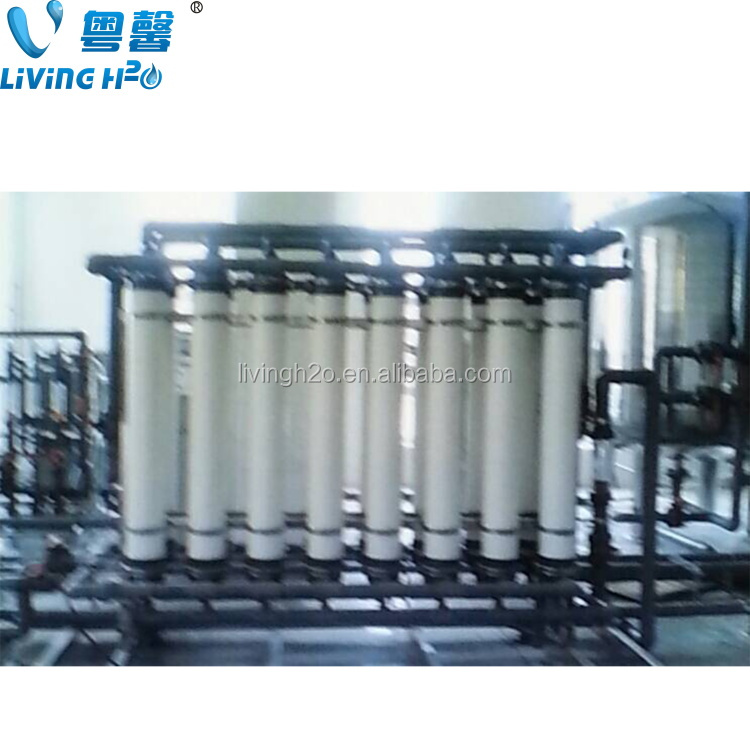

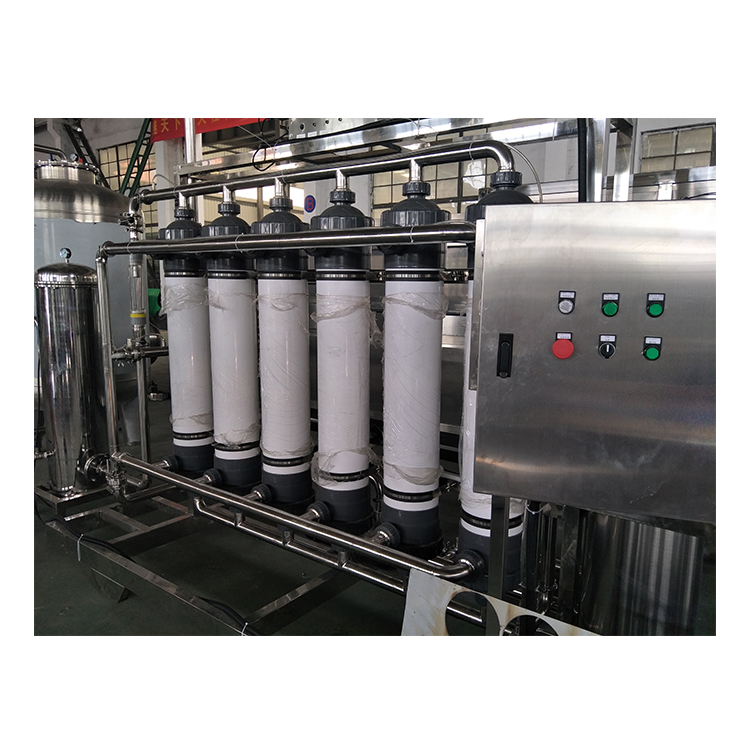

●Ultrafiltration (UF) filter
The main part of the water supply system. Ultrafiltration (UF) filters do not require electricity and remove particles, colloids, bacteria and rust through a physical sieving process. Through self-rinsing, the pollutants trapped on the surface of the ultrafiltration membrane are discharged in time, and sufficient flux is maintained to extend the working time.

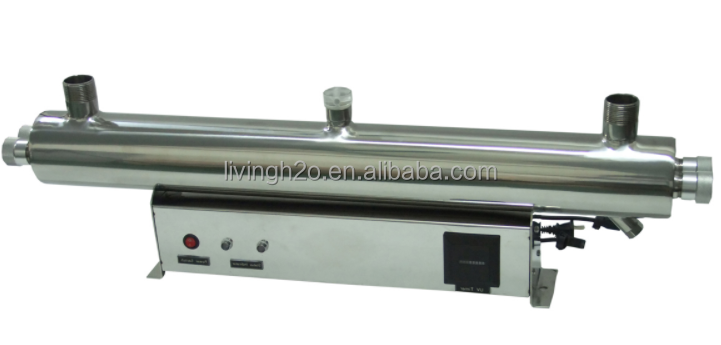

A UV water sterilizer is a water filtration unit that uses ultraviolet light bulbs to kill microbes in the water.
Floating freely in water. Parasites, viruses, algae, and bacteria (good and bad) are all things that are "killed" after passing through a UV disinfection unit. It seeks to provide completely safe water using the same processes as nature.
In order to provide you with the most suitable solution and price, please be sure to tell us the following information:
1. What is the raw water source? Please provide us with your water quality test report (if available). 2. What kind of requirements should the treated water meet? 3. What is your expected production capacity?
Product parameters
Model | capacity | Diaphragm quantity | Dimensions (L*W*H) mm | Weight (kg) |
JYX-UF-1000 | 1000LPH | UF-95*1000*2 | 1980*800*1940 | 350 |
JYX-UF-2000 | 2000LPH | UF-95*1000*4 | 2400*800*2050 | 450 |
JYX-UF-3000 | 3000LPH | UF-95*1000*6 | 2800*800*2200 | 550 |
JYX-UF-4000 | 4000LPH | UF-95*1000*8 | 3200*800*2350 | 650 |
JYX-UF-5000 | 5000LPH | UF-90L*10 | 3500*900*2400 | 750 |
JYX-UF-6000 | 6000LPH | UF-200A*3 | 3800*950*2500 | 850 |
JYX-UF-8000 | 8000LPH | UF-200A*4 | 5400*1000*2700 | 1000 |
JYX-UF-10000 | 10000LPH | UF-200A*5 | 6000*1600*3000 | 1200 |
JYX-UF-15000 | 15000LPH | UF-200A*8 | 7000*1700*3100 | 1800 |
JYX-UF-20000 | 20000LPH | UF-200A*10 | 7500*1700*3200 | 2400 |
JYX-UF-25000 | 25000LPH | UFC-250B*8 | 8000*1800*3300 | 3000 |
JYX-UF-30000 | 30000LPH | UFC-250B*12 | 8500*1900*3500 | 3800 |
JYX-UF-50000 | 50000LPH | UFC-500B*10 | 10000*2300*3800 | 5000 |
