Intel skylake 3855u 10 1000m lan integrated motherboard for pfsense network firewall router
- $150.00 /piece
- 1 piece
- Shenzhen Hcsmart Technology Co., Ltd.
- Guangdong, China
- Ms Cherry Chen
| port: | Shenzhen | payment terms: | Western Union, T/T, MoneyGram |
| Supply capacity: | 10000 pieces per month | USB: | 2*USB 3.0 2*USB 2.0 connector |
| Embedded CPU: | Intel Skylake 3855u | Display port: | VGA connector |
| type: | Embedded Industrial Motherboard | place of origin; place of origin: | Guangdong, China |
| Communication port: | 1*COM header 1*lan-com | product status: | in stock |
| Packaging Details: | Carton/20pcs | size: | 230*230mm |
| Storage: | 1*Sata 3.0 1*mSata 1*m.2sata | Memory slots: | 1*SO-DIMM DDR4 1600 32g |
| power supply: | DC+ATX power supply | local area network: | 10* 1000M RJ45 |
| brand: | HC | Operating System Support: | Win10/Win8/Linux/xp |

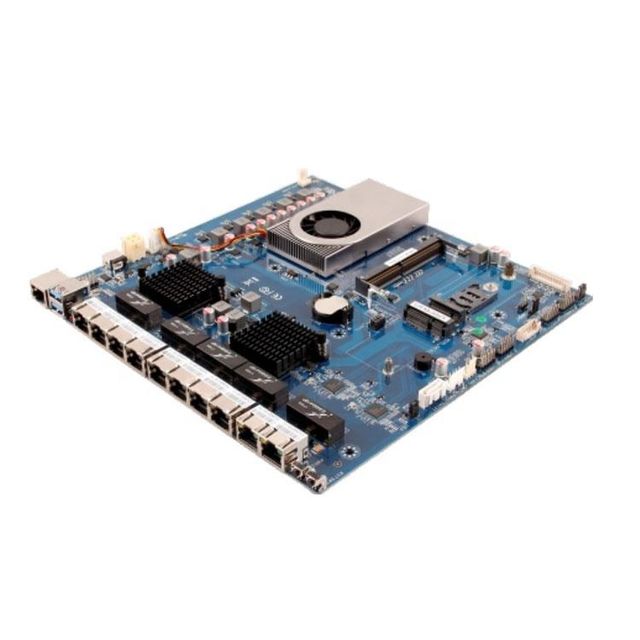

Intel skylake 3855u embedded firewall computer motherboard with 10 1000M network card network security firewall router
1.Intel 3855u processor
2. 1*sata 3.0 1*msata 1*m.2 sata 2.0
3. 10*1000M LAN DDR4 memory slot
4.vga header com header
5. Firewall computer router solution
|
processor |
CPU |
Intel Skylake 6th Gen 3855u |
|
frequency |
Dual core 1.6g |
|
|
chipset |
SOC |
|
| TDP |
15W |
|
|
memory |
coin slot |
1*SO-DIMM,DD4 1600HZ |
|
capacity |
up to 16GB |
|
|
storage |
Connector |
1*SATA3.0 1*MSATA 1*M.2 SATA |
|
1*MSATA |
||
|
1*SIM |
||
|
exhibit |
chipset |
HD integration |
|
Connector |
VGA connector |
|
|
local area network |
chipset |
2*Intel i350 2*I211 |
|
Connector |
10*RJ 45 1000m |
|
|
vocal |
chipset |
|
|
Connector |
|
|
|
input Output |
com |
2*com (1*RJ45 to com) |
|
lPT |
|
|
|
USB |
2*USB3.0, 2*USB2.0 connectors (expanded to 4*USB2.0 connectors) |
|
|
General purpose input and output interface |
1*GPIO |
|
|
title |

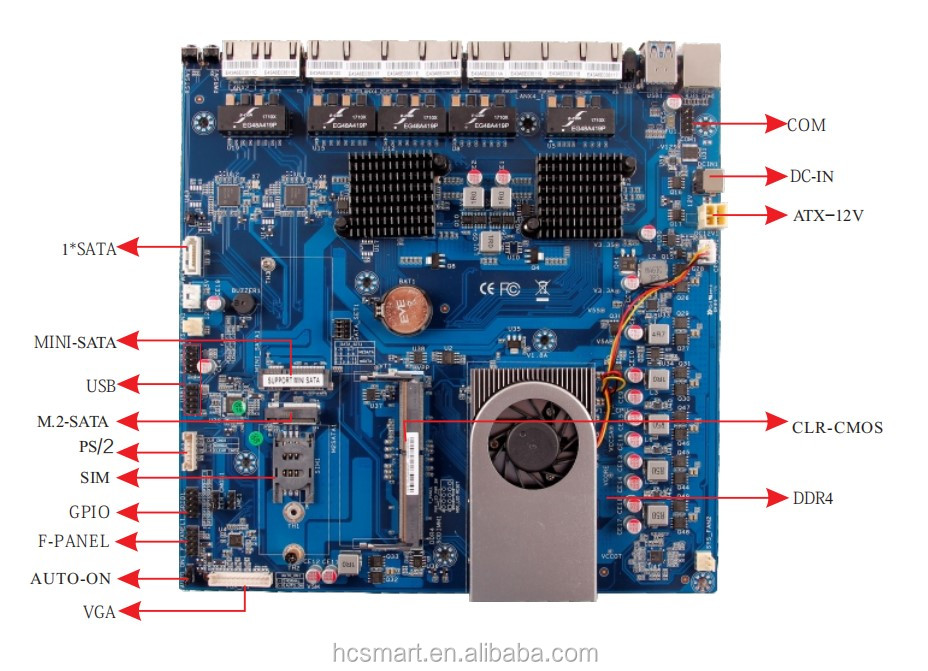

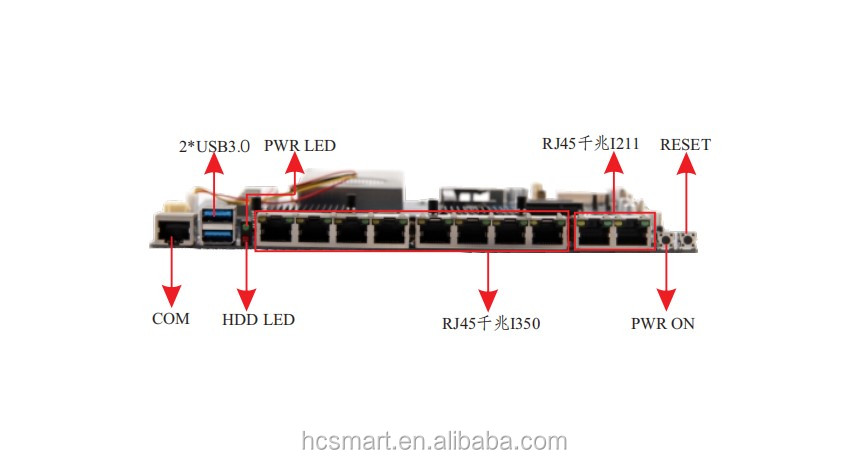

1*F-panel 1*PS/2 2*F-USB 2.0 1*CPU-fan 1*CLR-CMOS 1*Auto open 1*COM 1*12V ATX 1*VGA
|
|
|
strength |
power supply |
1*DC IN 12V/4 PIN ATX |
|
operating system |
|
Win7/win8/xp/linux |
|
BIOS |
|
AMIBIOS |
|
working environment |
Operating temperature |
-10~60 degrees |
|
Storage temperature |
-10-70 degrees |
|
|
Relative humidity |
5%-95% non-condensing |
|
|
Constituents |
size |
230*230mm |
Carton: 20pcs/carton 15kgs/carton
By air or express. You can receive the goods within 5-15 days
We can offer you 1 year warranty
In order to guarantee the quality, we usually conduct comprehensive testing before shipment to avoid quality problems
24*7 hotline inquiry, if you have any questions about our products, you can contact us at any time.
