Irrigation and other irrigation Rain Gun Sprayer For farm irrigation system

PRODUCT DETAIL
Gross weight per piece:5.800 kgPackaging Details:nude, card, sandwich wrap, customizable
Origin:Zhejiang, Chinatype:Sprinklers
Sprinkler Type:spikeproduct name:garden spray gun
model:FS40Sales unit:single product
Single package size:24.5X61X50 cm
Product Description

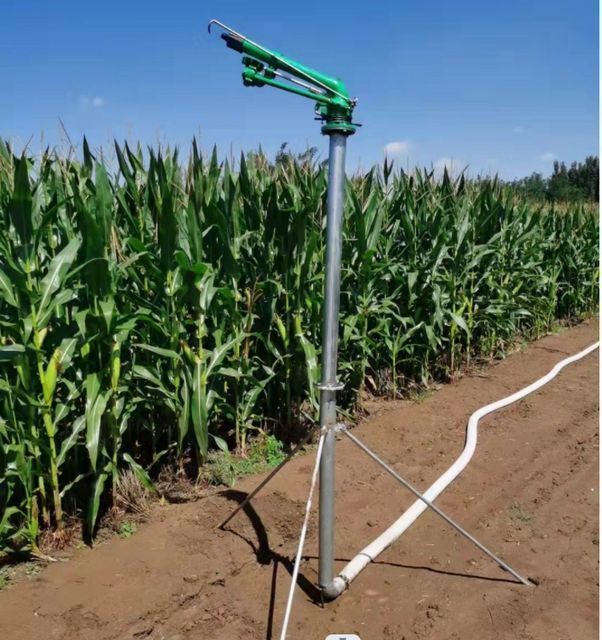

Rain gun products:
FS40 model: 1.5 "Interface specification: including 5 nozzles 14MM 16MM 18MM 20MM 22MM FS50 model: 2" with flange Interface specification: including 5 nozzles 16MM 18MM 20MM 22MM 24MM
1. High-pressure irrigation is an ideal method for large-scale water saving.
2. Mainly used in large areas. Agricultural irrigation, such as farms, orchards or parks. Irrigation, such as lawns, gardens or parks. Industrial irrigation.
Material: aluminum nozzle
Model: FS40/FS50 turbine,
Flange connection: joint type,
Nozzle: 14mm,
Working pressure KPA: 300-1000,
Nozzle range: 20-25M,
Flow M3: 11-16,
Spray irrigation intensity MM/h: 4.8-4.1,

Nozzle: 16mm,
Working pressure KPA: 300-1000,
Nozzle range: 20-30M,
Flow m 3: 12-20,
Spray irrigation intensity MM/h: 5.5-4.6,

Nozzle: 18mm,
Working pressure KPA: 300-1000,
Sprinkling range: 25-33
Flow m 3: 12-25,
Spray irrigation intensity MM/h: 6.1-5.3,

Nozzle: 20mm,
Pressure KPA: 300-1000,
Working pressure KPA: 400-1000,
Sprinkling range: 25.35 m,
Flow M3: 15.30,
Spray irrigation intensity MM/h: 6.1-5.3,

Nozzle: 22mm,
Working pressure KPA: 400-1000,
Sprinkling range: 30-40 meters,
Flow M3: 20-35,
Spray irrigation intensity MM/h: 7.1-6.0,

Nozzle: 24mm,
Working pressure KPA: 500-1000,
Nozzle range: 30-45M,
Flow M3: 28-45,
Spray irrigation intensity MM/h: 7.9-6.6,

Nozzle: 26mm,
Working pressure KPA: 500-1000,
Nozzle range: 35-50M, flow M3: 39-50,
Spray irrigation intensity MM/h: 8.5-7.1,

Note: The above parameters are reported by the head of the pump and the water output on site, ten to
The actual site shall prevail. Nozzle elevation angle 24°/43°,
When the spray gun working pressure reaches
4. The normal working distance is about 35 meters. The main factors affecting the work of the spray gun are the pump pressure and
The output of the pump, the cough gun works better when both targets are increased. Ershen spray gun can be used for
In agriculture, it can be used alone or as a sprinkler to spray wine, and in industry, it can be used in coal mines, power plants and other departments
dustproof work. The utility model has the advantages of long spraying distance, long distance and all-round coverage. this
Spray gun rotation angle is adjustable (0-360°).

Specification
1 diameter
1.5” 2”
the code
FS40 FS50
connect
Articulated
Product size (cm)
1.5” 2”
Material
aluminum nozzle
hydraulic
3~10bar
color
custom made
pack
most
usage
connect water pipe
birthplace
Zhejiang, China
business buyer
supermarket
OEM production
welcome
In order to better protect the safety of your goods, we will provide professional, environmentally friendly, convenient and efficient packaging services.
