JC Series Drilling Drawworks for SJ PETRO ,RG PETRO,DFXK,BOMCO,ZYT,HH Drilling rig and workover rig
- $1.00 /set
- 1 set
- Jingzhou You Long Petroleum Machinery Spares Ltd.
- Hubei, China
- Mr Lu ben
| Supply Ability: | 1000 Sets per Year; | After-sales Service Provided: | Online support,Field maintenance and repair service; |
| Model Number: | XJ350/XJ550/XJ750/ZJ20/ZJ30/ZJ40; | Port: | SHANG HAI PORT/ WU HAN PORT; |
| Payment Terms: | L/C,T/T; | Brand Name: | SJ PETRO; |
| Showroom Location: | None; | Warranty: | 1 Year; |
| Video outgoing-inspection: | Provided; | Dimension(L*W*H): | N/A; |
| Applicable Industries: | Manufacturing Plant,Machinery Repair Shops,Construction works ,Energy & Mining; | Packaging Detail: | Export packing; |
| Type: | Rotary Drilling Rig; | Usage: | Oil Well; |
| Power Type: | Diesel; | Place of Origin: | Hubei, China; |
| Condition: | New; | Machinery Test Report: | Provided; |
| Warranty of core components: | 1 Year; | Marketing Type: | New Product 2020; |
| Core Components: | PLC,Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump; | Local Service Location: | None; |
| Voltage: | N/A; | Weight: | N/A; |
| Certification: | N/A; |

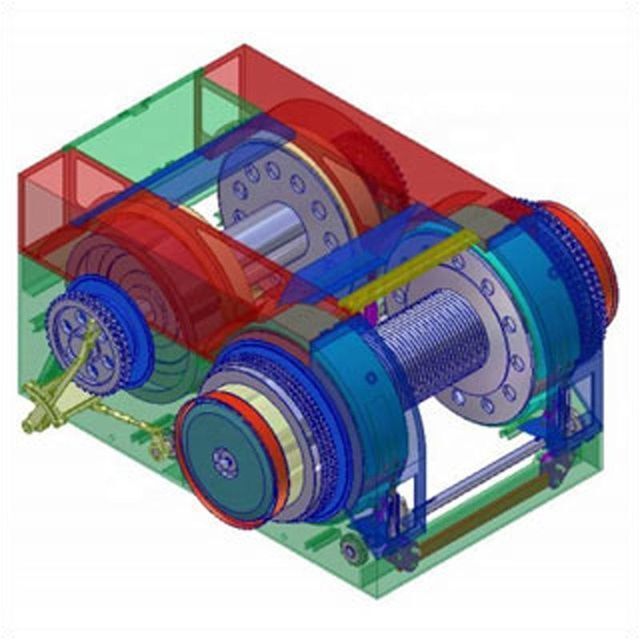

JC Series Drilling Drawworks
Overview
Drilling drawworks is the core component of the drilling rig, which has the function of running drilling tools, casing, controlling bit weight, etc. And meanwhile, it also can be used as the middle transmission mechanism of the rotary table, and transfer power for the rotary table.
It is featured by compact structure, simple transmission, big transferred power, effective performance, convenient installation and adjustment, easy maintenance and safe and reliable operation.
The drilling drawworks can be divided into two kinds: single drum drawworks and double drum drawworks. The single drum drawworks consists of frame & shield, drum assembly, brake system, auxiliary brake, etc. And the double drum drawworks consists of main drum assembly, sand drum assembly, frame & shield, main drum brake system, sand drum brake system, etc.
Design and manufacture standard of drilling drawworks:
SY/T 5532: Drawworks for drilling rig
API Spec 7K: Specification for Drilling and Well Servicing Equipment
SY/T 5023: Brake block for drilling rig
SY/T 5170: Petroleum and natural gas industries specification for wire rope
SY/T 5595: Oil drilling rig drive roller chains
GB/T 23505: Petroleum drilling and workover rig
Model
The commonly used product models of the drilling drawworks are as follows: Z03010000035AA main drum assembly,Z03010000207AA main drum assembly,Z03010000133AA main drum assembly,Z03010000164AA main drum assembly,Z03030000006AA sand drum assembly,Z03030000028AA sand drum assembly, etc.
