JCX Drywall Used Ceiling CU Metal Stud and Track Roll Forming Machine
- $8000.00 /piece
- 1 piece
- Botou Golden Integrity Roll Forming Machine Co., Ltd.
- Hebie, China
- Mr Jie Yang
| Video shipment inspection: | if | Control System: | Fully automatic computer control |
| Packaging Details: | Sea freight standard packing: covered with plastic film, fixed in 20/40'gp container | Main selling points: | easy to operate |
| weight: | 2500 kg | payment terms: | L/C, T/T |
| Uncoiler: | 2.5 tons | Material Thickness: | 0.3mm-0.8mm |
| Core component warranty: | 1 year | product name: | Stud Bolt Roll Forming Machine |
| Cutting system: | Servo Tracking System | Core components: | engine, motor |
| Health status: | new | Mechanical test report: | if |
| strength: | 7.5KW | Warranty: | 1 year |
| Applicable industries: | building materials store, construction | Roller material: | Cr12 |
| brand: | Jin Chengxing | type: | Steel frame and purlin machine |
| Origin: | China | Marketing Type: | normal product |
| Showroom location: | not any | Production capacity: | 40-60m/min |
JCX Gypsum Board Used Ceiling CU Metal Joist and Track Roll Forming Machine
1. Applicable materials:
1) Material: cold rolled coil, hot rolled coil, galvanized steel
2) Material thickness: 0.3-1.0mm
3) Coil strength: Q195, 235B Mpa

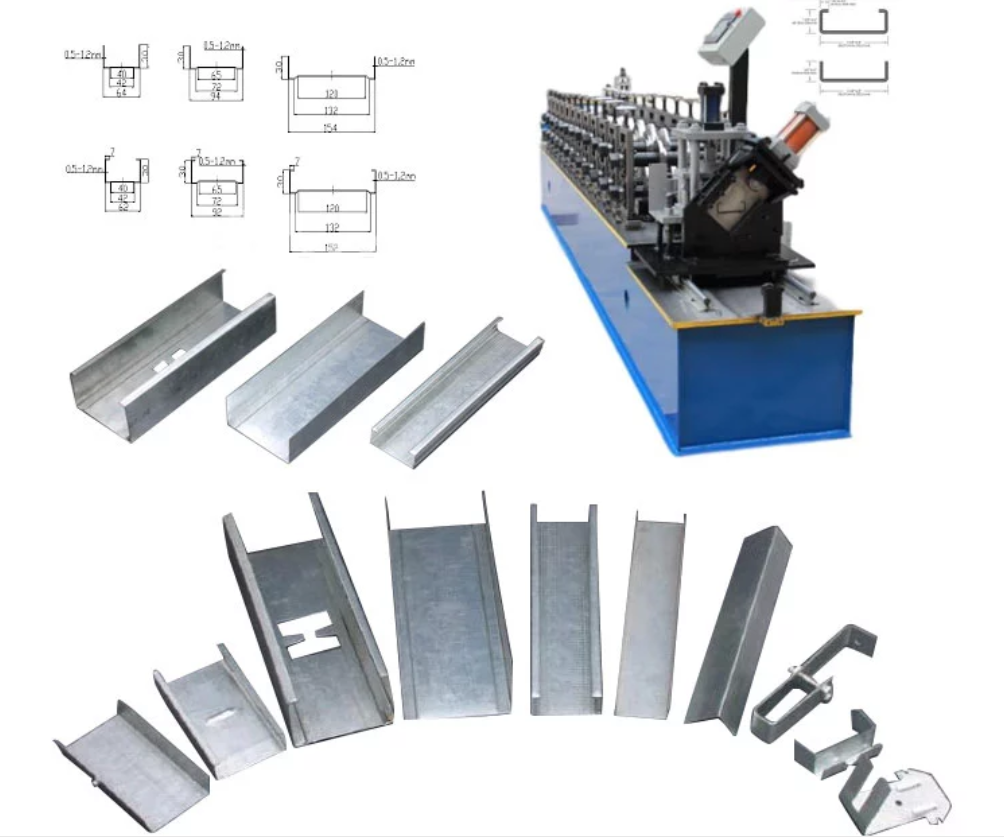

2.Profile designs for some common Stud / Track / Omega / Wall angle profiles:
3. Technical indicatorsGypsum board used ceiling CU metal joist and track roll forming machine joist and runner making machine:
- Material: Gi Coil
- Material thickness: 0.4-1.0mm
- Cutting system: hydraulic servo tracking fast cutting;
- Main power: 5.5KW
- Hydraulic power: 2KW
- Servo motor power: 1.5KW

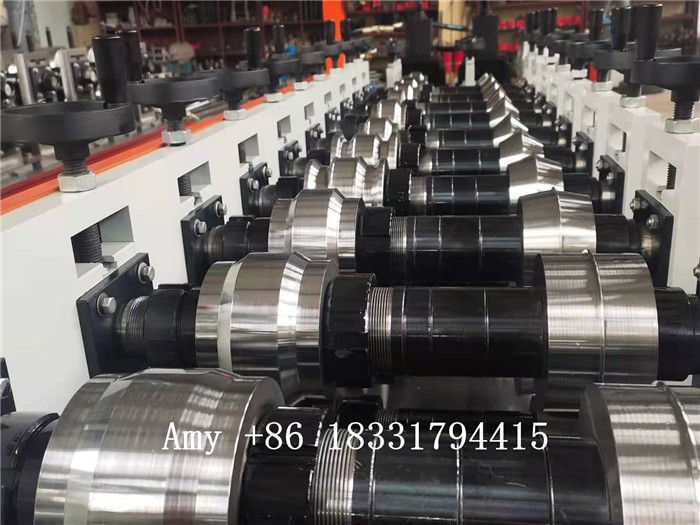

- Forming station: about 10 steps (using Italian technology)
- Shaft diameter: ￠50 mm
- Roller material: Cr12.
- Forming speed: 40-60m/min
- Formed frame structure: guide column + slider; This formed frame structure design is much more precise than the wall plate welded structure
- PLC brand: DELTA brand
- Machine diameter: about 5000mm(L)x800mm(W)x1700mm(H)
- Machine weight: about 3 tons
- Voltage: 380V, 3 Phase 50Hz (or according to customer requirements)
4. Application:
Metal joists and tracks, steel joists and tracks, C joists, U-slides, U-tracks, gutters, roof ceiling battens, roof trusses, C-trusses, lightweight steel frame trusses, omega profiles, and more

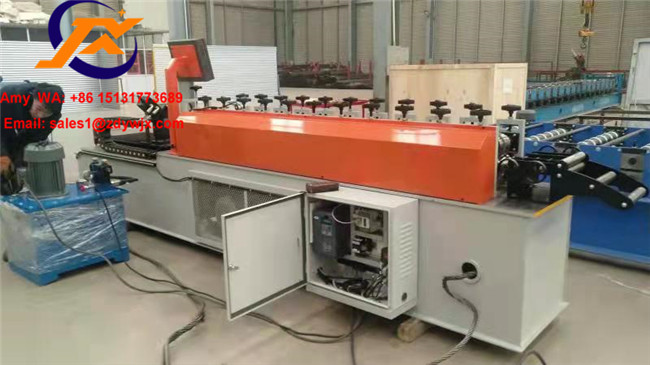

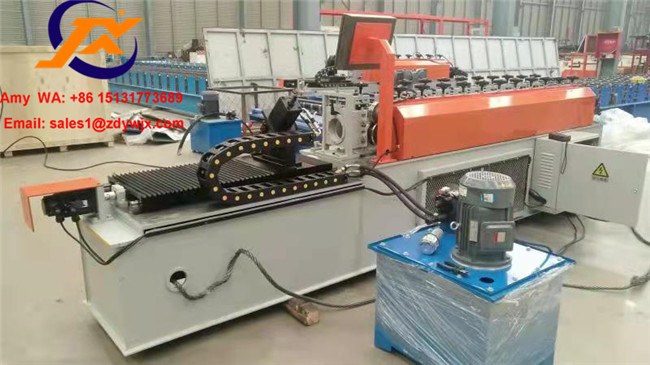

5. Pictures Gypsum board used ceiling CU metal joist and track roll forming machine joist and runner making machine:

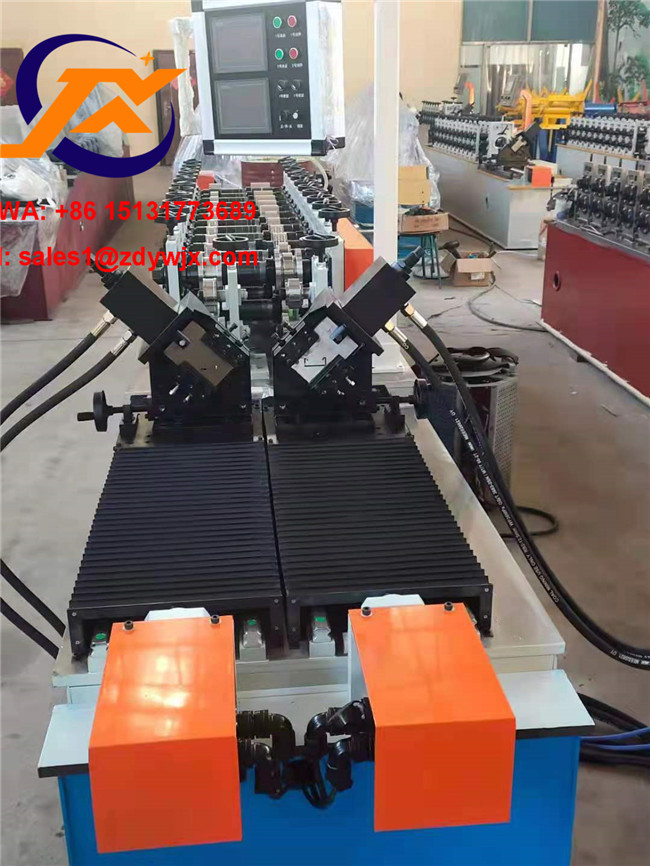

Single wire roll forming machine:
Two-wire roll forming machine:
