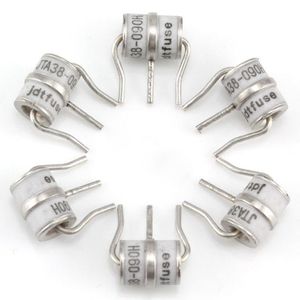

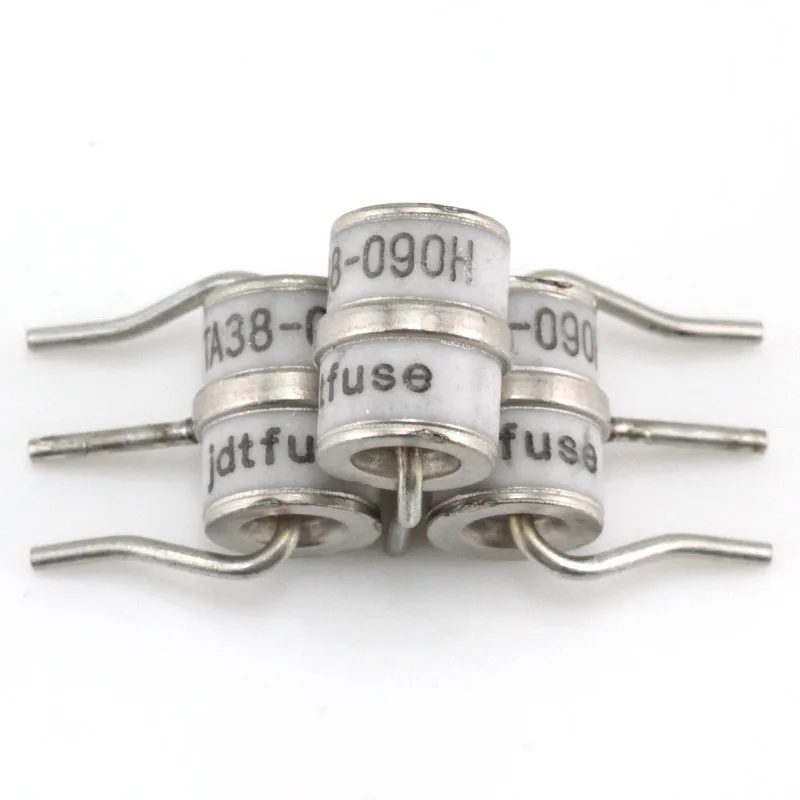

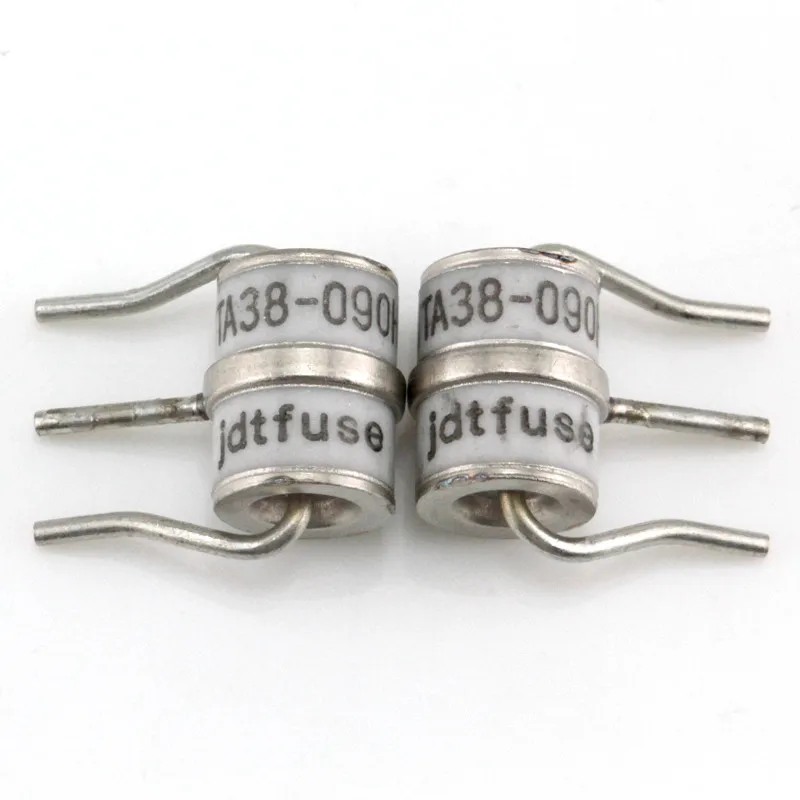

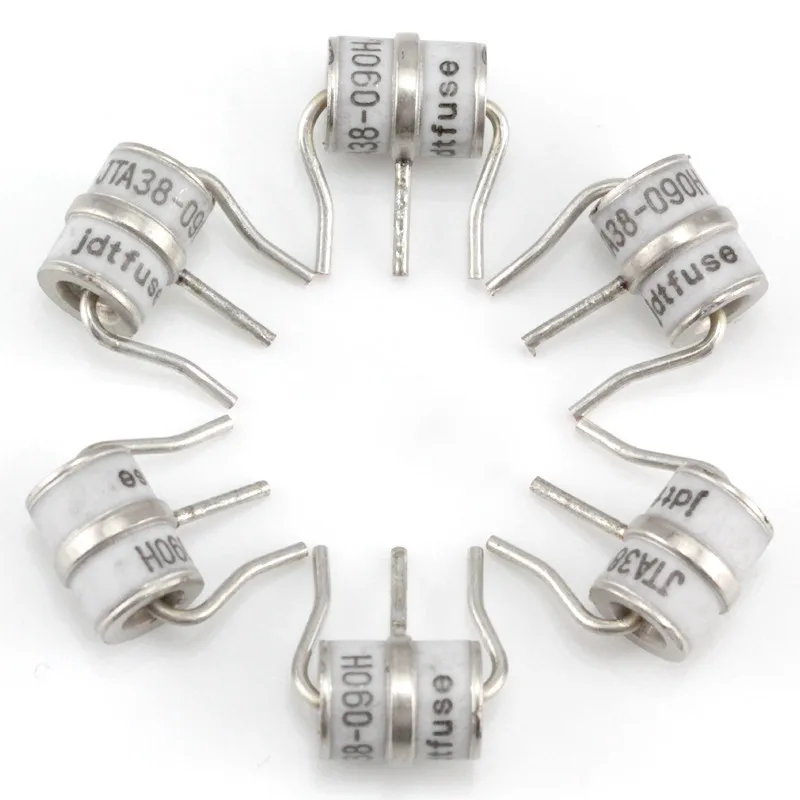

JTA38-090H 3-pole gas discharge tube (GDT) / surge arrester 90V 10kA 8.0*10.0mm surge protector
- $0.40 / >=100 pieces
- 100 pieces
- Shenzhen Jdt Fuse Industrial Co., Ltd.
- Guangdong, China
- Mr zebiao chen
| Packing Quantity: | 500 | type: | Stabilizer |
| Shipping Details: | 2 days after payment | Single package size: | 28X21X10 cm |
| model: | JTA38-090H | Packaging Details: | Standard packing box, carton |
| DC holding voltage (V): | 52 | color: | silver |
| DC breakdown voltage (100V/S) V: | 90±20% | brand: | JDT fuse |

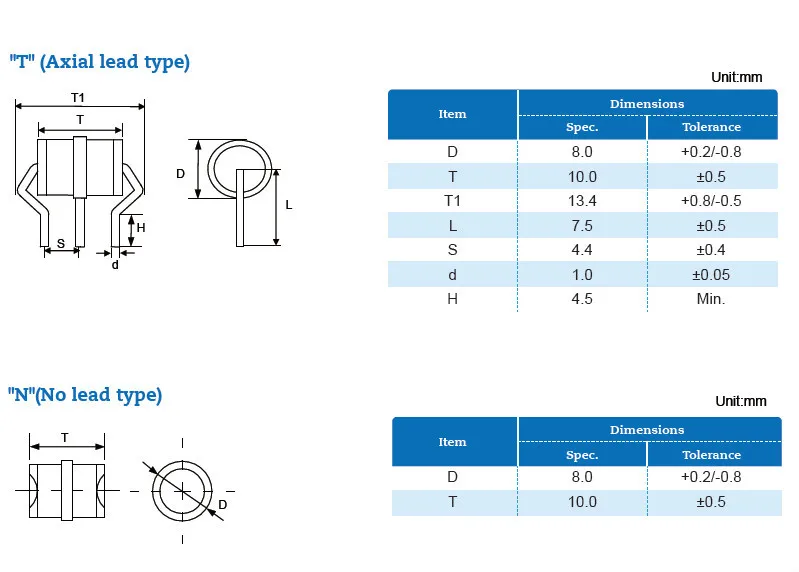

| Surge Rating: | 10kA | Lead configuration: | Axial lead |
| Origin: | Guangdong, China | Pulse life (10/1000μs)/100 A: | 300 times |
| diameter: | 8 mm | Part Number: | JTA38-090H |
| Gross weight per piece: | 0.500 kg | Sales unit: | single product |
JTA38-090H 3-pole gas discharge tube (GDT) / surge arrester 90V 10kA 8.0*10.0mm surge protector
Gas discharge tubes (GDTs) use an inert gas enclosed in a ceramic tube to provide an alternate circuit path for voltage spikes. Ceramic shells and nickel connectors can withstand high loads, Ruilon offers products that can operate at 20KA, 40KA, 50KA, 60KA, 100KA & 150KA. These devices have a wide range of breakdown voltages (up to 20% tolerance). Main applications are high frequency telecommunication lines, stations, security systems, HID and high quality surge protection devices (SPD).
JDTFUSE, gas discharge tube (GDT)>JTA38H/JTN38H
electrical properties
part number | direct current fire jump Voltage | maximum impulse break down Voltage | maximum. impulse freed current (8/20 microseconds) | impulse Life (10/1000 microseconds) | normal alternately freed current | direct current postpone Voltage | at the lowest limit insulation resist | maximum | |
100V/ small | 100V/ microsecond | 1KV/ microsecond | 10 Second-rate | 100A | 50 Hz 1 second | single 9 cycles | |||
(five) | (five) | (five) | (KA) | Second-rate | (A) | (five) | (GΩ) | (pF) | |
JTA38-075H | 75 | 600 | 700 | 10 | 300 | 10 | 52 | 10 | 2 |
JTA38-090H | Post-90s | 600 | 700 | 10 | 300 | 10 | 52 | 10 | 2 |
JTA38-150H | 150 | 500 | 700 | 10 | 300 | 10 | 135 | 10 | 2 |
JTA38-200H | 200 | 500 | 700 | 10 | 300 | 10 | 135 | 10 | 2 |
JTA38-230H | 230 | 600 | 700 | 10 | 300 | 10 | 150 | 10 | 2 |
JTA38-250H | 250 | 600 | 700 | 10 | 300 | 10 | 150 | 10 | 2 |
JTA38-350H | 350 | 700 | 800 | 10 | 300 | 10 | 150 | 10 | 2 |
JTA38-400H | 400 | 800 | 900 | 10 | 300 | 10 | 150 | 10 | 2 |
JTA38-470H | 470 | 900 | 1000 | 10 | 300 | 10 | 150 | 10 | 2 |
JTA38-600H | 600 | 1000 | 1100 | 10 | 300 | 10 | 150 | 10 | 2 |
JTN38-075H | 75 | 600 | 700 | 10 | 300 | 10 | 52 | 10 | 2 |
JTN38-090H | Post-90s | 600 | 700 | 10 | 300 | 10 | 52 | 10 | 2 |
JTN38-150H | 150 | 500 | 700 | 10 | 300 | 10 | 135 | 10 | 2 |
JTN38-200H | 200 | 500 | 700 | 10 | 300 | 10 | 135 | 10 | 2 |
JTN38-230H | 230 | 600 | 700 | 10 | 300 | 10 | 150 | 10 | 2 |
JTN38-250H | 250 | 600 | 700 | 10 | 300 | 10 | 150 | 10 | 2 |
JTN38-350H | 350 | 700 | 800 | 10 | 300 | 10 | 150 | 10 | 2 |
JTN38-400H | 400 | 800 | 900 | 10 | 300 | 10 | 150 | 10 | 2 |
JTN38-470H | 470 | 900 | 1000 | 10 | 300 | 10 | 150 | 10 | 2 |
JTN38-600H | 600 | 1000 | 1100 | 10 | 300 | 10 | 150 | 10 | 2 |
Most products are packaged in tape and reel per EIA-481-1. The outer packaging adopts carton and foam to support long-distance transportation.
