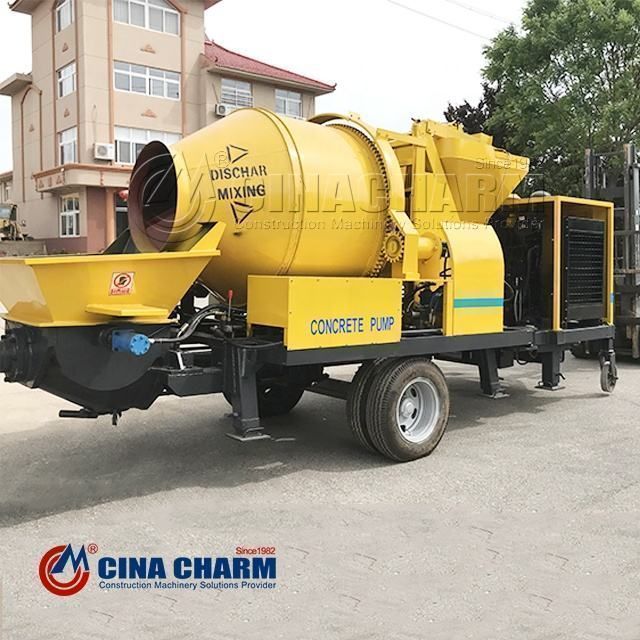

JZR500 diesel engine cement mixing pump mobile concrete mixer price
- $5000.00 /set
- 1 set
- Zhengzhou Changli Machinery Manufacturing Co., Ltd.
- Henan, China
- Ms Linda Qi
PRODUCT DETAIL
| Dimensions: | 3450*2440*3300mm | Applicable industries: | building materials store, construction |
| Working period: | therefore | application: | construction industry |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Discharge method: | Diesel type |
| Key words: | mixing cement | color: | customer request |
| Weight (kg): | 4000 kg | Video shipment inspection: | if |
| Power type: | Diesel engine concrete mixer | Marketing Type: | normal product |
| Water supply method: | water pump | Mechanical test report: | if |
| Unique selling point: | High manganese cast steel | Supply capacity: | 50 sets per month |
| State of health: | new | Recycling capacity: | 50L |
| Charging capacity: | 750L | productivity: | 25 cubic meters / hour |
| place of origin; place of origin: | Henan, China | product name: | Construction Equipment Concrete Mixer |
| Showroom location: | Canada, Turkey, United Kingdom, United States, Italy, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Mexico, Thailand, Argentina, South Korea, Chile, Algeria, Sri Lanka, Bangladesh, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, None | Model: | JZR500 |
| brand: | Osmanthus fragrans | Stirring power: | 7.5KW |
| engine: | Dillers | Mixing drum speed: | 13 way ride |
| Packaging Details: | standard package | Core component warranty: | 1 year |
| Warranty: | 1 year | port: | China's main ports |
| Core components: | Pressure vessels, motors, bearings, gears, pumps, gearboxes, engines, PLCs |
Product Description
It can be used for floor heating, spraying engineering, and spraying of refractory materials. Small size, more convenient to use than large and medium-sized concrete pumps, pump trucks, and vehicle-mounted pumps. It is especially suitable for building 5-10 storefront buildings in rural towns and new countryside. The actual vertical height of the pumped concrete can reach 80-100 meters, and the horizontal distance is 150-300 meters.
main feature:
The mixing pump integrated machine has the characteristics of low power,
Small size, easy to move, low cost.
main feature:
The mixing pump integrated machine has the characteristics of low power,
Small size, easy to move, low cost.

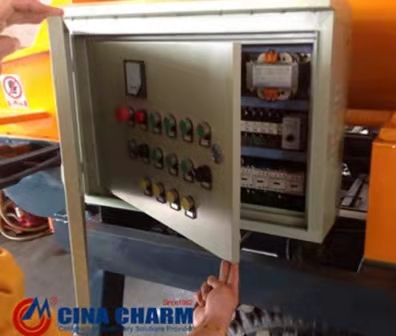

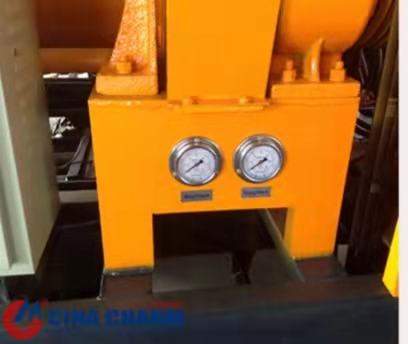

detailed drawing

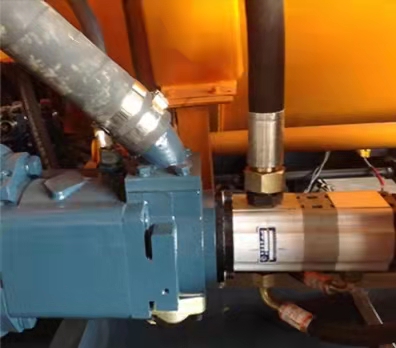

Double-pump, double-circuit open hydraulic system makes the system simple, prolongs the life of components, has higher reliability, and eliminates fault judgment.
technical parameter
thing | unit | JB40-11-85R |
pump max. Specific output of theory | cubic meter/hour | 40 |
Mixer charging (hopper) capacity | cubic meter | 0.56 |
Mixer displacement | cubic meter | 0.35 |
maximum. concrete pumping pressure | MPa | 11 |
Distribution valve type | S valve | |
Electrical engineering power supply | kilowatt | 84 |
Hopper capacity | large | 600 liters |
Diesel model | -- | Weichai |
