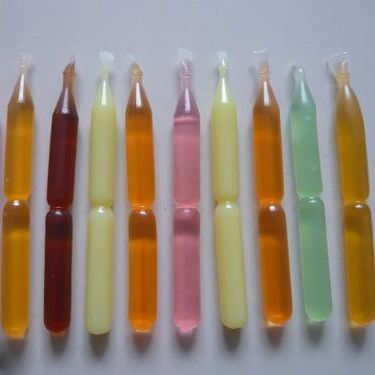

Juice plastic popsicle tubes in different shapes

PRODUCT DETAIL
weight:720KGScrew diameter (mm):65 mm
automatic:YesMain selling points:high security level
Showroom location:not anyScrew heating power (kW):5.5 kW
Video shipment inspection:ifApplicable industries:Machinery repair shop, manufacturing plant, food and beverage factory, food store, advertising agency, food and beverage store
Plastic processing:PP, HDPE, polystyrene, PE, PE/PP, HDPE/PPMechanical test report:if
payment terms:L/C, T/T, Western UnionMold platen size (width) (mm):350mm
Warranty:1 yearClamping force(kN):2200
Mold platen size (height) (mm):460mmcolor:choose
application:bottleBlow molding type:extrusion blow molding
Weight (ton):0.72Core components:PLC, bearings, gearboxes, motors
Local service location:not anyOutput (kg/h):55 kg/h
Dimensions (L*W*H):2800*1200*1800MMport:Tianjin harbor
Origin:ChinaDie heating power (kW):0.7 kW
Power (kW):16.25automation:automatic
Air pressure (MPa):0.8 MPaPackaging Details:wood
Health status:newCertification:CE certification
After warranty service:Video Technical Support, Spare PartsScrew aspect ratio:25
Supply capacity:30 sets per monthExtruder motor power (kW):7.5 kW
Voltage:380VCore component warranty:1 year
brand:Yue FengAir consumption(m³/min):1.2 m3/min
Marketing Type:New Products 2020After-sales service provided:Provide overseas service centers, on-site maintenance and repair services, on-site installation, commissioning and training, free spare parts, video technical support
Accumulator capacity (L):25 litersPower (watts):16.25KW

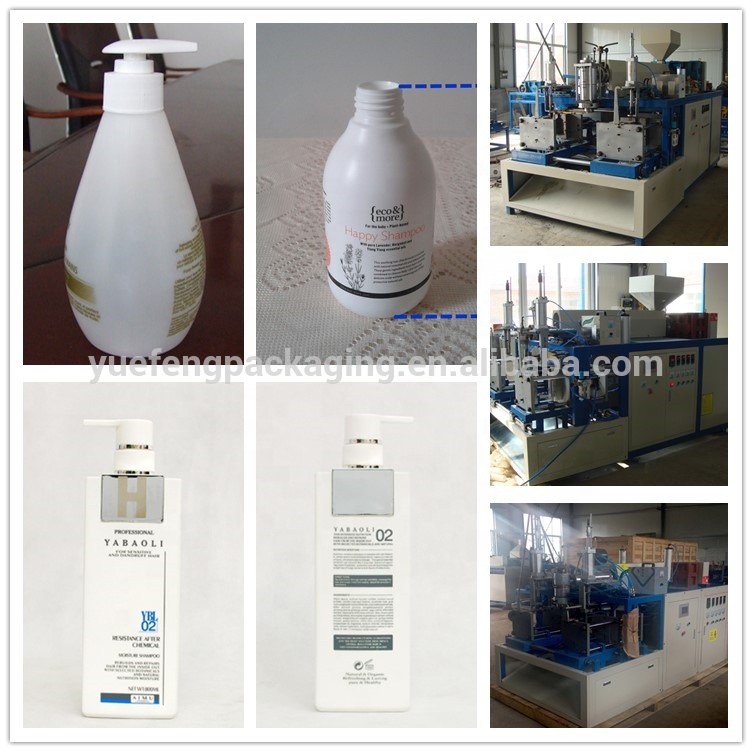

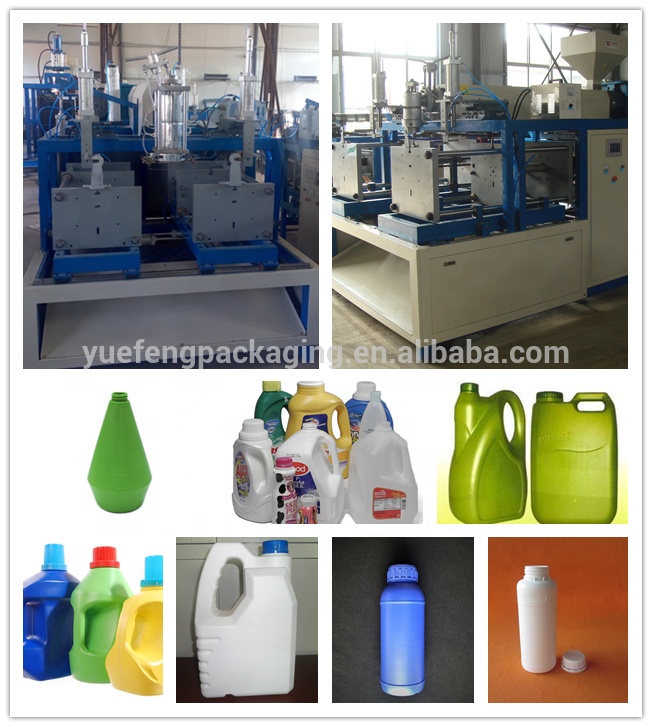

5l Hdpe Plastic Tank Container Extrusion Blow Mold/Blow Molding Machine

big blow molding machine

This model is our newly developed product, featuring high output and low power consumption.

Easy to maintain and easy to operate, it fills the blank of blow molding machines within 5L at home and abroad, and is cost-effective





Technical Parameters cpj-1 cpj-2 cpj-3
equipment composition 6-station blow molding machine with 55 extruders Four-station blow molding machine with 45 extruders 8-station blow molding machine with 65 extruders
Maximum product volume ml 1200 800 1500
Product diameter mm 100 80 110
Die size (length*width*height) mm 120×118×300 120×118×300 120×118×300
Production capacity PCS/day 20000-120000 15000-80000 20000-160000
Air consumption m3/min 0.4 0.4 0.4
Screw diameter mm 55 45 65
Major Radius Ratio 25:1 25:1 25:1
Plasticizing capacity kg/h 40 25 60
Motor power kw 7.5 5.5 11
Total power kw 17 14 twenty two
weight kg 1800 1500 2000
Appearance size (length*width*height) mm 3300×1200×1500 3000×1200×1500 3400×1300×1600
suitable raw material PE/PP/PS/PVC PE/PP/PS/PVC PE/PP/PS/PVC
Speed ​​regulation method frequency conversion frequency conversion frequency conversion
