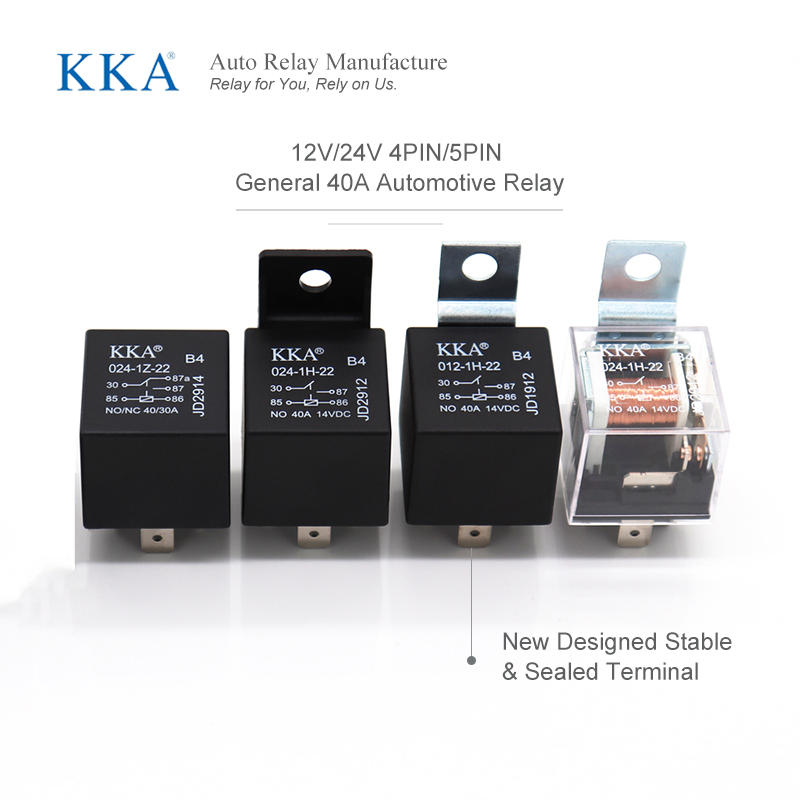

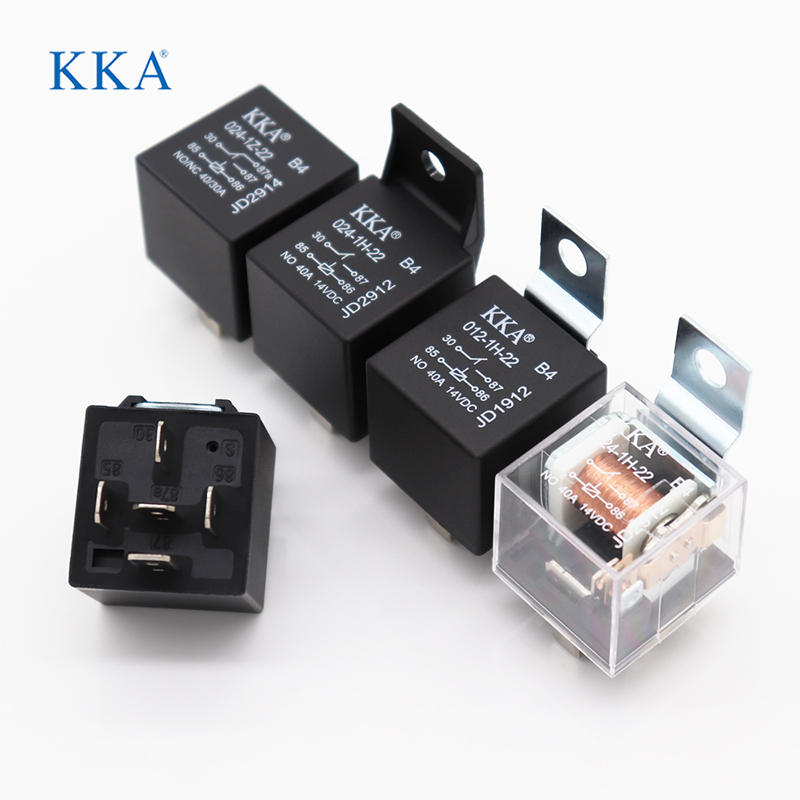

KKA-B4 Waterproof 12V/24V 4 pin/5pin Universal 40A/60A/80A Car Relay, Car Relay Auto Relay for Cars, Motorcycles, Vehicles
- $0.55 / 25 - 99 pieces
$0.47 / 100 - 499 pieces
$0.39 / 500 - 1999 pieces
$0.30 / >=2000 pieces - 25 pieces
- Zhejiang KKA Electrics Technology Co., Ltd.
- Zhejiang, China
- Mr Haohao Wei
PRODUCT DETAIL
payment terms: | L/C, D/P, T/T | model: | KKA-B4 |
Contact capacity: | 40A/14VDC 30A/14VDC | Coil release voltage (VDC): | ≥1.2V/2.4V |
terminal type: | 4 pins/5 pins | brand: | KKA |
Voltage: | 12V/24V | Coil pull-in voltage (VDC): | ≤8V/16V |
Original serial number: | JD1912/1914/2912/2914 | port: | Ningbo Port/Wenzhou Port/Shanghai Port |
Packaging Details: | 25pcs/box 500pcs/box | Warranty: | 1 year |
place of origin; place of origin: | Zhejiang, China | Rated current: | 30A/40A |
Contact materials: | AgSnO2 | Package preview: | |
Coil max. Voltage (23°C): | 20.2VDC/40.5VDC | Coil resistance: | 80Ω/320Ω |
Contact list: | 1A, 1B, 1C | Coil max. Voltage (85°C): | 15.7VDC/31.5VDC |
Supply capacity: | 20000 pieces per day | car brand: | common |


feature

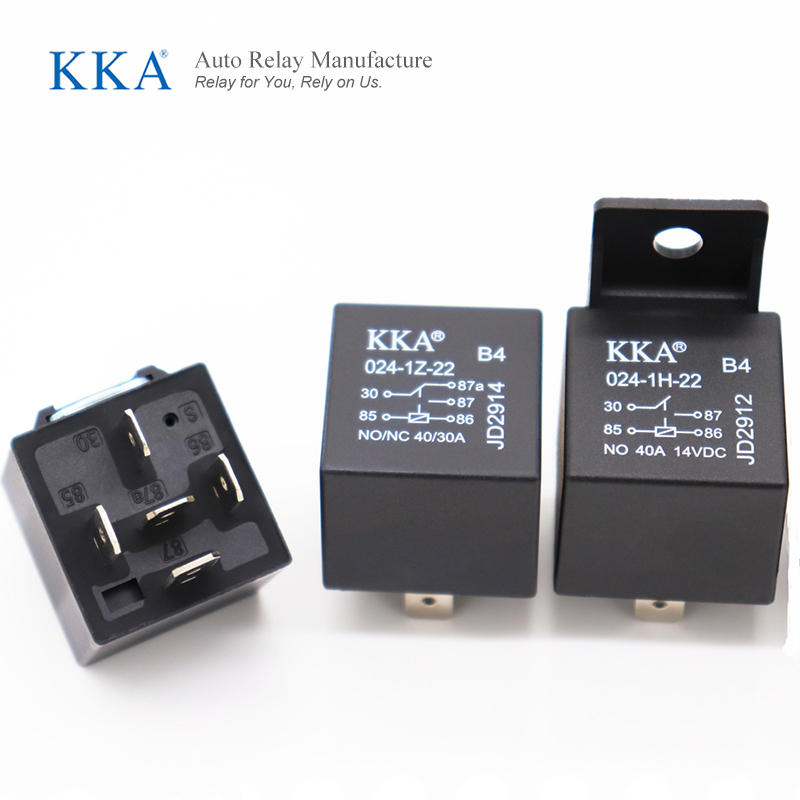

● Universal replacement: universal pin position design, can replace most of the cube 30A/40A automatic relays

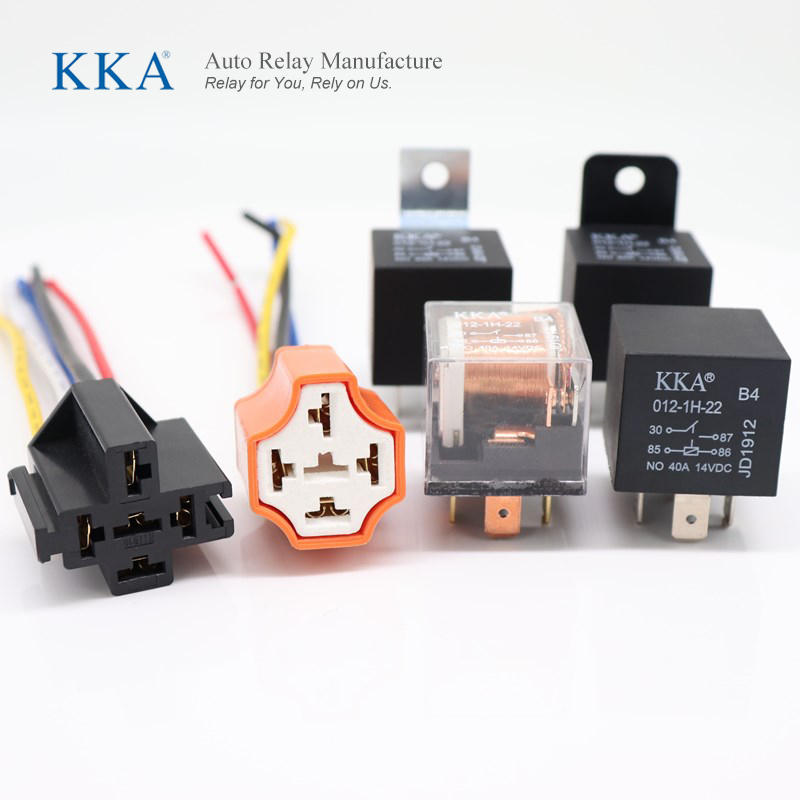

● High switching capacity: normally open 40A/14V DC, normally closed 30A/14V DC.● PREMIUM QUALITY: Durable relay and harness socket with 5 wires; made of high-grade material to ensure superior quality and long lifespan
● Male and female groove design: the unique male and female groove design facilitates the connection between the relay and the wiring harness socket, and it is clean and tidy after installation

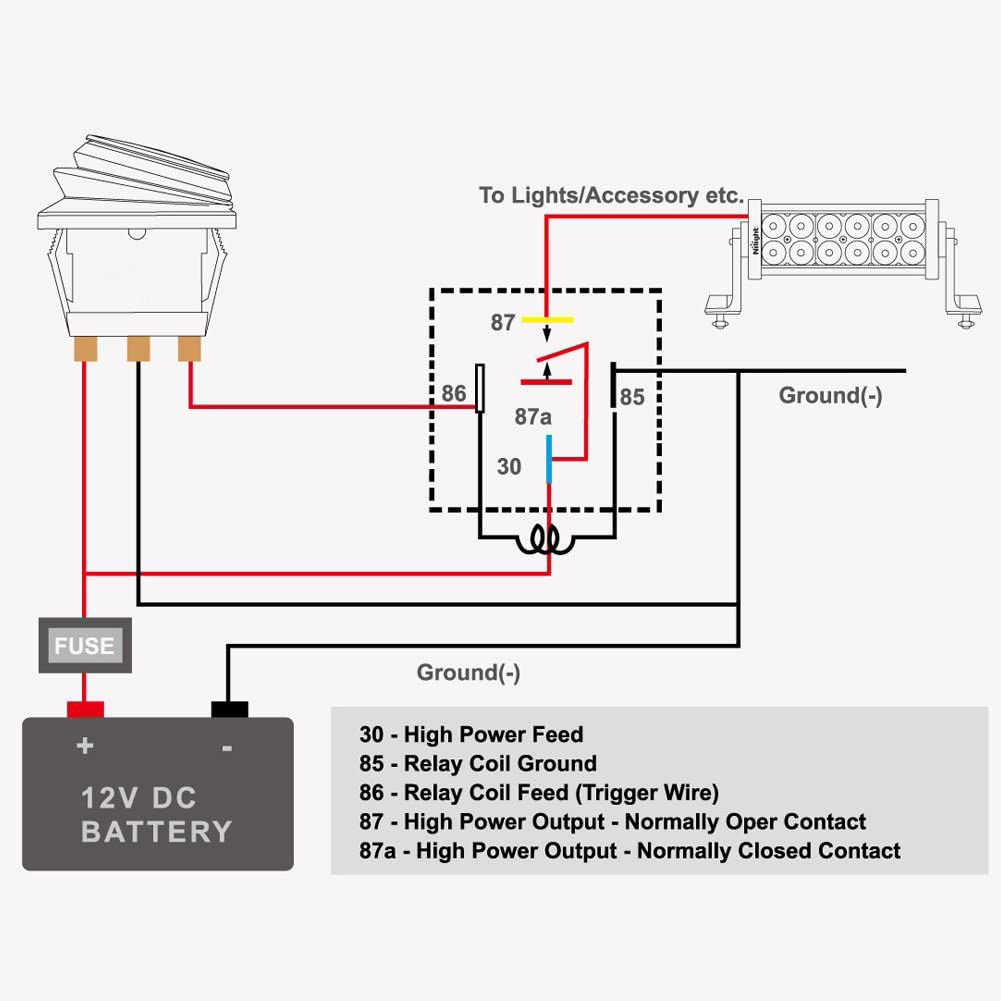

● Convenient wiring: the relay socket provides different colors for loads/accessories, and the wiring is simple and convenient

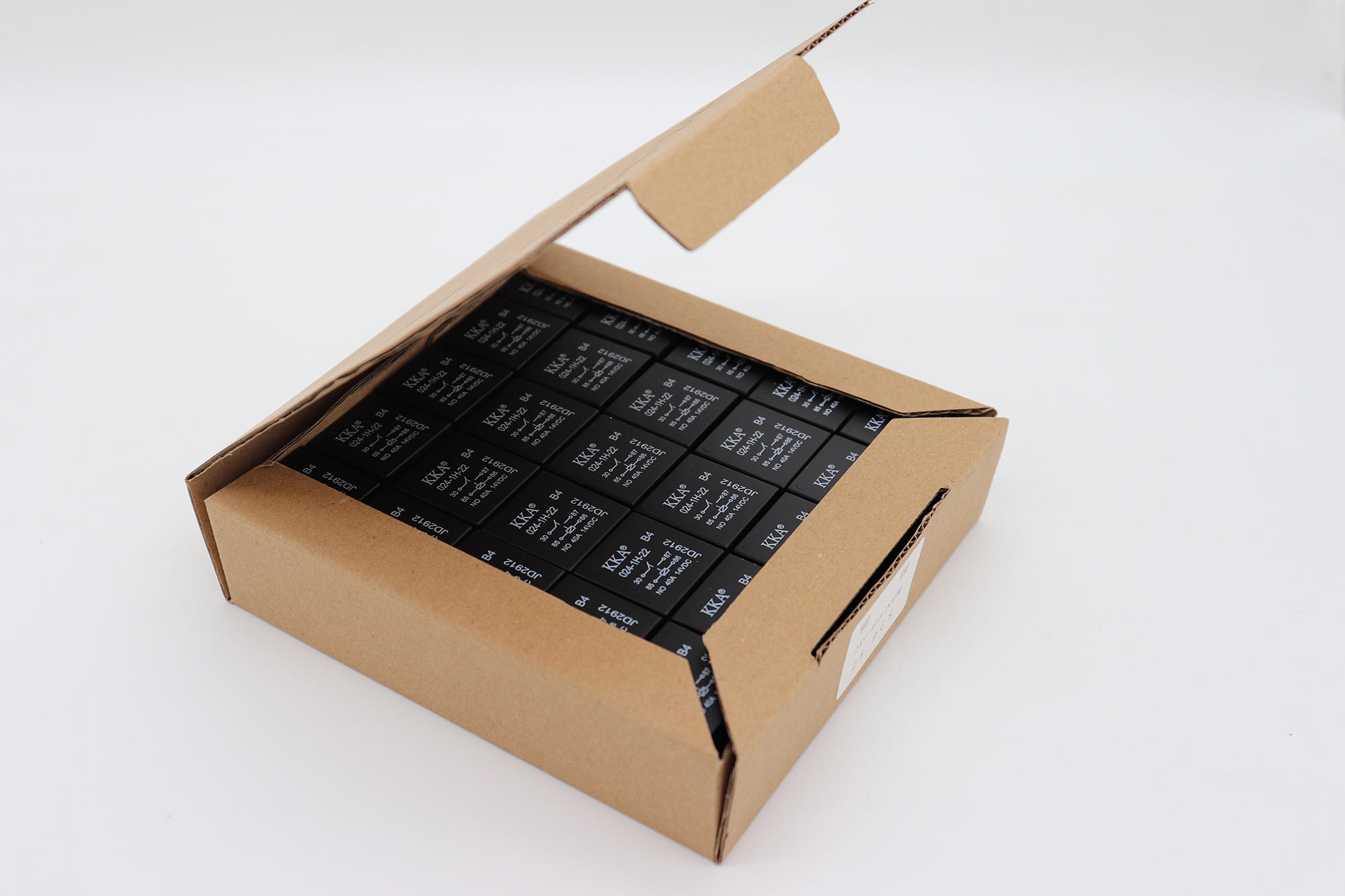

pack
25pcs/carton, 500pcs/carton

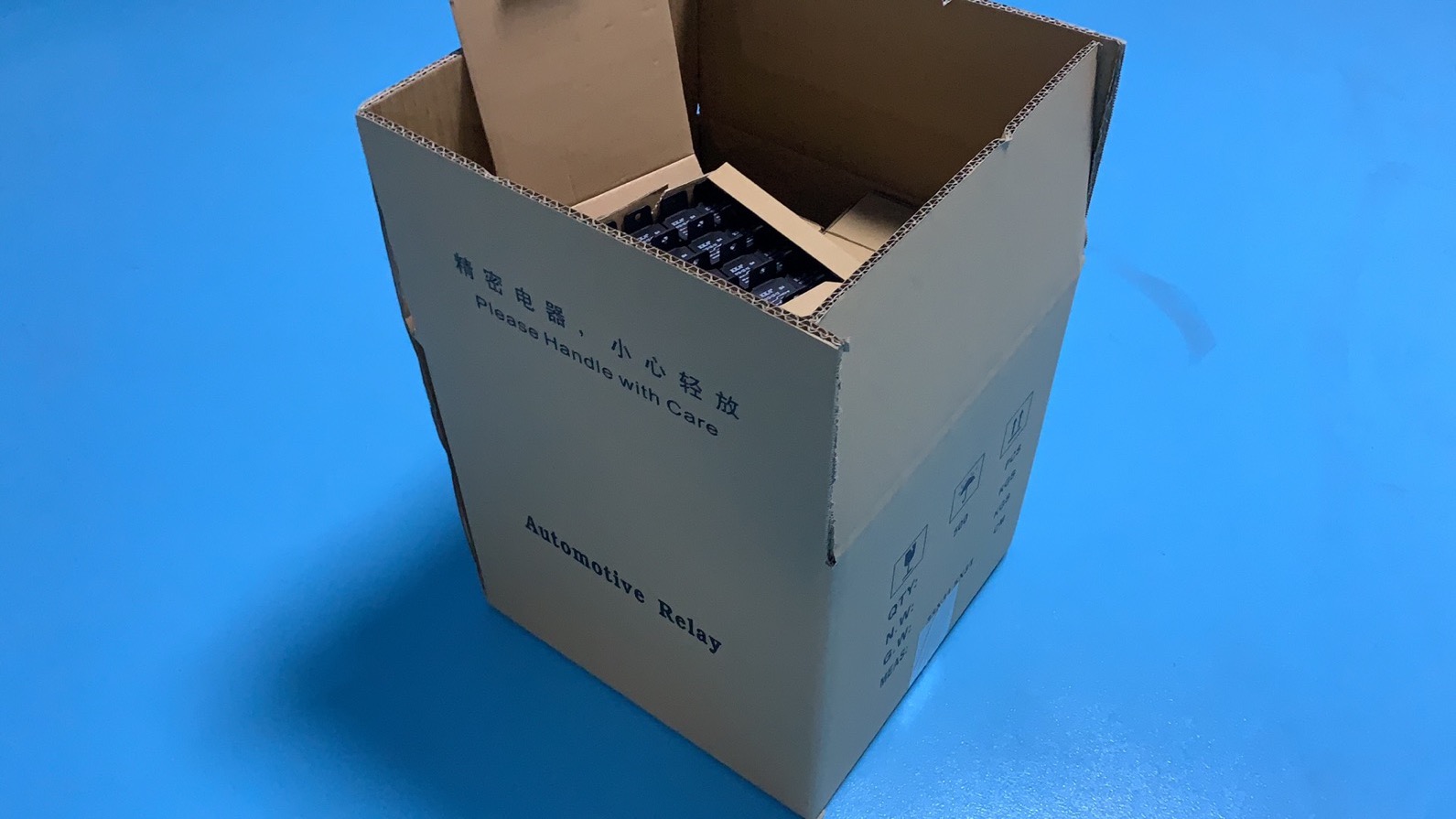

Relay Carton Dimensions with Metal Brackets
33cm*31.5cm*31cm, 500 pieces
4pin relay 19kg
5pin relay 19.3kg
Relay box size without bracket
44.3cm*29.7cm*18.1cm, 500 pieces
4pin relay 16.9kg
5pin relay 17.4kg

contact rating | ||
Contact list | 1A, 1B, 1C | |
Contact load voltage. | 13.5VDC/27VDC | |
contact material | AgSnO2 | |
Electric range | 1*105 | |
mechanical endurance | 1*106 | |
Coil Rating | ||
Q | 12V/24V | |
Pick up voltage. | ≤8VDC/16VDC | |
Release the voltage. | ≥1.2VDC/2.4VDC | |
coil reservoir | 80Ω/320Ω | |
Coil power | 1.8W | |
maximum. coil voltage. (23°C) | 20.2VDC/40.5VDC | |
maximum. coil voltage. (85°C) | 15.7VDC/31.5VDC |
















25pcs/box 500pcs/box
