outline Specification

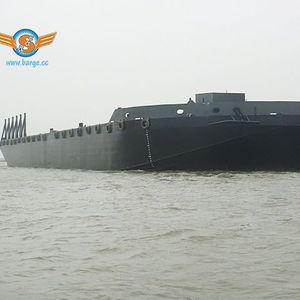

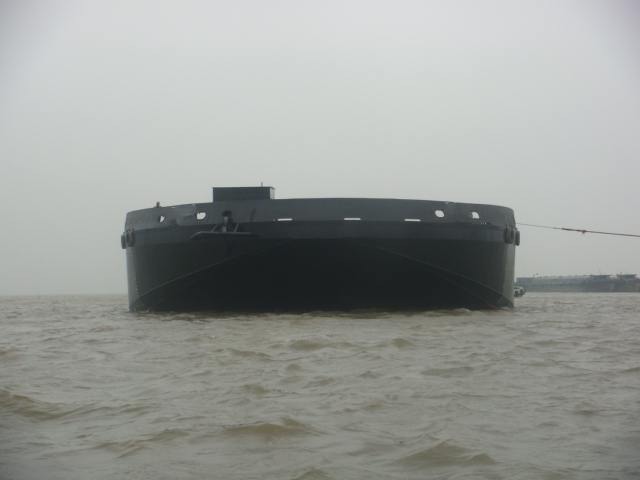

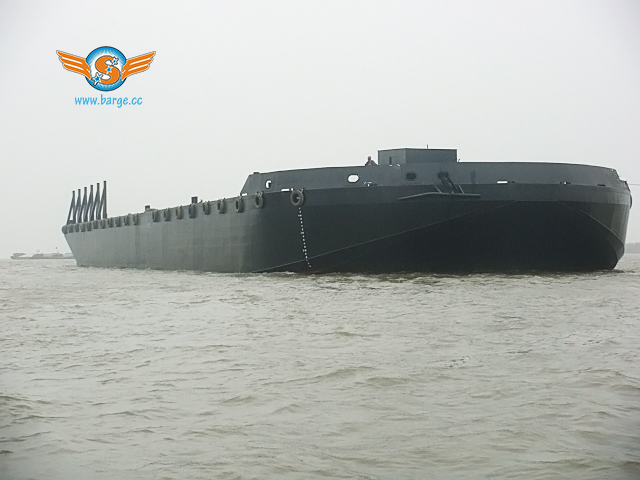

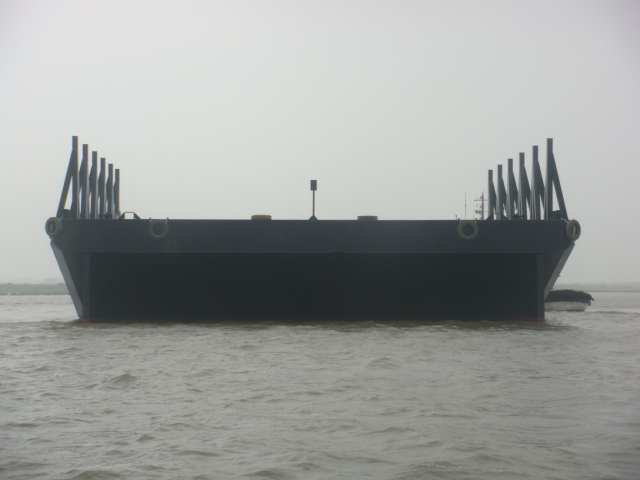

For sale 270'x 70'x 16' Deck Barge

structure

1) General

The steel hull and deck erection are of welded construction. Use a vertical framing system. The hull is double ridged and scoop bow type.

2) Main information

Overall length 270'

Beam Molding 70'

Deep Moulded 16'

Deck capacity 7 t/m²

Cargo struts on deck: 4 on the right, 4 on the left: 250mm

×250mm×9mm/14mm×4m high

Front deck cargo strut: 250mm×250mm×9mm/14mm×3m high

3) Electroplating

Deck: 12mm

Bottom: 12mm

Side: 12mm

Vertical bhd: 8mm

4) Portrait

Deck Longitudinal: 125x80x8 OA Deck Transom: 125x75x10 OA Bottom Longitudinal: 125x80x8 OA Bottom Frame Front: 140x90x8 OA Side Longitudinal: 125x75x7 OA

BhdPortrait: 125x75x7 OA

5) Horizontal net:

Deck web and girders: 450x100x9.5FLG&350x75x8FLG Bottom web and girders: 400x100x9.5FLG&350x75x8FLG Transverse: 400x75x8FLG

Limited Horizontal: 400x75x8FLG

6) Rear wing and fenders

The stern of the barge should be modified to be aligned with the barge (straight) and the barge's fenders are made of 12mm angle press thickness

deck machinery

1) General

As far as classification is concerned, all deck machinery and equipment have been supplied and installed. All the specified equipment shall be provided by the builder, who can be responsible for installation, commissioning or stowage according to the situation.

2) Deck fittings mooring posts

Eight (8) double mooring bollards of 10" NB heavy duty pipe are installed on the main deck as shown on the drain.

lugs

Small lugs for lashing portable tire fenders welded to the deck shall be provided.

Steel lugs welded to the deck for lashing tire fenders, 3.048 m on both sides and stern. Tire fenders strapped with chains are supplied and arranged at 3m intervals

traction bracket

Four (4) Schmidt tow brackets mounted front and rear

Anchor winch

One (1) diesel engine powered anchor

anchor

One (1) 1000kg poleless gazebo anchor

wire rope

One (1) 100m x 22mm diameter type, 6x24 wire rope attached to a 6m long x 22mm diameter stud chain.

navigation light

Tail lights, side lights are battery powered and mounted on brackets. Supply and install lead-acid batteries in lockable storage compartments.

manhole

One (1) flush manhole in each void compartment

Manhole size is 600x400mm clear opening. Studs and nuts are stainless steel.

Coating, cathodic protection

1) Surface preparation

The surface of steel plates and profiles used in ship construction shall be cleaned to SA2.5 by shot peening. After fabrication, all damaged areas, welds, weld burns, etc. should be repaired with power tool cleaning and/or wire brushing. All surfaces should be clean, free of grease and residual dirt, and dry before painting.
