LPG Natural Commercial Cooking Fryer Stove Heater Pilot Burner Assembly Deluxe Model with Thermocouple Spark

PRODUCT DETAIL
type:gas water heater accessories, gas water heater accessoriesPackaging Details:The gas pilot assembly will be packaged in a carton
After-sales service provided:not anyplace of origin; place of origin:Zhejiang, China
Sales unit:single productmodel:ESOD-033/Gas Pilot Assembly
brand:Earth Star/Gas Pilot AssemblyWarranty:not any
application:gas stove, commercialGross weight per piece:0.350 kg
Single package size:5X5X5 cmEnergy source:gas
feature:environmentally friendlyproduct name:Gas Pilot Assembly
Material:Metal
Product Description

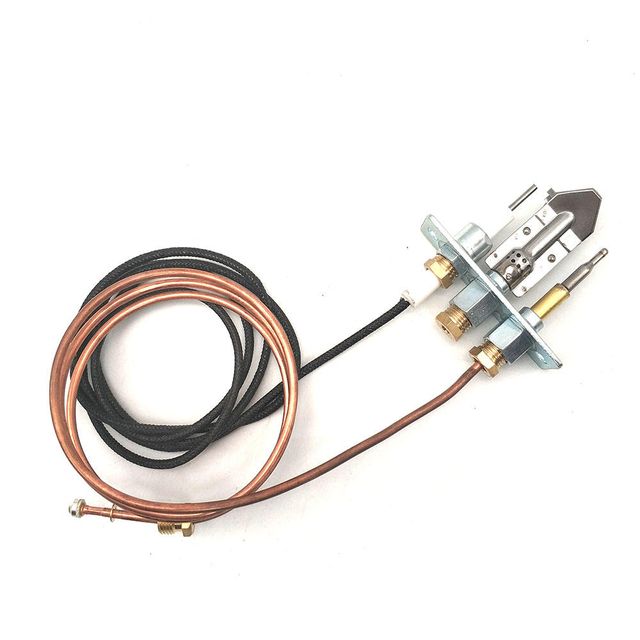

Product Name: Gas Pilot Assembly

Specifications: Pilot assembly kit

Thermocouple length 900m M9*1 Ignition wire: 900mm with 2.3 round terminal

Suitable for gas fireplaces, heaters, commercial stoves



A pilot burner is a product derived from a specific gas appliance that needs to meet certain combustion characteristics.
There are two main types, thermoelectric safety devices and ion detection safety devices.

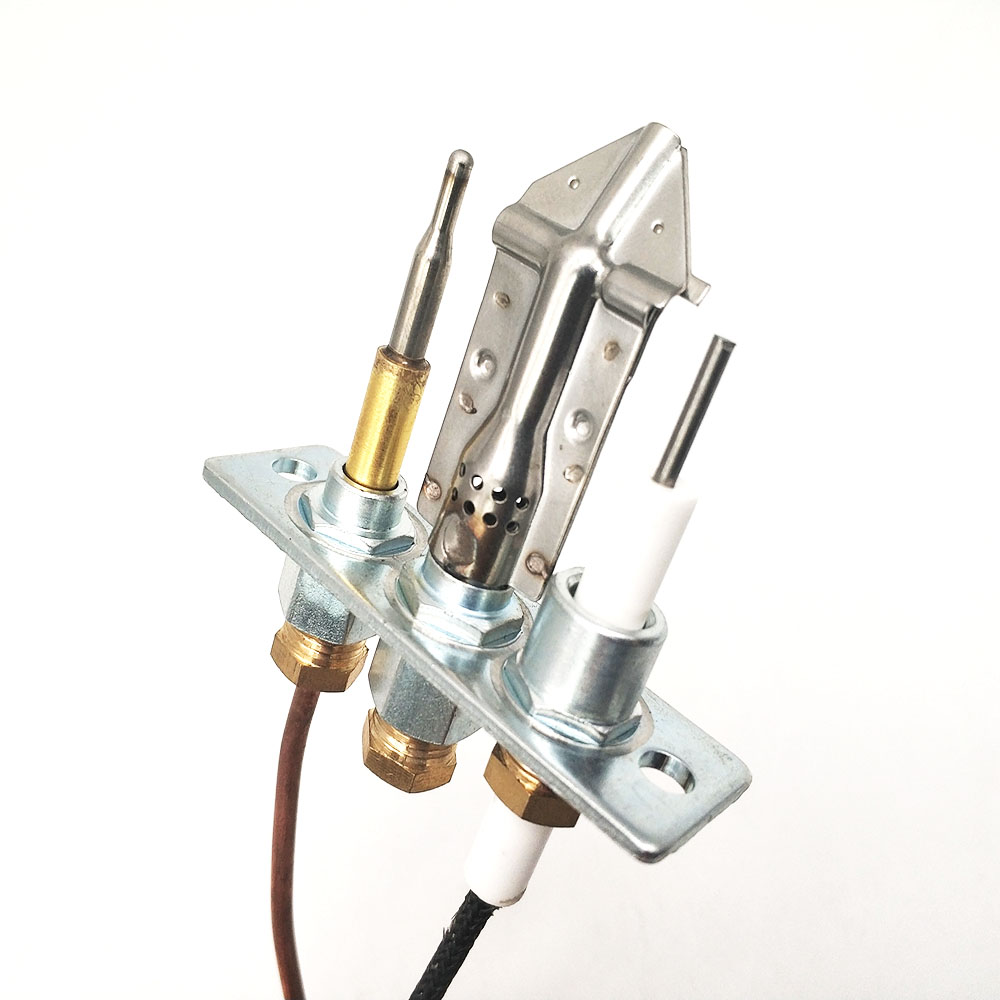

Thermoelectric safety device: It is assembled by thermocouple, pilot and electrode.
Main functions: ignite the main burner without deflagration, stabilize the flame of the main burner, and cut off the energy when the flame is extinguished by external factors.
Ion detection safety device: consists of pilot valve, detection needle and electrode.
Main functions: ignite the main burner without deflagration, stabilize the flame of the main burner, detect the normality of the flame, re-ignite or cut off the energy when the flame is extinguished due to external factors.
