LTSG01 CE certified medical high-frequency electrotome/electrosurgical generator with five working modes
- $1220.00 / 1 - 4 sets
$1200.00 / >=5 sets - 1 set
- Guangzhou Leyte Medical Equipment Co., Ltd.
- Guangdong, China
- Ms Locy Huang
| brand: | Lightmade | characteristic: | Burn Surgical Instruments |
| Warranty: | 1 year | type: | knife |
| mix: | 1W-200W (load 800Ω) | Input pressure: | 0.20-0.50MPa |
| Pure tailoring: | 1W-300W (load 800Ω) | After-sales service: | online technical support |
| Packaging Details: | Carton Packaging LTSG01 Approved Five Working Modes Medical High Frequency Electrosurgical/Electrosurgical Generator | Forced coagulation: | 1W-120W (load 800Ω) |
| Instrument classification: | Secondary | port: | Whampoa |
| To contact Coag: | 1W-80W (load 800Ω) | Origin: | Guangdong, China |
| rated power: | 1100VA | strength: | 110-220V.50-60Hz |
| Bipolar coagulation: | 1W-50W (load 200Ω) | Flow range: | 0.1-15.0 L/min |
| Supply capacity: | 1000 sets per year LTSG01 CE approved five working modes medical high frequency | payment terms: | L/C, T/T, Western Union, MoneyGram, paypal or Escrow |
| model: | LTSG01 |

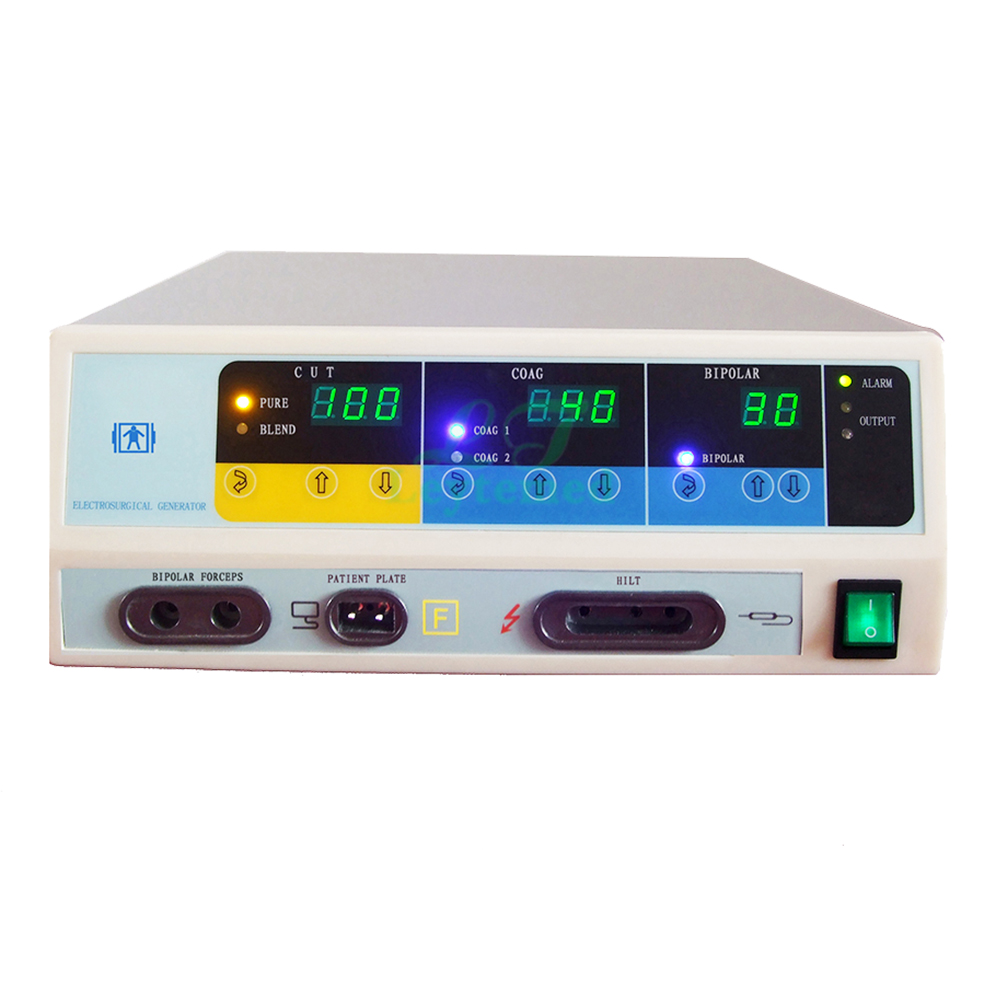

Five working modes medical electrosurgical generator
main feature
Max 300W electrosurgical generator with monopolar and bipolar capabilities.
Five working modes: pure cutting, mixing, spray coagulation, forced coagulation, bipolar coagulation.
Wide range of clinical applications, such as general surgery, thoracic surgery, orthopedics, cardiology, gynecology, urology (underwater TUR), oncology, neurosurgery, etc.
Microprocessor control, digital display.
There are sound and light indications and error codes during output.
Return electrode monitoring system and power peaking system minimize the risk of tissue damage.
Hands and feet can be controlled.
Individual power displays and sockets for monopolar cutting, monopolar coagulation, bipolar cutting, bipolar coagulation, each output can be configured individually.
At least 10 frequently used programs can be stored.
remote control function. Surgeons can adjust the output through the power control ESU pencil.
The ESU unit can be connected to a laparoscope, endoscope, etc.
Overvoltage and overcurrent protection.
Defibrillation protection.
Mounts on 4-wheel trolley (optional).
Comply with the requirements of international safety standards EN60601-1 and EN60601-2.
Five working modes | monopolar cutting |
a) pure cut | 1W~300W (load 800Ω) |
b) mixing | 1W~200W (load 800Ω) |
c) spray coagulation | 1W~80W (load 800Ω) |
d) Forced coagulation | 1W~120W (load 800Ω) |
e) Bipolar coagulation | 1W~50W (load 200Ω) |
technical specifications | ||
strength | 220V±22V, 50Hz±1Hz(110V±11V, 60Hz) | |
working frequency | 512KHz | |
rated power | 1100VA±10% | |
configuration table | ||
Electrosurgical Pen | 5 | |
Electrosurgical Pads | 10 | |
Electrosurgical Pad Cable | 1 | |
foot switch | 1 set | |
bipolar forceps | 1 | |
Bipolar Tweezers Cable | 1 | |
