Latest modern lightweight exterior wall aluminum composite panel materials
- $20.00 / 300 - 1199 square meters
$15.00 / 1200 - 4999 square meters
$14.00 / 5000 - 999999 square meters
$10.50 / >=1000000 square meters - 300 square meters
- Shanghai Aludream Building Material Co., Ltd.
- Shanghai, China
- Ms july Ying
PRODUCT DETAIL
| Coating: | PE PVDF; | Application: | Building Material aluminum composite panel,Apartment; |
| Single gross weight: | 7.500 KG; | Usage: | Outdoor; |
| Aluminum Thickness: | 0.15mm; | Model Number: | acp panel; |
| Weight: | 18 kg per sheet; | Selling Units: | Single item; |
| OEM/ODM: | Customized; | Size: | 1220x2440mm; |
| Place of Origin: | Shanghai, China; | Packaging Detail: | In bulk or in wooden pallet for PE paint aluminum composite panels; |
| Single package size: | 122X244X0.4 cm; | Design Style: | Modern; |
| Certification: | ISO9001; | Packing: | 2000 pieces per 20GP container; |
| Panel thickness: | 2/3/4/5/6mm; | Characteristic: | Light Weight; |
| Color: | Customer's Requirements; | Surface Treatment: | Anodized,Brushed,Foil Decoration,Mirror,PE Coated,Printing,PVDF Coated; |
| After-sale Service: | Online technical support; | Brand Name: | Aludream; |
| Warranty: | Lifetime; | Project Solution Capability: | graphic design,total solution for projects,Others; |
| Function: | Anti-Static,Fireproof,Mould-Proof; |
Product Description

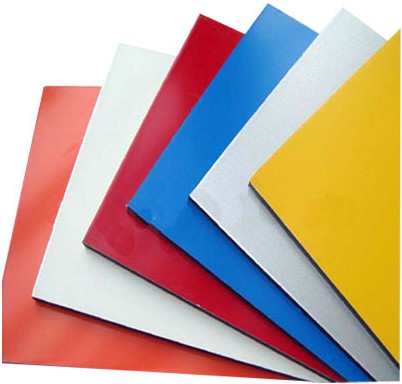

1220x2440mm PE PVDF aluminum composite panel
Welcome to contact for all kinds size, also could refer below some popular size
1220x2440mm, 1500x3200mm, 1500x4200mm, 1250x3200mm, 2000x3000mm, 1500x3050mm etc

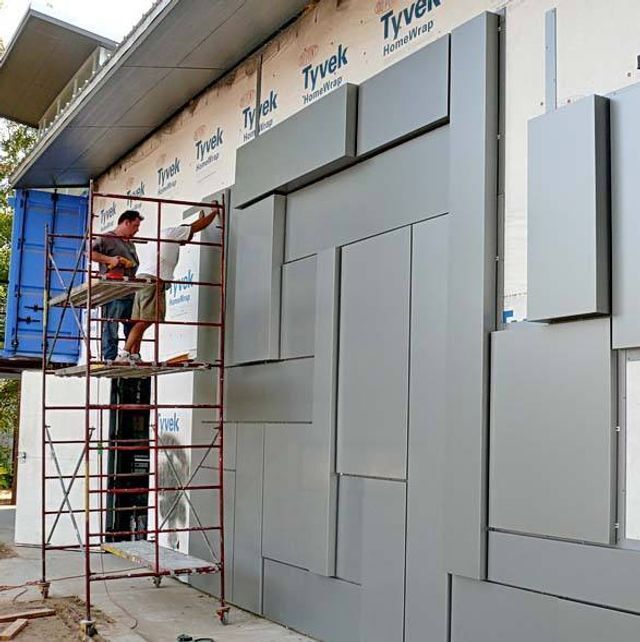

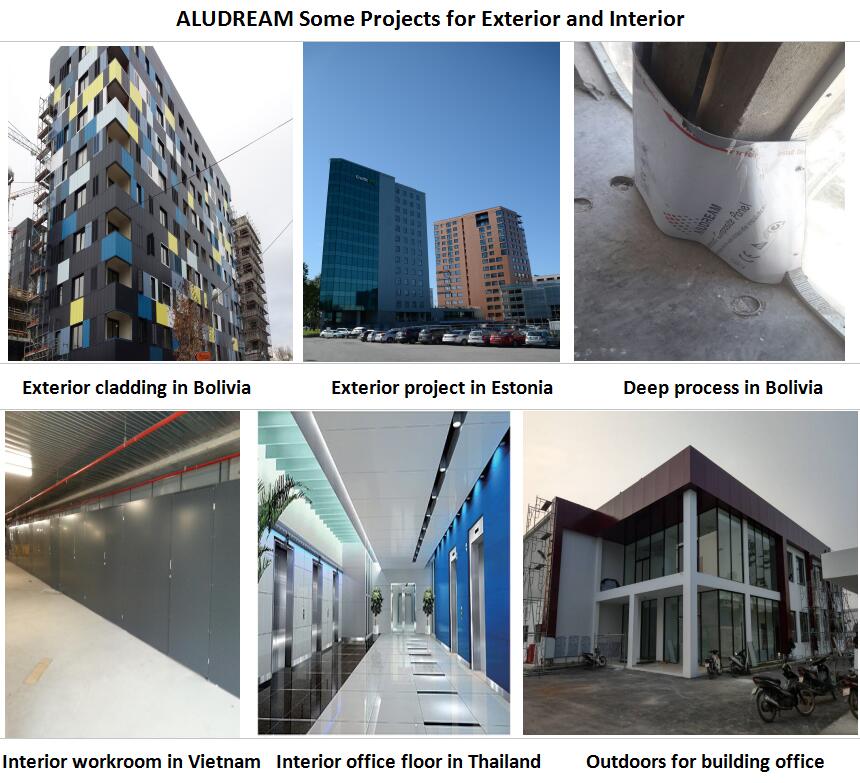

Project Show
Specification
1)Aluminum thickness: | 1)Aluminum skin thickness: 0.04mm-0.50mm. | |
2)Total panel thickness: | 2)Total panel thickness: 2mm-6mm. | |
3) Width: | 3) Width:1000mm,1220mm (regular), 1250mm,1500mm,1550mm, 2000mm(maximum); | |
4) Length | 4) Length:Up to 11500mm; | |
5) Standard size: | 5) Standard size:1220mm(Width) ×2440mm(Length). | |
6)Surface Treatment: | 6)Surface Treatment:PVDF coating and PE coating. | |
7) Non-standard sizes and special colors are available depending on customers' offers. | ||
Application Scope
1)Building exterior curtain walls 2)Decoration reformation storey-addition for old buildings 3)Decoration of interior walls,ceilings,bathrooms,kitchens and balconies 4)Shop's door decoration 5)Advertisement boards,display platforms and signboards 6)Wallboards and ceilings for tunnel 7)Industrial material , vehicle and boat materials |
2)Decoration reformation storey-addition for old buildings |
3)Decoration of interior walls,ceilings,bathrooms,kitchens and balconies |
4)Shop's door decoration |
5)Advertisement boards,display platforms and signboards |
6)Wallboards and ceilings for tunnel |
7)Industrial material , vehicle and boat materials |

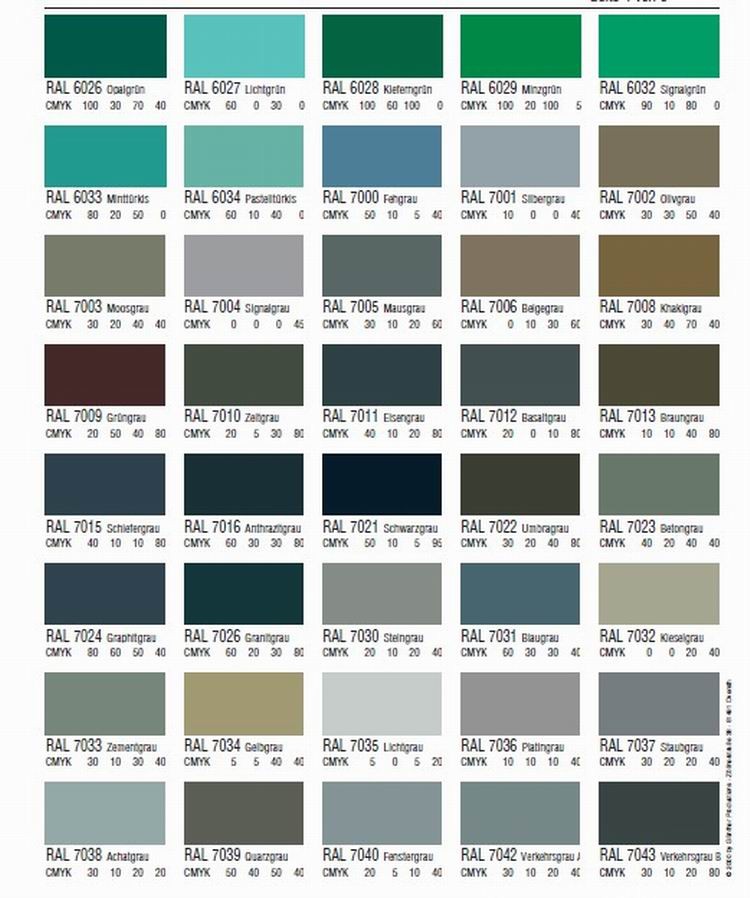

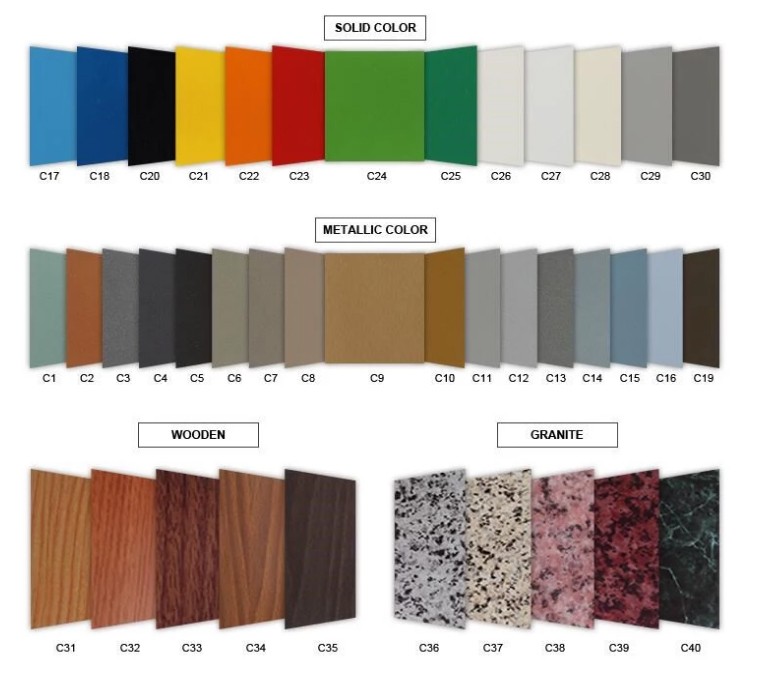

Color card
Aluminum Composite Panel Series | ||
PVDF Series | The surface of PVDF aluminum composite panel is Polyvinylidene Fluoride (pvdf, 70%contents) with good weather resistance, impact resistance, UV resistance, sound and heat resistance, colorful, smooth and beautiful. Its life is about 20 years. It is mainly used for exterior decoration. | |

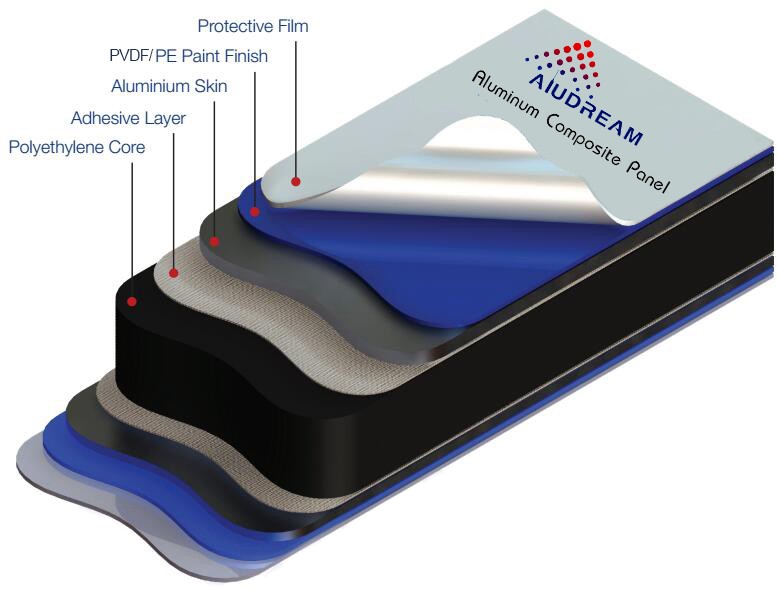

PE Series | PE ACP is a kind of new green composite material which compounded of two layers of aluminum sheets and nontoxic low-density polyethyene (LDPE) by macromolecule adhesive film of American DuPont Company through thermo compression, The coating of the aluminum sheet is polyester coating with UV resistance, Its life is about 15 years. It is mainly used for interior decoration and advertisement board. | |
Mirror Finish Series | The surface of the mirror finish ACP is the aluminum sheet that looks like a mirror. The back surface is aluminum sheet with anti-corrosion. The mirror finish ACP has the features of mirror effect, light weight, difficult to break, high strength, can be bent and easy to process. Thanks to those features, mirror finish ACP is increasingly used for interior decoration, especially in ceiling, Cabinet panel, household appliance, furniture. | |
Nanometer ACP Series | The coating of surface of nanometer ACP is PVDF coating, and then adds a self-clean layer on the surface of PVDF coating. The self-clean layer can prevent the pollutant such as ash layer and decompose the pollutant in the air to reach self-clean effect. Its features of stain resistance, self-clean, acid resistance, weather resistance of nano is superior to the traditional PVDF ACP. | |
Fire-resistant Series | Fire-resistance ACP is a kind of green fire-resistant composite material which is compounded of two layers of aluminum sheet and special low-density polythylene (LDPE) with fire-resistance. The coating of its surface is PE or PVDF coating. The core material is compounded by fire-resistant MGOH, NAOH and PE Polyster, so it has the feature of good fire-resistance which can reach B1 class. | |

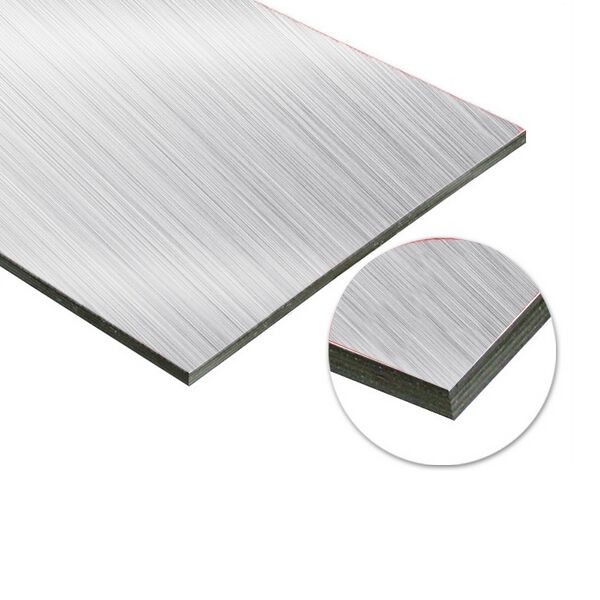

Drawing Finish Series | Drawing finish ACP is compounded of drawing aluminum sheet, the anti-corrosion aluminum sheet, and nontoxic low-density polyethylene (LDPE). Thanks to the drawing treatment, its appearance is very beautiful. It is widely used for interior decoration, especially in ceiling, Cabinet panel, household appliance, furniture. | |

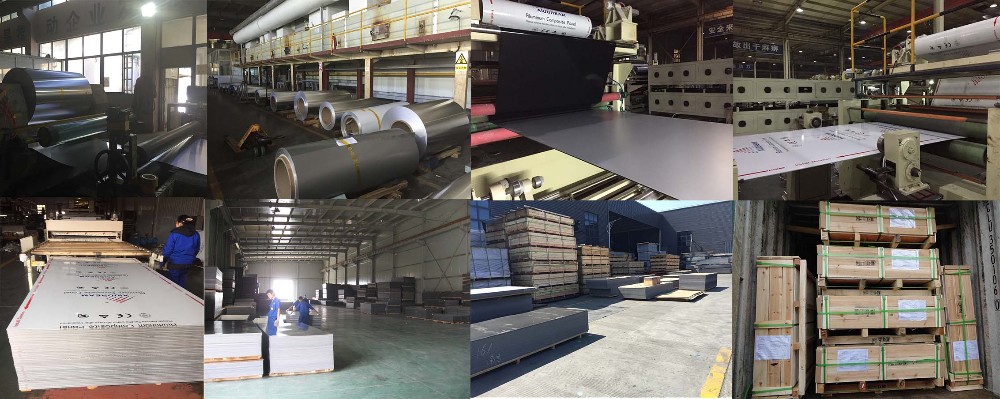

Our Company
We specialized in producing Aluminum composite panel, Aluminum sheet, Aluminum coil, Aluminum honeycomb panel and Aluminum ceiling board,etc
Our company is the manufacture of ALUDREAM ®brand aluminum composite panel(ACP)
with 13 production line and 17 years experience in Shanghai.
ALUDREAM panel have been used extensively in exterior architectural apparitions
such as building facade, wall cladding, ceilings, canopies, storefront, entryways,column covers.
ALUDREAM panel is also the ideal choice for interior and advertisement applications
such as storied cabinet,elevator enclosure,furniture, signboard,etc
Our panel can be customized according to your specific need,
such as fireproof, unbroken,brushed finish, PVDF coating, wooden painting, logo printing, etc,
samples are free, and we accept small orders.
Exhibition

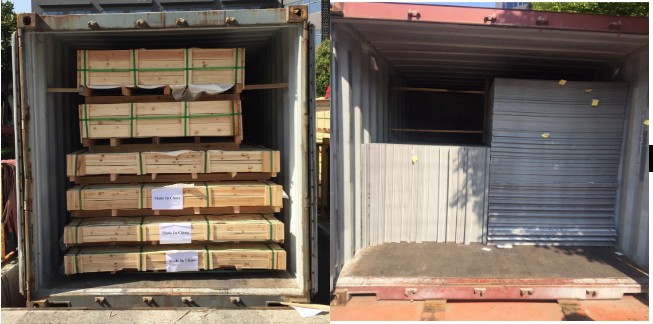

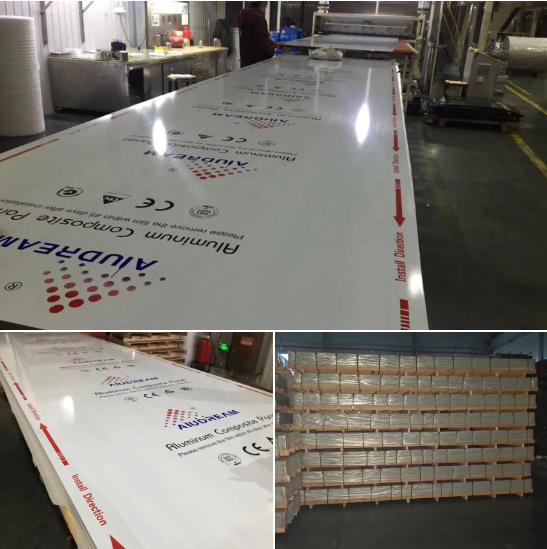

Packing
from 2-12mm thickness we can produce. and max width it is 2000mm.
Welcome to send me for more details. we make aluminum composite panel in interior, exterior ,signs projects.
