Level Gauge Packing Sleeve Graphite

PRODUCT DETAIL
place of origin; place of origin:Hebei, China, Hebei, ChinaCertification:ISO9001-2000
edge:polished or groundSupply capacity:10 tons per day
payment terms:letter of credit, wire transferPackaging Preview:
application:Steam Boiler Industrial TVShowroom location:none, none
Applicable industries:Hotels, Energy & Mining, OthersVideo external inspection:if
Mechanical test report:ifport:Tianjin or Shanghai
Warranty:3 monthsAfter Warranty Service:Video technical support, online support
Weight (kg):10Marketing Type:normal product
Maximum temperature:400℃Packaging Details:Coils from 5 to 10 kg, other weights available on request
greatest pressure:300 barbrand:proud red
type:Instruments, gas burnersHealth status:new, new
application

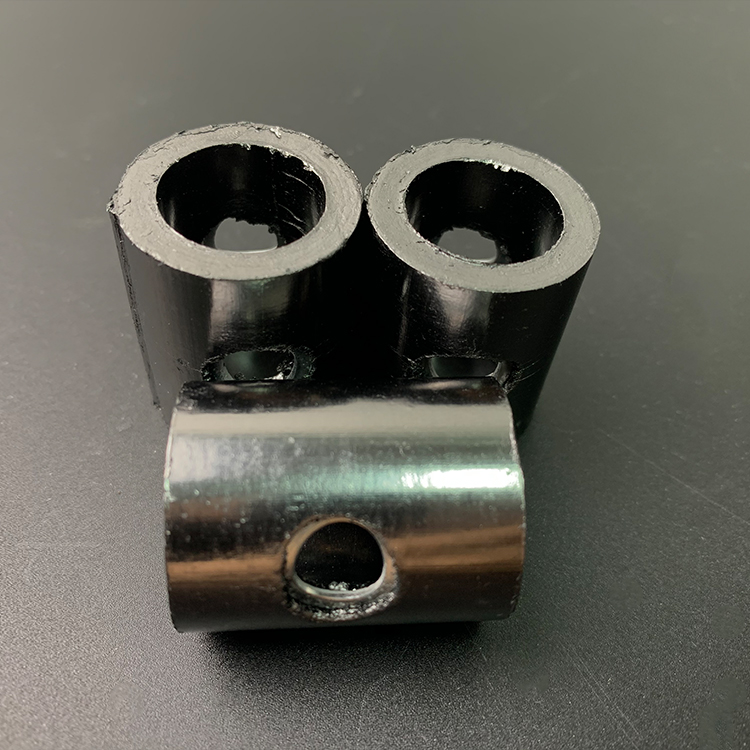

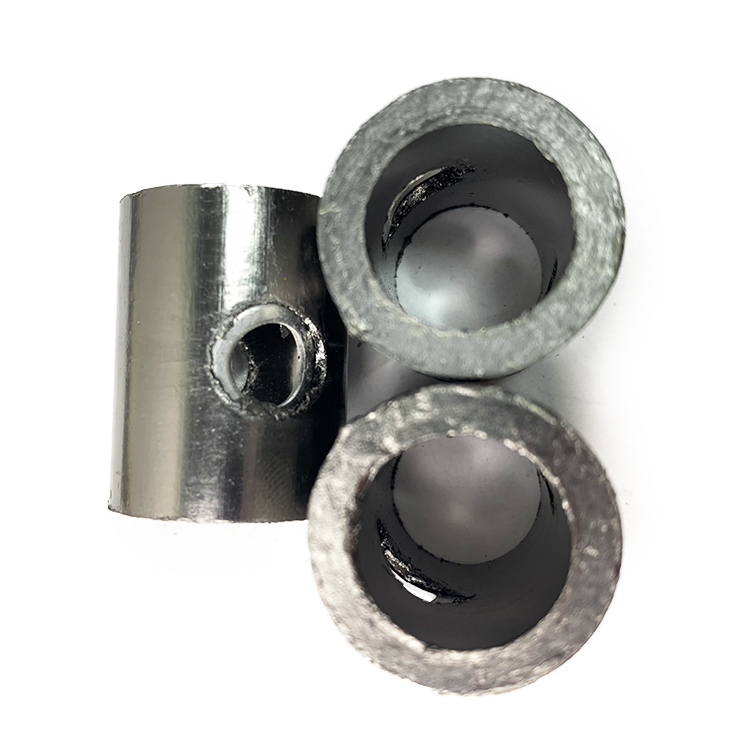

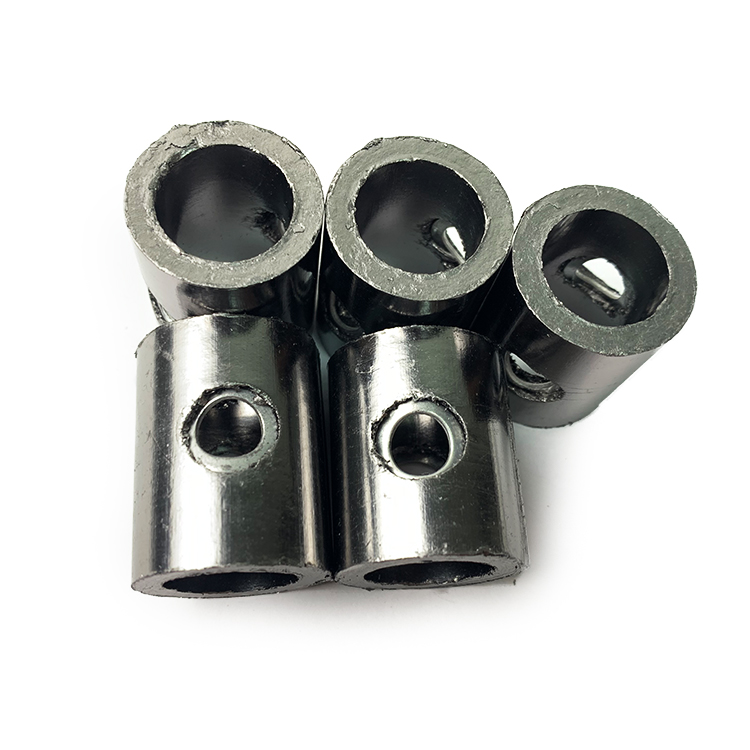

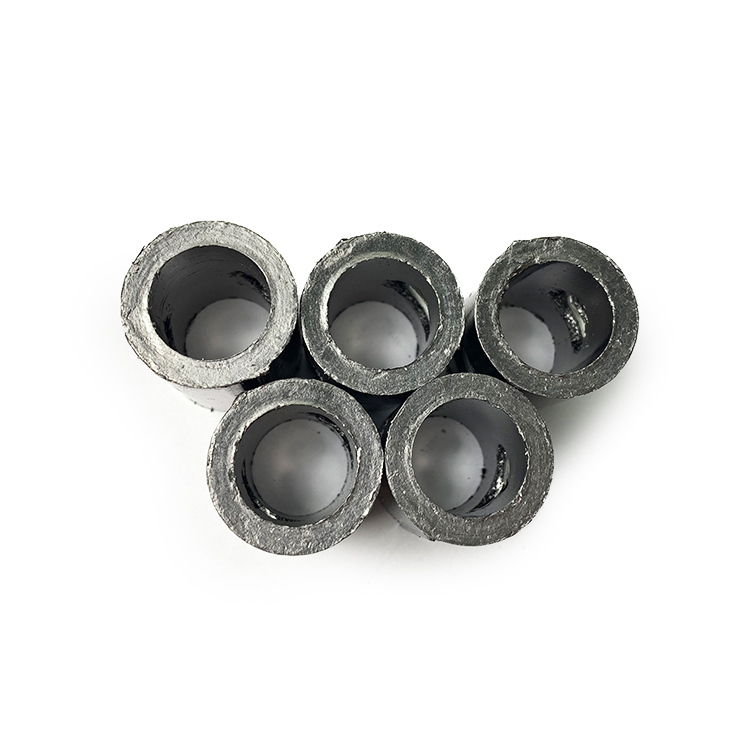

Graphite Packing Sleeve
We offer graphite packing sleeves, which are an important part of any valve. Fitted around the spindle to ensure smooth action and prevent leaks Effective sealing properties, coupled with easy removal and replacement, ensure graphite is the material of choice.

We can supply glands compatible with all major valve manufacturer brands such as: Klinger, Gresswell, Shaw, Bont, Level RCM, Dewrance, Hopkinsons, etc.
Production show
Graphite Packing Sleeve
Sealing sleeves are used on many brands of pressure gauge plugs to prevent leaks and ensure efficient operation. They consist of
99.5% pure graphite, stainless steel eyelets, computer-controlled compression, to ensure product standard and high quality.
Due to its design, this type of valve can operate at temperatures up to 550°C (in the absence of pressure) (depending on the type of valve and the material used). The temperature is allowed to decrease (to 150C) as the fluid pressure (60 bar) increases.


application

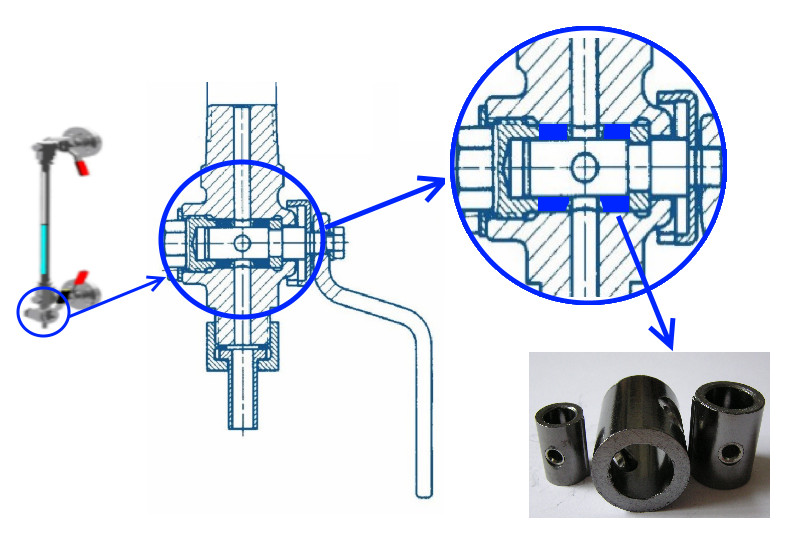

A popular application for graphite sleeves is sealing the drain cocks of liquid level gauges (see photo on the left). The use of graphite sleeves provides smooth and reliable operation of the cock as well as high resistance to aggressive effects and contamination of the medium.
A sealing bush with holes is placed between the two rings through which fluid flows when the piston exposes them. Due to its simple design, the piston valve can be easily removed and replaced with worn parts - usually graphite sealing rings. This solution is characterized by good sealing, reliability and resistance to contamination and deposits.
detail
size
the inside diameter of
D1
outer diameter
D2
length
large
AB 10
10 mm
14 mm
18.5 mm
AB 12
12 mm
18 mm
23 mm
18 years old
18 mm
26 mm
32 mm
AB 22
22 mm
33 mm
37 mm
AB 28
28 mm
38 mm
44 mm
AB 32
32 mm
45 mm
52 mm
AB 42
42 mm
52 mm
56 mm
AB 50
50 mm
62 mm
65 mm
size
the inside diameter of
D1
outer diameter
D2
length
large
AB 10
10 mm
14 mm
18.5mm
AB 12
12 mm
18 mm
23 mm
18 years old
18 mm
26 mm
32 mm
AB 22
22 mm
33 mm
37 mm
AB 28
28 mm
38 mm
44 mm
AB 32
32 mm
45 mm
52 mm
AB 42
42 mm
52 mm
56 mm
AB 50
50 mm
62 mm
65 mm
