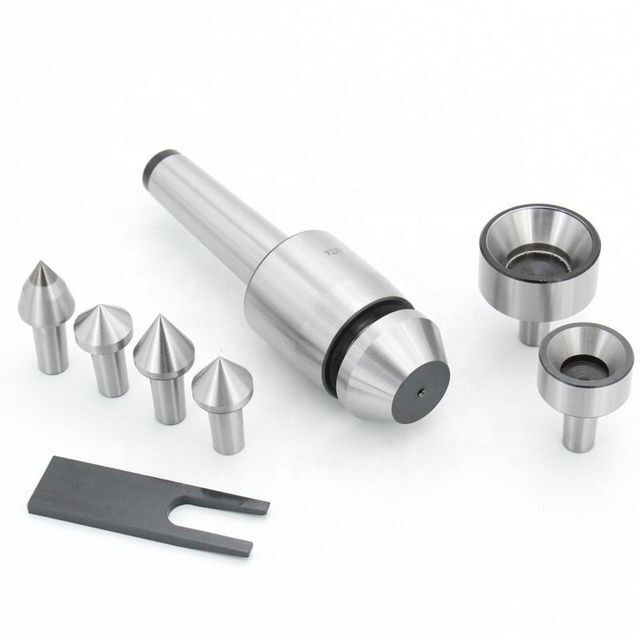

Live center D433 Inter-changeable points live center MT3 with 7pcs Inter-Changeable tips MT3 MT4 MT5 Live Centers
- $38.99 / 1 - 19 pieces
$36.01 / 20 - 49 pieces
$32.90 / >=50 pieces - 1 piece
- Shandong Oli Machinery Co., Ltd.
- Shandong, China
- Mr Wenguo Lee
PRODUCT DETAIL
| Port: | China port; | Delivery Time: | Within 15 Days; |
| Payment: | TT Paypal Westernunion; | Material: | 20CR; |
| Place of Origin: | Shandong, China; | Brand Name: | OLICNC; |
| Warranty: | 6 months; | Usage: | CNC Machine Center; |
| Max load: | 400; | Applicable Industries: | Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Retail,Other; |
| Weight (KG): | 5; | Marketing Type: | New Product 2020; |
| Core Components: | Bearing; | Condition: | New; |
| Showroom Location: | None; | Packaging Detail: | Packaging :Protected wooden box or as clients' requirement; |
| Supply Ability: | 1000 Sets per Month; | Brand: | OLIMA; |
| Product name: | CNC Inter-Changable Points live center; | Package: | Protected wooden box; |
| Accuracy: | 0.015; | Machinery Test Report: | Provided; |
| Type: | CENTRE; | Sample: | Avilable; |
| Video outgoing-inspection: | Provided; | Payment Terms: | L/C,Western Union,T/T,MoneyGram,Paypal; |
| Max speed: | 2500; | Model: | MT3,MT4,MT5; |
Product Description

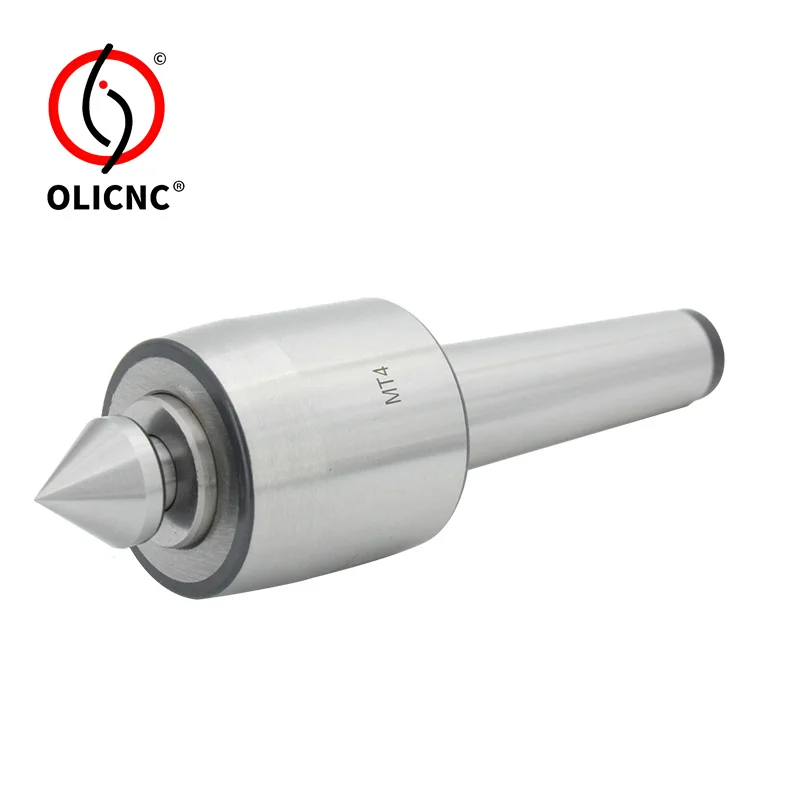

Live center D433 Inter-changeable points live center MT3 with 7pcs Inter-Changeable tips MT3 MT4 MT5 Live Centers
ax loa
Replacement movable thimble
This thimble is suitable for use on NC lathes. It has high speed and medium heavy load and is waterproof.
The mandrel is made of alloy tool steel. It has high rigidity and wear resistance after vacuum heat treatment hardness HRC60° or
more.
Double row ball bearings and thrust bearings for the front end and needle roller bearings for the middle and rear sections
Suitable for machining of small workpieces
Replaceable thimbles of different sizes to meet various needs
This thimble is suitable for use on NC lathes. It has high speed and medium heavy load and is waterproof.
The mandrel is made of alloy tool steel. It has high rigidity and wear resistance after vacuum heat treatment hardness HRC60° or
more.
Double row ball bearings and thrust bearings for the front end and needle roller bearings for the middle and rear sections
Suitable for machining of small workpieces
Replaceable thimbles of different sizes to meet various needs

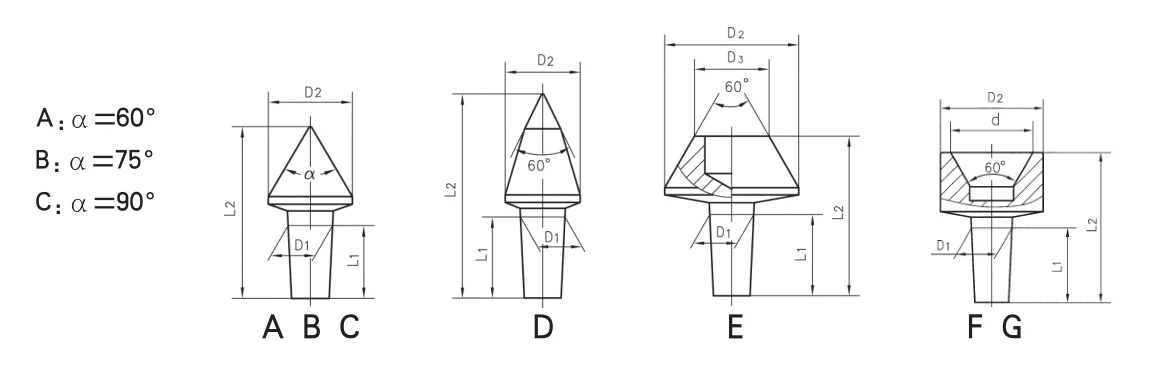

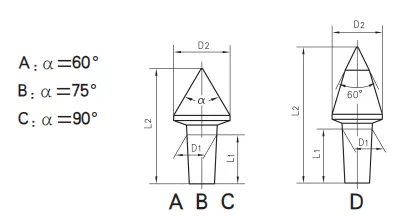

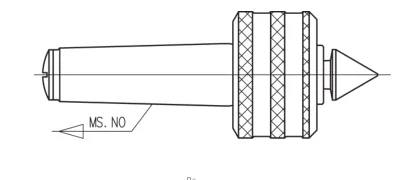

Ms.No. | D1 | L1 | A | B | C | Weight | ||||||
D2 | L2 | D2 | L2 | D2 | L2 | (KG) | ||||||
MS2 | 10 | 20 | 16 | 39 | 16 | 35.5 | 16 | 33 | 0.95 | |||
MS3 | 12 | 24 | 20 | 48 | 20 | 43.5 | 20 | 40.5 | 1.87 | |||
MS4 | 15 | 30 | 28 | 61.5 | 28 | 55.5 | 28 | 51.5 | 2.42 | |||
MS5 | 20 | 40 | 36 | 80 | 36 | 74.25 | 36 | 66.8 | 4.12 | |||
MS6 | 30 | 55 | 55 | 117 | 55 | 113 | 55 | 108 | 7.83 | |||

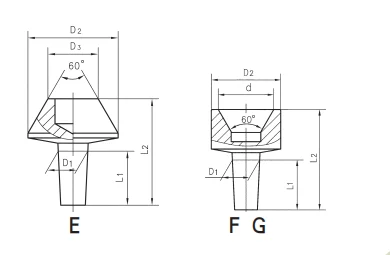

Ms.No. | D | E | F | ||||||||||
D2 | L2 | D2 | D3 | L2 | D2 | L2 | d | ||||||
MS2 | 16 | 46 | 25 | 10 | 40 | 16 | 36 | 10 | |||||
MS3 | 18 | 56 | 35 | 15 | 50 | 22 | 42 | 18 | |||||
MS4 | 26 | 73 | 55 | 30 | 61.5 | 40 | 55 | 35 | |||||
MS5 | 36 | 101 | 70 | 41 | 78 | 60 | 81 | 50 | |||||
MS6 | 50 | 138 | 90 | 50 | 107.5 | 75 | 110 | 60 | |||||
Ms.No. | G | ||||
D2 | L2 | d | |||
MS2 | 20 | 39 | 16 | ||
MS3 | 35 | 48 | 30 | ||
MS4 | 55 | 60 | 48 | ||
MS5 | 70 | 85 | 61 | ||
MS6 | 90 | 116 | 75 | ||

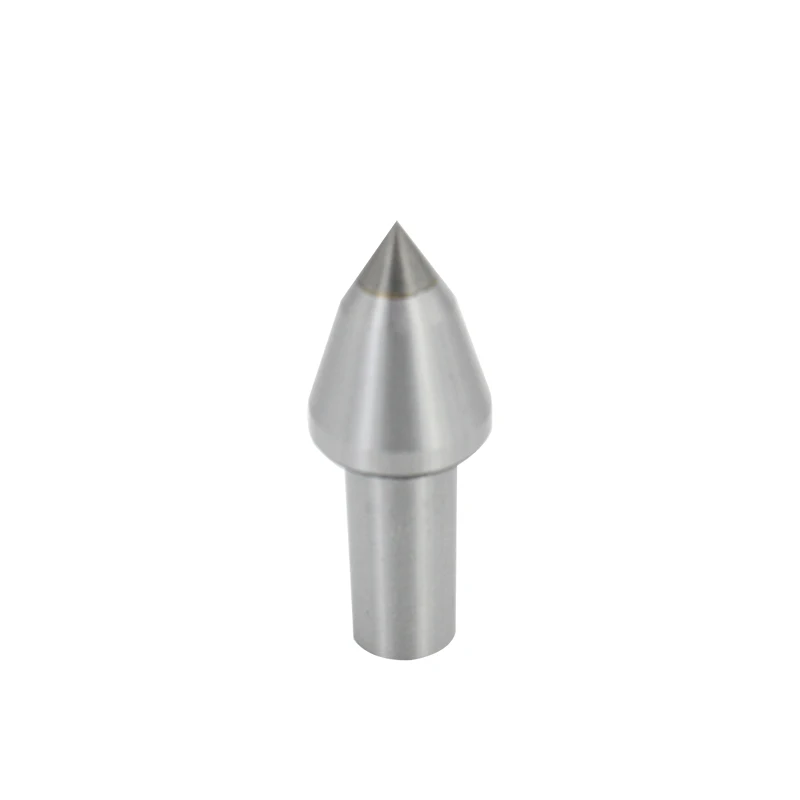

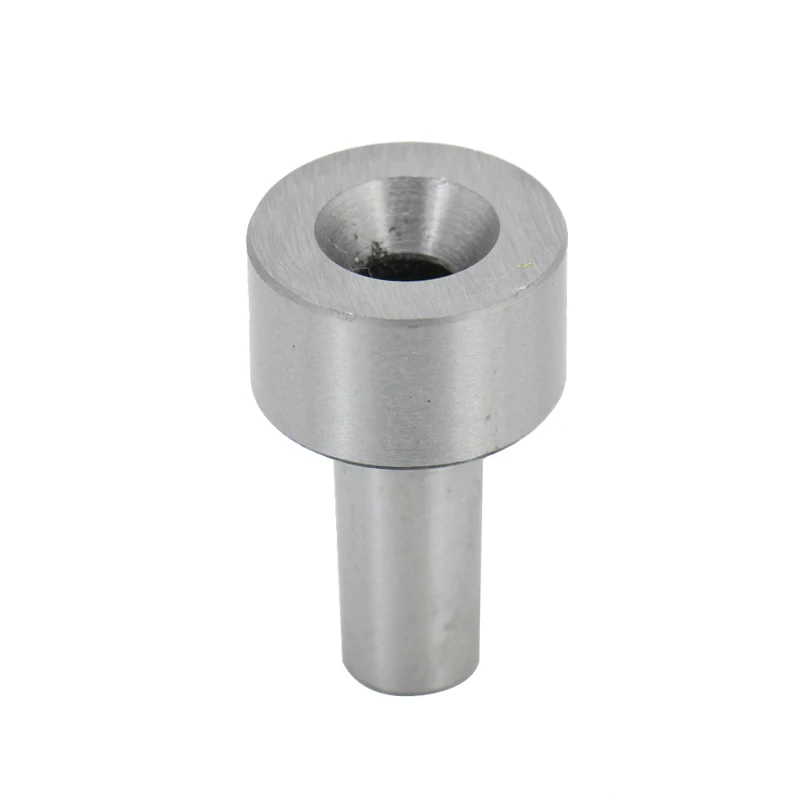

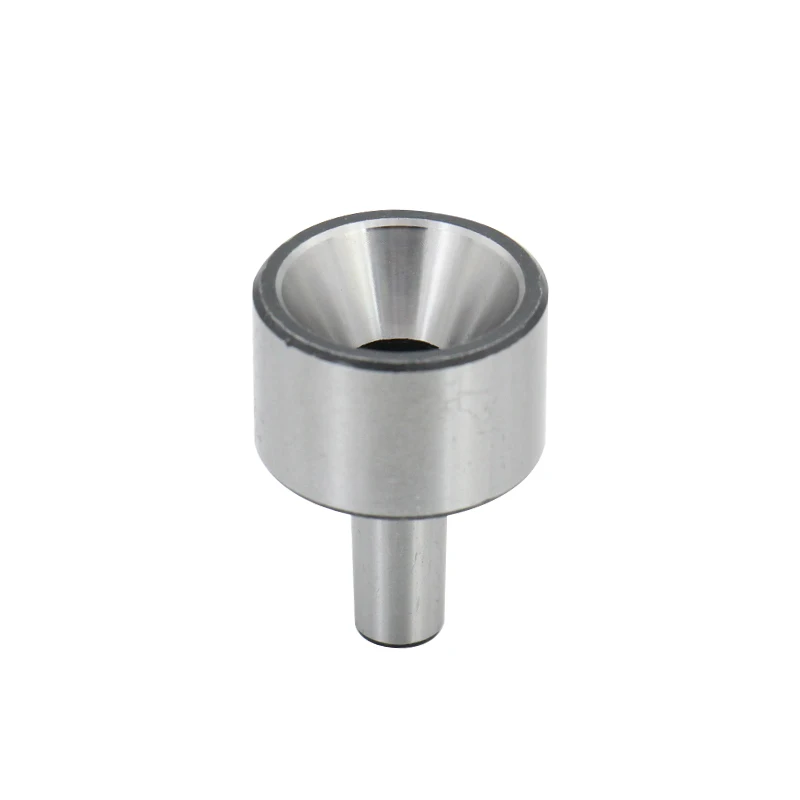

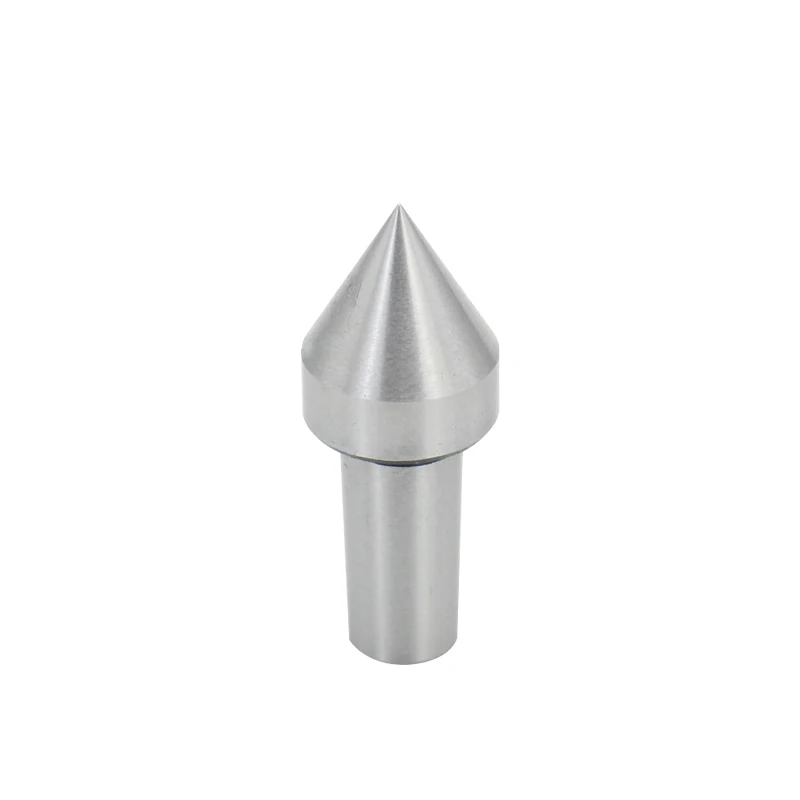

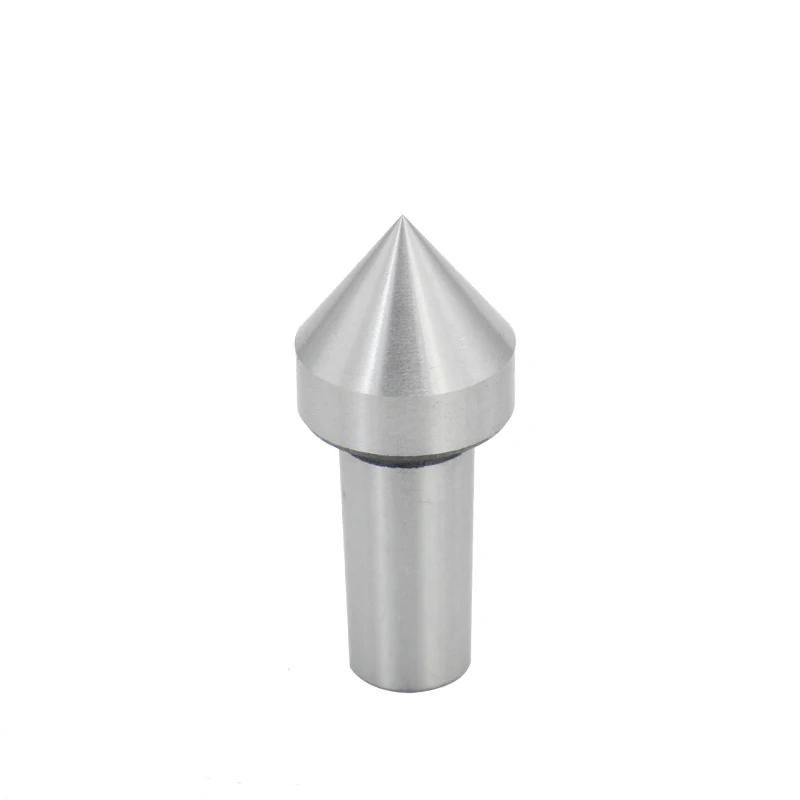

Several Different Tip Parts Display

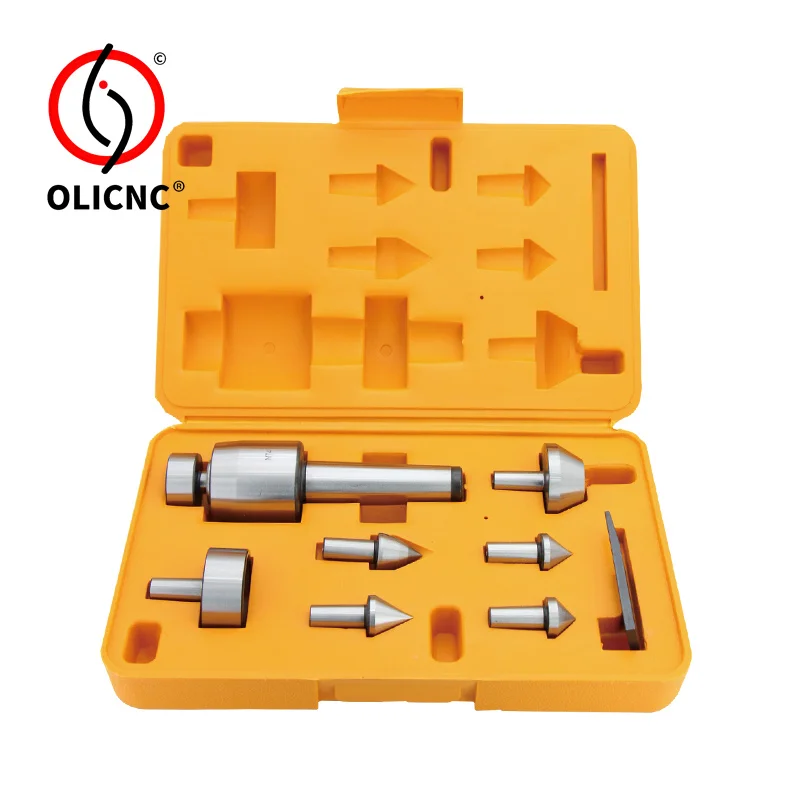

1PC Live Center 7 kinds of using methods, Center Points can be changed according to your need.
Comparison Between Two Inter-Changable Points Live Center Sets
Packing
Packaging : Protected wooden box or as clients' requirement
If you need other models, please contact us. Any other special sizes as ordered.
Delivery
Normally ready goods within 7days , Orders about 30days
