LoRa/LoRaWAN Wireless Tag Sensor for Asset Management
- $9.90 /piece
- 1 piece
- Beijing Manthink Technology Co., Ltd.
- Beijing, China
- Mr
PRODUCT DETAIL
| Transmission rate: | 1.8kbps~5.4kbps | color: | Black |
| Modulation: | Lola | spectrum: | EU 868 |
| Transmission power: | 20 dB max (100 MW) | model: | ST11 |
| Receive Sensitivity: | Largest - 139 DBM | working frequency: | 410-510MHz/863-928MHz |
| application: | ManThink,LoRa/LoRaWAN | brand: | people think |
| payment terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram | size: | 5mmx51mmx15mm |
| place of origin; place of origin: | Beijing China |
Product Description
Operating Voltage | 2.2~3.0V |
Operating temperature | -40℃ ~ 85℃ |
Working humidity | 0%~90%RH |
Emission current | < 120ma@100MW (impedance matching) |
receive current | <13mA |
Overview

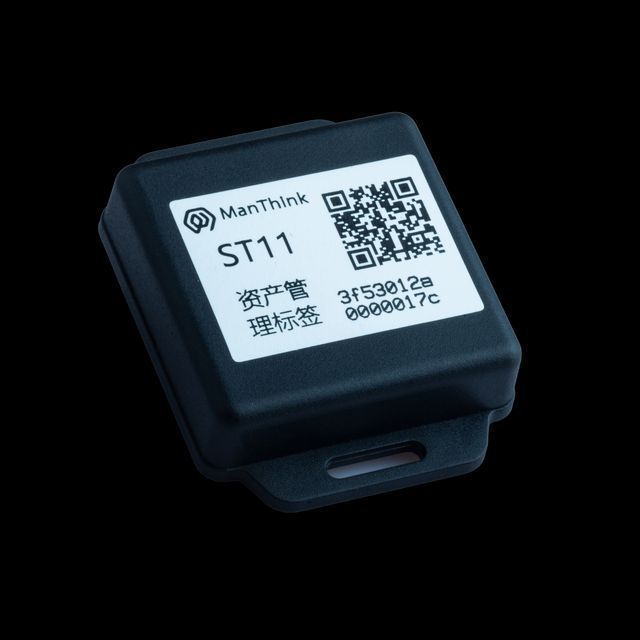

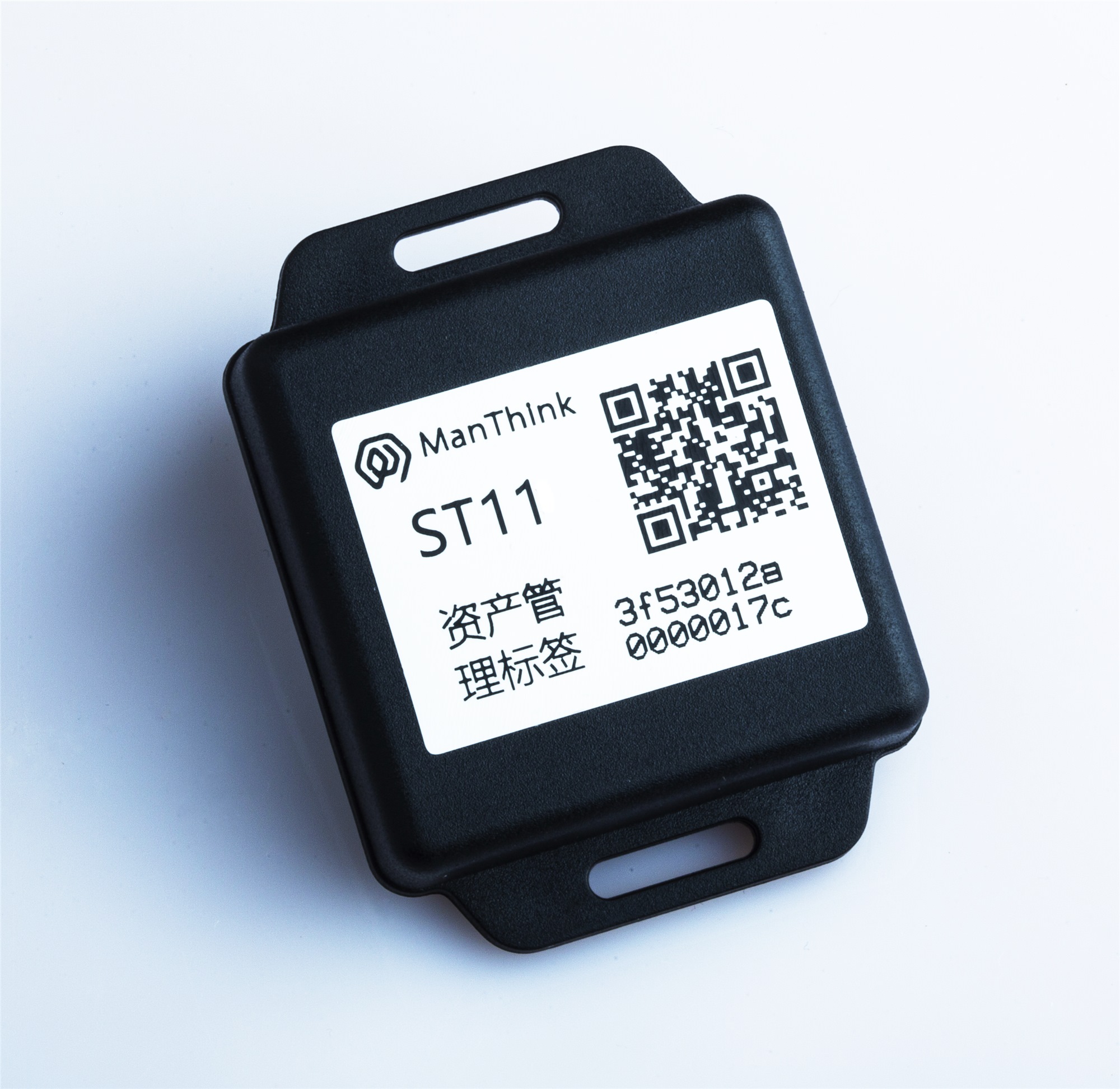

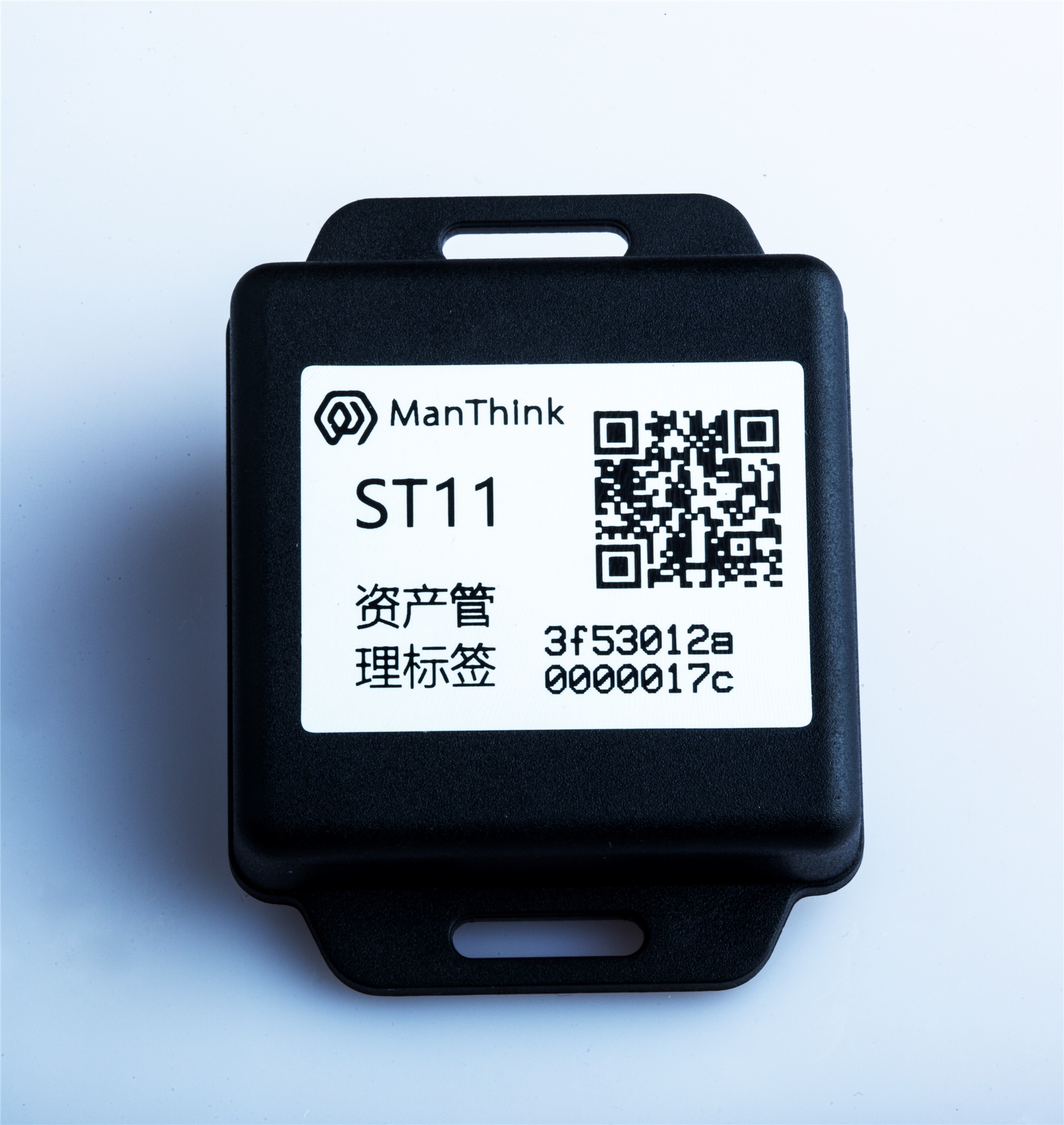

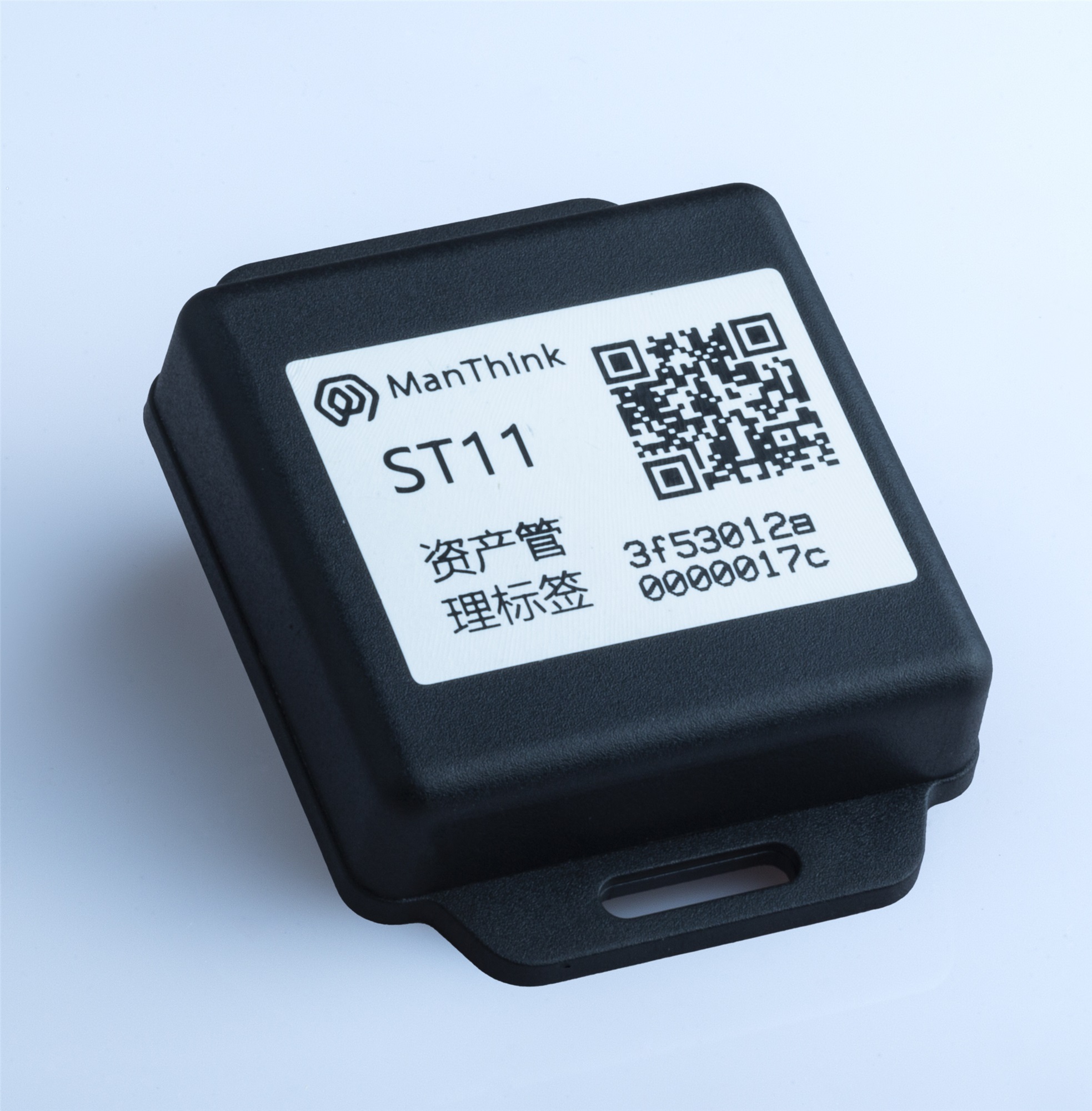

ST11TN/ST11NN is a wireless tag sensor for asset management, which can realize timing sampling, upload temperature and ID
Information to the monitoring platform, supporting LoRaWAN and LinkWAN protocols. User can set sampling and reporting period
through the platform. The default setting is to upload temperature and humidity information to the platform every 1800 minutes.
Information to the monitoring platform, supporting LoRaWAN and LinkWAN protocols. User can set sampling and reporting period
through the platform. The default setting is to upload temperature and humidity information to the platform every 1800 minutes.
Application field
* Logistics warehousing, warehouse
* Logistics cargo temperature monitoring
* Data Centers and Service Data Centers
* Unattended factories and workshops
* Smart Home, Smart Agriculture, Smart Building
* Logistics warehousing, warehouse
* Logistics cargo temperature monitoring
* Data Centers and Service Data Centers
* Unattended factories and workshops
* Smart Home, Smart Agriculture, Smart Building
main feature
* Internal integrated temperature measurement chip, which can accurately measure the ambient temperature (ST11TN)
* With low battery voltage, equipment failure and other alarm functions.
* Allows you to configure parameters for downstream data.
* The wireless transmission part adopts LoRa modulation method, which can realize long transmission distance and low
Standby power consumption, etc.
* The battery adopts high energy density lithium battery, which can guarantee the working life of the product for 5 years (the upload cycle is 1800 minutes)
*Outdoor transmission distance 2-3km
* Internal integrated temperature measurement chip, which can accurately measure the ambient temperature (ST11TN)
* With low battery voltage, equipment failure and other alarm functions.
* Allows you to configure parameters for downstream data.
* The wireless transmission part adopts LoRa modulation method, which can realize long transmission distance and low
Standby power consumption, etc.
* The battery adopts high energy density lithium battery, which can guarantee the working life of the product for 5 years (the upload cycle is 1800 minutes)
*Outdoor transmission distance 2-3km
