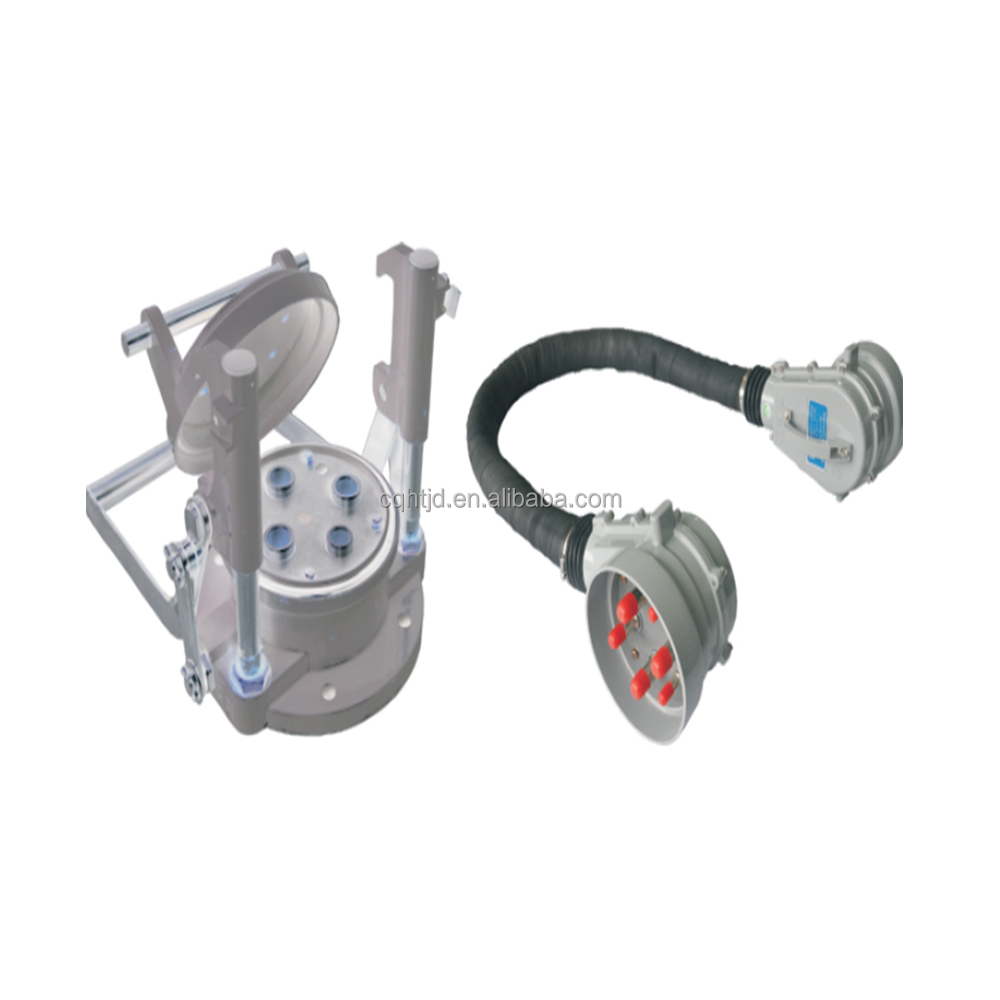

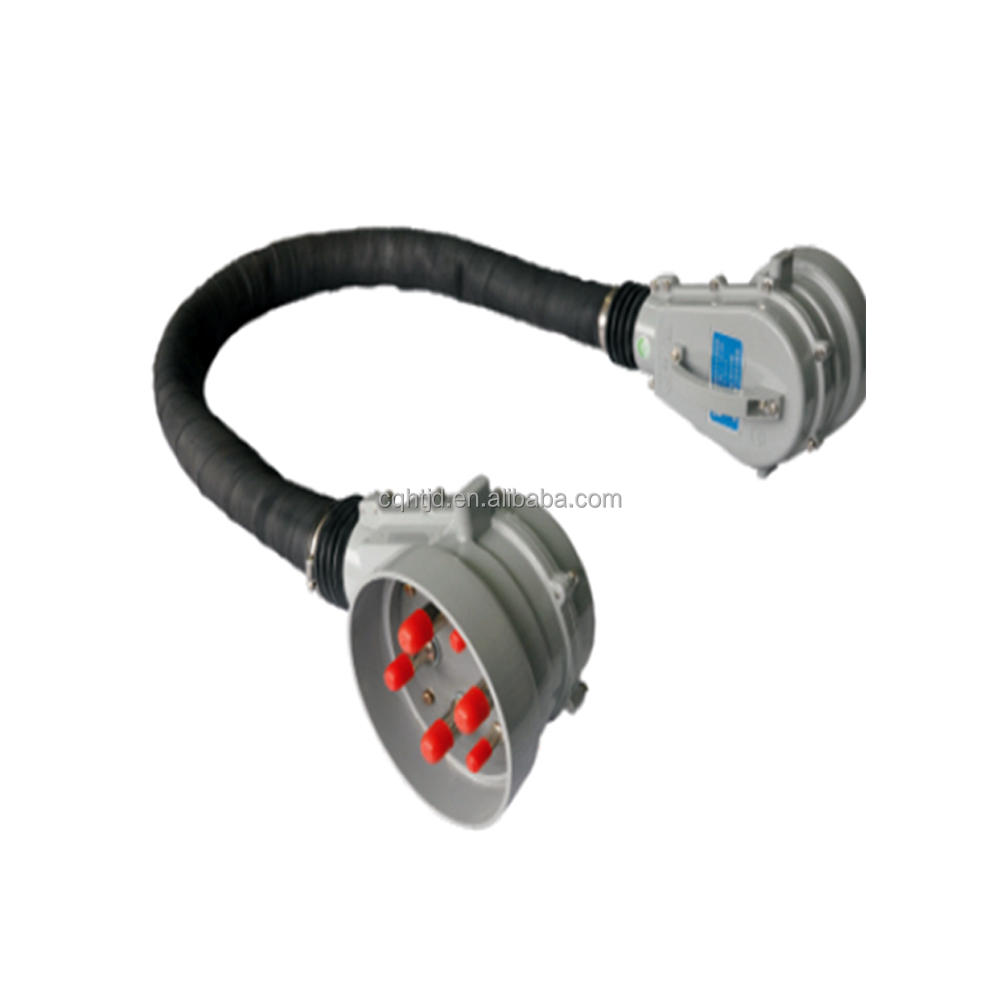

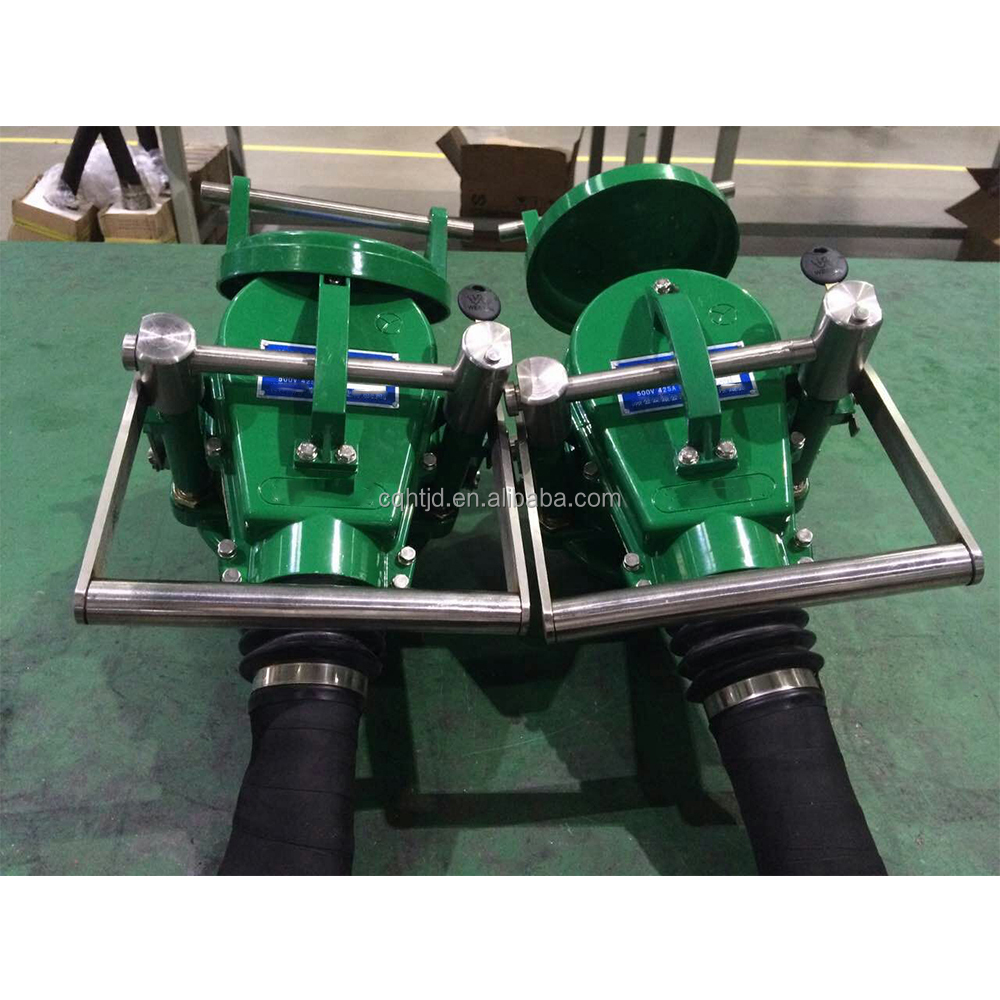

Locomotive track KC20A power connector

PRODUCT DETAIL
Contact resistance:≤0.2mΩRelated current:425A
high:≤2500 metersRelative humidity:90±3% (at 25°C)
Material:as requestedOrigin:Chongqing, China
Dimensions (L x W x H) (mm):360*220*201mmbrand:HT
port:any port in ChinaAmbient temperature:-50℃~70℃
Mechanical life:≥1500Protection class:IP65
payment terms:L/C, T/Tproduct name:KC20A Power Connector
type:electricalPackage preview:
Related voltage:AC 500VSupply capacity:100000 pieces per month
metallic line:150mm2 or 120mm2Packaging Details:standard.
Product Description
It is suitable for automatic electrical control systems of railways, rolling stock, urban rail vehicles and industrial equipment.
The connection method is a push-pull quick connection.
Contact element structure: conical contact type.
The contact form of the contact element and the wire end: the cold-press connection terminal is fixed with the back nut.
Applicable standard: GB/T25023-2010.
Specification
product name
KC 20A Power Connector

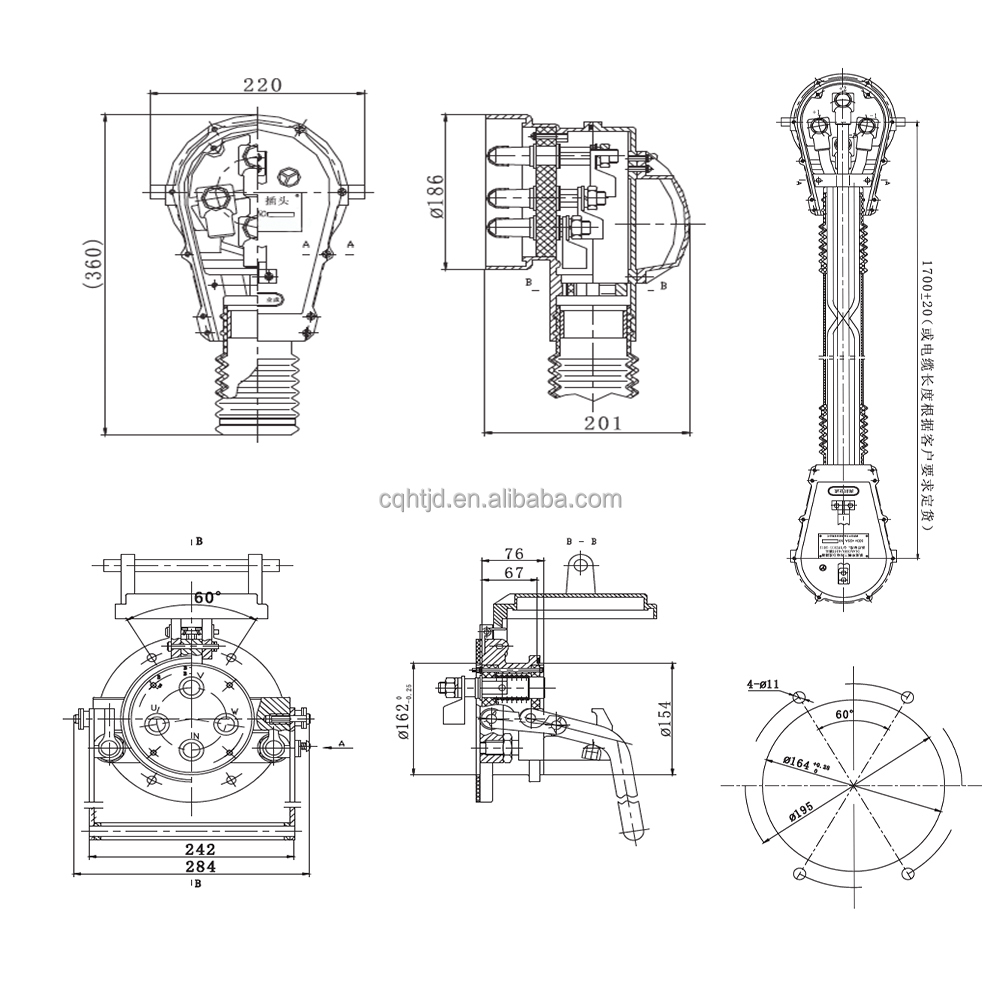

Dimensions (L x W x H) (mm)
360*220*201 mm
Material
as requested
brand
HT
ambient temperature
-50℃~70℃
Relative humidity
90±3% (at 25°C)
high
≤2500 meters
related voltage
AC 500V
Correlation current
425A
degree of protection
IP65
Contact resistance
≤0.2mΩ
Mechanical life
≥1500
metallic line
150mm2 or 120mm2
