Lovtec cga540/870/bullnose stainless steel oxygen tube high pressure hose

  • $8.00 / >=100 pieces
  • 100 pieces
  • Danyang Airtech Co., Ltd.
  • Jiangsu, China
  • Ms Cindy leng
PRODUCT DETAIL
type:Oxygen supply systemPackaging Details:Packaging Details: Plain carton as your request Delivery Details: Ships within 7 days after payment
Certificate:CE/ISO13485After-sale service:Online technical support
Original Equipment Manufacturer:availablemodel:ATOC-1
port:Shanghaicolor:silver
payment terms:L/C,Western Union,D/P,D/A,T/T,MoneyGramplace of origin; place of origin:Jiangsu, China
Warranty:1 year, 1 yearMaterial:brass stainless steel
Instrument classification:the first sortbrand:Lovetech
Supply capacity:30000 pieces per month
Recommended Products
Product Description

Applications

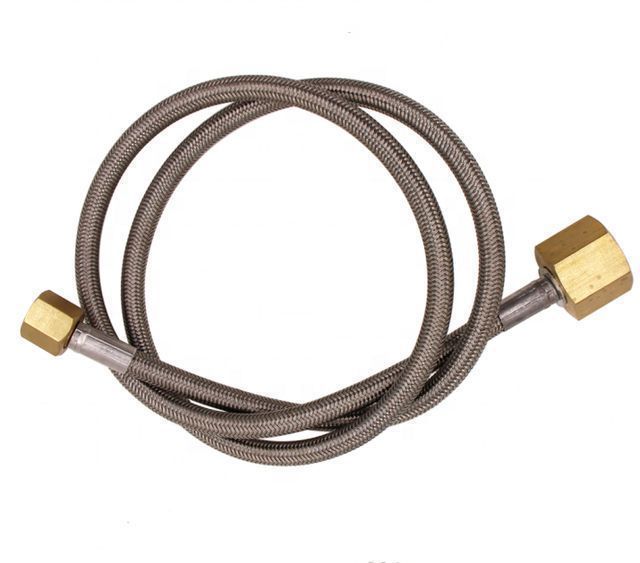

Medical Oxygen Cylinder Hose Stainless Steel High Pressure Flexible Hose Assembly Features: PTFE extruded hose is reinforced with stainless steel wire braid with metal fittings on both sides. Inner tube: PTFE/FEP extruded hose, with high and low temperature resistance, corrosion resistance, anti-adhesion and other characteristics. Outer Sheath: Stainless steel SS304 braided mesh to improve compression resistance, quick connector connection. Operating temperature range: constant temperature -50°C~+210°C, short-term temperature -70°C~+260°C. Reinforcement: SS304 double wire braid, SS316 double wire braid

Suitable for cylinder valve type
Customized valves such as CGA540\BULLNOSE\CGA870
inner hose
PTFE/FEP
strengthen
SS304 double wire braid, SS316 double wire braid
put up

Extruded ptfe/FEP tube with stainless steel double wire braided cover.
temperature
-70°C to +260°C
color
Natural stainless steel finish or support custom
cover
stainless steel braid
work pressure
15-20Mpa
Specification
According to customer's
need
thickness
1mm-1.5mm
length
According to customer requirements
detailed image
