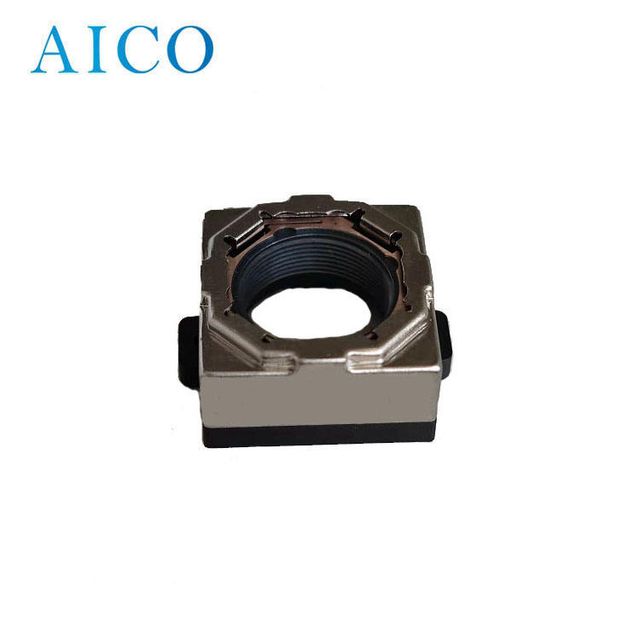

M12 VCM M12*p0.5 s mount lens voice coil bracket actuator motor for auto focus driver m12xp0.5 m12x0.5mm camera lens auto focus

  • $31.00 / 1 - 199 pieces
    $20.00 / 200 - 1999 pieces
    $14.40 / 2000 - 19999 pieces
    $7.70 / >=20000 pieces
  • 1 piece
  • Hangzhou Ai Ke Electronics Co., Ltd.
  • Zhejiang, China
  • Ms Melody Zheng
PRODUCT DETAIL
Card:Autofocus voice coil motorVCM unit weight:≤5g (nominal without lens)
Operating temperature:-30℃~70℃ 10%~90%RHRated current (stroke=0.35mm):100mA
Insulation resistance:1MΩ or more at DC 50V, between case and contactPackaging Details:Standard export packaging
place of origin; place of origin:Zhejiang, Chinabrand:Aike
application:M12 lensLens unit quality:≤8g
Absolute Maximum Current:0mA - 180mApayment terms:Letter of Credit, Western Union, T/T, MoneyGram, PayPal
VCM size:18.0x18.0x10.0mm (without terminal)powered by:0mA~180mA
Panel size:8.0x18.0x10.0mm (without terminal)type:Autofocus voice coil motor
Supply capacity:100000pcs/month M12 Lens Voice Coil VCM Motorworking direction:along the optical axis
DC:ACVCM181210interface:M12
Rated current (stroke=0.60mm):150 mARated stroke:≥350μm
Lens diameter:M12*p0.5mm

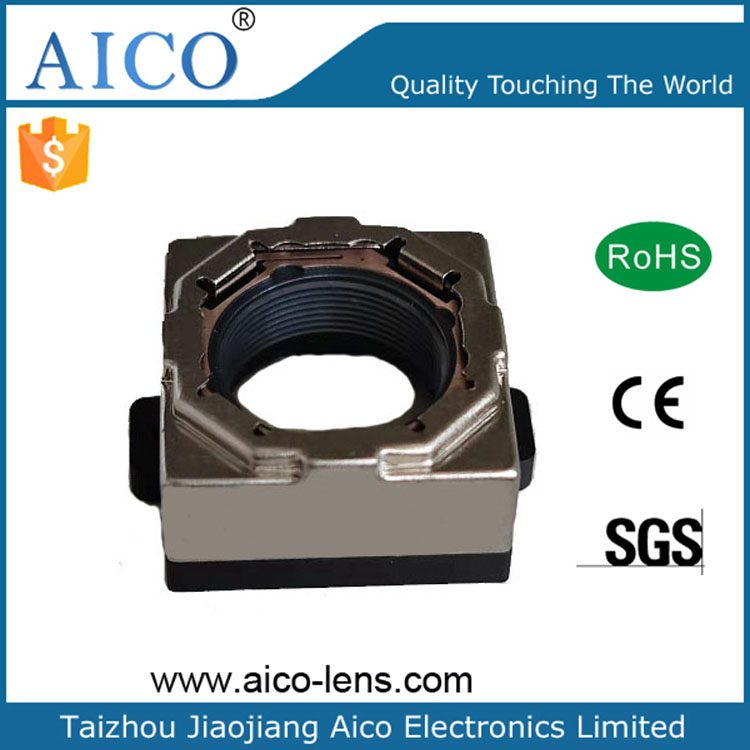

M12 VCM M12*p0.5 s mount lens voice coil bracket actuator motor for auto focus driver m12xp0.5 m12x0.5mm camera lens auto focus

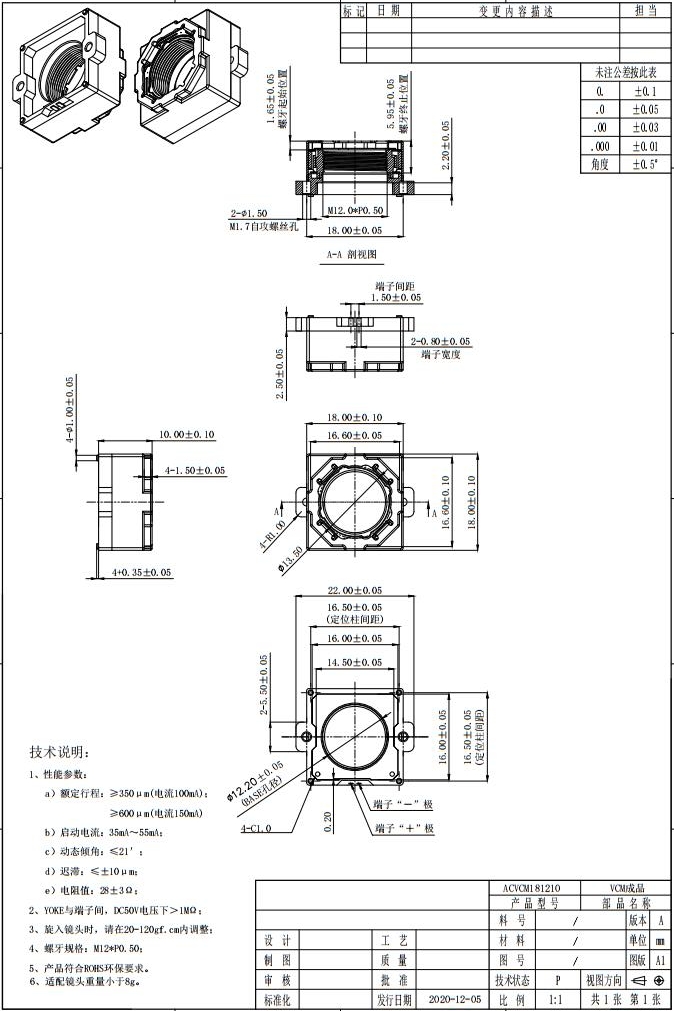

Specification

VCM size:

18.0x18.0x10.0mm (without terminal)

Lens diameter:

M12*p0.5mm

Rated current (stroke=0.35mm) Optical axis: +Z

100mA

Rated current (stroke=0.60mm) Optical axis: +Z

150 mA

Absolute Maximum Current:

0mA - 180mA

Insulation resistance:

1MΩ or more at DC 50V, between case and contact

working direction:

along the optical axis

VCM unit weight:

≤5g (nominal without lens)

Lens unit quality:

≤8g

Rated stroke:

≥350μm

Terminating resistor:

28±3Ω

Sensitivity:

3~9μm/mA

Lag:

±10 microns

Dynamic Tilt:

≤21′

Linearity:

≤10µm

Starting current:

35~55mA

Torque:

20-150 gf.cm

Operating environment:

-30℃~70℃ 10%~90%RH

Storage environment:

-40~85℃ 10~90% relative humidity

Model:

ACVCM181210








These specifications specify the general requirements and performance of autofocus voice coil motors. These specifications may be changed for improvement upon mutual agreement.

All parts of this product, including glue and solder, are RoHS compliant.
