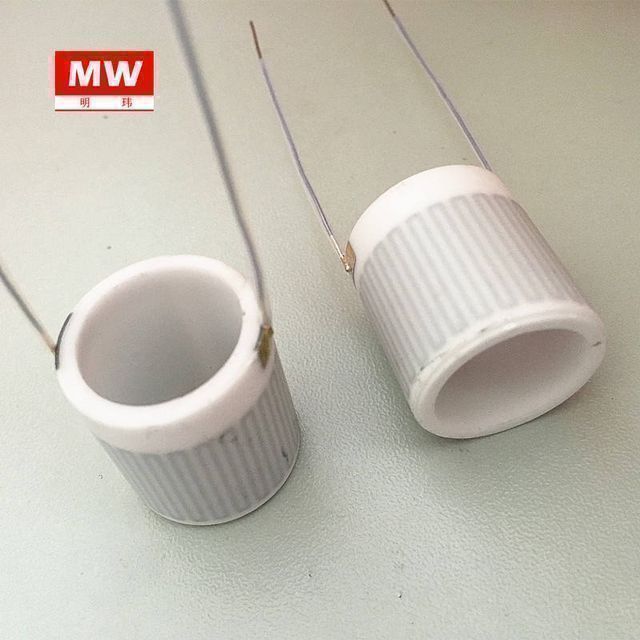

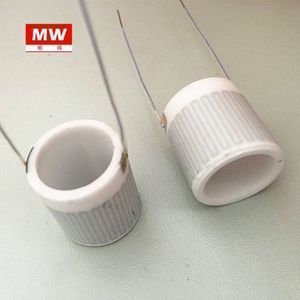

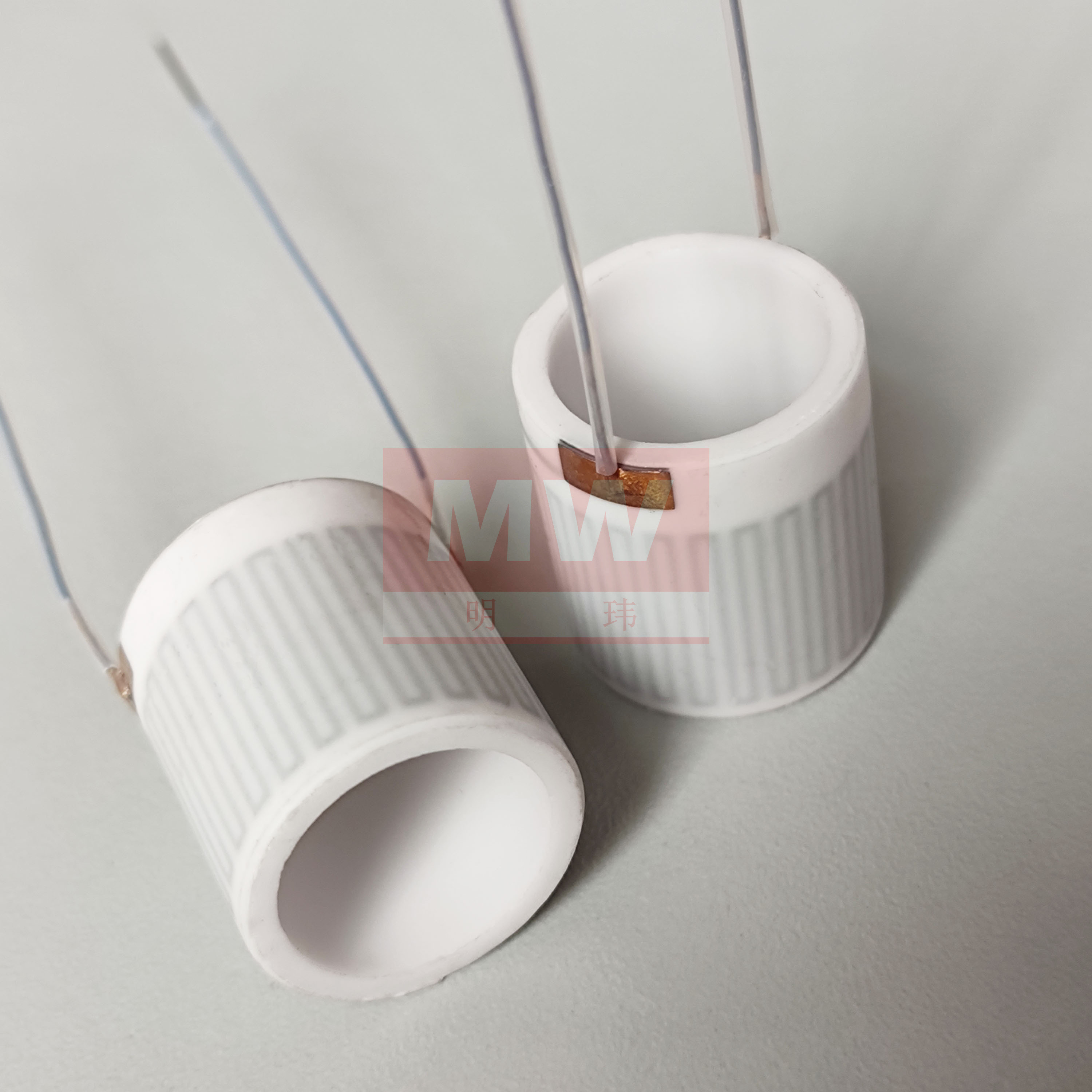

MCH 96 Alumina High Temperature Ceramic Tube Heater
- $20.00 / 1 - 999 pieces
$10.00 / >=1000 pieces - 1 piece
- Zhuhai MW Technology Co., Ltd.
- Guangdong, China
- Ms Rita Yang
PRODUCT DETAIL
| shape: | tube | Material: | Alumina |
| Packaging Details: | Carton | usage: | heating |
| type: | Insulating Ceramics | Certificate: | ROHS, ISO9001 |
| Packaging Preview: | product name: | High Temperature Heating Element MCH 96 Alumina Ceramic Tube Heater | |
| feature: | Long service life, environmental protection and high efficiency | Voltage: | 110V / 120V / 220V / 230V / 240V |
| model. : | G023210165 | model: | G023210165 |
| place of origin; place of origin: | China | Single package size: | 18X10X12 cm |
| size: | H23mm*OD21mm*ID16.5mm | brand: | Zhuhai MW |
| Sales unit: | single product | Resist: | 300~500Ω |
| Gross weight per piece: | 0.230 kg | Energy power: | electrical |
Product Description
High Temperature Heating Element MCH 96 Alumina Ceramic Tube Heater | 5,000 hours 20,000 hours 50,000 hours (depending on the conditions of use) | Voltage | DC 3.7V/5V DC 12V/24VAC 110V/220V AC 230V/240V/360V | |||
model. | Customized (mm) | G023210165 | widely used | |||
shape | square plate | Certification | SGS, RoHS | |||
strength | 1-300W / 600-3500W | Warranty | 2 years | |||
title | Ceramic heating element | Function | heating/heating | |||
Resistance range | 4-6Ω / 9-11Ω / 18-22Ω 90-110Ω / 450-550Ω | Minimum order quantity | Sample 1 piece Order 1000 pieces | |||
model | 404020 | price | FYI $5.00-15.00 | |||
96% alumina | white | port | Zhuhai/Guangdong | |||
shape | tube | |||||
size | H23*OD21*ID16.5mm | |||||
resist | 300~500Ω | |||||
Voltage | 110V / 120V / 220V / 230V / 240V | |||||
energy power | electrical | |||||
Function | heating | |||||
Certificate | RoHS, ISO9001 | |||||
MCH ceramic heating element characteristics | ||||||
Thermal Conductivity | (20℃) 18W / (m·K) | |||||
specific heat | (20℃) 0.78×103 J /(kg·K) | |||||
Vickers hardness | (Load 500g) 12.3 GPa | |||||
Three-point bending strength | 340 MPa | |||||
advantage | Environmental protection, energy saving, compact design and high efficiency | |||||
custom made | support | |||||
The high temperature heating element MCH 96 alumina ceramic tube heater is produced by implementing a unique ceramic lamination process. MCH prints resistors on alumina sheets, which are laminated and sintered into one. Our ceramic heaters can work in both atmospheric and vacuum environments. MCH technology offers significant advantages over metal-based jacketed heaters, but the latter has limitations in thermal performance and material compatibility. Compared to PTC, MCH is more energy efficient, safer and more efficient. At present, MCH as an innovative heater is widely used in machinery, medical, semiconductor, electrical and electronic industries.
superior property
1) High power density and good thermal efficiency; 2) Multiple heating elements can be laid on a single unit; 3) Superior thermal performance, rapid temperature rise and efficient heat exchange; 4) High level of insulation allows direct contact with water, kerosene and metal ; 5) Superior dielectric strength and electrical insulation; 6) The resistivity material is designed with anti-oxidation and has a longer service life; 7) High reliability: superior chemical resistance, high temperature durability and excellent mechanical properties; 8 ) custom designed temperature profiles are available.

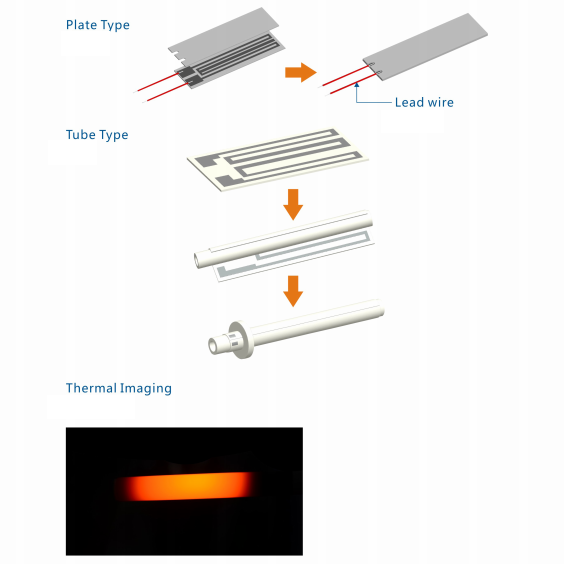

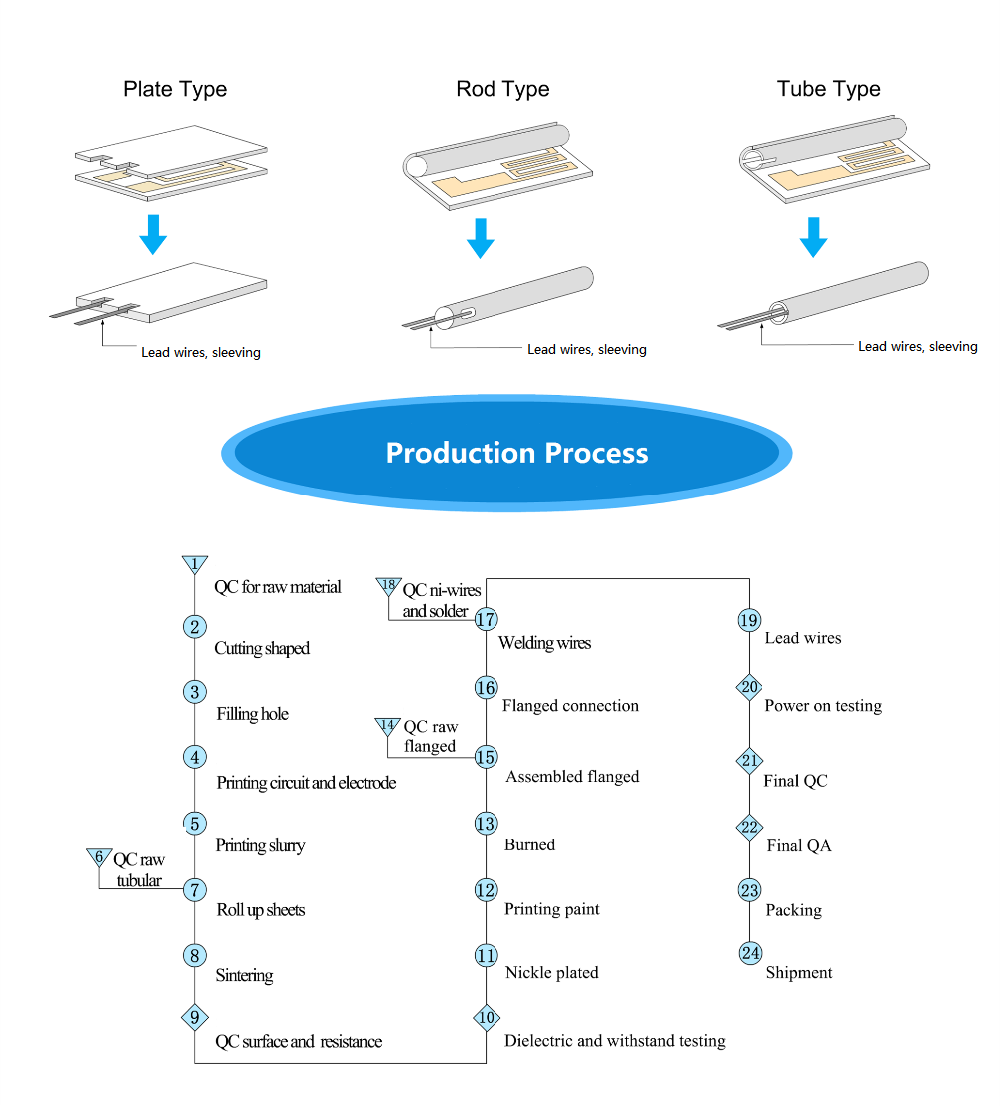

production technology

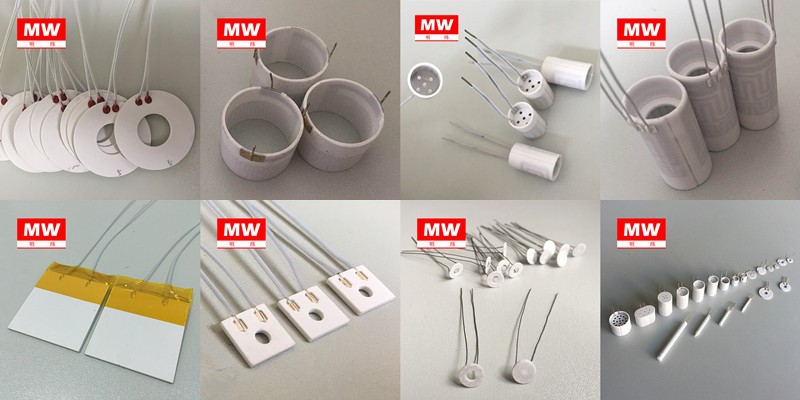

other products
