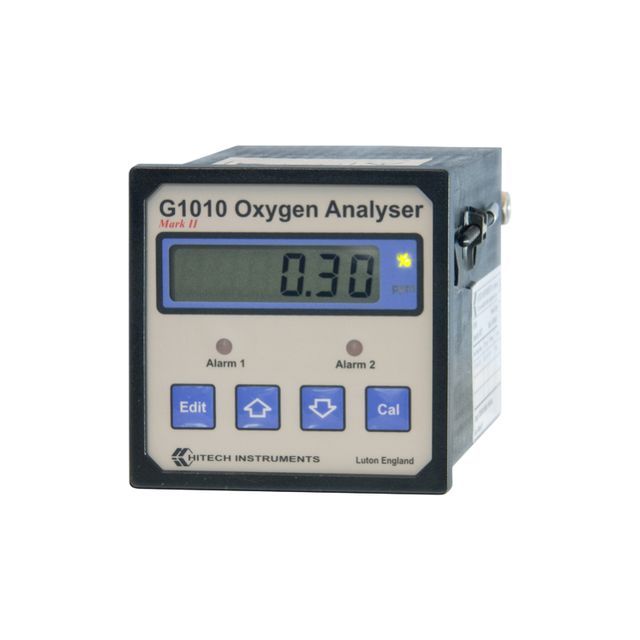

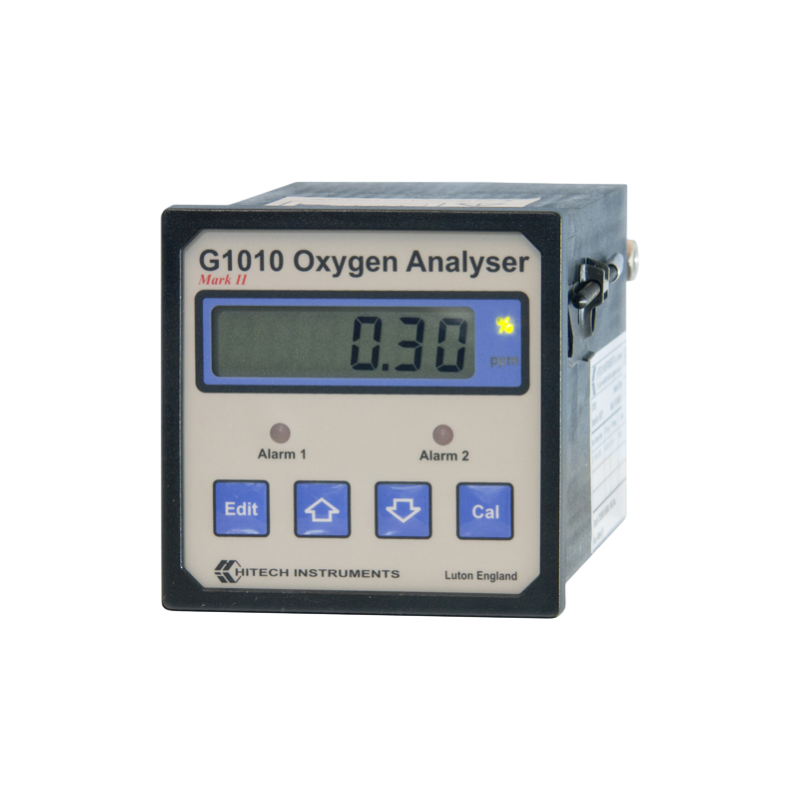

MTL G1010 Portable Online Galvanic Oxygen Purity Analyzer O2 O2 Purity Gas
- 1 piece
- Chongqing Blue Jay Technology Co., Ltd.
- Chongqing, China
- Mr Petter Wan
PRODUCT DETAIL
Product Description
The Crouse-Hinds Series G1010 Oxygen Analyzer is ideal for many applications measuring oxygen in a variety of processes. From ppm to % levels, safe or hazardous areas, different process conditions and different backgrounds, there is a G1010 configuration to suit you. Options include choice of output, AC or DC versions, as well as oxygen cells and sampling systems.
feature
* Proven technology from gas analyzer experts
* ppm or % O2 level
* Hazardous area options
* Choose batteries for different applications
* Remote or integrated sensor
* Selection of sample system
* Large multi-digit auto-ranging LCD displays concentration and user-adjustable parameters
* Two alarm channels, user programmable as high, low or off, each channel provides a set of voltage-free transfer contacts and can
Can be set to any concentration within the instrument range
* Provides user programmable analog output from 0 to 5v or 4 to 20mA
* Multiple sensor versions available to enable the analyzer to operate at optimal performance in a variety of environments
application
* Remote sensor version available, allowing the control/display module and sensors to be separated by up to several
100 meters
* ppm or % O2 level
* Hazardous area options
* Choose batteries for different applications
* Remote or integrated sensor
* Selection of sample system
* Large multi-digit auto-ranging LCD displays concentration and user-adjustable parameters
* Two alarm channels, user programmable as high, low or off, each channel provides a set of voltage-free transfer contacts and can
Can be set to any concentration within the instrument range
* Provides user programmable analog output from 0 to 5v or 4 to 20mA
* Multiple sensor versions available to enable the analyzer to operate at optimal performance in a variety of environments
application
* Remote sensor version available, allowing the control/display module and sensors to be separated by up to several
100 meters
Specification
scope | Specification |
Stablize | <2% reading/month or 1 ppm, whichever is greater |
Sample process | 100 – 300 ml/min (optimal), 1000 ml/min (maximum) |
Sample temperature range | –5°C to +40°C, relative humidity <100% (non-condensing) |
Sample pressure | Reference accuracy to atmosphere (determined by exhaust pressure) |
Connection example | Inlet and Outlet: 1/4" bulkhead compression fittings for 0.25" (6mm) OD tubing |
reaction speed | T90: Typically 3 seconds at % level, 20 seconds at ppm level (varies by sensor and concentration) |
Analog output | 0–5V (minimum load 10 kΩ) or 4–20 mA (maximum load 300 Ω); isolation: 30 Vac, 70 Vdc maximum |
G1010/G1010R | User programmable |
G1010Tx/G1010TxX | Fixed (see manual for full details) |
Alarm output | 2 alarms, user programmable; no voltage, cross contacts |
Environmental work scope | 0°C to +40°C, relative humidity <80% (non-condensing) |
strength | 110–120V or 220–240V AC, 50/60 Hz or 24V DC |
Case details | G1010: Fiberglass Reinforced, Noryl Panel Mount |
net weight | 1.0kg |
Dimensions (mm) | 96 (width) × 96 (height) × 196 (depth) |
Note: If you have any questions or requirements about this product (including model numbers, datasheets or any other aspects), please contact us immediately.
