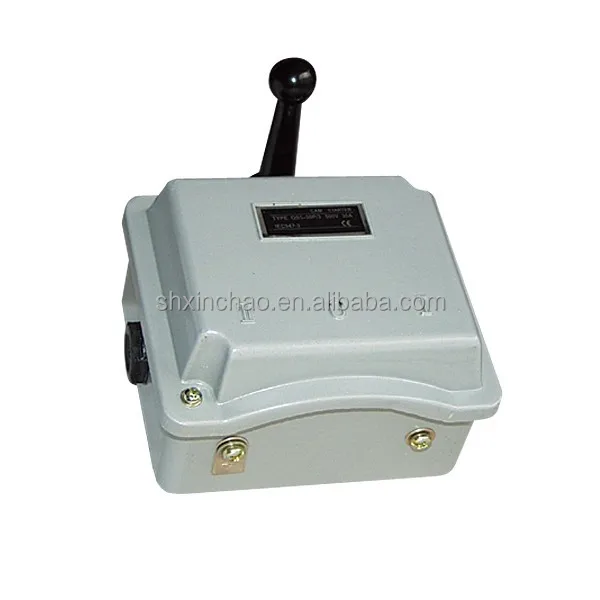

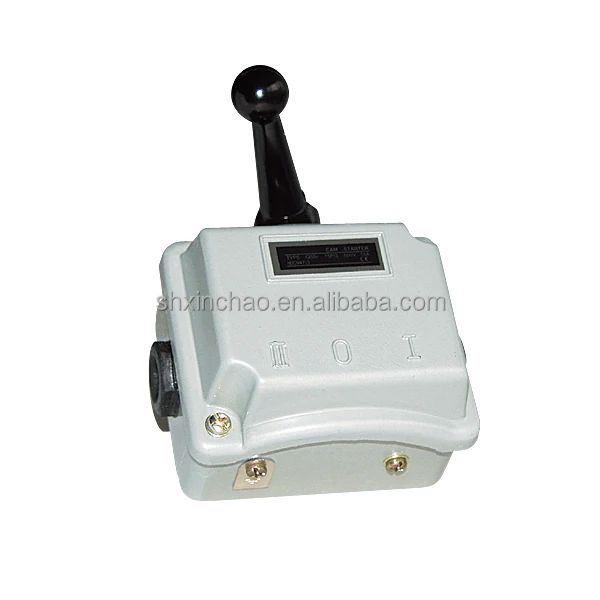

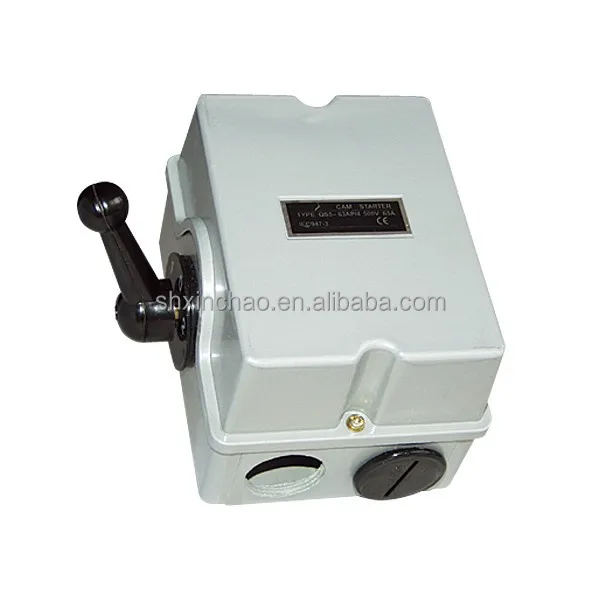

Manual Transfer Switch QS5 Cam Isolator Cam Starter
- $0.50 / >=200 pieces
- 200 pieces
- Shanghai Newtrend Electric Co., Ltd.
- Shanghai, China
- Mr Nick Zhu
PRODUCT DETAIL
| Certification: | CCC, CE | Supply capacity: | 30000 pieces per month |
| maximum. Voltage: | 500V | Mechanical life: | 250000 |
| model: | QS5 | maximum. current: | 100A |
| port: | Shanghai, Ningbo | Packaging Details: | Standard export carton |
| place of origin; place of origin: | China | brand: | Newtrend or OEM brand |
| payment terms: | L/C,D/P,D/A,T/T |
1. Apply
QS5 cam starter is mainly used for forward and reverse start and direct stop of three-phase asynchronous motors with AC 50/60Hz, voltage up to 500V and capacity up to 7.5KW. It can also be used to convert from one circuit to another.
2. Specifications
| Model | mark | Rated current (A) | Motor Control Capability (HP) | Mechanical life (times) | Running frequency (hourly) | application | Lever position |
| QS5-15A | IO | 15 | 5.5 | 250000 | 200 | switch switch | 0-60 |
| QS5-30A | 30 | 10 | |||||
| QS5-15N | IOI | 15 | 5.5 | forward and reverse | 60-0-60 | ||
| QS5-30N | 30 | 10 | |||||
| QS5-15P/3 | IO-II | 15 | 5.5 | For 3 pole 2 circuit | 60-0-60 | ||
| QS5-30P/3 | 30 | 10 | |||||
| QS5-63A | IO | 63 | twenty two | 200000 | 180 | switch switch | 0-60 |
| QS5-100A | 100 | 30 | |||||
| QS5-63N | IOI | 63 | twenty two | forward and reverse | 60-0-60 | ||
| QS5-100N | 100 | 30 | |||||
| QS5-63/P4 | IO-II | 63 | twenty two | For 3 pole rwo circuit | 60-0-60 | ||
| QS5-100/P4 | 100 |
