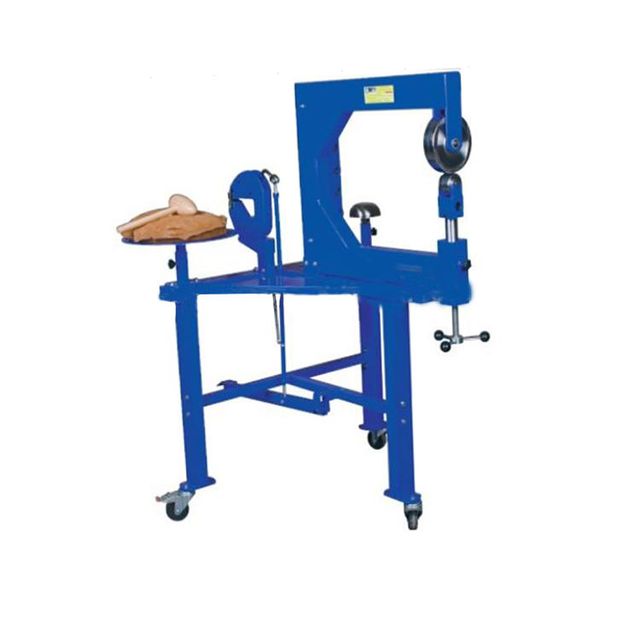

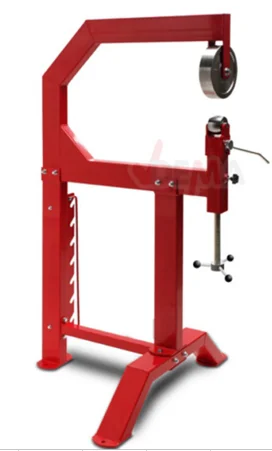

Manual desktop English wheel

PRODUCT DETAIL
product name:British Wheels 24"Machining Metal Thickness:1.5mm
Carton size:105x105x42cmLow Anvil:6 Pieces (Diameter 2", 3", 4", 6", 8", 12"); Width: 2"
type:metal processingport:Qingdao or Shanghai Seaport
place of origin; place of origin:Zhejiang, ChinaFunction:Forms mild steel up to 1.5mm
Warranty:1 yearNet weight/GW:130KGS/150KGS
Packaging Details:Standard export plywood box or strong cartonSupply capacity:3000 pieces per month
After-sales service provided:No after-sales service, no overseas servicepayment terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal
Anvil:Diameter: 8"; Width: 2"Throat width:610mm
brand:Jack Sole
Product Description

Applications

An English wheel, also known as a turbine in the UK, is a metalworking tool that enables craftsmen to form composite (double curvature) curves from flat metals such as aluminium or steel.
The process of using English wheels is called wheeling. Its main advantage is the flexibility to produce different panels using the same machine. It is a forming machine that works by surface stretching, and is related to the panel beating process in function.

It is used where a small amount of composite curved panels is required; typically used in passenger car manufacturing, automotive restoration, space frame chassis racing, which comply with regulations requiring sheet metal panels similar to mass production vehicles, automotive prototypes and aircraft skin components. In low-volume sports car production, UK wheel production is highest, especially when easier-to-form aluminium alloys are used.

Model number
Workpiece thickness
Throat width
Roller (upper wheel)

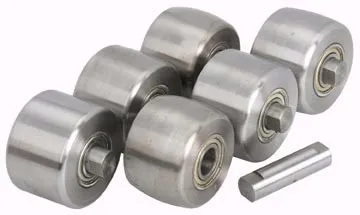

Anvil wheel (lower wheel)
EW075.508
0.75mm
508mm
3 Pieces (1", 2", 3" Diameter) Anvil Hammer Opening 4"
EW080.360
0.80mm
360mm
6" diameter x 1" wide
5 pieces (diameter 1/2", 1-1/2", 2-1/2", 5", 9" x w.1")
EW120.510
1.20mm
510mm
8" diameter x 2" wide
6 pieces (diameter 2", 3", 4", 6", 8", 12" x w. 2")
EW120.560
1.20mm
560mm
8" diameter x 2" wide
6 pieces (diameter 2", 3", 4", 6", 8", 12" x w. 2")
EW120.766
1.20mm
766mm
8" diameter x 2" wide
6 pieces (diameter 2", 3", 4", 6", 8", 12" x w. 2")
EW120.1000
1.20mm
1000mm
8" diameter x 2" wide
6 pieces (diameter 2", 3", 4", 6", 8", 12" x w. 2")
EW150.610
1.50mm
610mm
8" diameter x 2" wide
6 Pieces (2" Dia, 3", 4", 6", 8", 12" x 2" W)
EW150.686
1.50mm
686mm
8" x w.2" diameter
6 Pieces (2" Dia, 3", 4", 6", 8", 12" x 2" W)
EW150.686L
1.50mm
686mm
8" diameter x 2" wide
6 Pieces (2" Dia, 3", 4", 6", 8", 12" x 2" W)
EW150.686M
1.50mm
686mm
8" diameter x 2" wide
6 Pieces (2" Dia, 3", 4", 6", 8", 12" x 2" W)
EW150.686Z
1.50mm
686mm
8" diameter x 2" wide
6 Pieces (2" Dia, 3", 4", 6", 8", 12" x 2" W)
EW150.762
1.50mm
762mm
8" x w.2" diameter
6 Pieces (2" Dia, 3", 4", 6", 8", 12" x 2" W)
EW150.915
1.50mm
915mm
8" diameter x 2" wide
6 Pieces (2" Dia, 3", 4", 6", 8", 12" x 2" W)

main feature

1) Heavy-duty English grinding wheel is used for camber processing of sheet metal without heating and hammering.

2) Different arcs and curved surfaces can be produced according to the different forming wheels.

3) Includes heavy duty steel brackets with mounting holes and bottom anvil storage for easy and comfortable operation.

4) Rigid steel welded C-frame; both top and bottom anvils are hardened

5) Quick lever mechanism

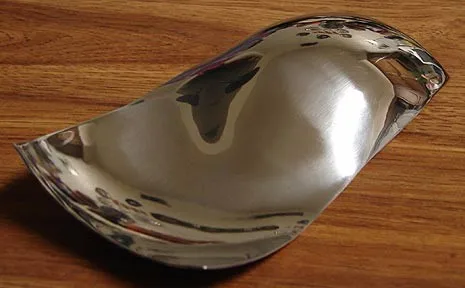

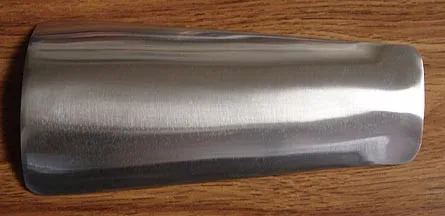

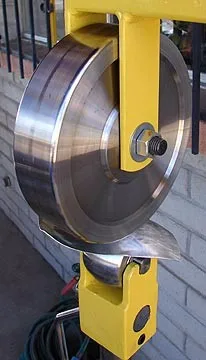

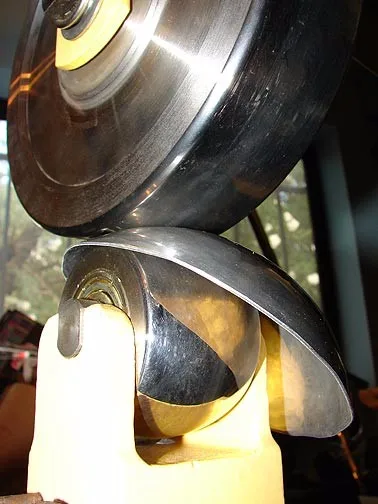

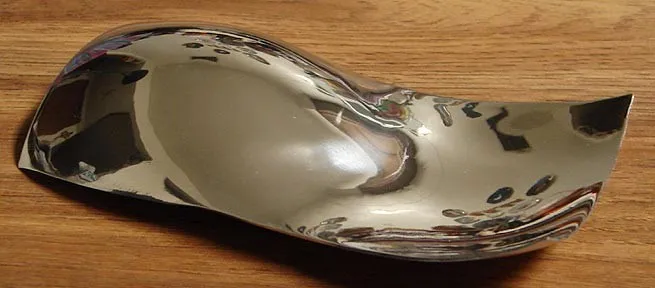

process images

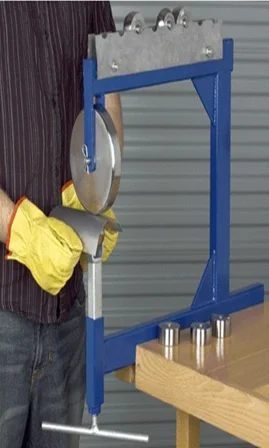

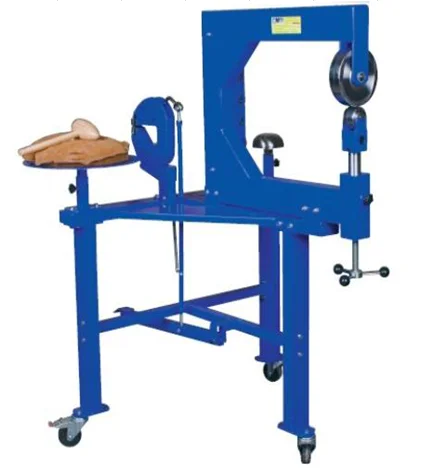

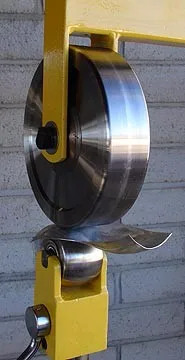

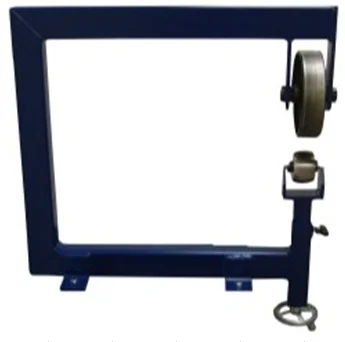

detailed image
Packaging and Delivery
Bale
size
105x105x42cm
weight
150kg

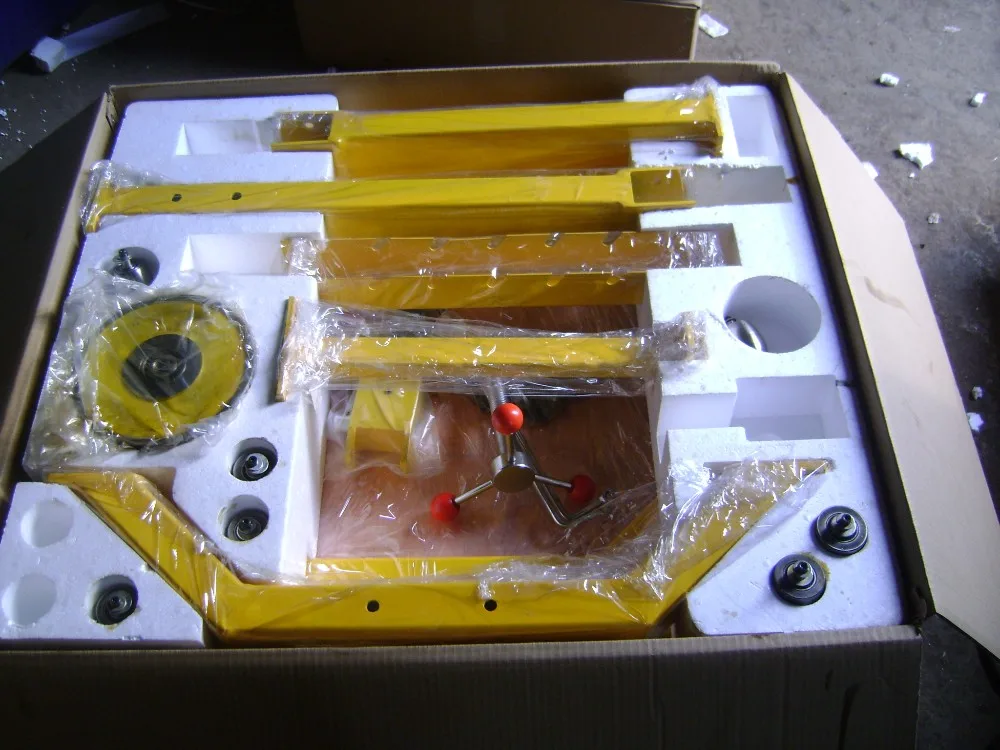

Packaging Details
Normal packing is CTN or wooden case (dimensions: 105x105x42cm). If exported to European countries, the wooden box will be fumigated. We can pack according to customers' special requirements.
