Manufacturers directly sell Na3V2(PO4)3 sodium ion battery cathode materials
- $20.00 / 10 - 99 grams
$17.00 / 100 - 499 grams
$15.00 / >=500 grams - 10 grams
- Hubei Energy Technology Co., Ltd.
- Hubei, China
- Mr
PRODUCT DETAIL

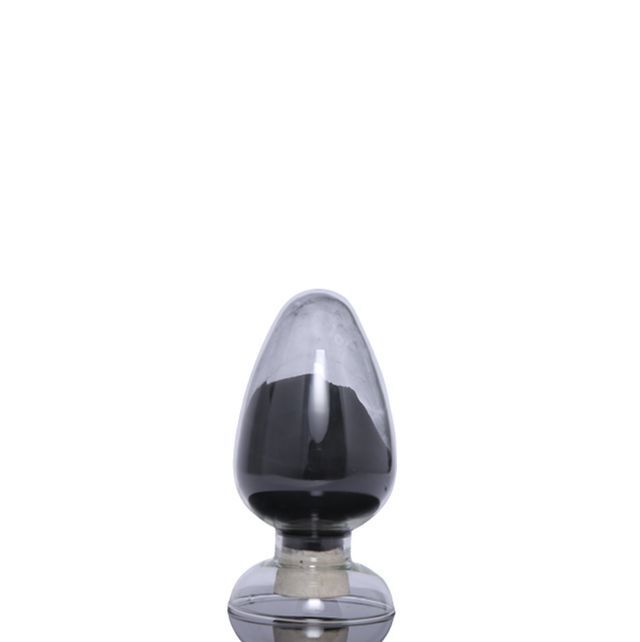

| Appearance: | Black powder, tasteless; | Port: | Shanghai Pudong Airport; |
| Application: | Industrial; | MF: | Na3V2(PO4)3; |
| Place of Origin: | wuhan; | CAS No.: | 149-44-0; |
| EINECS No.: | 205-739-4; | Purity: | 99.9%; |
| Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram; | Grade Standard: | Industrial Grade; |
| Supply Ability: | 100000 Pieces per Month; | Product Name: | sodium vanadium phosphate; |
| Other Names: | NVP; |
Products Show
Physical properties, phase analysis and electrochemical properties

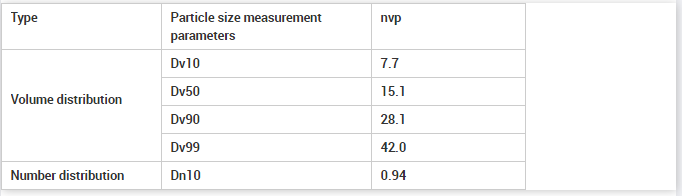

1. The morphology of the material is spherical, with D50 of 15 μ M

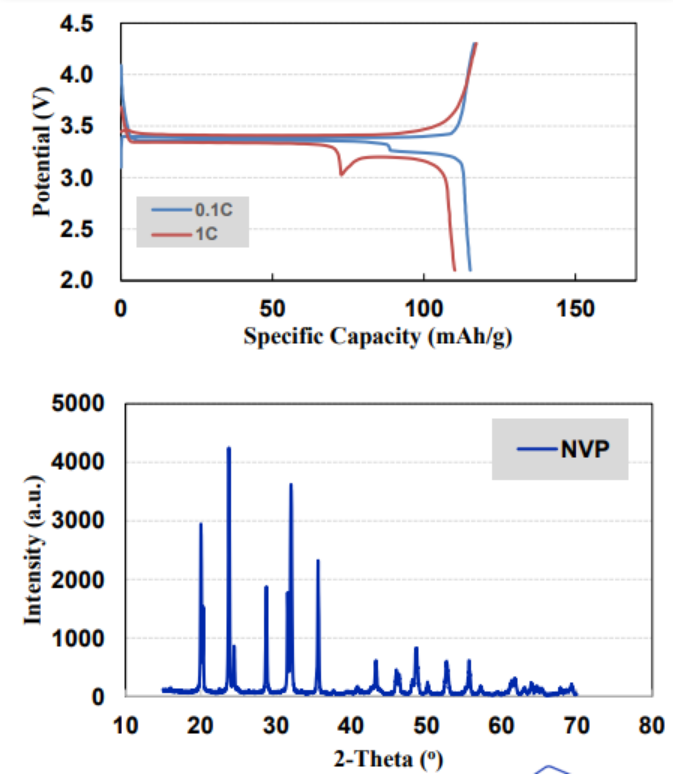

2. The first charge discharge capacity of the material is 117 / 115mah/g at 0.1C and 117 / 110mah/g at 1C. Combined with the
particle size of about 10 microns, the material coated with carbon has good conductivity
3. XRD results show that the phase is NVP
2. The first charge discharge capacity of the material is 117 / 115mah/g at 0.1C and 117 / 110mah/g at 1C. Combined with the
particle size of about 10 microns, the material coated with carbon has good conductivity
3. XRD results show that the phase is NVP

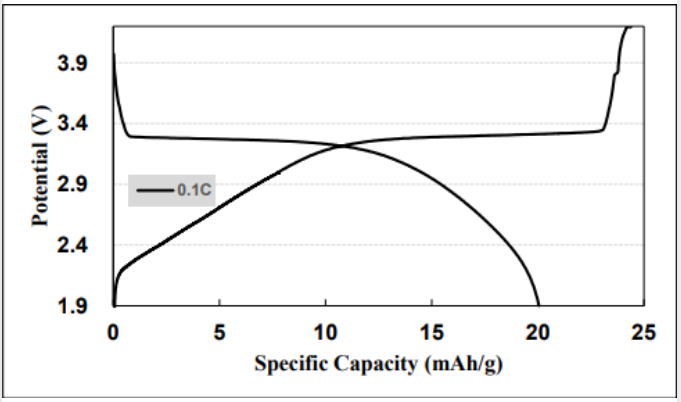

First effect and charge discharge curve
The average first effect of NVP stack cell is 80%, the charging capacity is about 23mah, the discharge capacity is about 20mah, and the discharge medium voltage is 3.232v

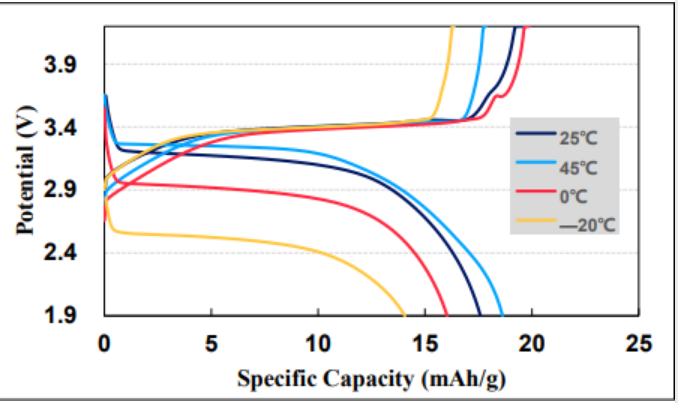

High and low temperature performance of all cell
The discharge capacity and energy of the material are the highest at 45 ℃, the high temperature performance is better, and the capacity retention rate at 20 ℃ is still 80%

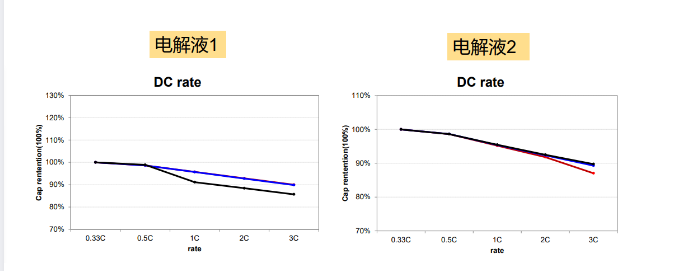

Rate performance
The discharge rate performance of the material is better in the two electrolyte systems, and the discharge rate capacity retention rate is about 90% at 3C
Cycle performance

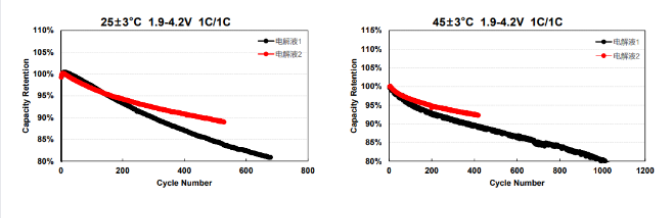

1. Using electrolyte 1, the cycle of negative electrode AC81, at room temperature can reach 1000 cycles at 700 cycles,45 ℃. The performance at high temperature is better, and the dynamic property of material at high temperature is better.
2. At present, the capacity retention of 528cycles is about 89%, and the capacity retention of 418 cycles cycles at 45 ℃ C is 92%. The cycle performance is due to electrolyte 1.
2. At present, the capacity retention of 528cycles is about 89%, and the capacity retention of 418 cycles cycles at 45 ℃ C is 92%. The cycle performance is due to electrolyte 1.
Company Profile
Transportation
FAQ
Q1: Are you trading company or manufacturer?
We are factory.
We are factory.
Q2 : Do you provide samples? is it free or extra?
Yes, we could offer the sample for free charge but do not pay the cost of freight.
Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q3 : Do you accept customization?
OEM can be acceptable.We can produce according to your indicators.
OEM can be acceptable.We can produce according to your indicators.
Q4 : How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock.
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock.
Q5: What is your payment terms?
T/T, Western Union, Paypal etc.
T/T, Western Union, Paypal etc.
