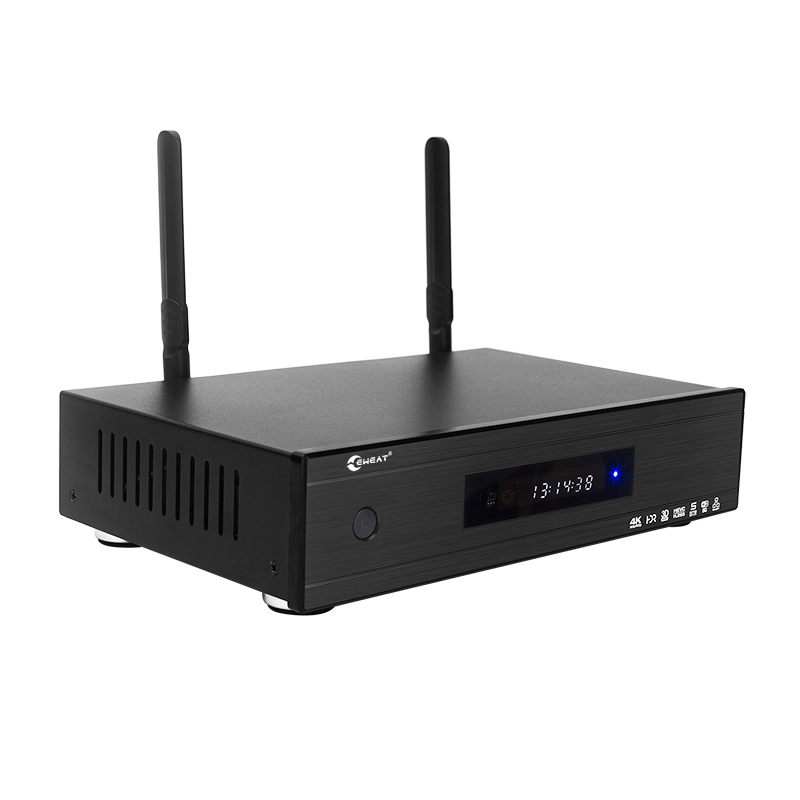

Media Player Eweat CONTROL4 HDD 4K HDR10+ Android 6.0 Smart TV Box 2G DDR4 16G eMMC RTD1295 DD Set Top Box aluminum HDR 10 bit

hardware

CPU

RTD1295 DD , ARM CA53X4, Mali-T820 MP3 L2 cache 1MB

Memory

2GB DDR4

storage

16GB memory card

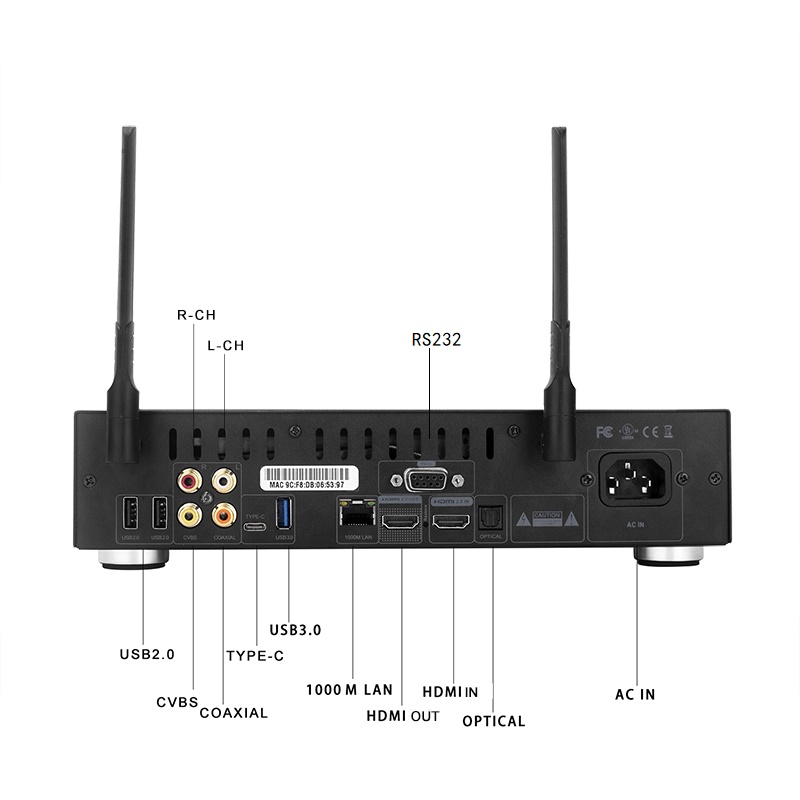

interface

AC input

AC 110~220V input

RS232

RS232

USB 3.0

USB 3.0 host

USB2.0

USB 2.0 host x 3

TYPE-C

TYPE-C host

wireless

802.11 a/b/g/n, 2.4G/5.8 dual-band WIFI

local area network

10/100M/1000 Ethernet

HDMI input

HDMI2.0 input with PVR function

HDMI output

HDMI2.0 output

Optical

light output

coaxial

coaxial output

composite audio/video

video output

lock port

lock media player

SATA3.0

Built-in 3.5"SATA

Android system

Android version

Android 6.0.1

File system

Fat16 / Fat32 / exFAT/NTFS/HFS+/Samba/ext2/3/4

menu language

English/German/Spanish/French/Italian/Netherlands/Polish/Russian/Korean/Japanese/Simplified Chinese/Traditional Chinese

System Upgrade

OTA upgrade or USB upgrade

video stream

HTTP, RTSP

media

video container

Ø MPEG1/2/4 primary (M1V, M2V, M4V)

Ø MPEG1/2 PS (M2P, MPG)

Ø MPEG2 transport stream (TS, TP, TRP, M2T, M2TS, MTS)

Ø VOB

Ø AVI, ASF, WMV

Ø Matroska (MKV)

Ø MOV (H.264), MP4, RMP4

Ø IFO

Ø DVD-ISO, BD-ISO

Ø Mini BD, BD-9, BD25, RBD, D5, D9, DVD, CD

o FLV

Ø CHF/(.CHF) *

Ø 3GP/.3gp

Ø AVS/(.avs)

Ø 3D Blu-ray (DISC/ISO) or single file (*.ts/*.m2ts)

video decoding

Ø 4KP60 10bit/HDR/HDMI 2.0 Tx&Rx/H264 Encoder

Ø VP9 4KP60

Ø H.265 /HEVC 4K*2K([email protected] High Tier)

Ø MPEG1, VCD1.0/2.0, SVCD (up to 1920*1080@30P/60I or 1280*720@60P)

Ø HD MPEG2 MP/HL, ISO, IFO, VOB, TS (up to 1920*1080@30P/60I or 1280*720@60P)

Ø HD MPEG4 SP/ASP, Xvid (up to 1920*1080@30P/60I or 1280*720@60P)

Ø H.263(Profile0/3@L70 1080@60P)

Ø H.264 BP,MP,HP@ L4.2,H.264 MVC SHP (Maximum 720@30P)

Ø WMV9, VC-1 AP@L3 (up to 1920*1080@30P/60I or 1280*720@60P)

Ø DivX3/4/5 (up to 1920*1080@30P/60I or 1280*720@60P)

Ø XVID SD/HD (up to 1920*1080@30P/60I or 1280*720@60P)

Ø RM/RMVB 8/9/10 (up to 1280*720@30P)

Ø AVS: Jizhum profile @ level 2.0/ 4.0/ 4.2/ 6.0/ 6.2

audio container

Ø aac, mp4, m4a

Ø MPEG audio (mp1, mp2, mp3, mpa)

o wav

Ø wma, asf

o Auger

o ape

o flac

Ø amr,3ga

Ø ra, rm, rmvb, ram

audio decoding

Ø MPEGⅠLayer 1/2/3(2-CH) and MPEGⅡ1/2(Multi-Channel)

Ø LPCM, ADPCM, FLAC, AAC, ALAC, AMR, WAV, WMA, WMA pro, OGG, AMR, APE

Ø DTS digital + stereo

Ø Digital AC3

Ø number +

Ø Digital True HD

Ø RA-cook/RA-lossless

Image Format

JPEG, BMP, PNG, GIF, TIFF, Webp (Android)

subtitle format

Ø MicroDVD [.sub],

Ø SubRip [.srt],

Ø Substation Alpha [.ssa],

o Sami [.smi]

Ø VobSub[.idx+.sub]

Ø Advance SubStation Alpha[.ass]

subtitle language

Ø Standard version: Simplified Chinese, Traditional Chinese, Turkish, Greek, Hebrew, Czech, Southeast European, Central European, Cyrillic, Western, UTF8

menu language

Ø Standard version: Simplified Chinese, Traditional Chinese, English, Russian, Spanish, Czech, Dutch, Italian, French, German, Turkish, Hebrew

HDD format

Ø Support FAT32, NTFS, EXT3, EXT4, HFS

case

Material and process

Aluminum shell

color

Black

unit size

275*180*68MM

unit weight

2.5 kg

Accessories

Infrared remote control

×1 (optional: 2.4G air mouse)

HDMI cable

×1

power cable

×1

Warranty Card

×1

Fast Installation guide

×1

others

certified

RoHS, CE, FCC

Operating temperature

0~50℃

storage humidity

30%~70%

Storage temperature

overall power consumption

<5W

Standby power consumption

<0.02W

Number / Box

5pcs
