MoreSense MS58-2020D68U4 Lowest Power Consumption Motion Sensor 40uA 68 uA Support Battery Application 5.8Ghz Microwave Motion Sensor
- $0.99 / >=10 pieces
- 10 pieces
- Shenzhen Moresense Technology Co., Ltd.
- Guangdong, China
- Ms Jennifer Huang
PRODUCT DETAIL
| place of origin; place of origin: | Guangdong, China | port: | Shenzhen |
| Packaging Details: | Plastic boxes | Detection angle: | 120 degrees |
| usage: | Smart Home IoT Devices | output: | 3.3V |
| payment terms: | wire transfer | describe: | radar sensor |
| Types of: | Motion and Position Sensors | Package preview: | |
| Supply capacity: | 5,000,000 pieces per month | color: | can choose colour |
| theory: | Doppler principle | model: | T-MS58-2020D68U4 |
| Material: | circuit board | brand: | feel more |
| sensor type: | Support light sensor | Installation height: | 3m recommended |
Product Description
Lowest Power Radar Sensor
40uA&68uA

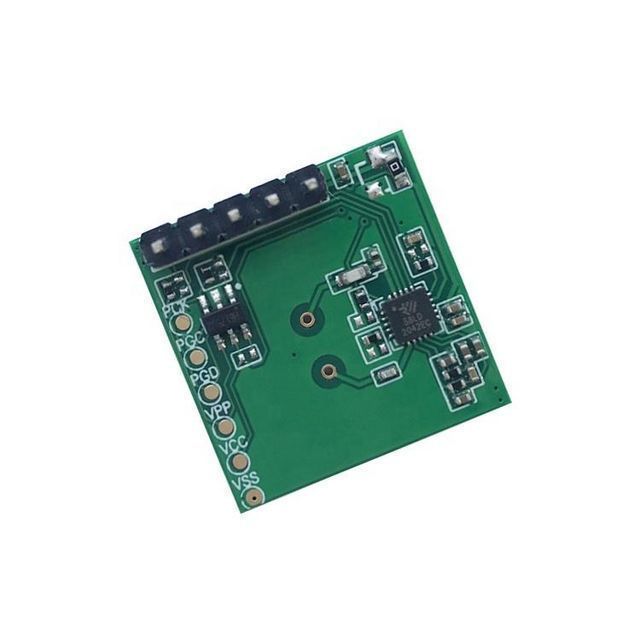

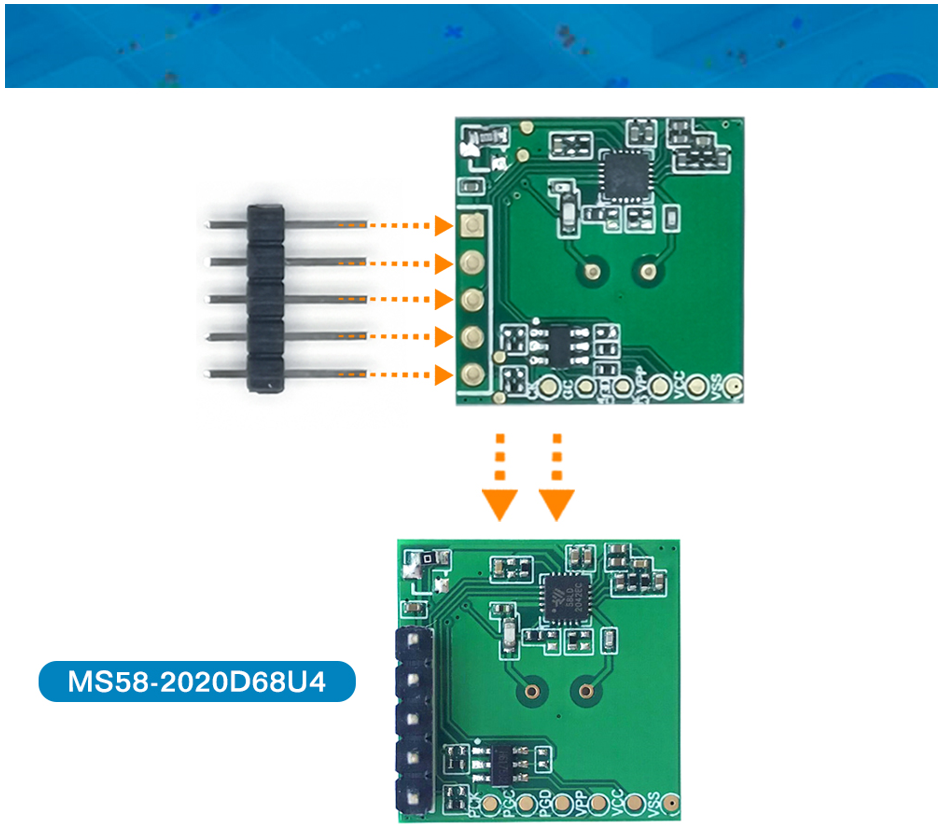

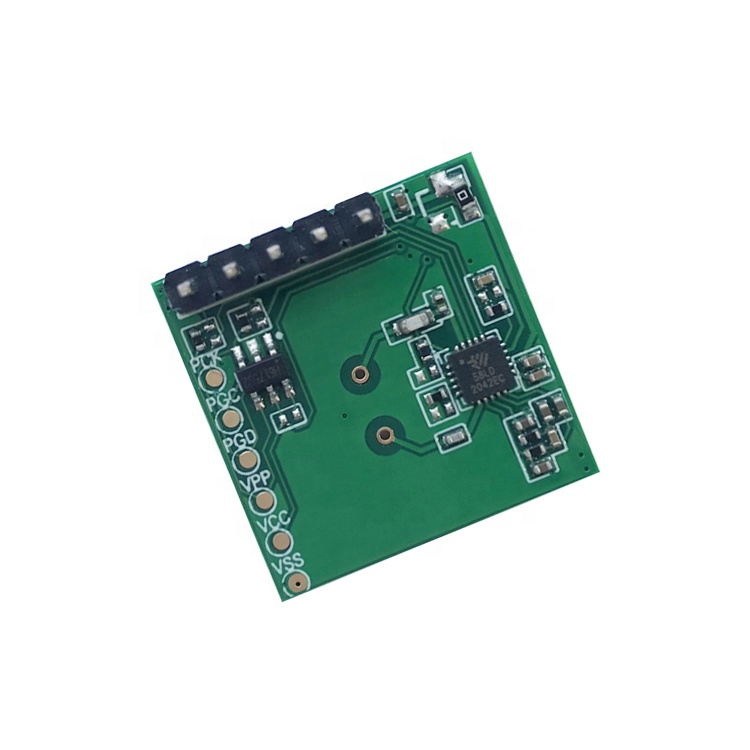

Product model name: MS58-2020D68U4
module parameters
Types of | scope | value |
RF parameters | Certification standards | FCC/CE/SRRC/RoHS |
Frequency Range | 5.725GHz-5.875GHz | |
transmit power | -4dBm | |

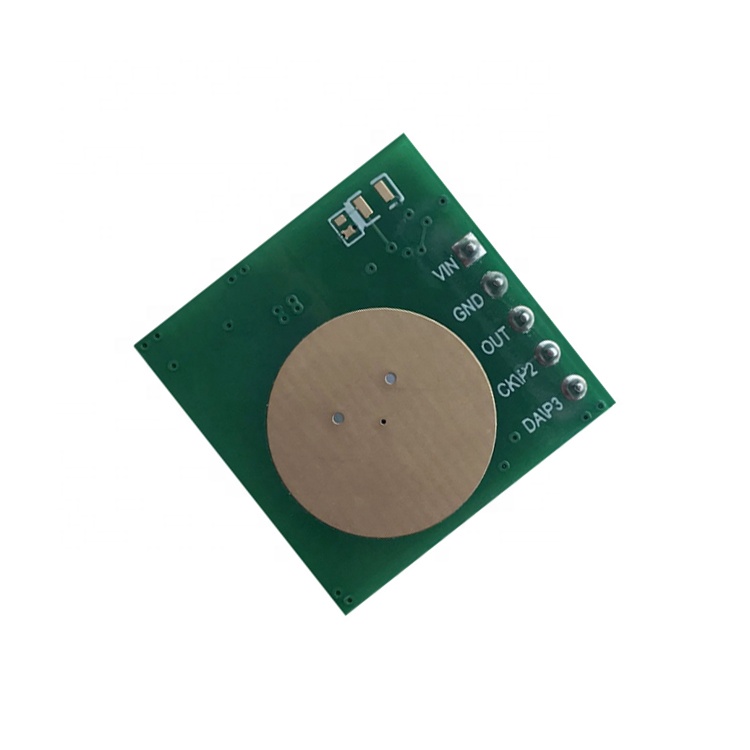

antenna | Built-in; planar antenna | |

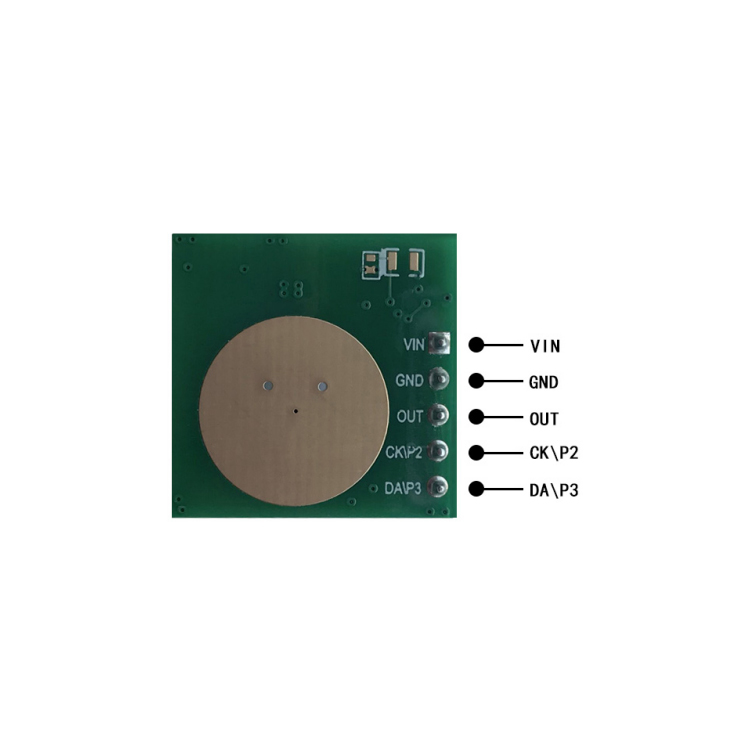

hardware parameters | Data interface | General purpose input and output interface/IIC |
Operating Voltage | 2.7V-4.8V | |
Working current | 23mA (typ.) | |
Operating temperature | -40°C- 85°C | |
Storage temperature | -40℃- 150℃ | |
humidity | <85% | |
size | 20 mm x 20 mm | |

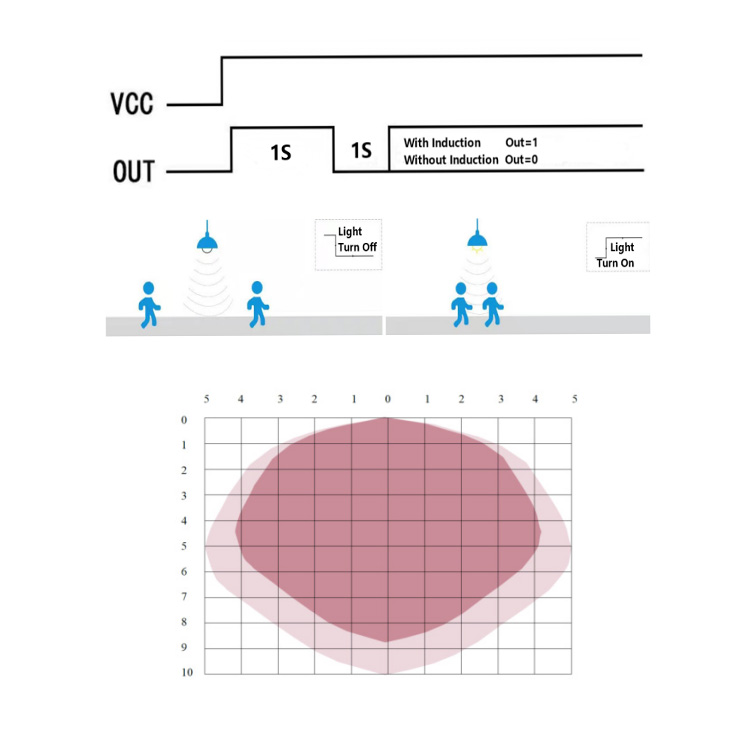

POST time | 2 seconds | |
Sense output level | 3.3V | |
Mute output level | 0V | |
Sensing output time | 2 seconds | |
Sensing distance | about 6m | |
Customize the maximum sensing distance | 10 m | |
maximum. Suspension height sensing radius 3m | 5 meters | |
Set parameter method | I2C or IO |
feature:
A sort of. Working frequency band: 5.8G ISM frequency band;
b. Microwave sensor based on Doppler effect;
c. Sensing distance and delay time can be flexibly adjusted according to different applications;
d. Using mature CMOS technology to achieve fully integrated ultra-high cost performance;
e. Chip built-in LDO, support wide voltage power supply;
F. SoC signal processor, which can directly output sensing control signals from a single chip;
g. Ultra-low power consumption, the current of the whole machine is less than 70uA, and can be powered by batteries
H. Support standard IIC interface, can be interconnected with other main controllers or sensors;
A generation. Meet FCC, RED, CE, ETL and other certification standards;
b. Microwave sensor based on Doppler effect;
c. Sensing distance and delay time can be flexibly adjusted according to different applications;
d. Using mature CMOS technology to achieve fully integrated ultra-high cost performance;
e. Chip built-in LDO, support wide voltage power supply;
F. SoC signal processor, which can directly output sensing control signals from a single chip;
g. Ultra-low power consumption, the current of the whole machine is less than 70uA, and can be powered by batteries
H. Support standard IIC interface, can be interconnected with other main controllers or sensors;
A generation. Meet FCC, RED, CE, ETL and other certification standards;

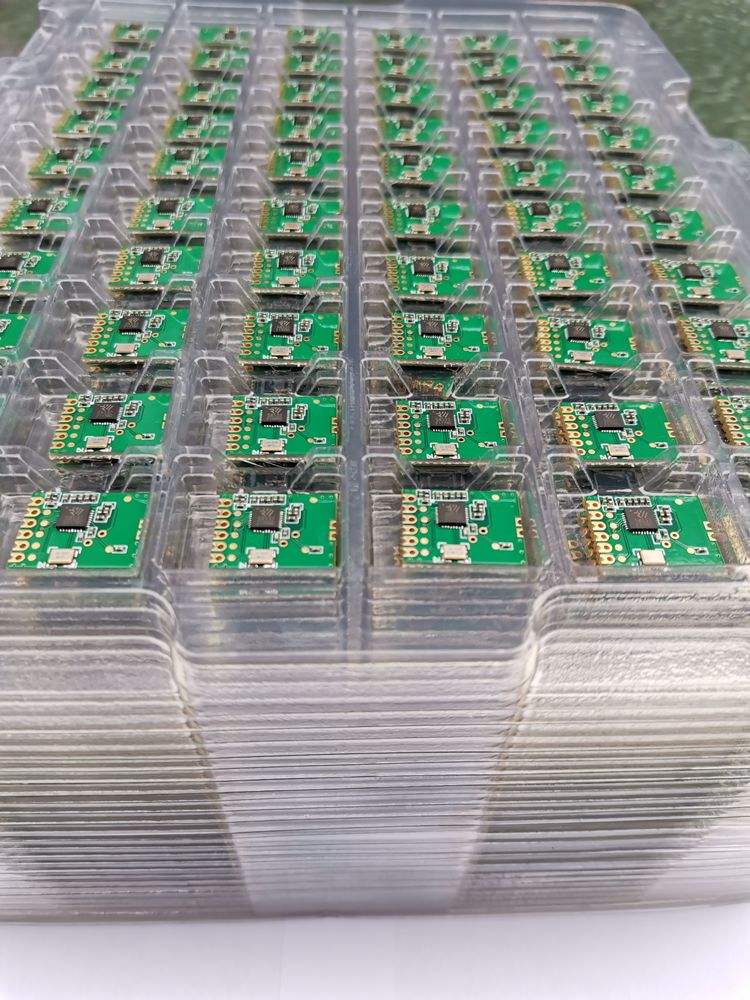

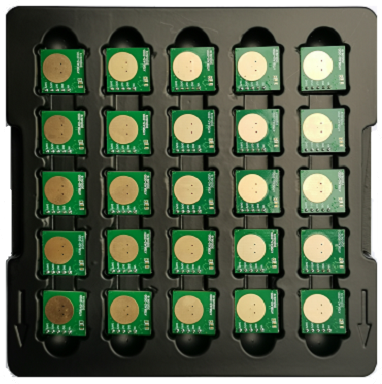

Product packaging
Packaging customization: blister boxor according to customer requirements
customized
