Mountain Peak Amazon Hot Amazon 108 Pieces Self Drilling Drywall Screw Anchor Combo Kit
- $1.50 / >=1000 pieces
- 1000 pieces
- Dongyang Shanfeng Tool Co., Ltd.
- Zhejiang, China
- Ms barbara he
Warranty: | 3 years | port: | Ningbo |
Anchor type: | hammer driven anchor | Customization support: | OEM production |
Packaging Details: | Mountain Peak Amazon Hot Amazon 108 Pieces Self Drilling Drywall Screw Anchor Combo Kit | payment terms: | Western Union, T/T |
application: | general industry | Certification: | Dries |
measuring system: | imperial (inches) | Supply capacity: | 10000 boxes per week |

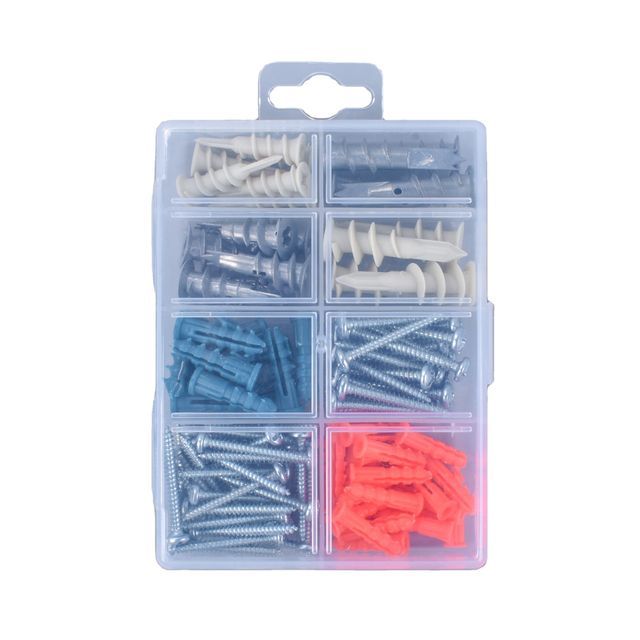

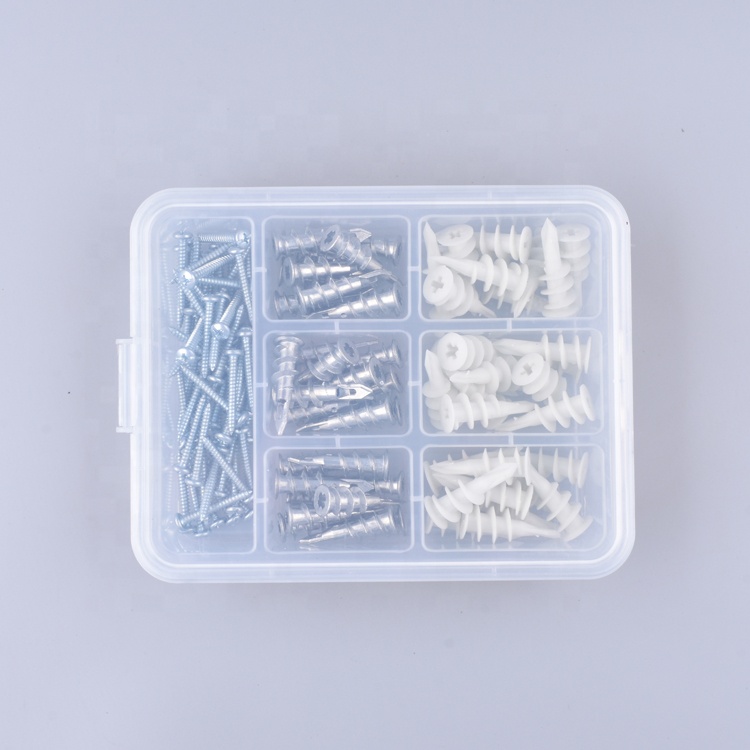

Mountain Peak Amazon Hot Amazon 108 Pieces Self Drilling Drywall Screw Anchor Combo Kit

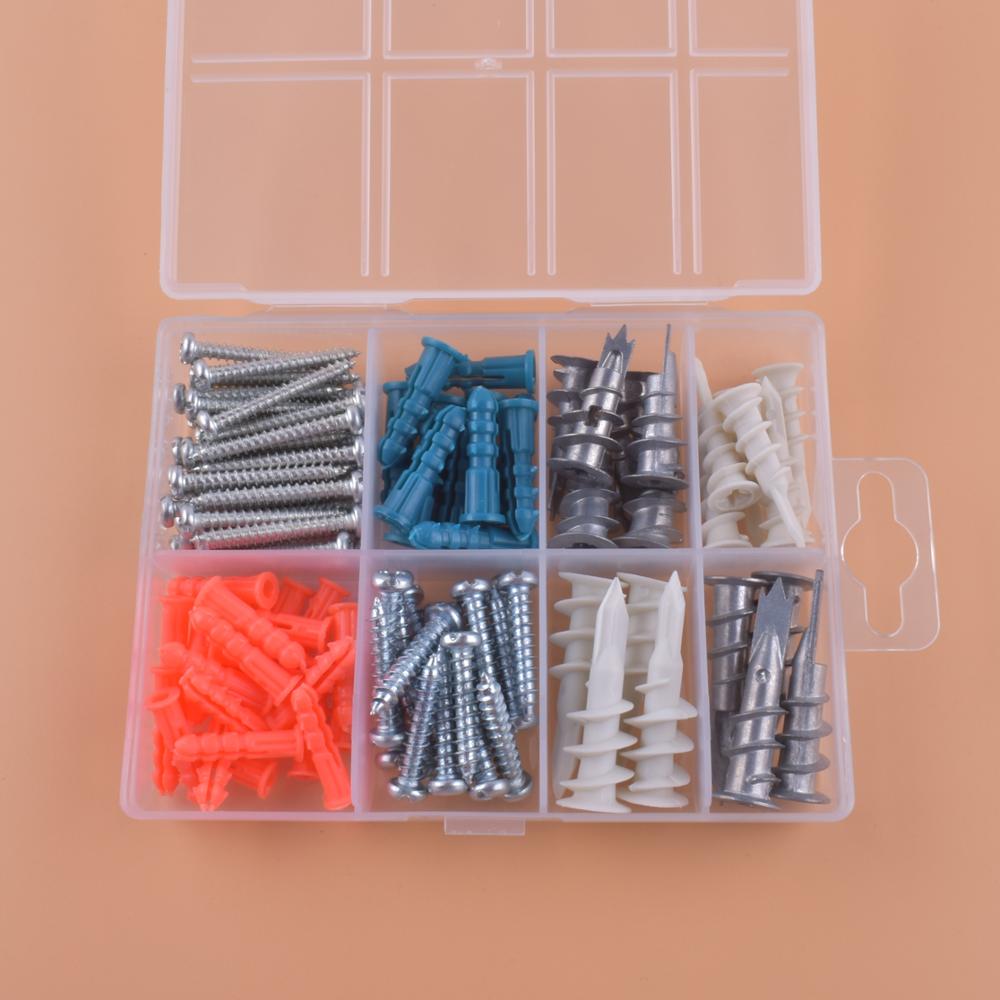

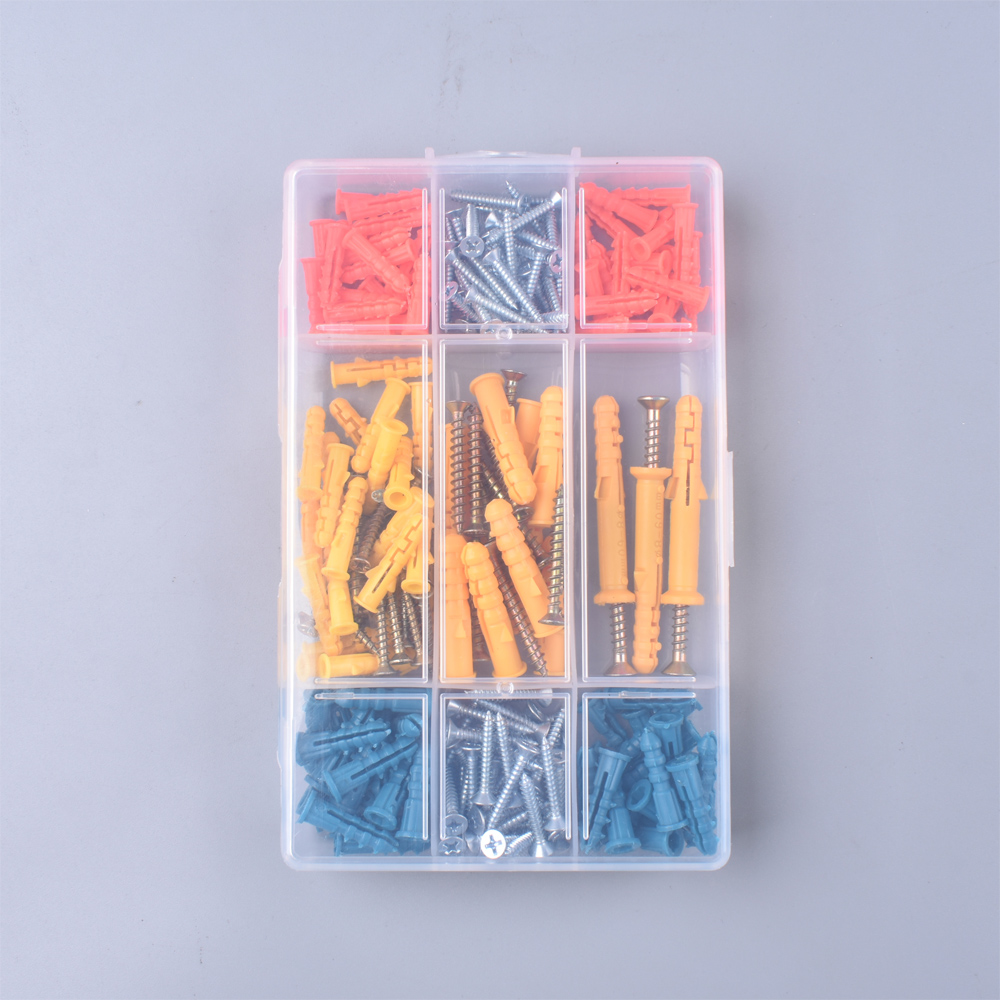

What's inside:
Orange Wall Plug 22 items
Blue Wall Plug 12 items
Nylon anchor 10*35 6pcs
Nylon anchor 13*42 4 pcs
Zinc alloy anchor 13*32 6 pieces
Zinc alloy anchor 13*42 4 pieces
Pan head screws 4*32 34 pieces
Pan head screws 5*25 20 pieces

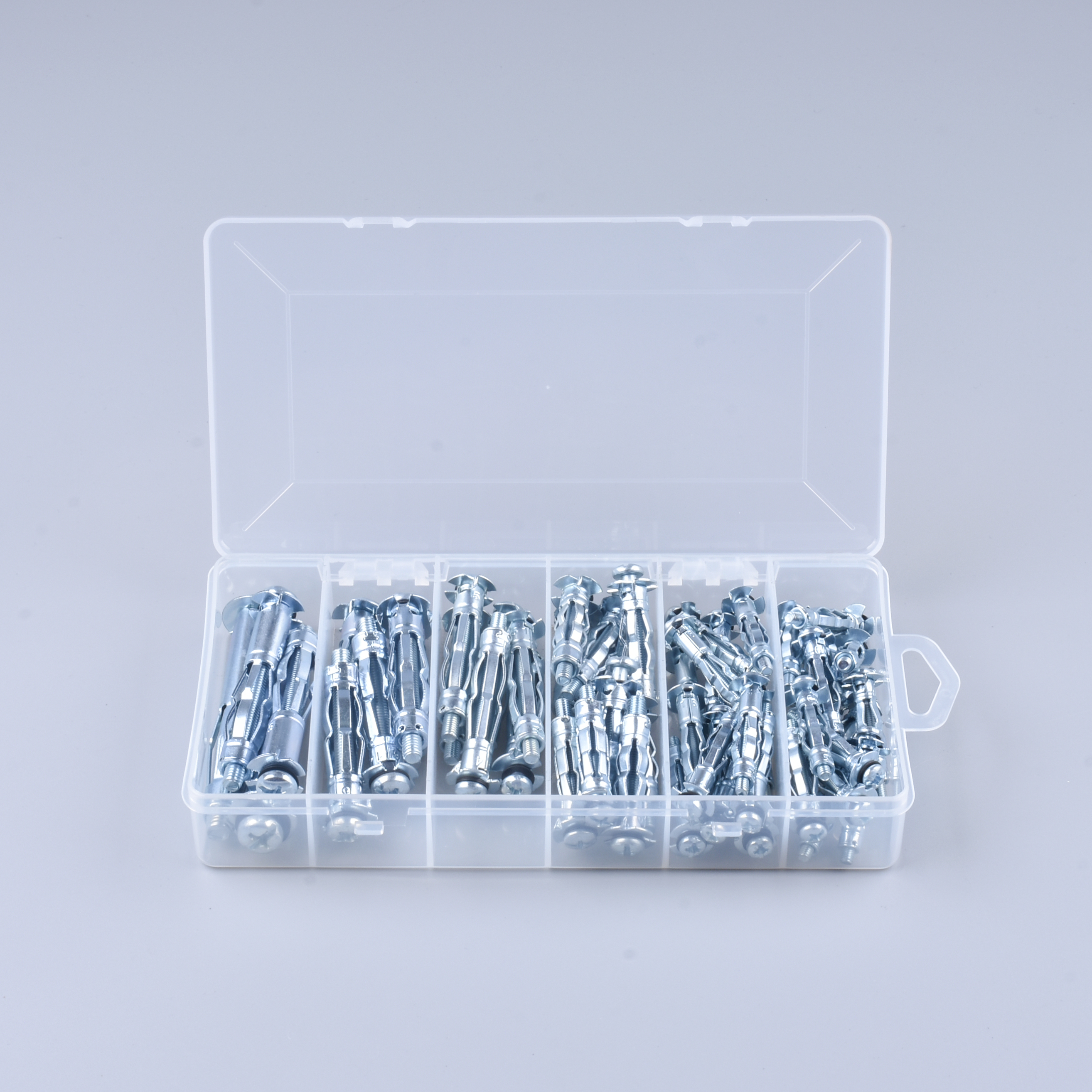

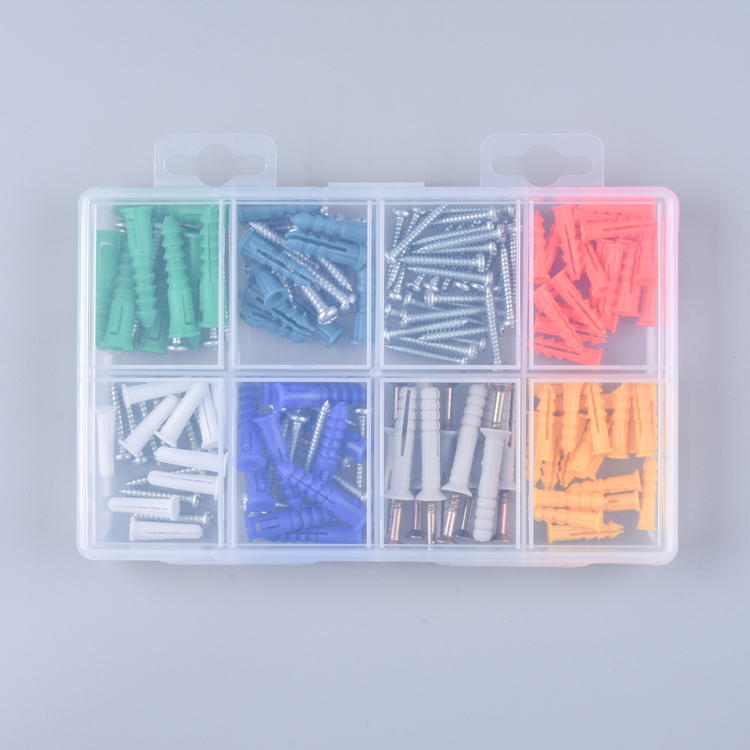

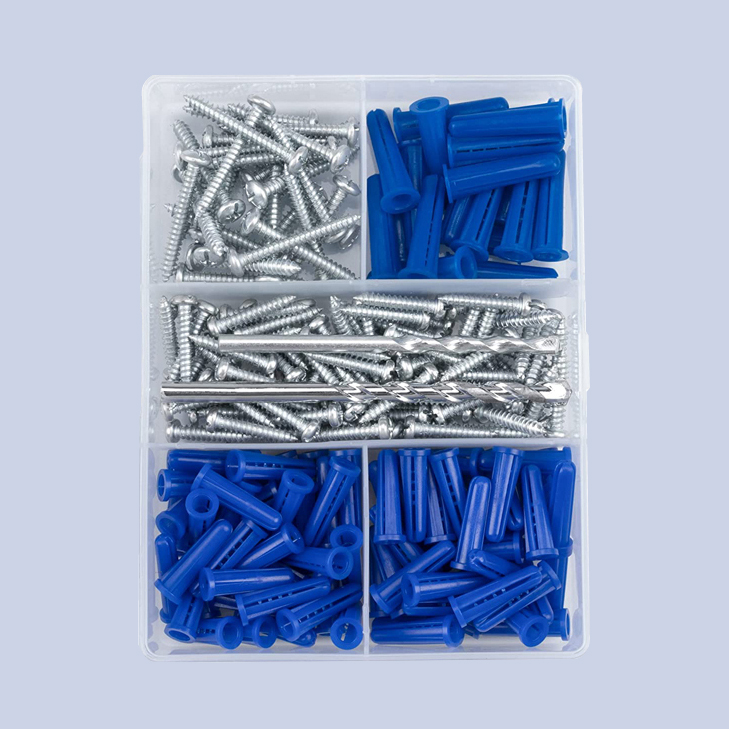

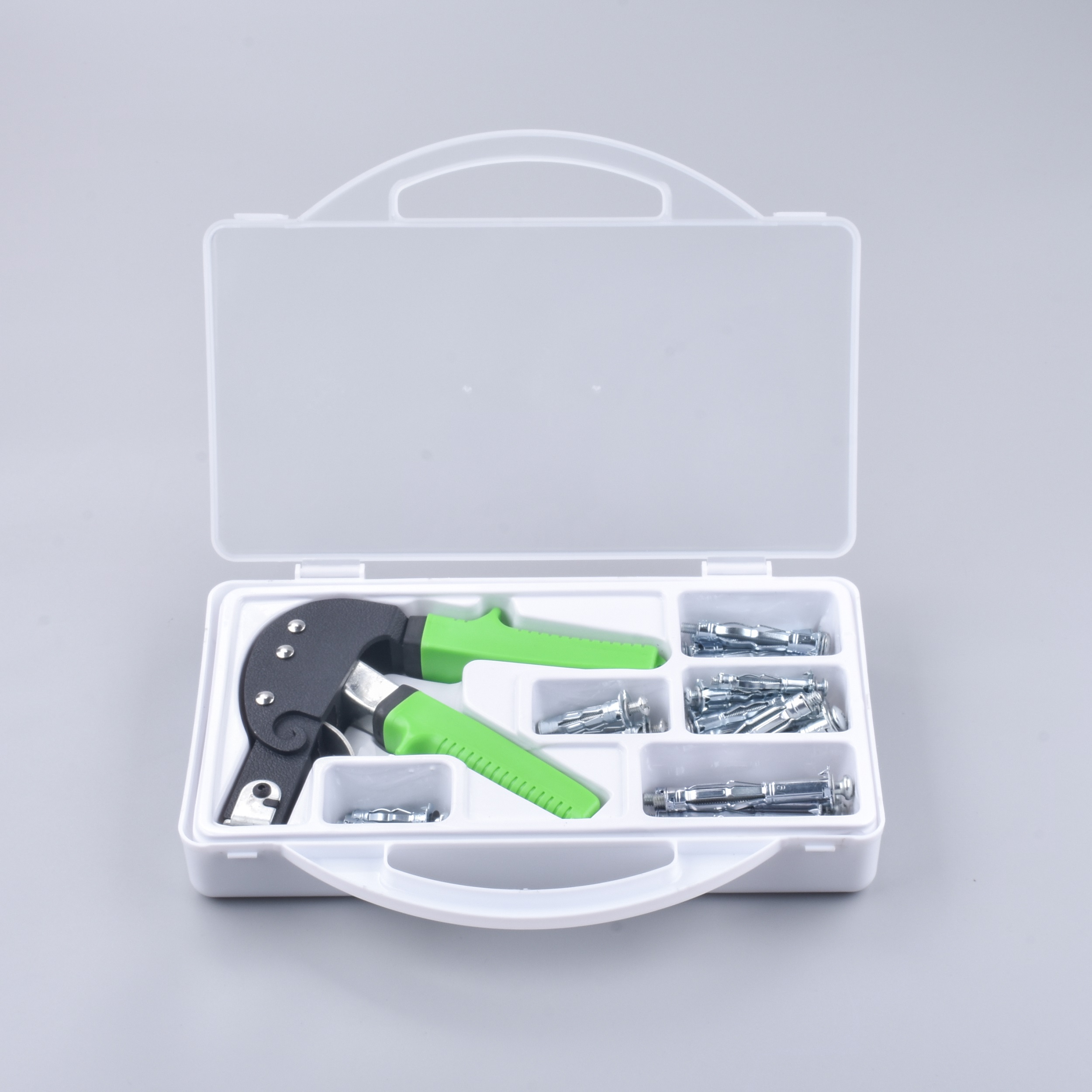

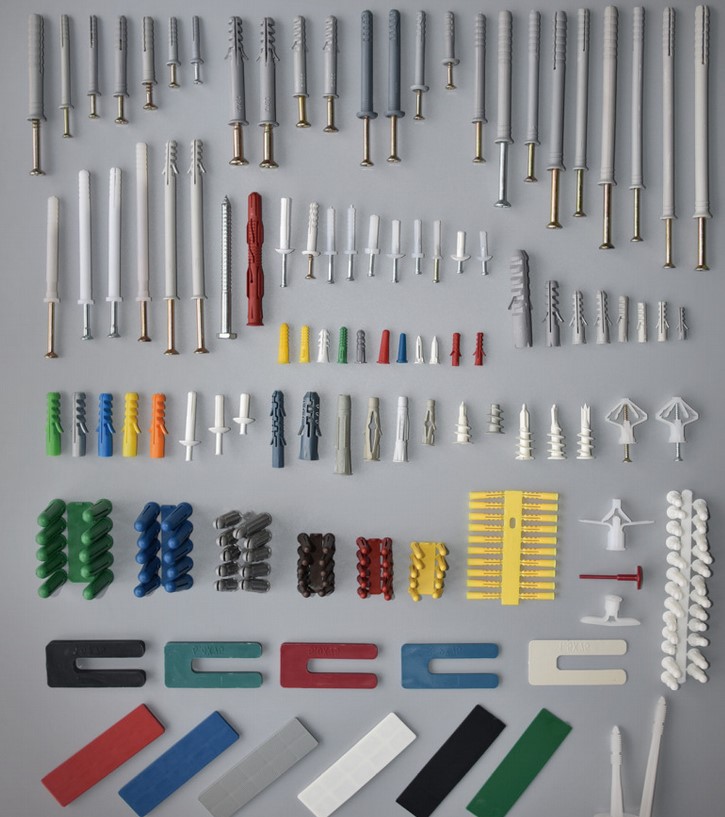

More anchor suggestions:
suggestion:
More streamers:

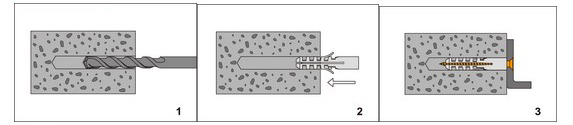

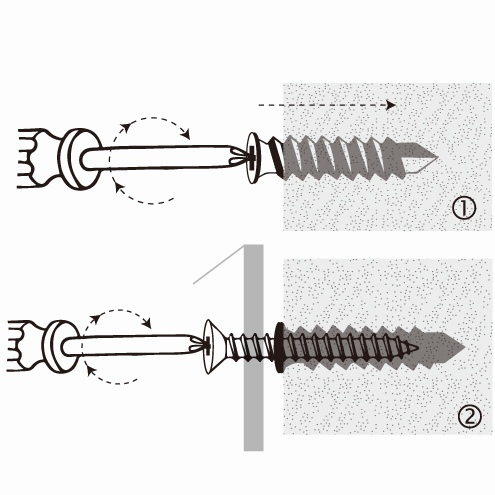

How to use anchors:
plasterboard anchor
1. Drill the hole 2. Put the anchor into the hole 3. Screw in
How to choose the right screw:
(length×length)mm | drilling | length | Screw diameter | minute. screw length | Minimum drilling depth |
4*20 | 4 | 20 | 2.0-3.0 | tfix+20+1×screw diameter | 30 |
5*25 | 5 | 25 | 2.6-4.0 | tfix+25+1×screw diameter | 35 |
6*30 | 6 | 30 | 3.5-5.0 | tfix+30+1×screw diameter | 40 |
7*35 | 7 | 35 | 4.0-5.5 | tfix+35+1×screw diameter | 45 |
8*40 | 8 | 40 | 4.5-6.0 | tfix+40+1×screw diameter | 50 |
10*50 | 10 | 50 | 6.0-8.0 | tfix+50+1×screw diameter | 65 |
12*60 | 12 | 60 | 8.0-10.0 | tfix+60+1×screw diameter | 80 |
14*75 | 14 | 75 | 10.0-12.0 | tfix+75+1×screw diameter | 95 |
16*80 | 16 | 80 | 12.0-14.0 | tfix+80+1×screw diameter | 100 |
notes:
1. Due to the different screw structures, the anchoring capacity of the nylon expansion tube assembled with wood screws is 20%-30% higher than that of self-tapping screws or fiberboard screws with the same screw specifications.
2. In order to ensure a reliable installation effect, please ensure that the length of the supporting screw can penetrate the expansion tube, and at least one screw diameter protrudes.
3. Corners and other similar occasions should ensure that:
(1) The distance between the installation position of the nylon expansion strip and the corner should be at least greater than the expansion length (L).
(2) The direction of expansion (that is, the direction of expansion) should be parallel to the corner edge.
4. This product is not suitable for places that continuously bear a single axial tensile load (such as vertical suspension installation parts). It should be at least 10°.
capacity:
thing | 6*30 | 8*40 | 10*50 |
Screw diameter | 5 | 6 | 8 |
Safe load (KN) Concrete≥C25 |
0.5 | 0.8 | 1.4 |
notes:
1. The data in the table are only applicable to wood screws with a given thread diameter. If wood screws with a smaller thread size or fiberboard screws with the same thread size are used, full consideration should be given to the reduction of the safety load.
2. 1 kg ≈ 100 kg
